Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Front Of Engine Compartment

G00450177

Courtesy of CHRYSLER LLC

Fig 2: Left Front Of Engine Compartment

G00450178

Courtesy of CHRYSLER LLC

Fig 3: Left Front Of Engine Compartment

G00450179

Courtesy of CHRYSLER LLC

Fig 4: Right Front Of Engine Compartment

G00450180

Courtesy of CHRYSLER LLC

Fig 5: Right Front Of Engine Compartment

G00450181

Courtesy of CHRYSLER LLC

Fig 6: Right Side Of Engine Compartment

G00450182

Courtesy of CHRYSLER LLC

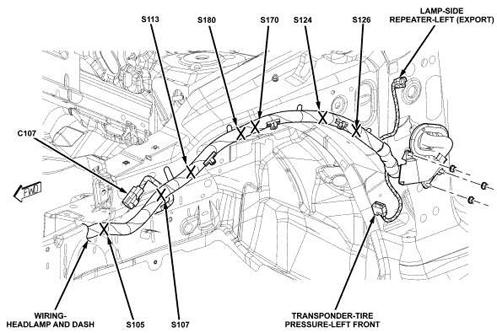

Fig 7: Left Side Of Engine Compartment

G00457349

Courtesy of CHRYSLER LLC

Fig 8: Left Front Of Engine Compartment

G00450185

Courtesy of CHRYSLER LLC

Fig 9: Left Rear Of Engine Compartment (2.4L)

G00457350

Courtesy of CHRYSLER LLC

Fig 10: Left Rear Of Engine Compartment (3.5L)

G00457351

Courtesy of CHRYSLER LLC

Fig 11: Left Side Of Engine (2.7L)

G00450188

Courtesy of CHRYSLER LLC

Fig 12: Top Of Engine (2.7L)

G00450189

Courtesy of CHRYSLER LLC

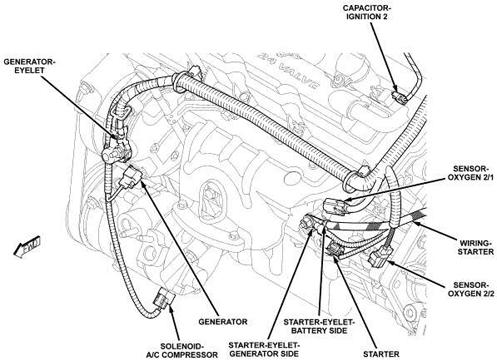

Fig 13: Left Side Of Engine (2.7L)

G00457352

Courtesy of CHRYSLER LLC

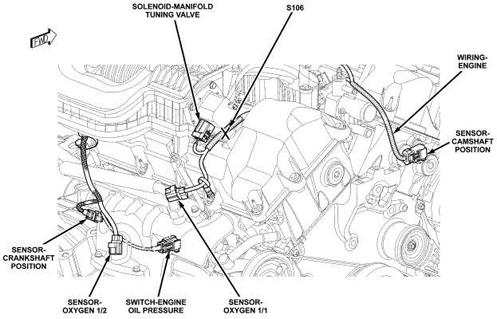

Fig 14: Right Front Of Engine (2.7L)

G00457354

Courtesy of CHRYSLER LLC

Fig 15: Left Side Of Engine (3.5L)

G00450192

Courtesy of CHRYSLER LLC

Fig 16: Top Of Engine (3.5L)

G00450193

Courtesy of CHRYSLER LLC

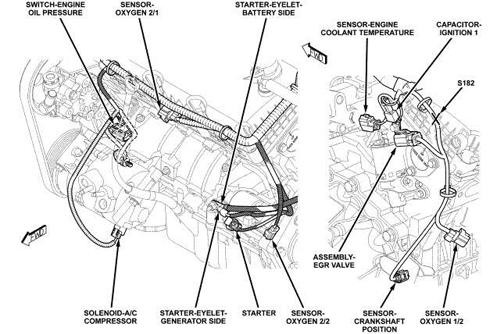

Fig 17: Left Front & Right Rear Of Engine (3.5L)

G00457355

Courtesy of CHRYSLER LLC

Fig 18: Front Of Engine (3.5L)

G00450195

Courtesy of CHRYSLER LLC

Fig 19: Left Side Of Manual Transmission

G00450196

Courtesy of CHRYSLER LLC

Fig 20: Left Side Of Dash

G00450197

Courtesy of CHRYSLER LLC

Fig 21: Left Side Of Dash

G00457356

Courtesy of CHRYSLER LLC

Fig 22: Right Side Of Dash

G00450199

Courtesy of CHRYSLER LLC

Fig 23: Left Side Of Dash

G00450200

Courtesy of CHRYSLER LLC

Fig 24: HVAC Unit

G00450201

Courtesy of CHRYSLER LLC

Fig 25: Steering Wheel

G00450202

Courtesy of CHRYSLER LLC

Fig 26: Left/Right End Of Dash

G00450203

Courtesy of CHRYSLER LLC

Fig 27: Under Right Side Of Dash

G00450204

Courtesy of CHRYSLER LLC

Fig 28: Front Center Of Roof & Right "A" Pillar (Except Convertible)

G00450205

Courtesy of CHRYSLER LLC

Fig 29: Center Console

G00450207

Courtesy of CHRYSLER LLC

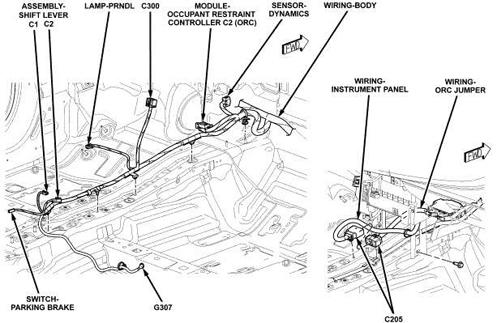

Fig 30: Under Center Console

G00457357

Courtesy of CHRYSLER LLC

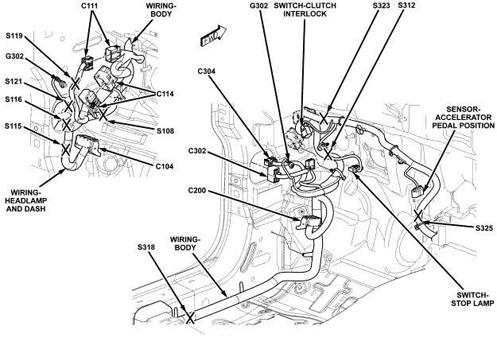

Fig 31: Left Kick Panel

G00458078

Courtesy of CHRYSLER LLC

Fig 32: Right Kick Panel

G00450210

Courtesy of CHRYSLER LLC

Fig 33: Left "B" Pillar (Except Convertible)

G00450211

Courtesy of CHRYSLER LLC

Fig 34: Right "B" Pillar (Except Convertible)

G00450212

Courtesy of CHRYSLER LLC

Fig 35: Left Front Door (Except Convertible) (Right Similar)

G00450213

Courtesy of CHRYSLER LLC

Fig 36: Right Rear Door (Except Convertible) (Left Similar)

G00450214

Courtesy of CHRYSLER LLC

Fig 37: Fuel Tank & Left Rear Quarterpanel

G00450215

Courtesy of CHRYSLER LLC

Fig 38: Right Rear Quarterpanel (Except Convertible)

G00450216

Courtesy of CHRYSLER LLC

Fig 39: Left "C" Pillar (Right Similar) (Except Convertible)

G00450217

Courtesy of CHRYSLER LLC

Fig 40: Left Side Of Trunk (Except Convertible)

G00450218

Courtesy of CHRYSLER LLC

Fig 41: Left Rear Underbody

G00450219

Courtesy of CHRYSLER LLC

Fig 42: Right Side Of Trunk (Except Convertible)

G00450220

Courtesy of CHRYSLER LLC

Fig 43: Right Rear Underbody

G00450221

Courtesy of CHRYSLER LLC

Fig 44: Decklid

G00450222

Courtesy of CHRYSLER LLC

Fig 45: Rear Fascia

G00450223

Courtesy of CHRYSLER LLC

Fig 46: Left Side Of Engine (2.4L)

G00450183

Courtesy of CHRYSLER LLC

Fig 47: Top Of Engine (2.4L)

G00450206

Courtesy of CHRYSLER LLC

Fig 48: Engine (2.4L)

G00450227

Courtesy of CHRYSLER LLC

Fig 49: Left Side Of Engine Compartment

G00450225

Courtesy of CHRYSLER LLC

Fig 50: Relay Block

G00450226

Courtesy of CHRYSLER LLC

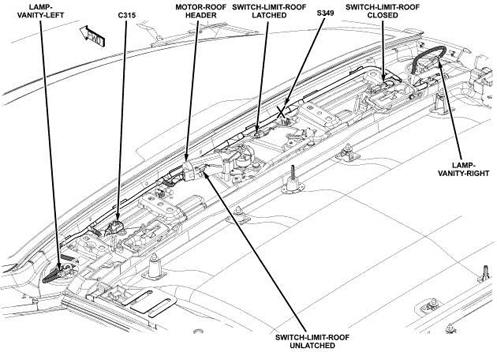

Fig 51: Front Header (Convertible)

G00458079

Courtesy of CHRYSLER LLC

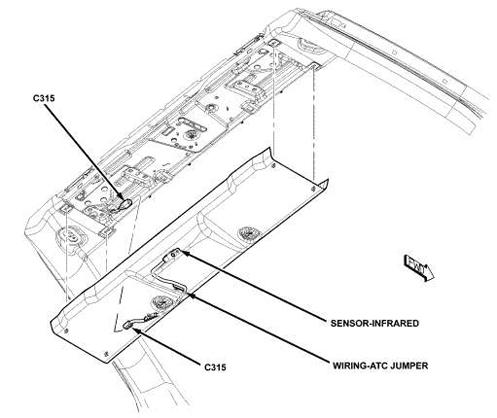

Fig 52: Front Header (Convertible)

G00458080

Courtesy of CHRYSLER LLC

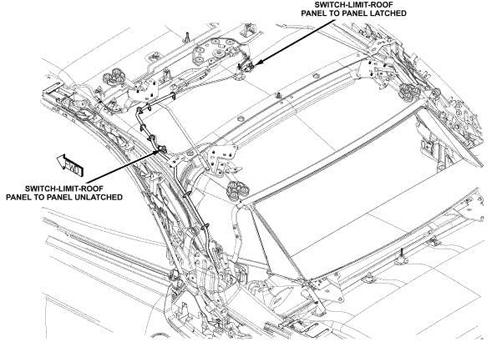

Fig 53: Convertible Top

G00458081

Courtesy of CHRYSLER LLC

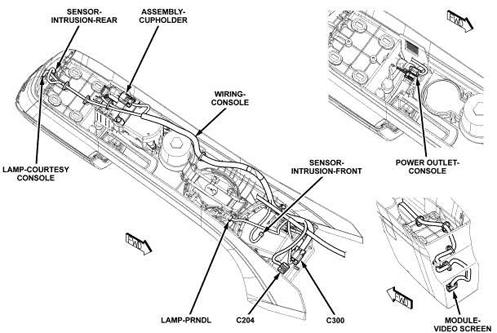

Fig 54: Center Console

G00458082

Courtesy of CHRYSLER LLC

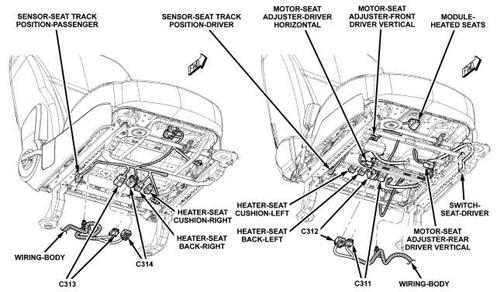

Fig 55: Front Seats

G00458083

Courtesy of CHRYSLER LLC

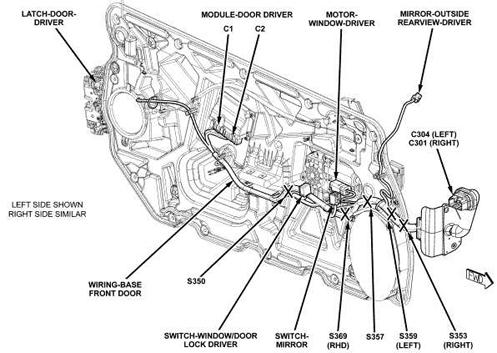

Fig 56: Left Front Door (Convertible) (Right Similar)

G00458084

Courtesy of CHRYSLER LLC

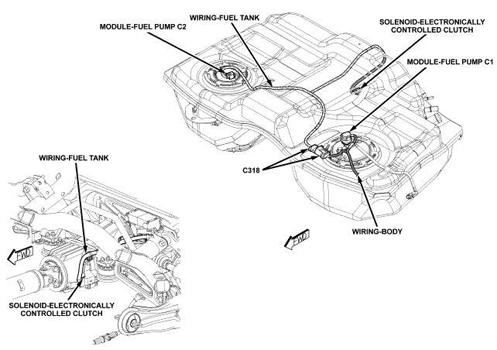

Fig 57: Under Rear Of Vehicle

G00458085

Courtesy of CHRYSLER LLC

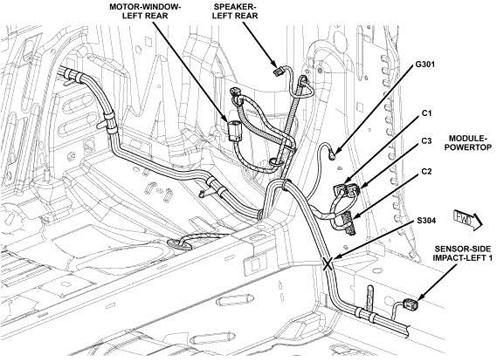

Fig 58: Left Rear Quarterpanel (Convertible)

G00458086

Courtesy of CHRYSLER LLC

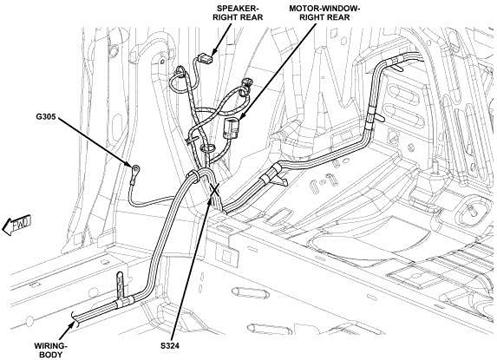

Fig 59: Right Rear Quarterpanel (Convertible)

G00458087

Courtesy of CHRYSLER LLC

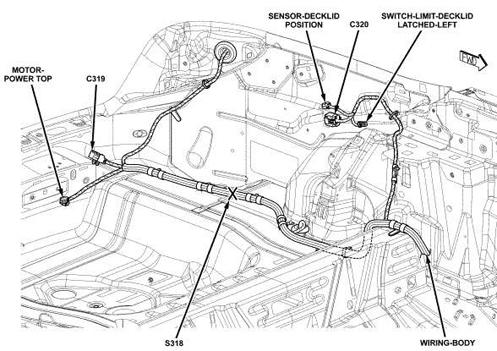

Fig 60: Left Side Of Trunk (Convertible)

G00458088

Courtesy of CHRYSLER LLC

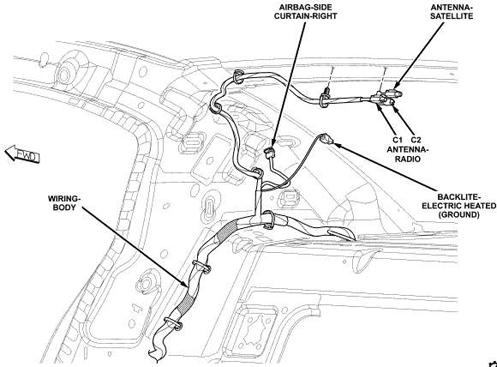

Fig 61: Right Side Of Rear Shelf (Except Convertible)

G00458089

Courtesy of CHRYSLER LLC

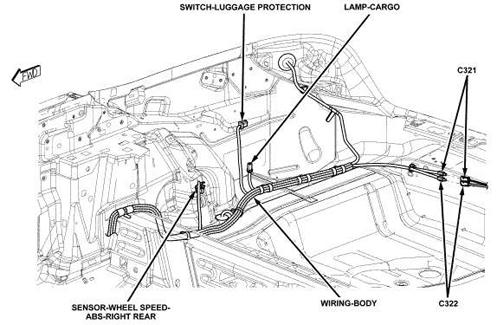

Fig 62: Right Side Of Trunk (Convertible)

G00458090

Courtesy of CHRYSLER LLC

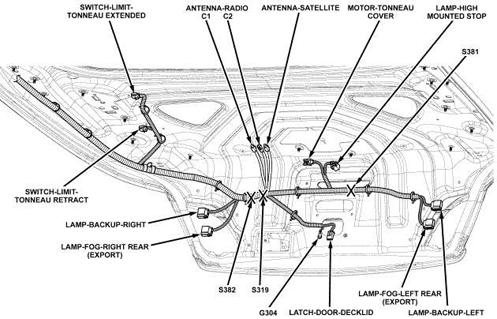

Fig 63: Trunk Lid (Convertible)

G00458091

Courtesy of CHRYSLER LLC

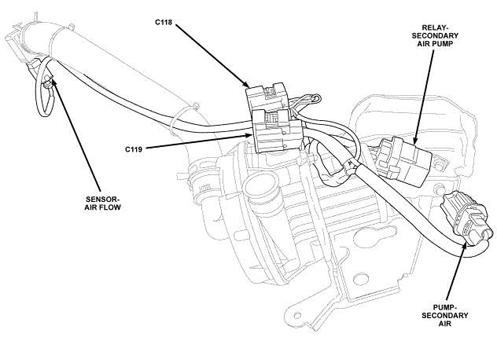

Fig 64: Left Rear Of Engine Compartment (2.4L PZEV)

G00458092

Courtesy of CHRYSLER LLC

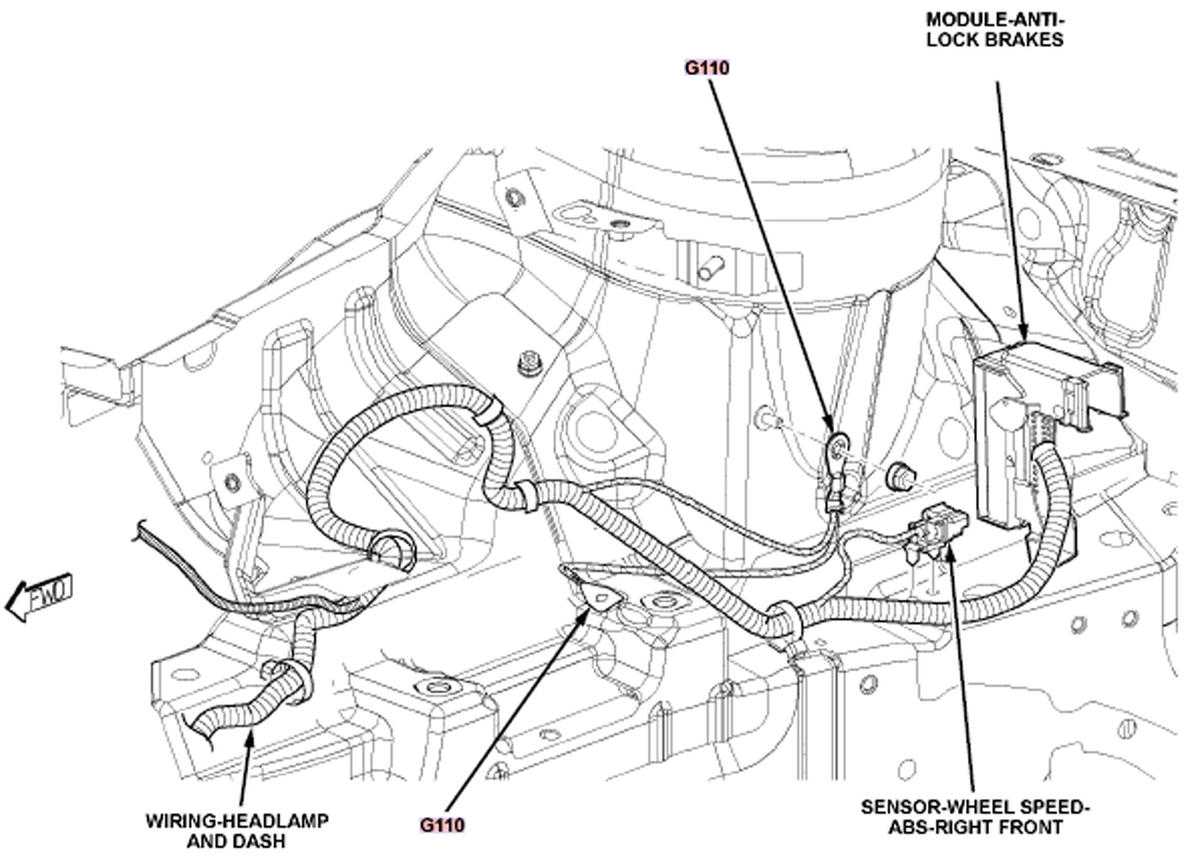

Fig 65: Right Side Of Engine Compartment

G00466850

Courtesy of CHRYSLER LLC
