Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

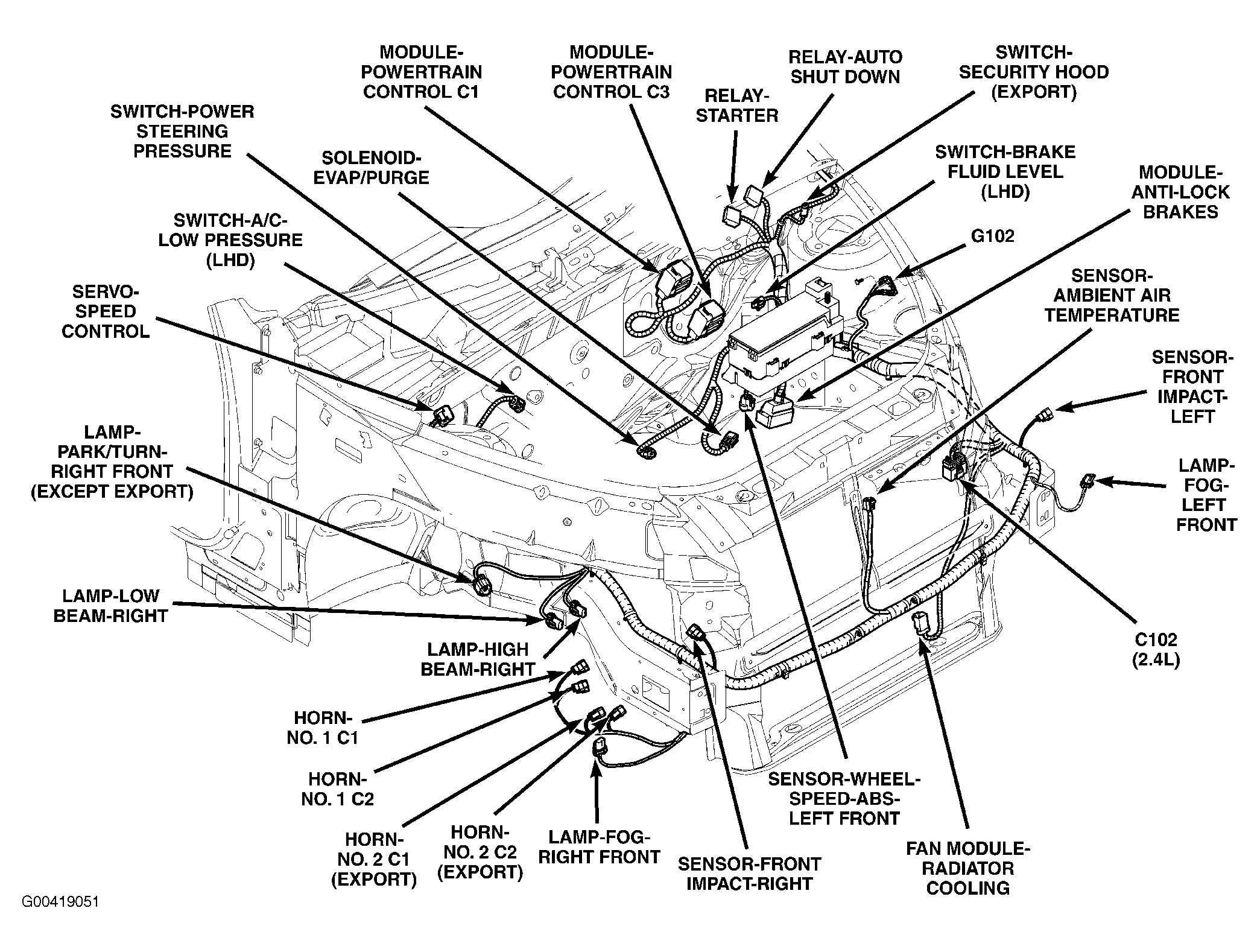

Fig 1: Engine Compartment

G00419051

Courtesy of CHRYSLER LLC

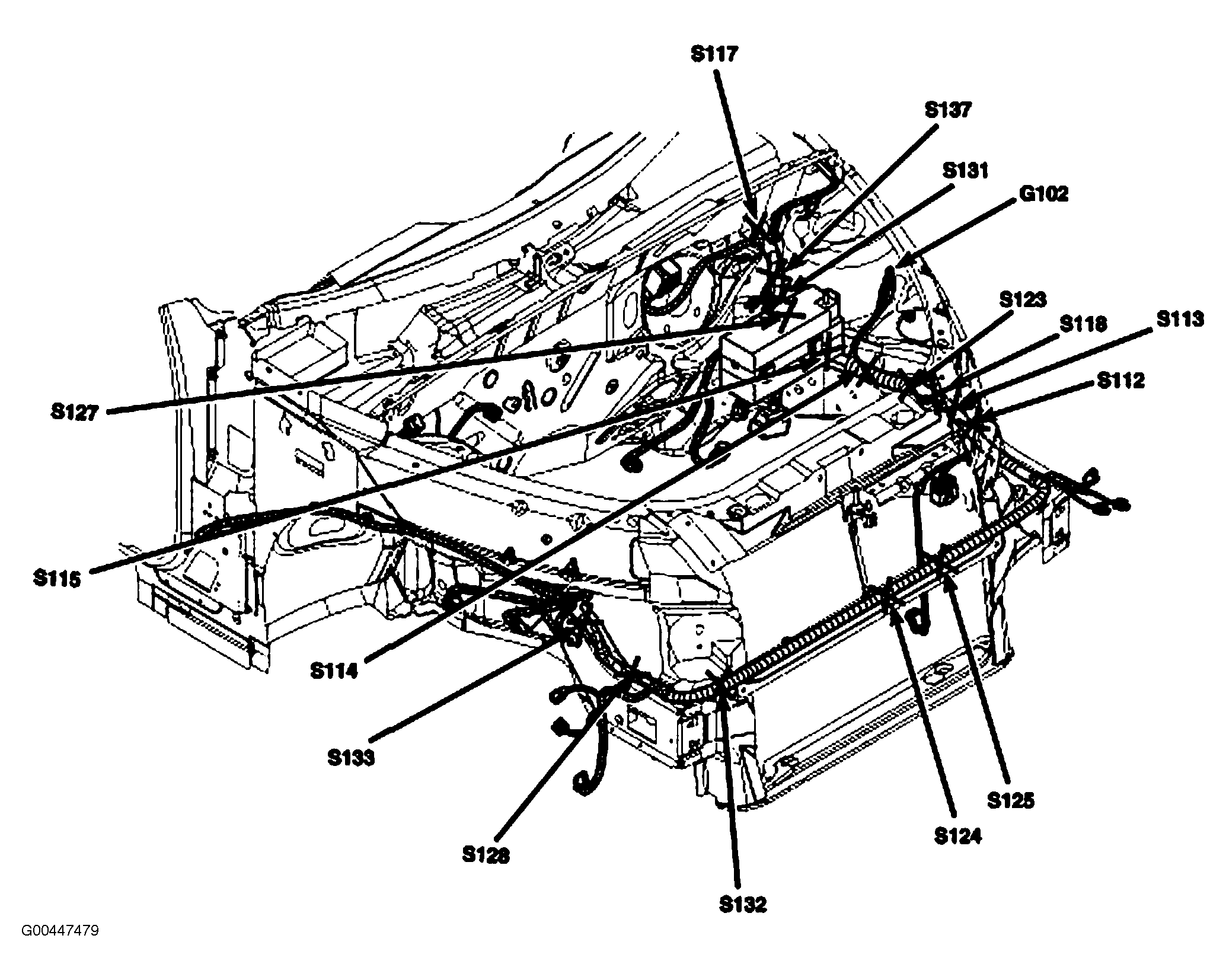

Fig 2: Engine Compartment

G00447479

Courtesy of CHRYSLER LLC

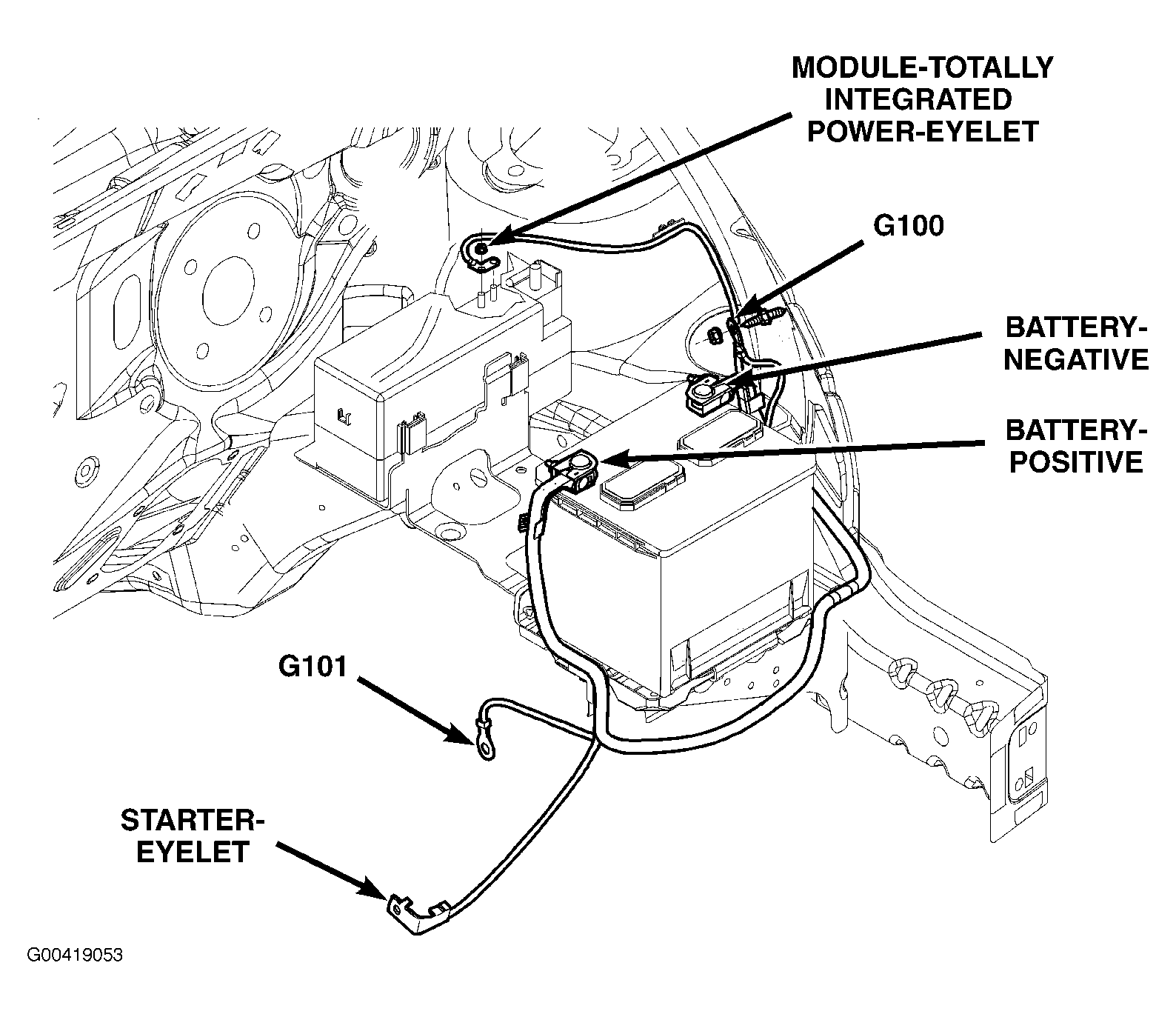

Fig 3: Left Front Of Engine Compartment

G00419053

Courtesy of CHRYSLER LLC

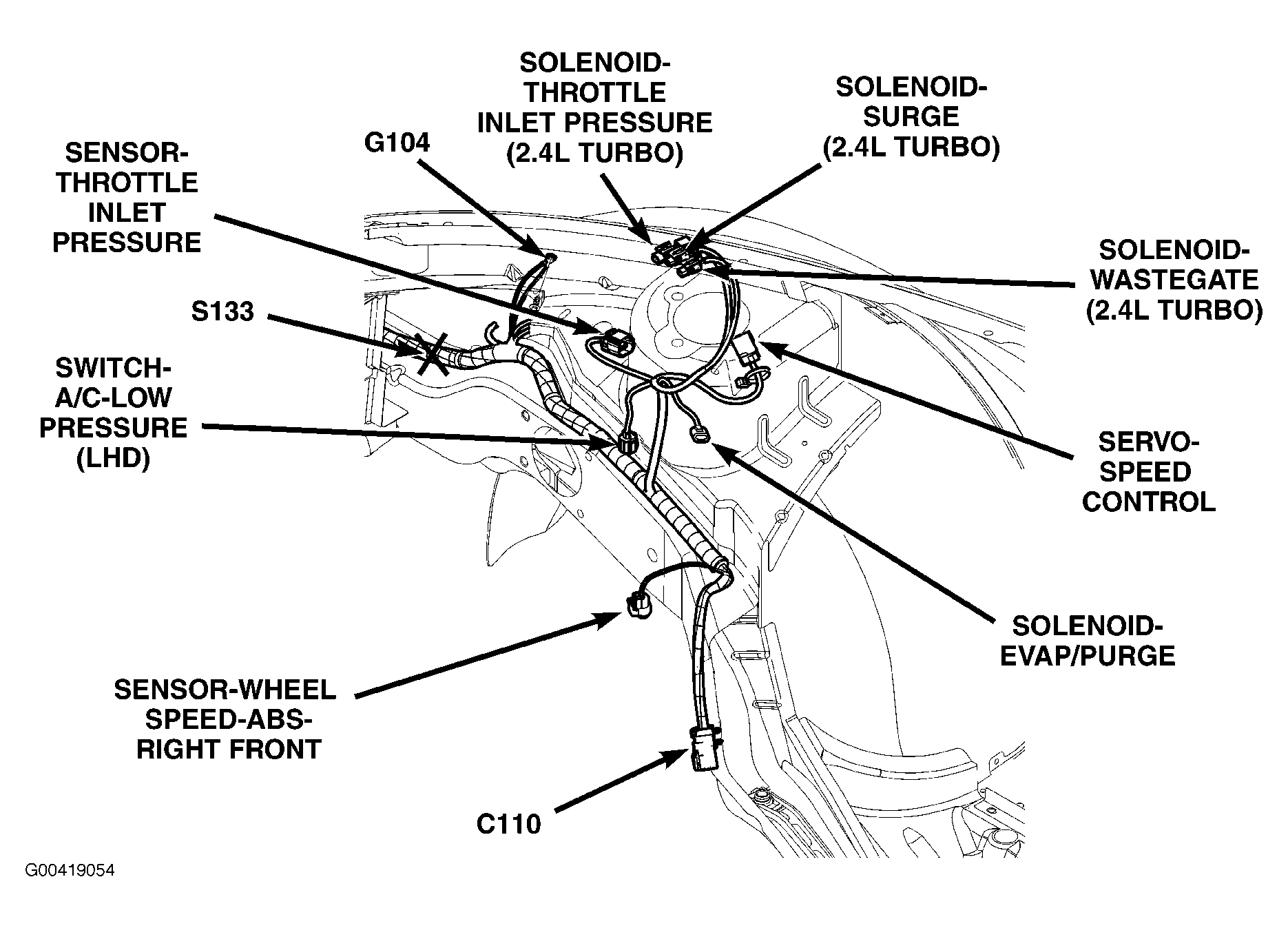

Fig 4: Right Rear Of Engine Compartment

G00419054

Courtesy of CHRYSLER LLC

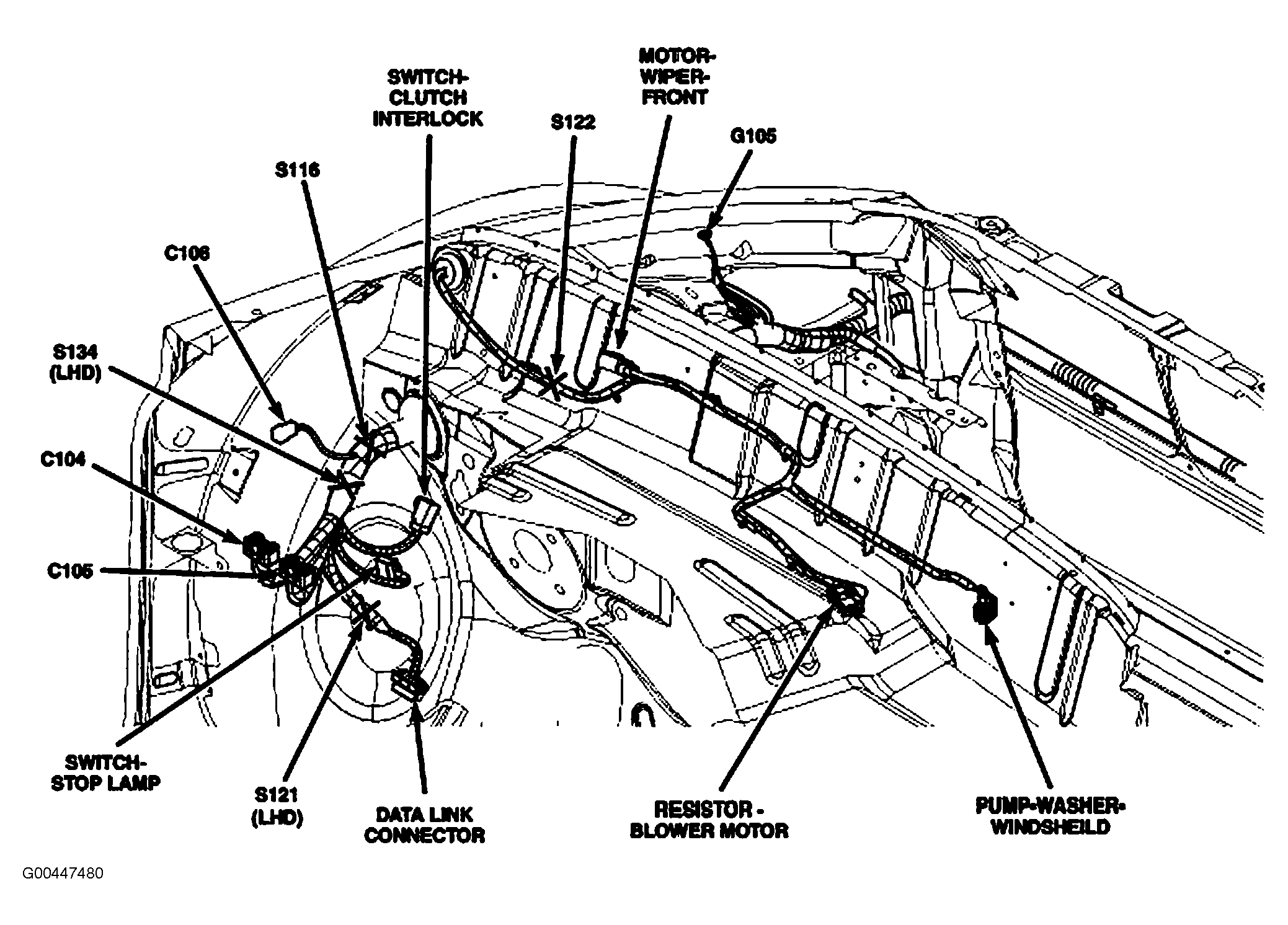

Fig 5: Left Side Cowl Panel

G00447480

Courtesy of CHRYSLER LLC

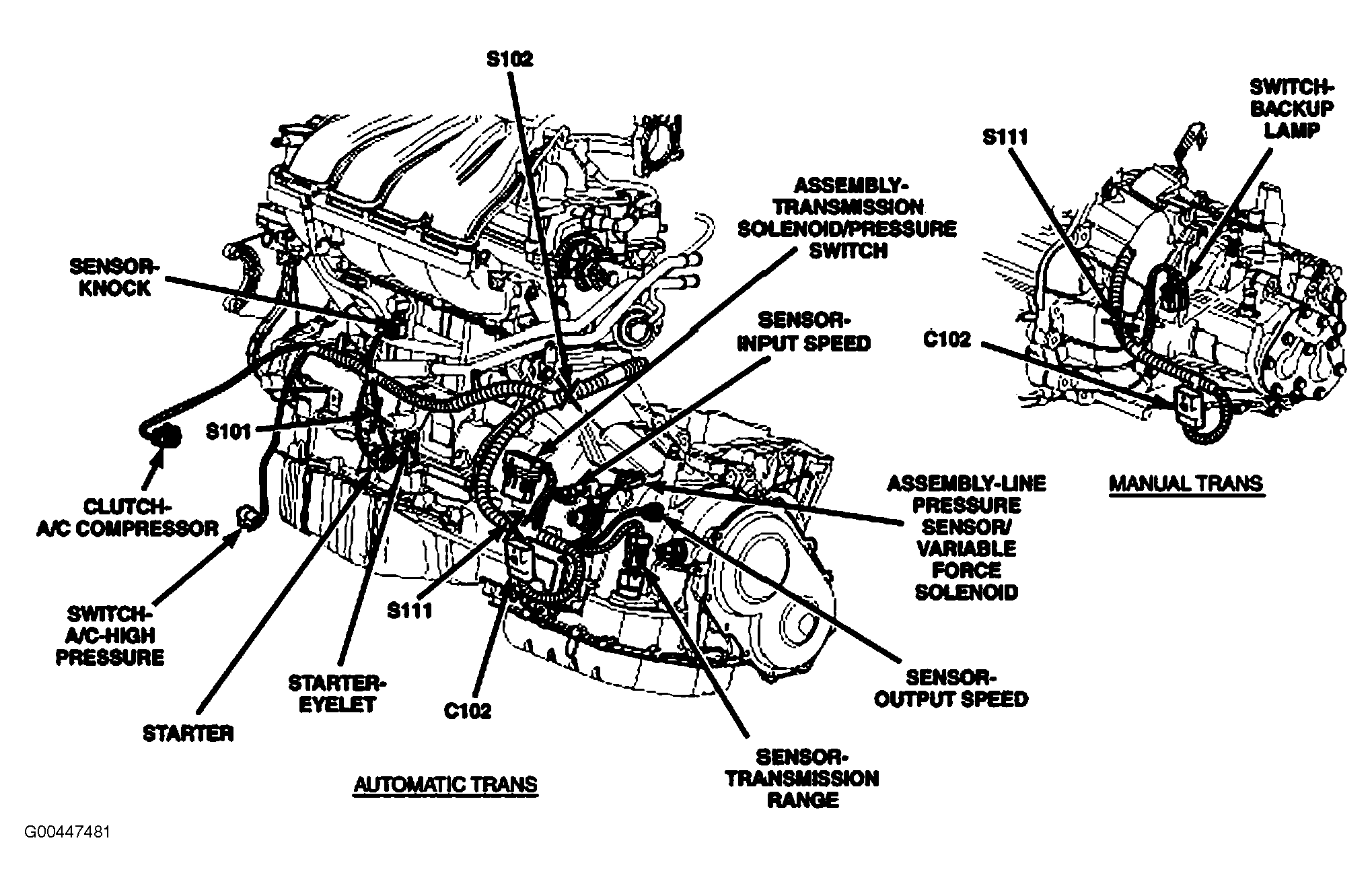

Fig 6: Engine/Transmission Assembly (Non-Turbo)

G00447481

Courtesy of CHRYSLER LLC

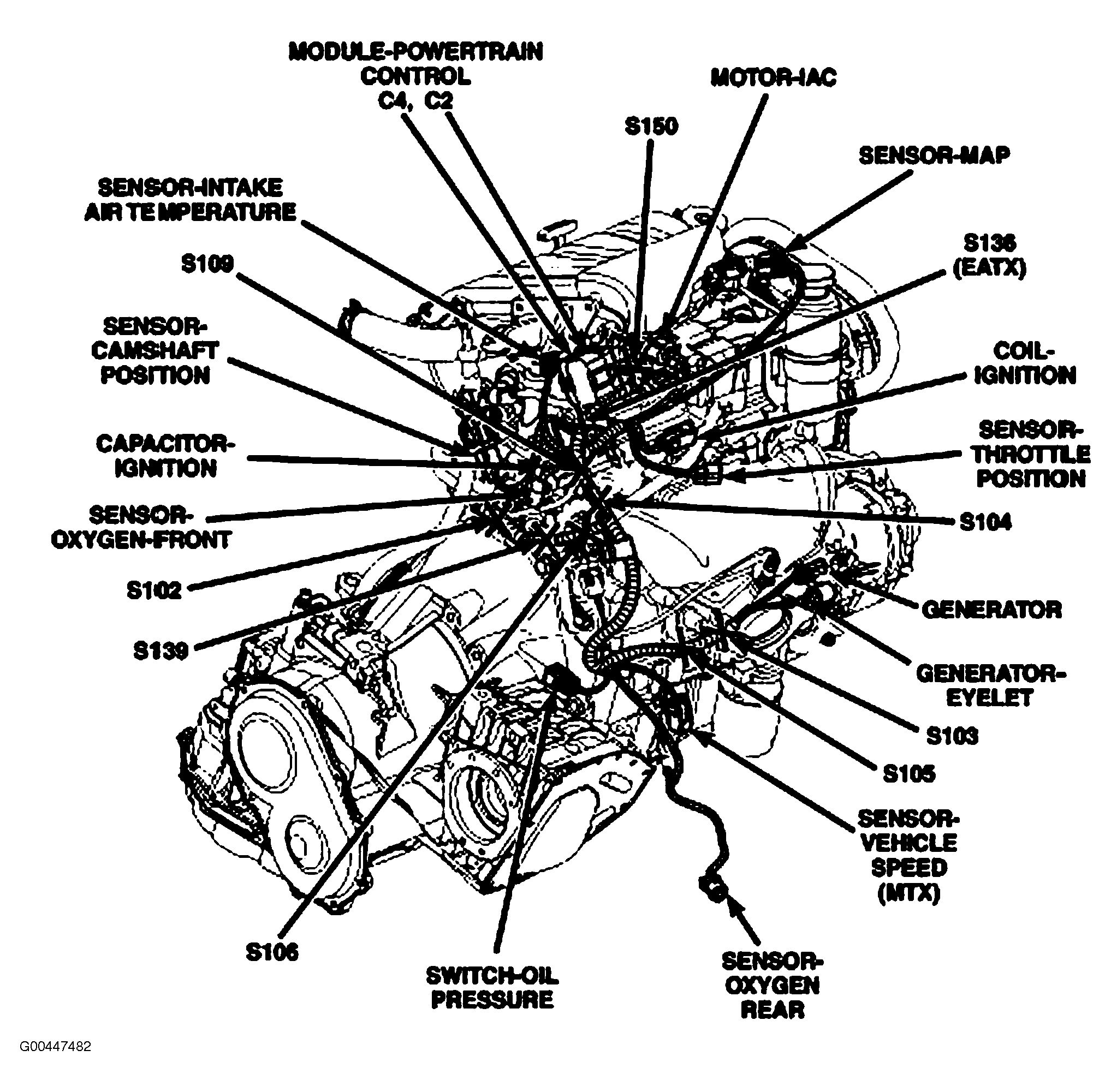

Fig 7: Right Side Of Engine (Non-Turbo)

G00447482

Courtesy of CHRYSLER LLC

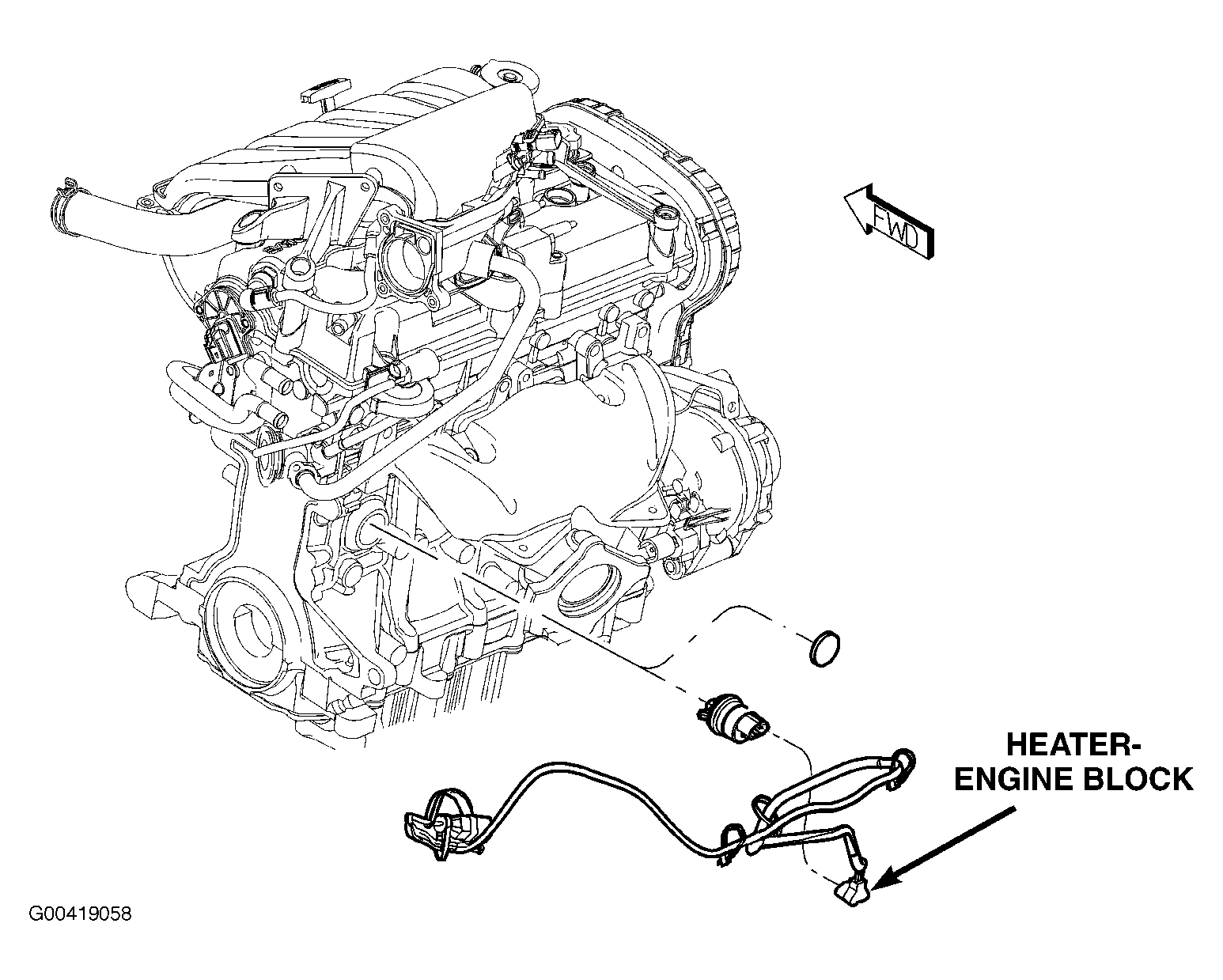

Fig 8: Engine Assembly (Non-Turbo)

G00419058

Courtesy of CHRYSLER LLC

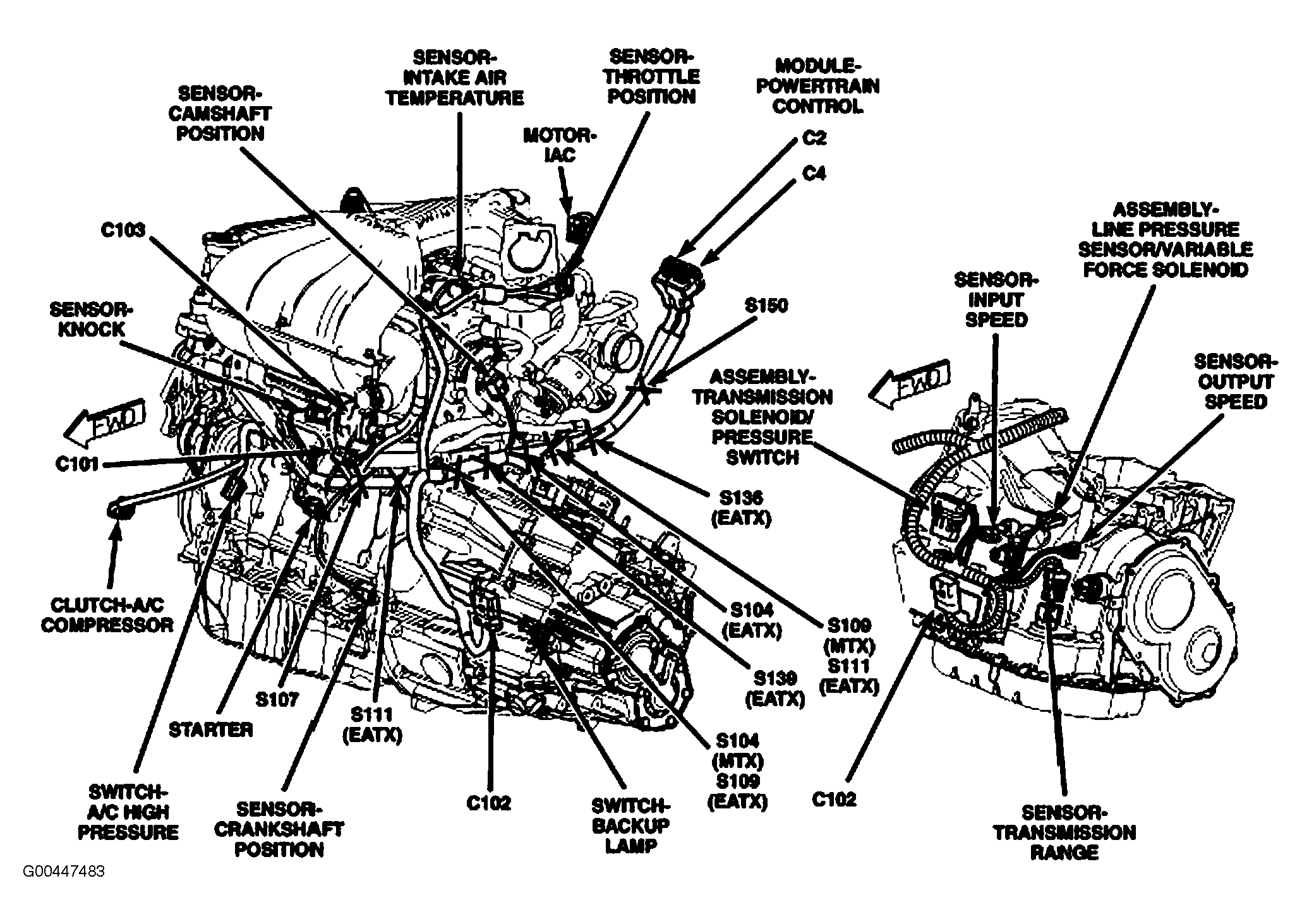

Fig 9: Engine/Transmission Assembly (Turbo)

G00447483

Courtesy of CHRYSLER LLC

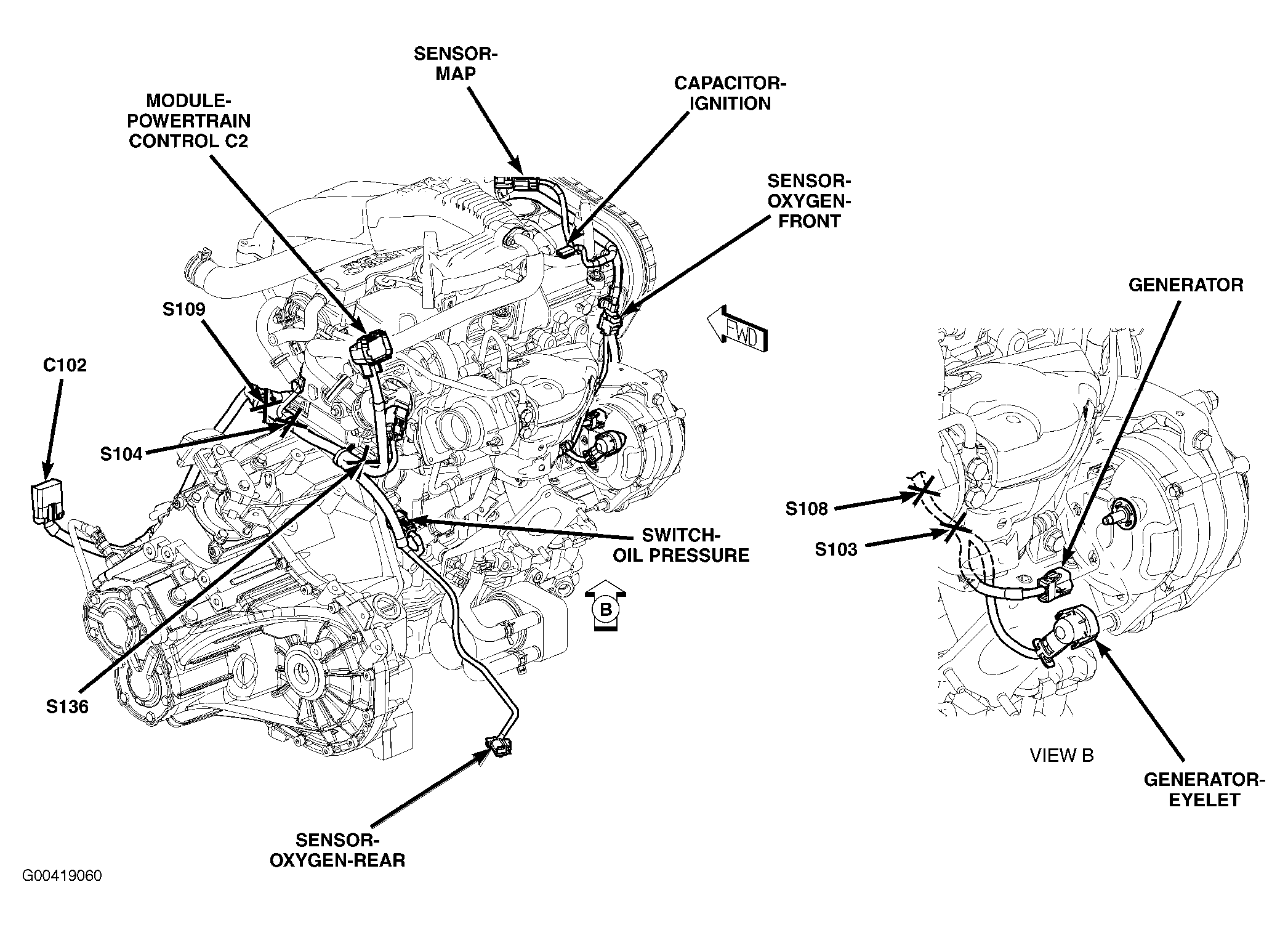

Fig 10: Rear Of Engine Assembly (Turbo)

G00419060

Courtesy of CHRYSLER LLC

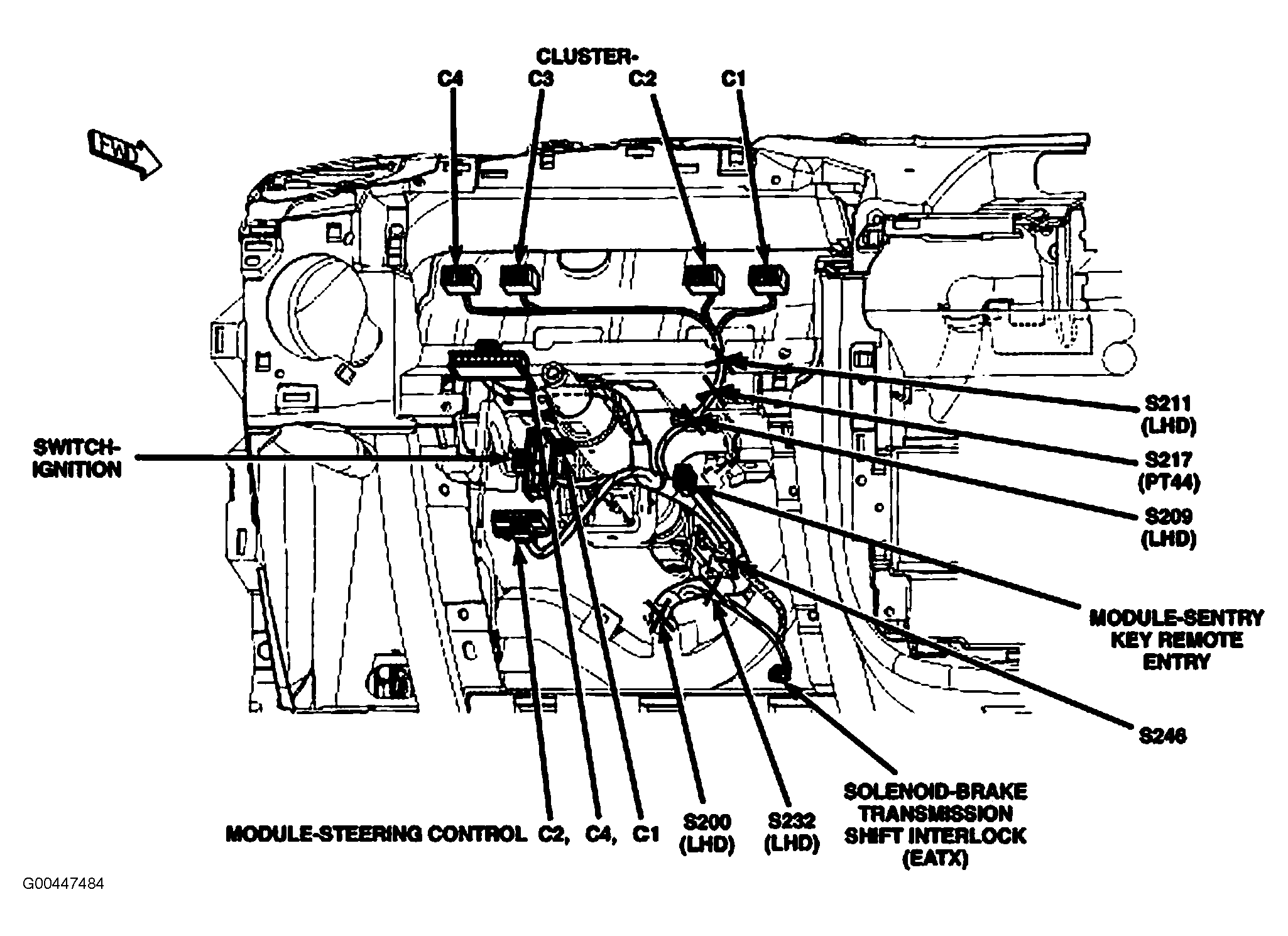

Fig 11: Left Side Of Dash

G00447484

Courtesy of CHRYSLER LLC

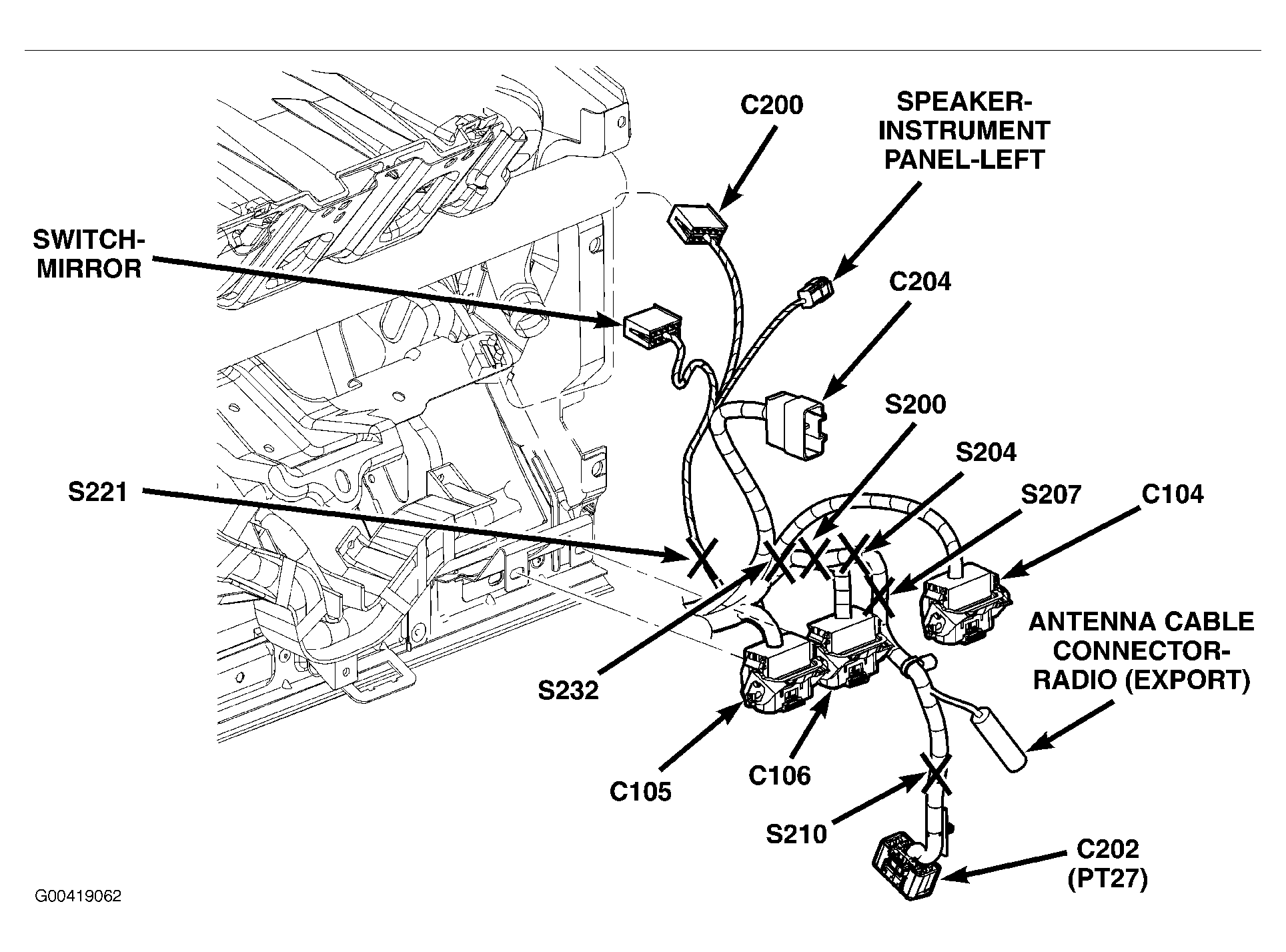

Fig 12: Left Side Of Dash

G00419062

Courtesy of CHRYSLER LLC

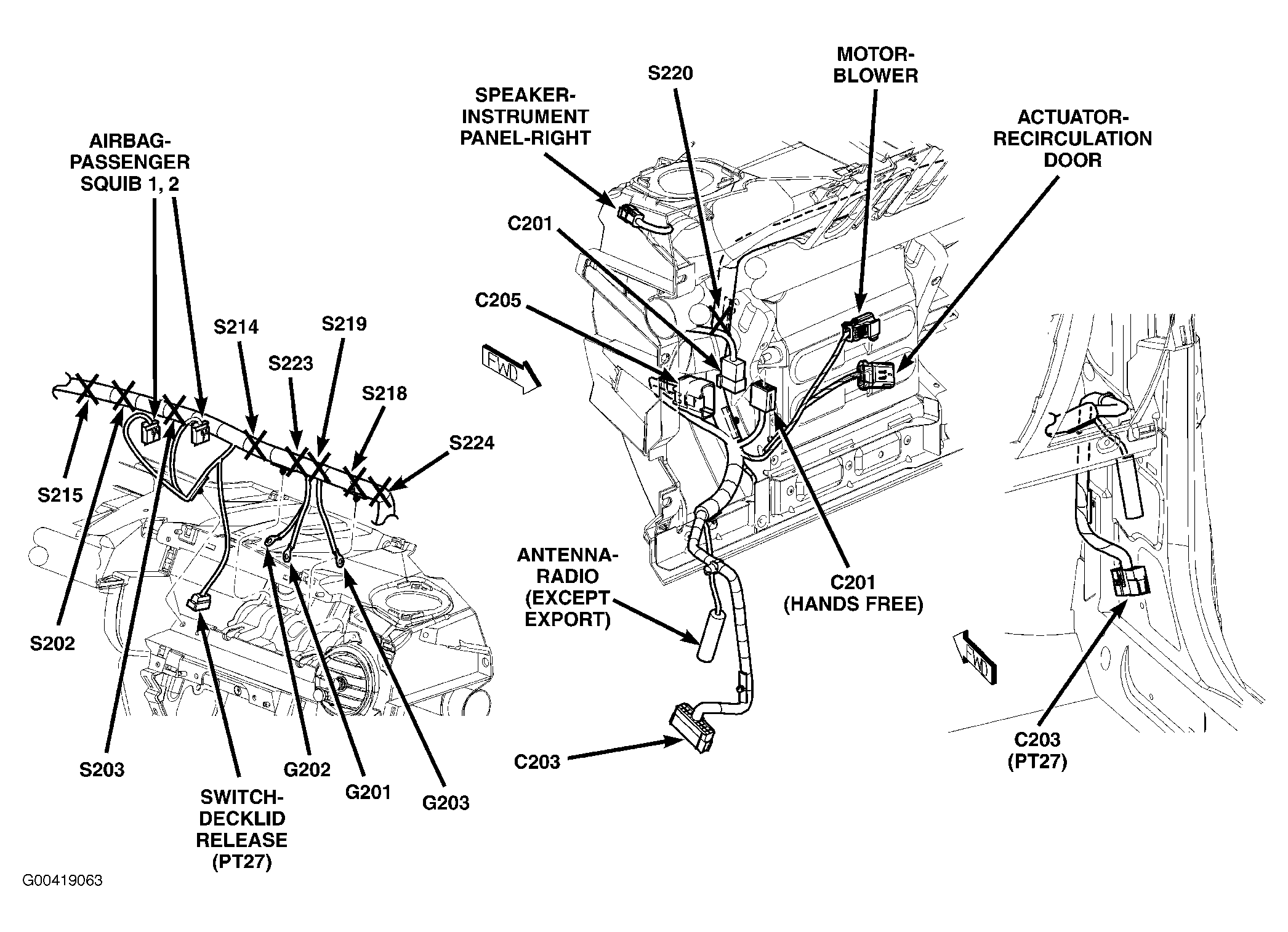

Fig 13: Right Side Of Dash

G00419063

Courtesy of CHRYSLER LLC

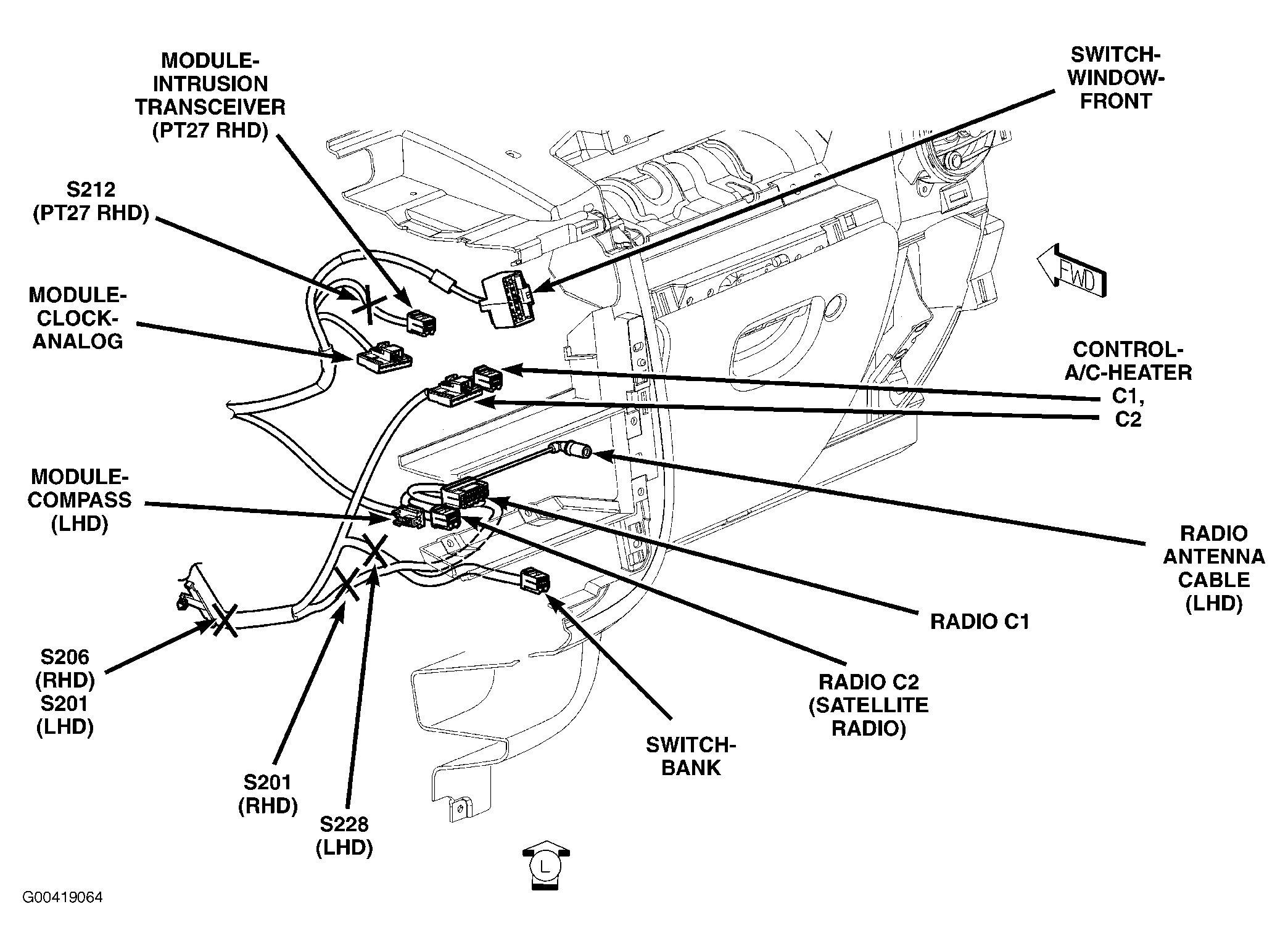

Fig 14: Center Of Dash

G00419064

Courtesy of CHRYSLER LLC

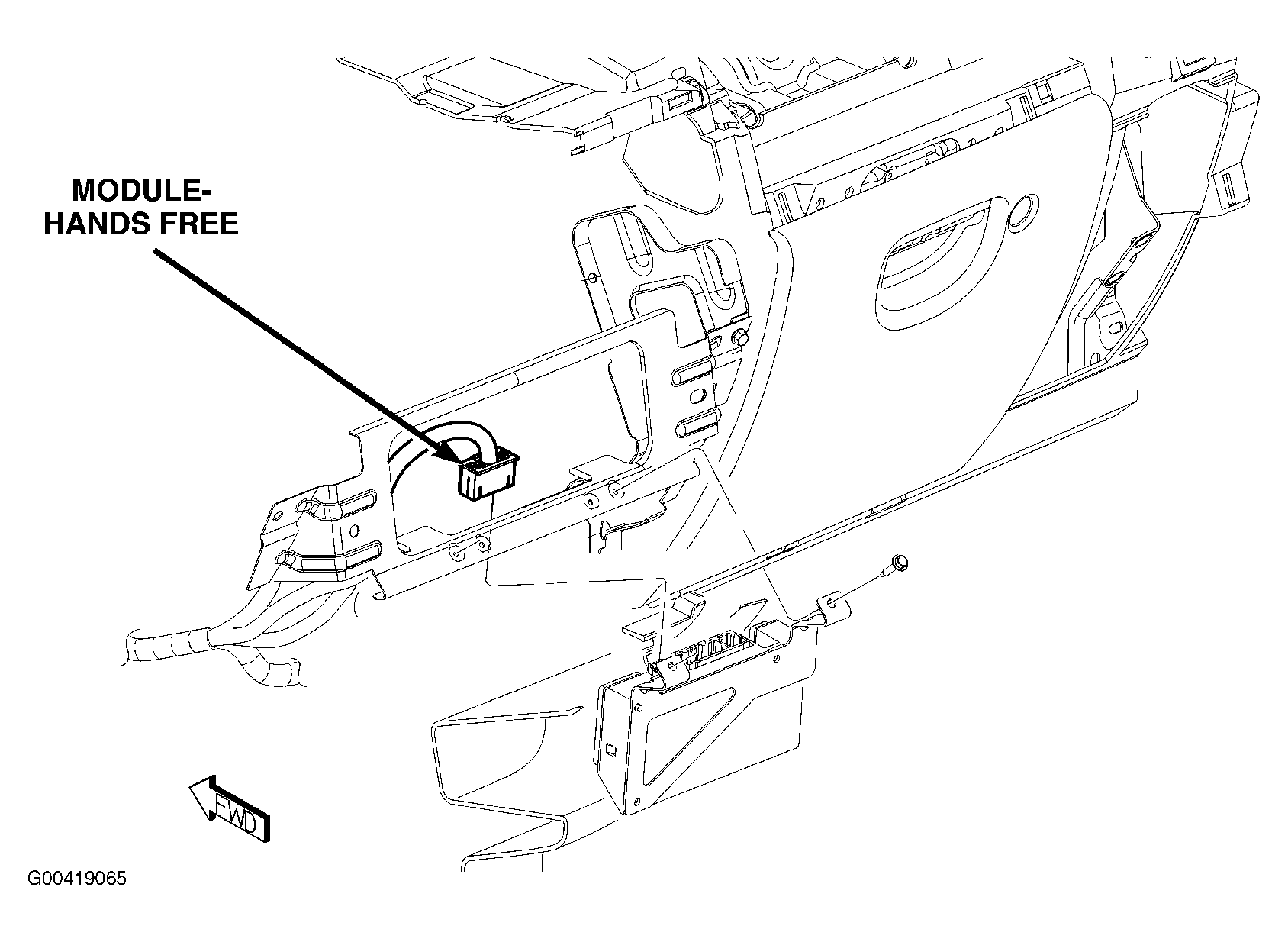

Fig 15: Center Of Dash

G00419065

Courtesy of CHRYSLER LLC

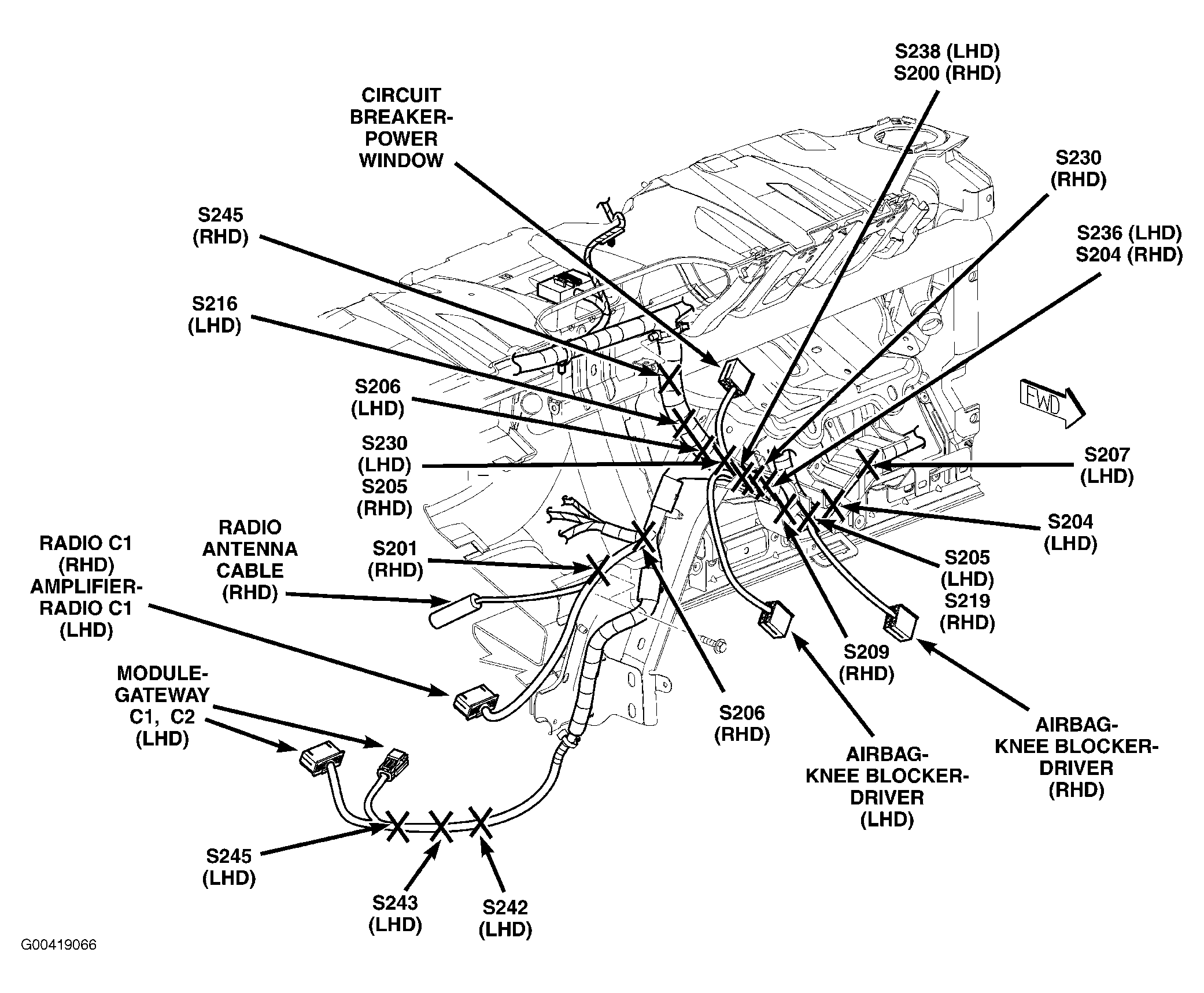

Fig 16: Center Of Dash

G00419066

Courtesy of CHRYSLER LLC

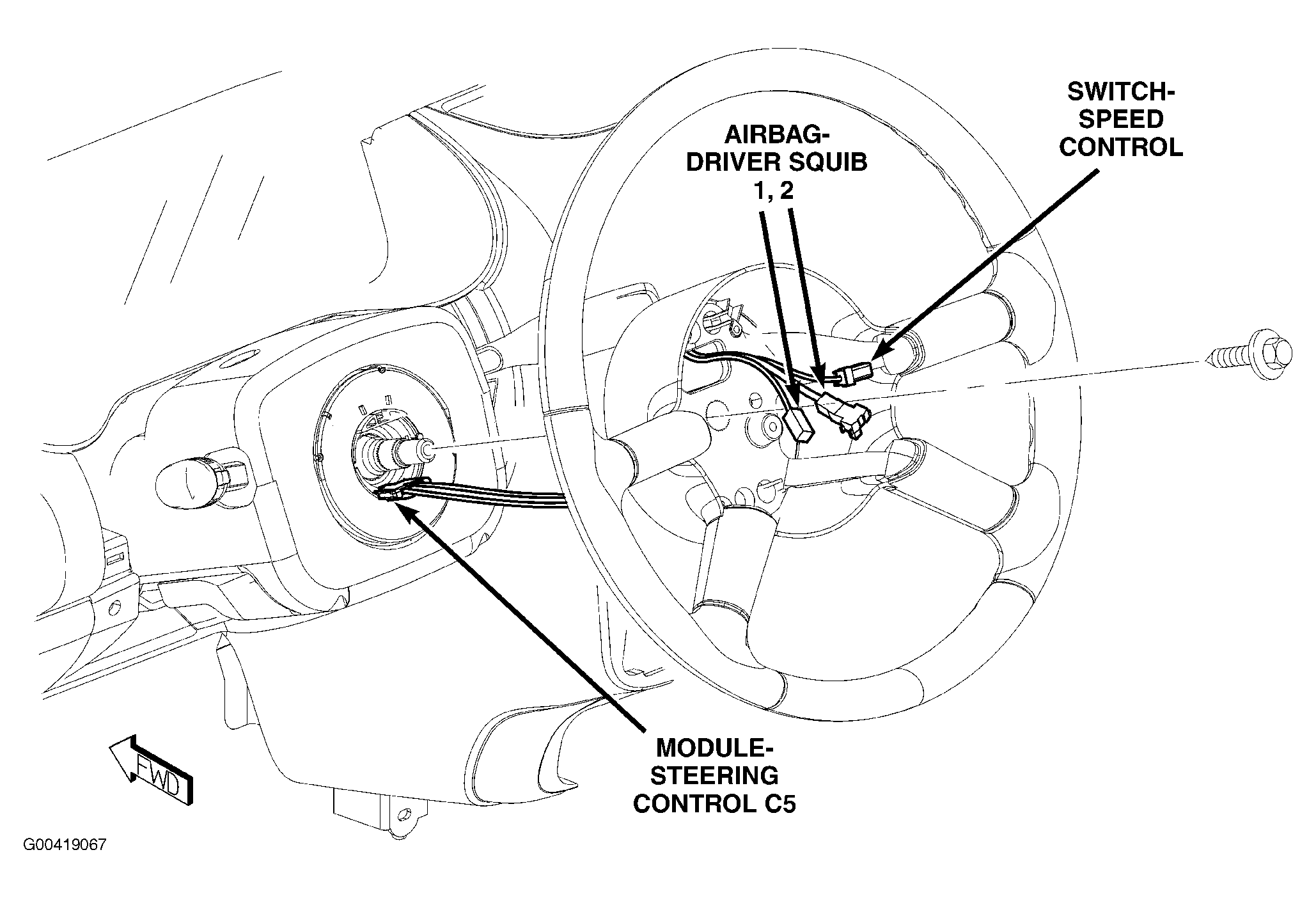

Fig 17: Steering Wheel Assembly

G00419067

Courtesy of CHRYSLER LLC

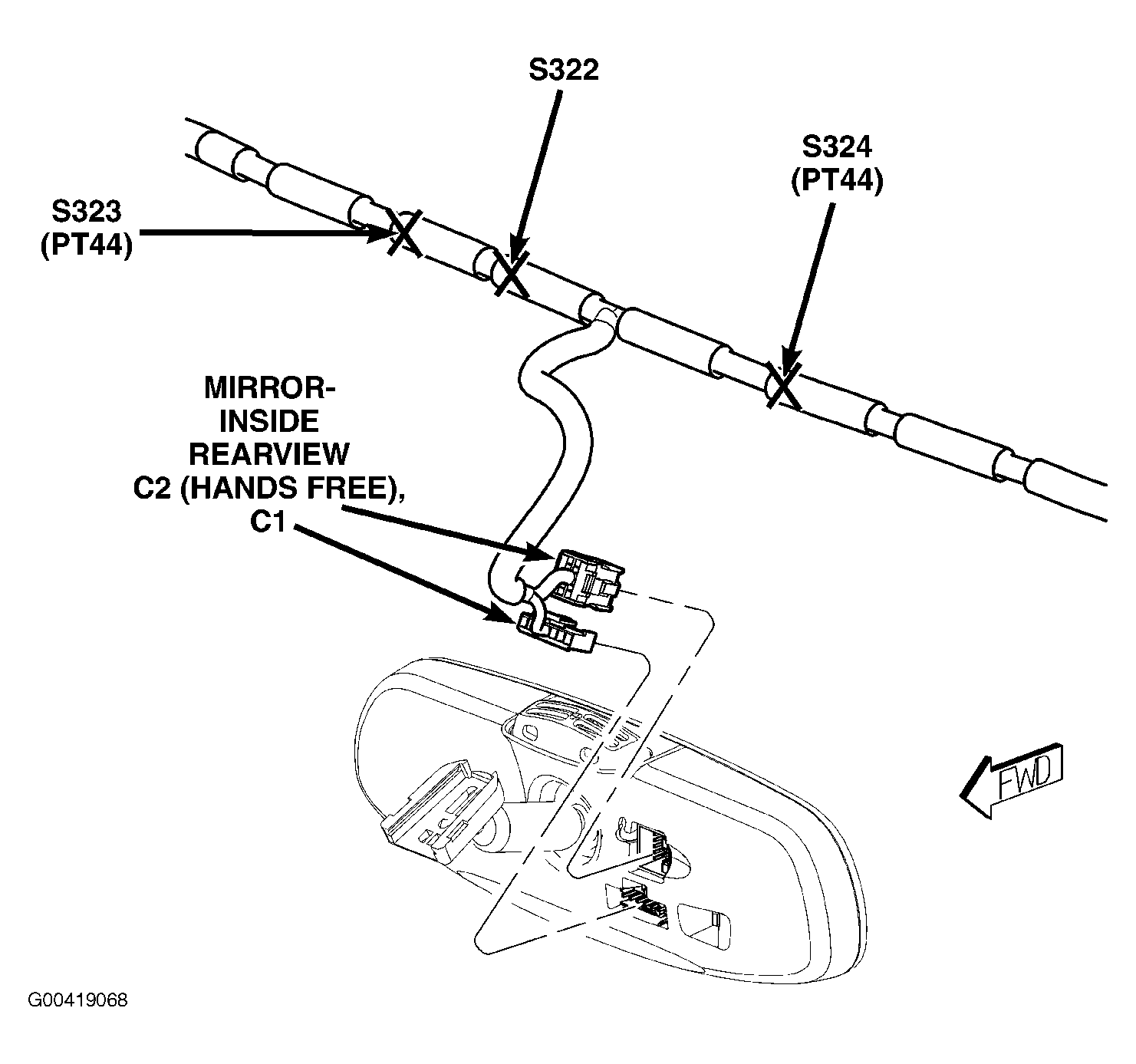

Fig 18: Rear View Mirror Harness

G00419068

Courtesy of CHRYSLER LLC

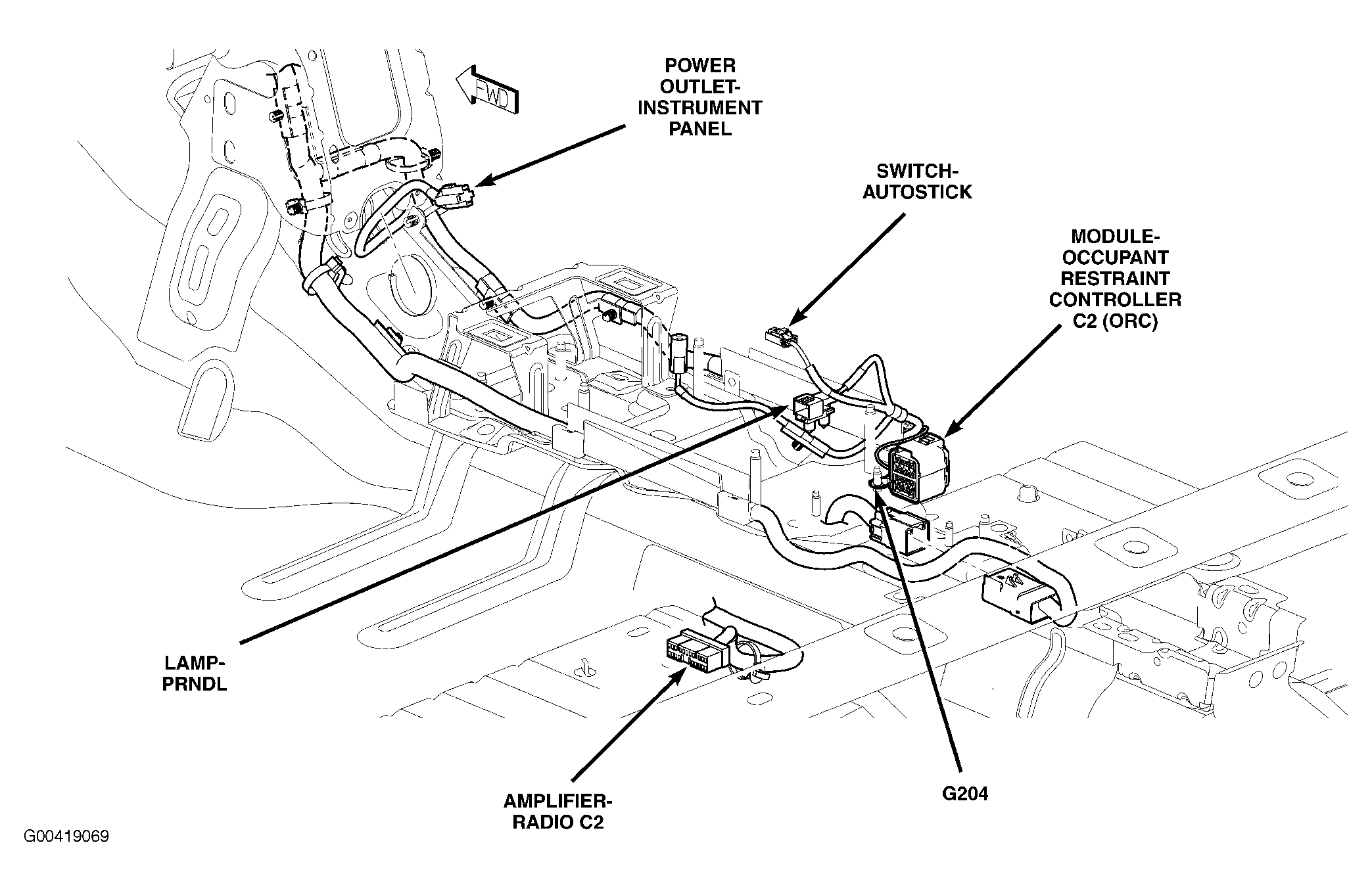

Fig 19: Center Body

G00419069

Courtesy of CHRYSLER LLC

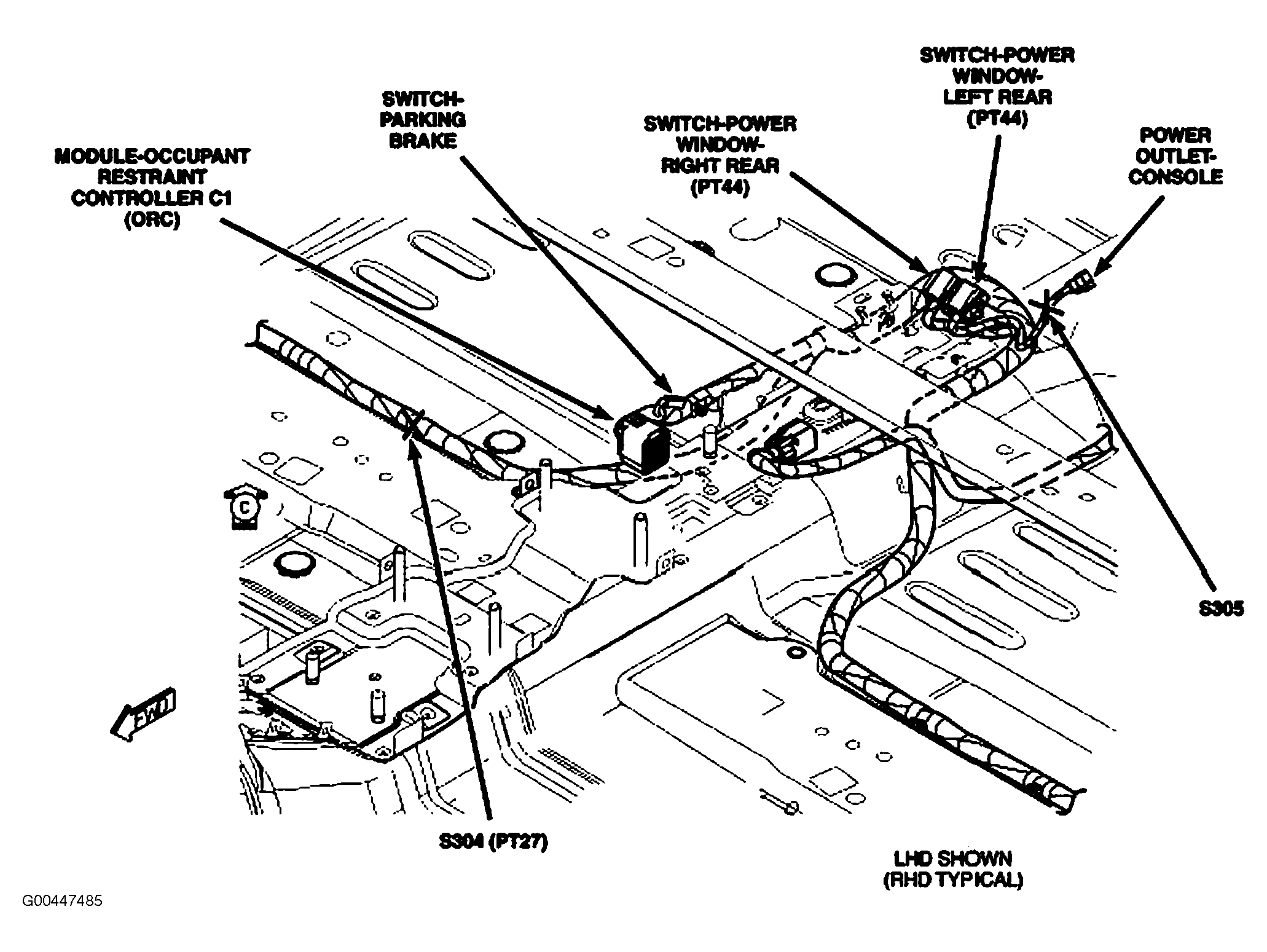

Fig 20: Mid Center Body

G00447485

Courtesy of CHRYSLER LLC

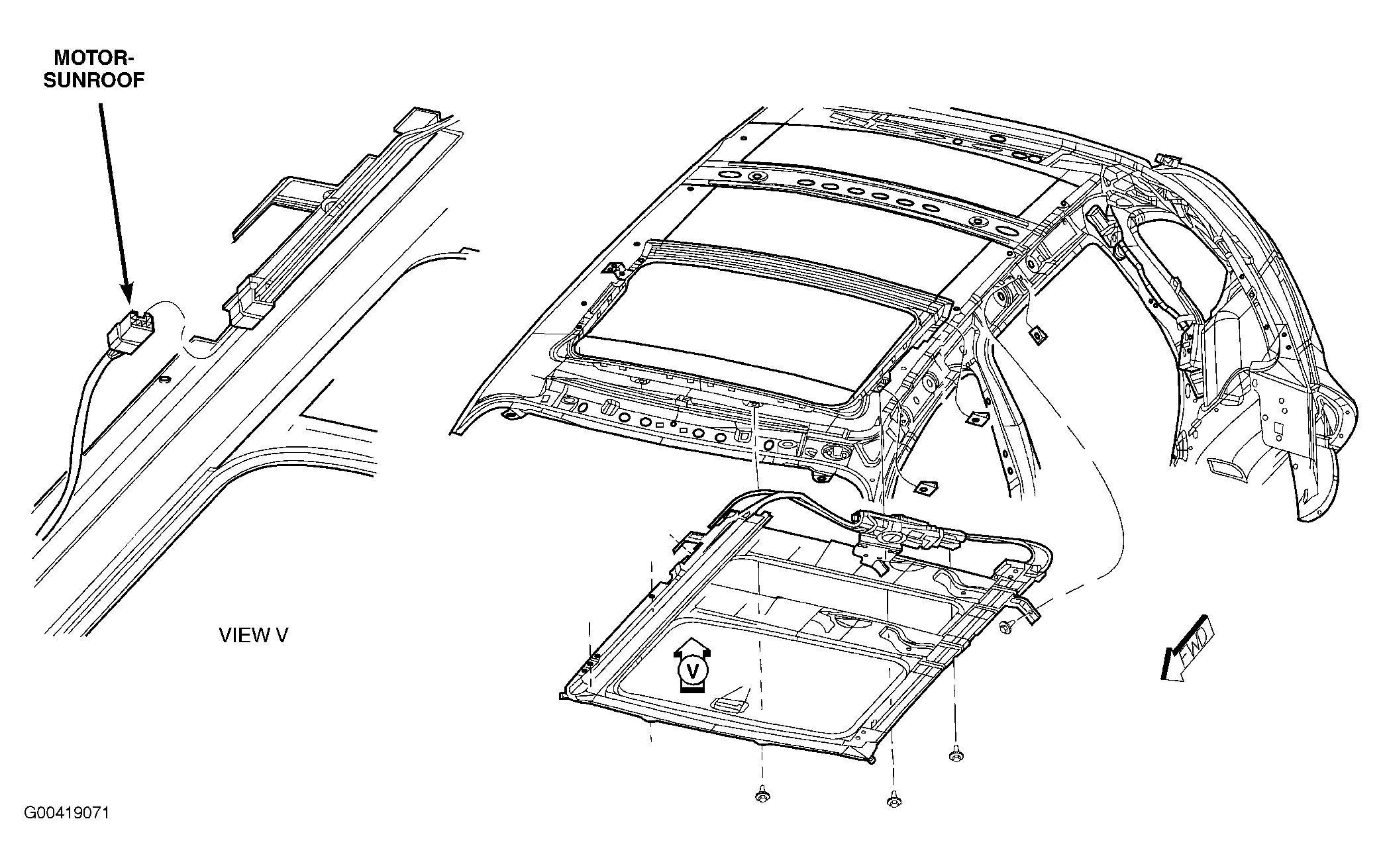

Fig 21: Sunroof Assembly

G00419071

Courtesy of CHRYSLER LLC

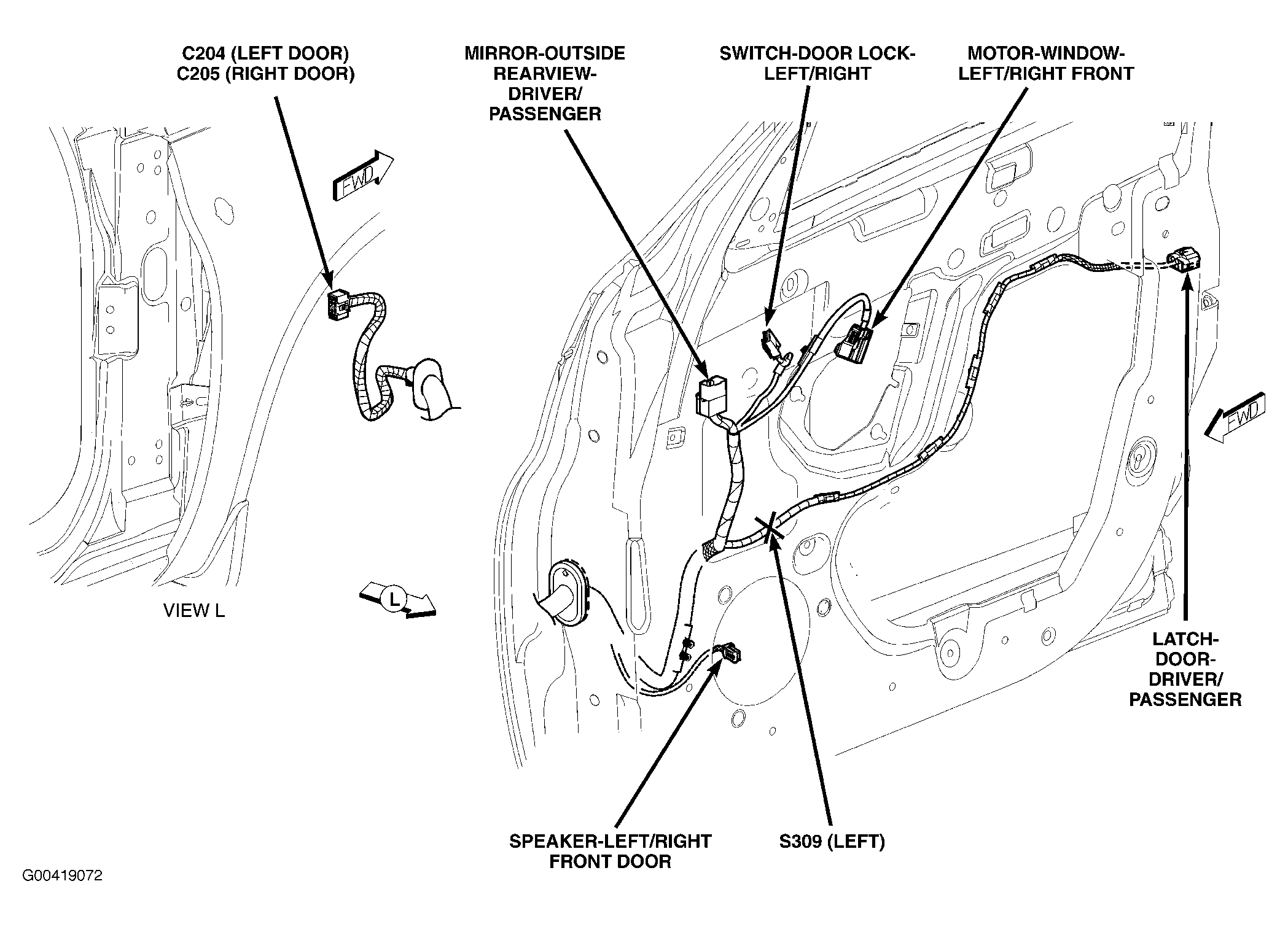

Fig 22: Front Door (Except Convertible)

G00419072

Courtesy of CHRYSLER LLC

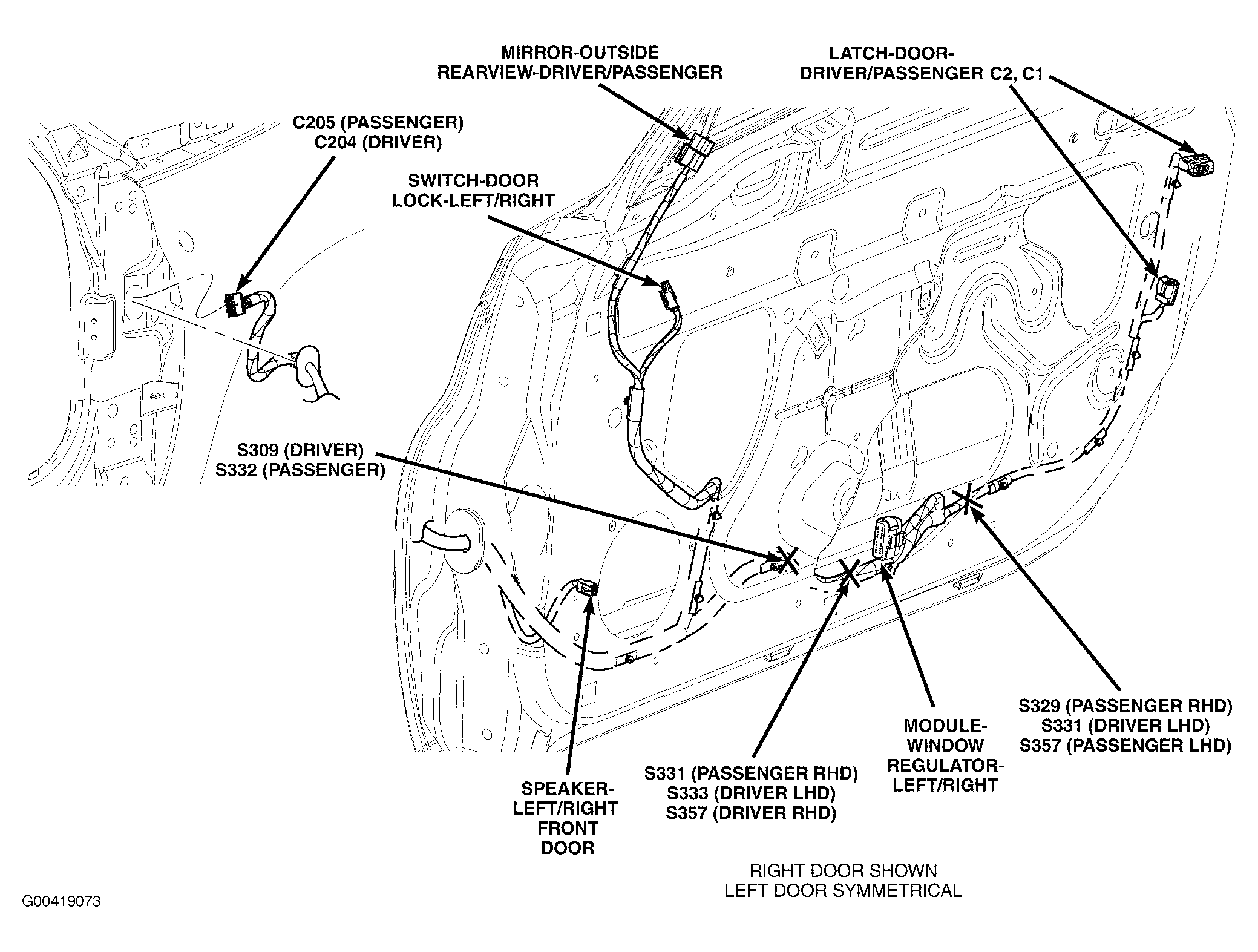

Fig 23: Front Door (Convertible)

G00419073

Courtesy of CHRYSLER LLC

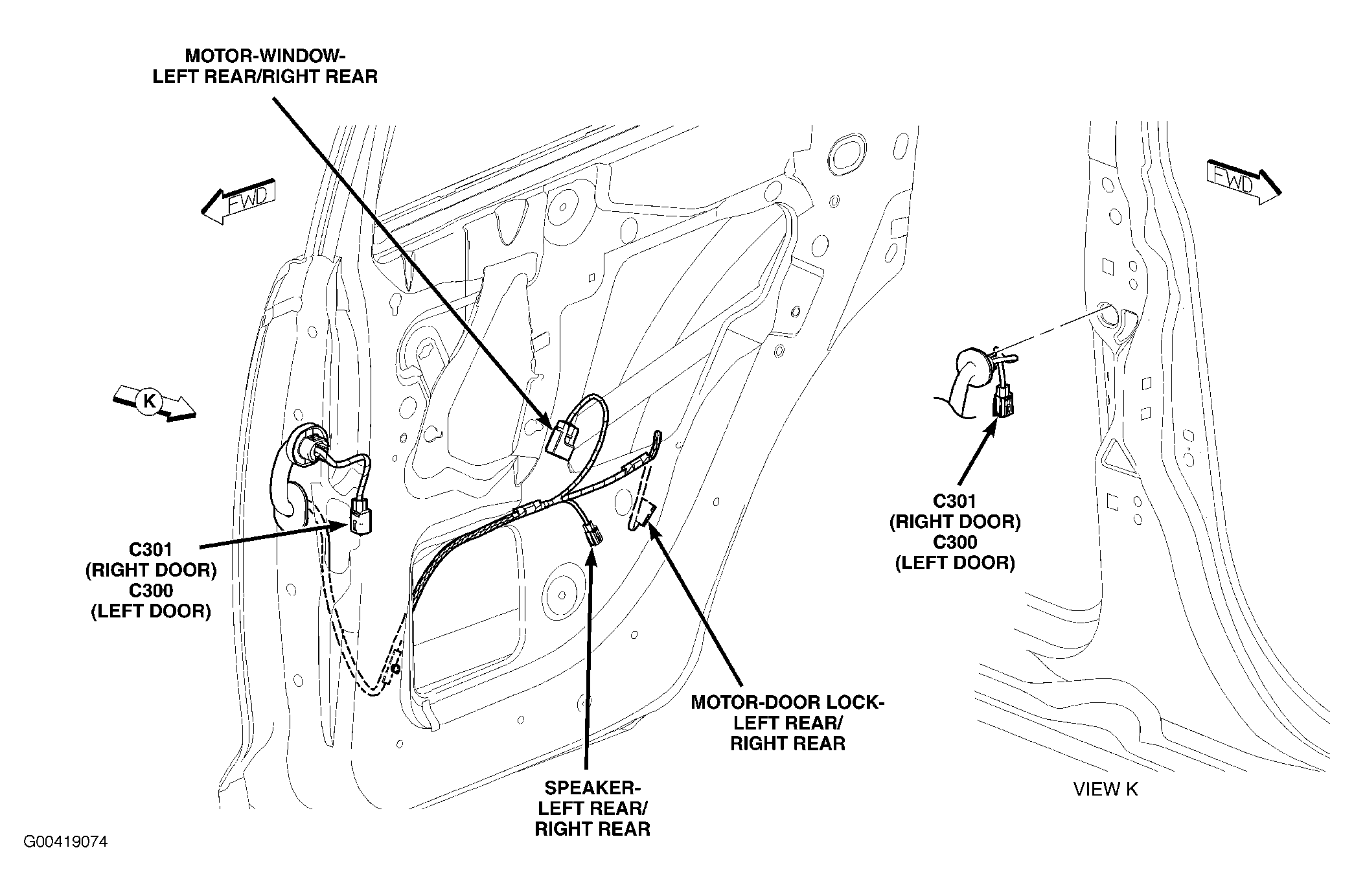

Fig 24: Rear Door

G00419074

Courtesy of CHRYSLER LLC

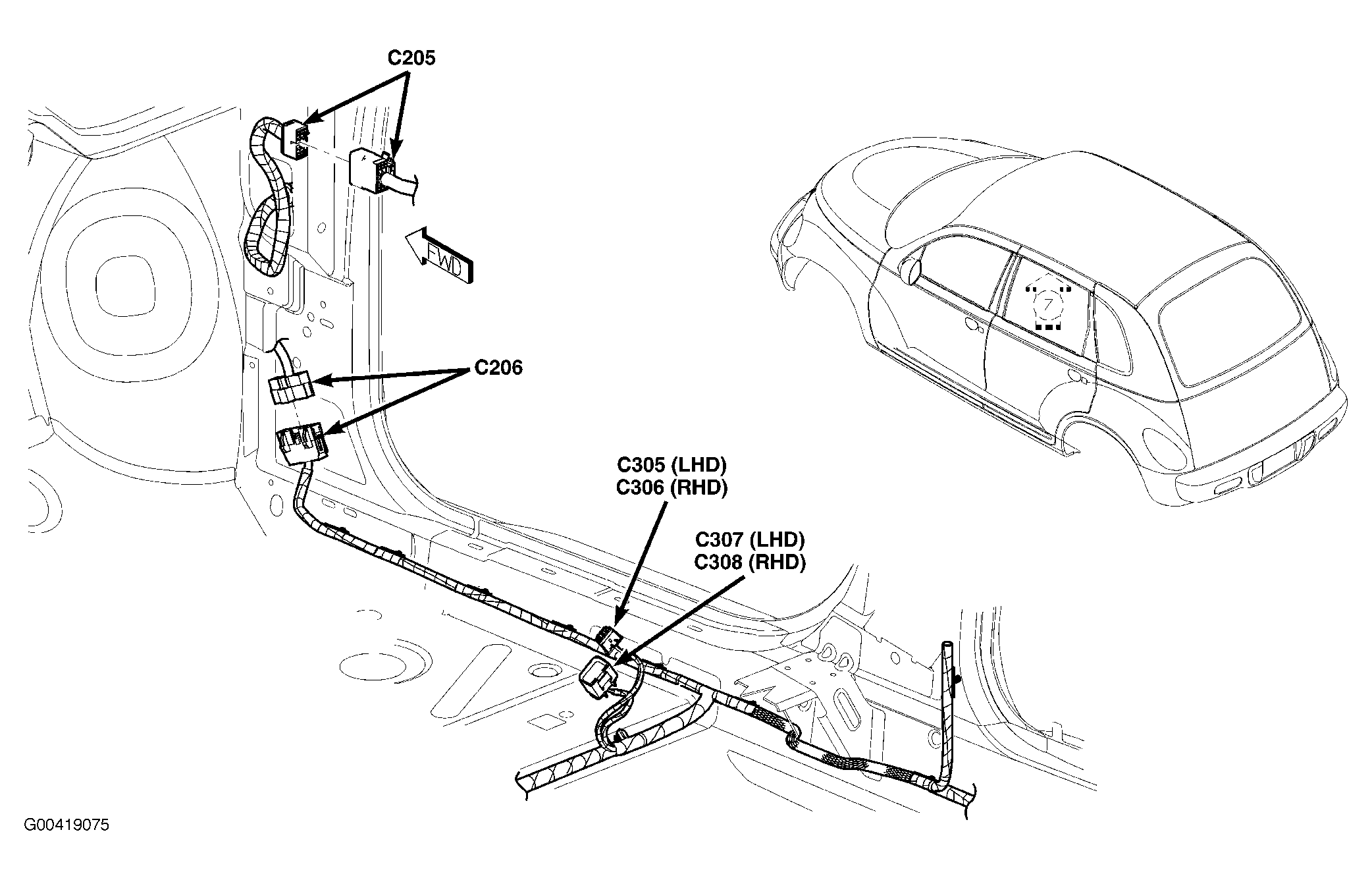

Fig 25: Right Front Body (Except Convertible)

G00419075

Courtesy of CHRYSLER LLC

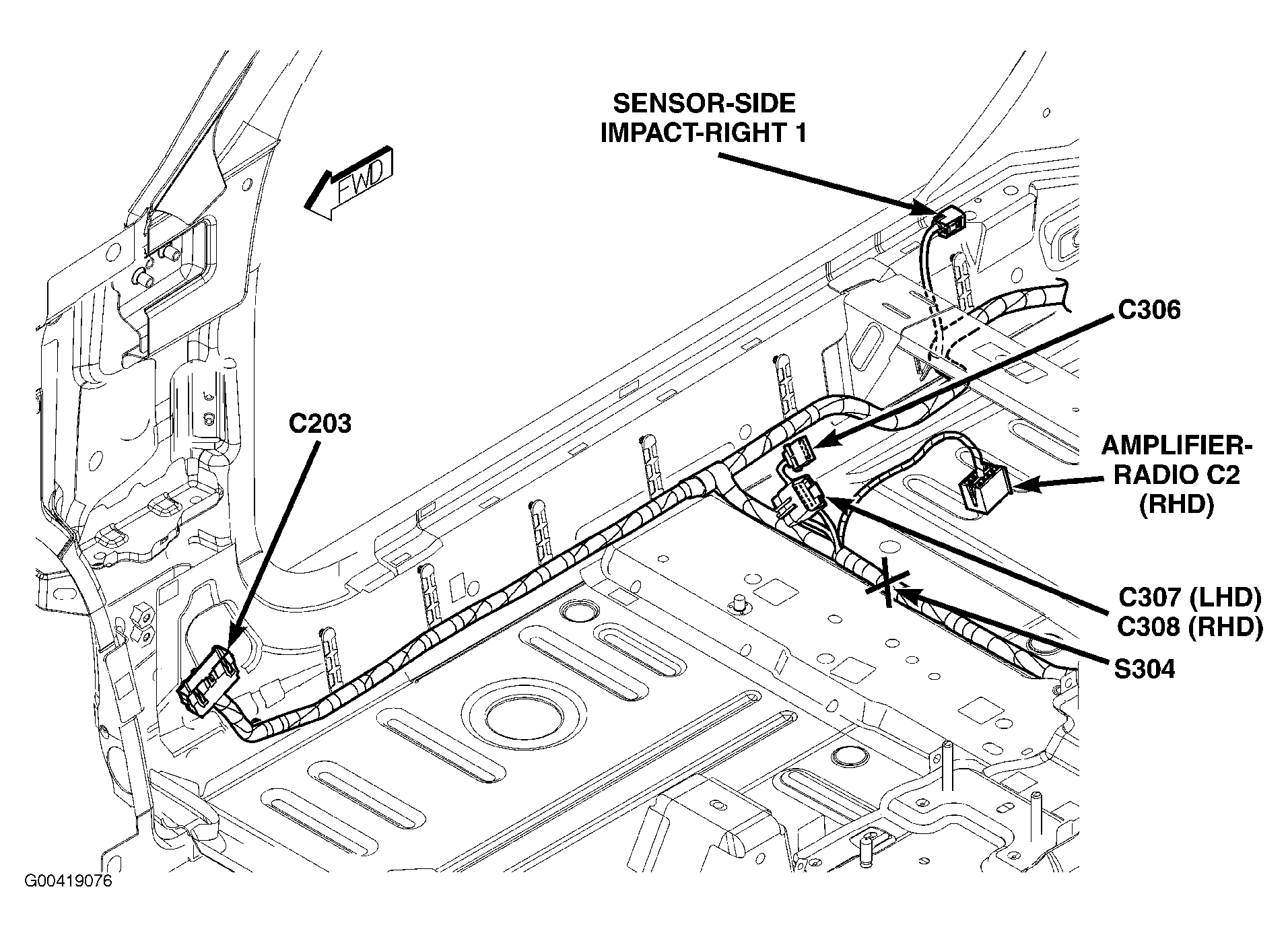

Fig 26: Right Front Body (Convertible)

G00419076

Courtesy of CHRYSLER LLC

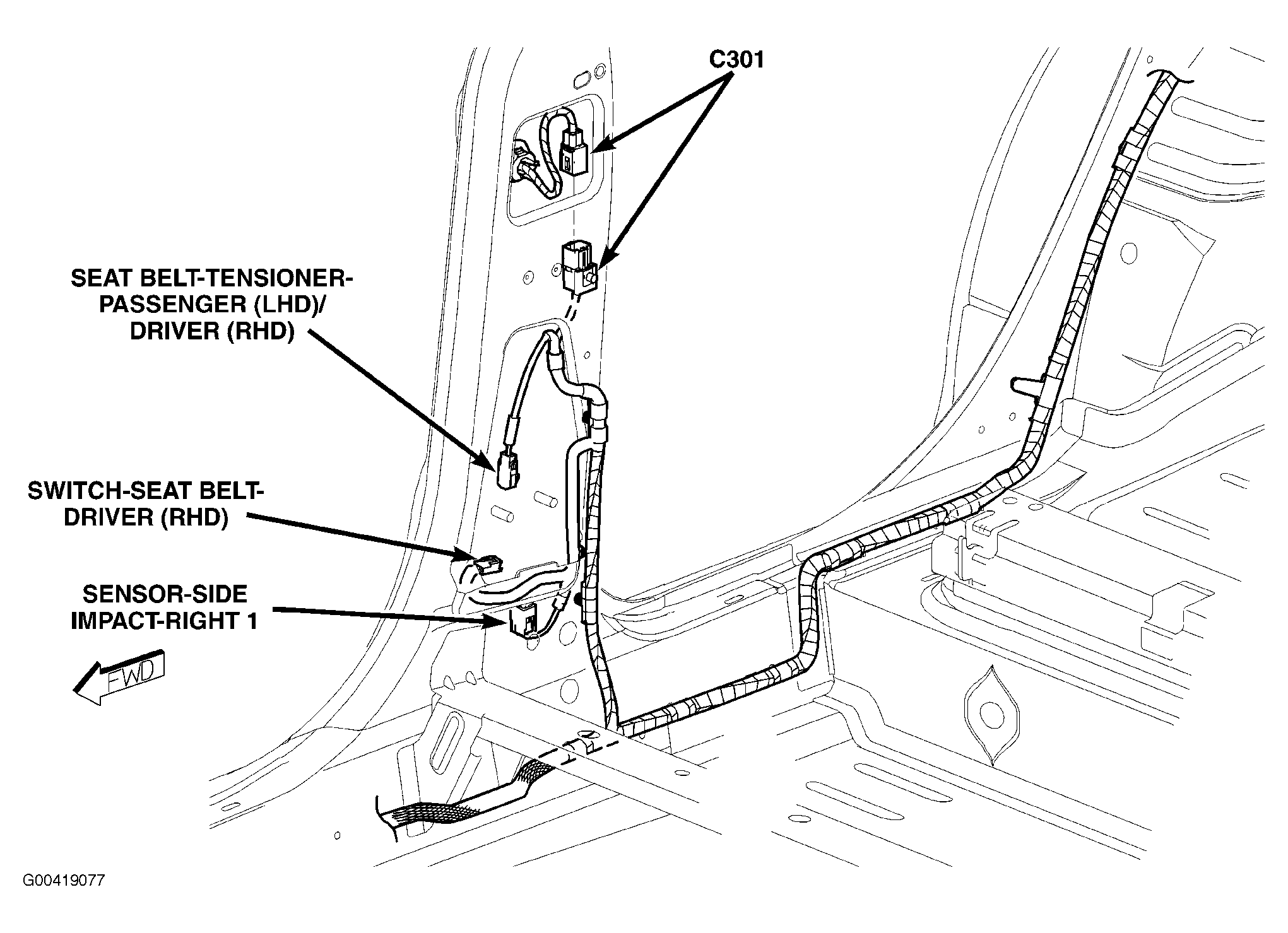

Fig 27: Right Rear Body (Except Convertible)

G00419077

Courtesy of CHRYSLER LLC

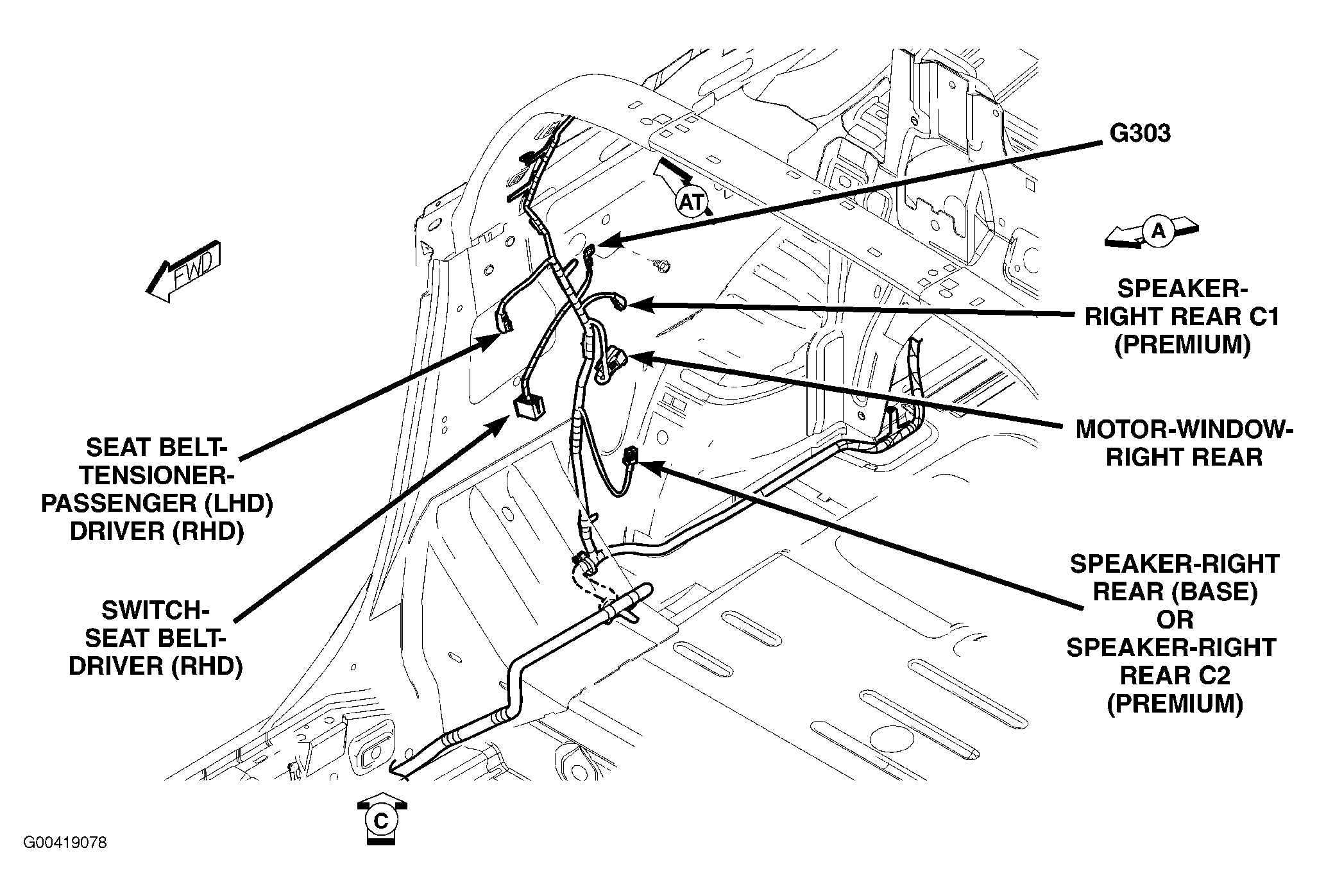

Fig 28: Right Rear Body (Convertible)

G00419078

Courtesy of CHRYSLER LLC

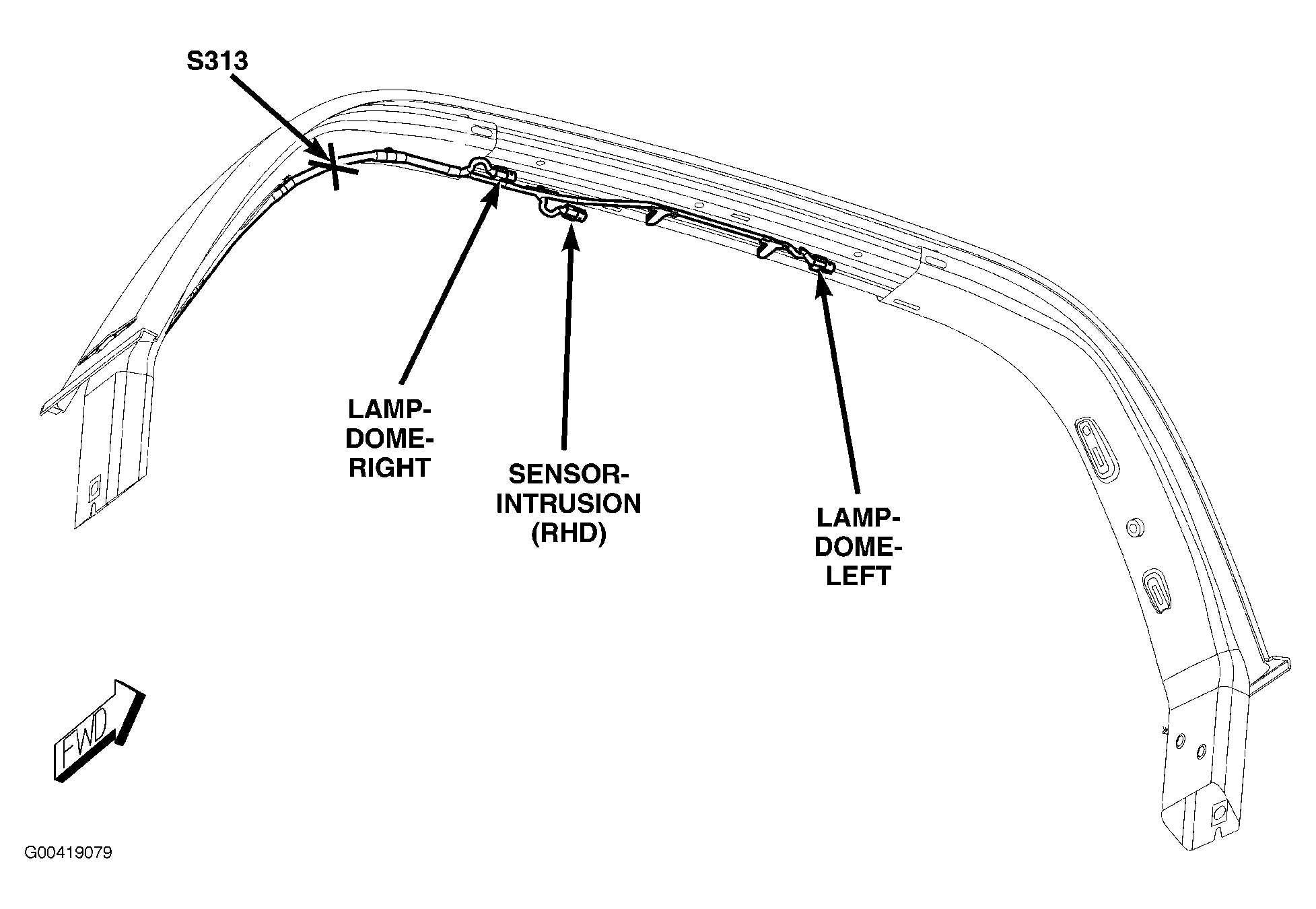

Fig 29: Sports Bar

G00419079

Courtesy of CHRYSLER LLC

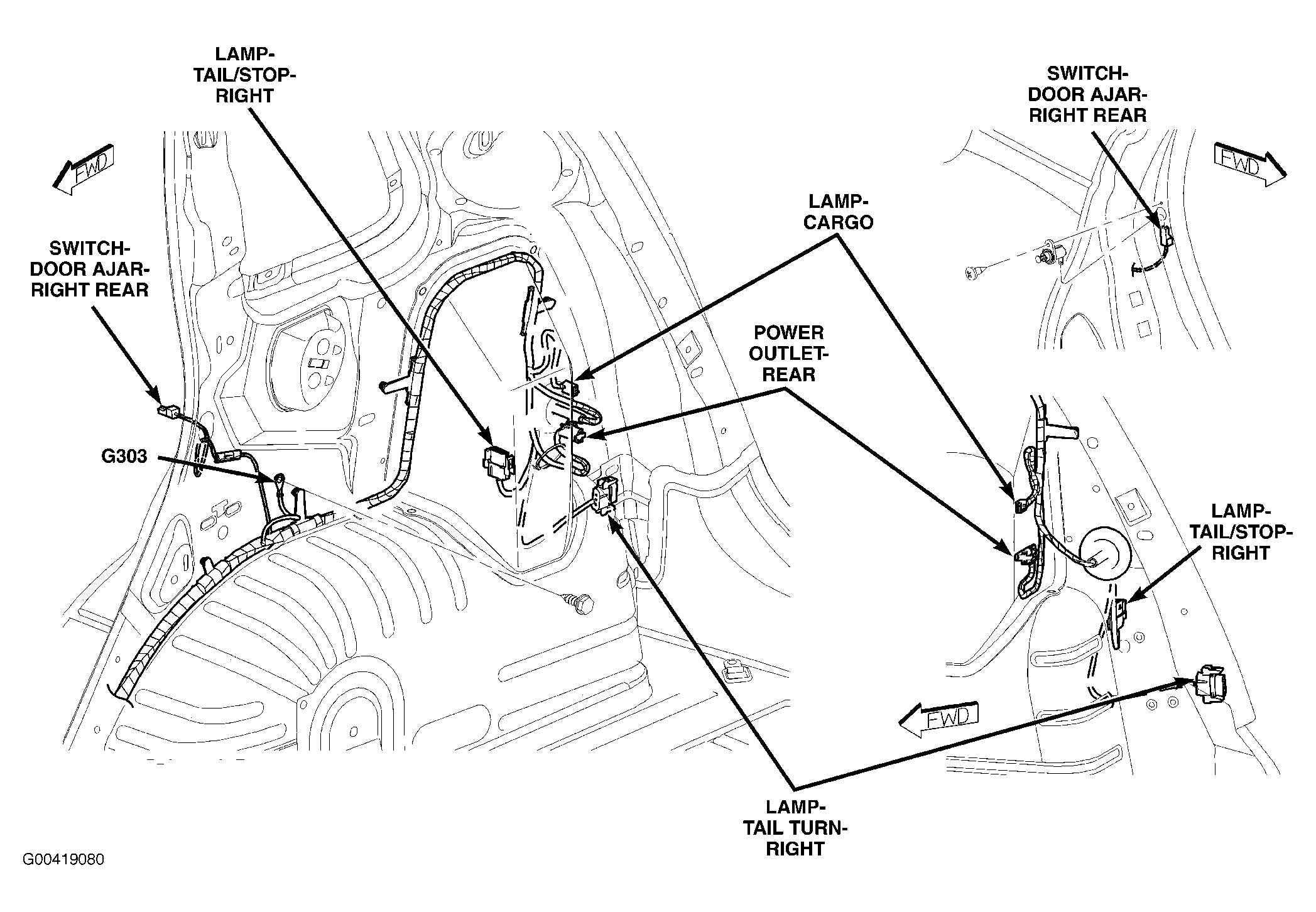

Fig 30: Right Rear Quarter (Except Convertible)

G00419080

Courtesy of CHRYSLER LLC

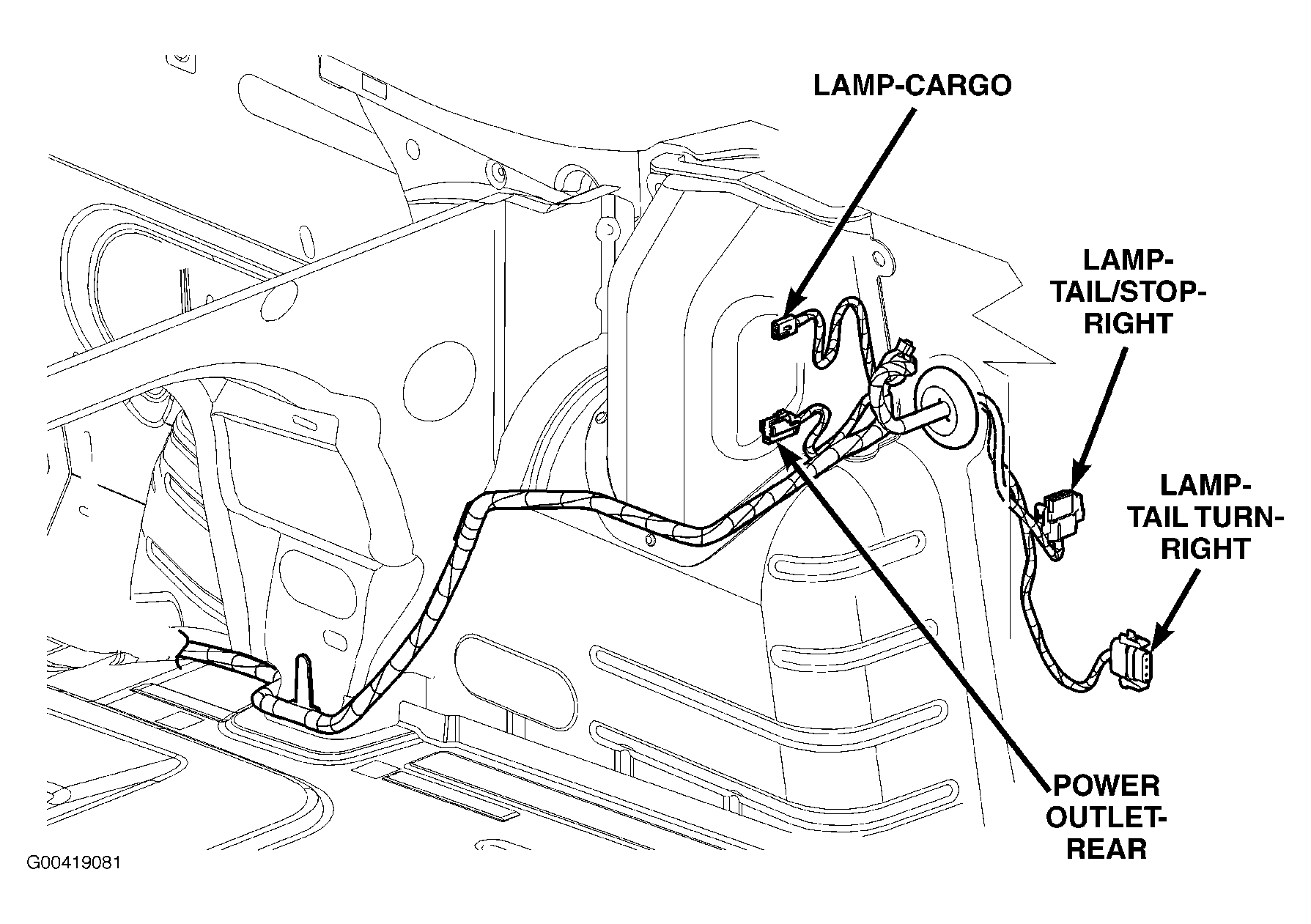

Fig 31: Right Rear Quarter (Convertible)

G00419081

Courtesy of CHRYSLER LLC

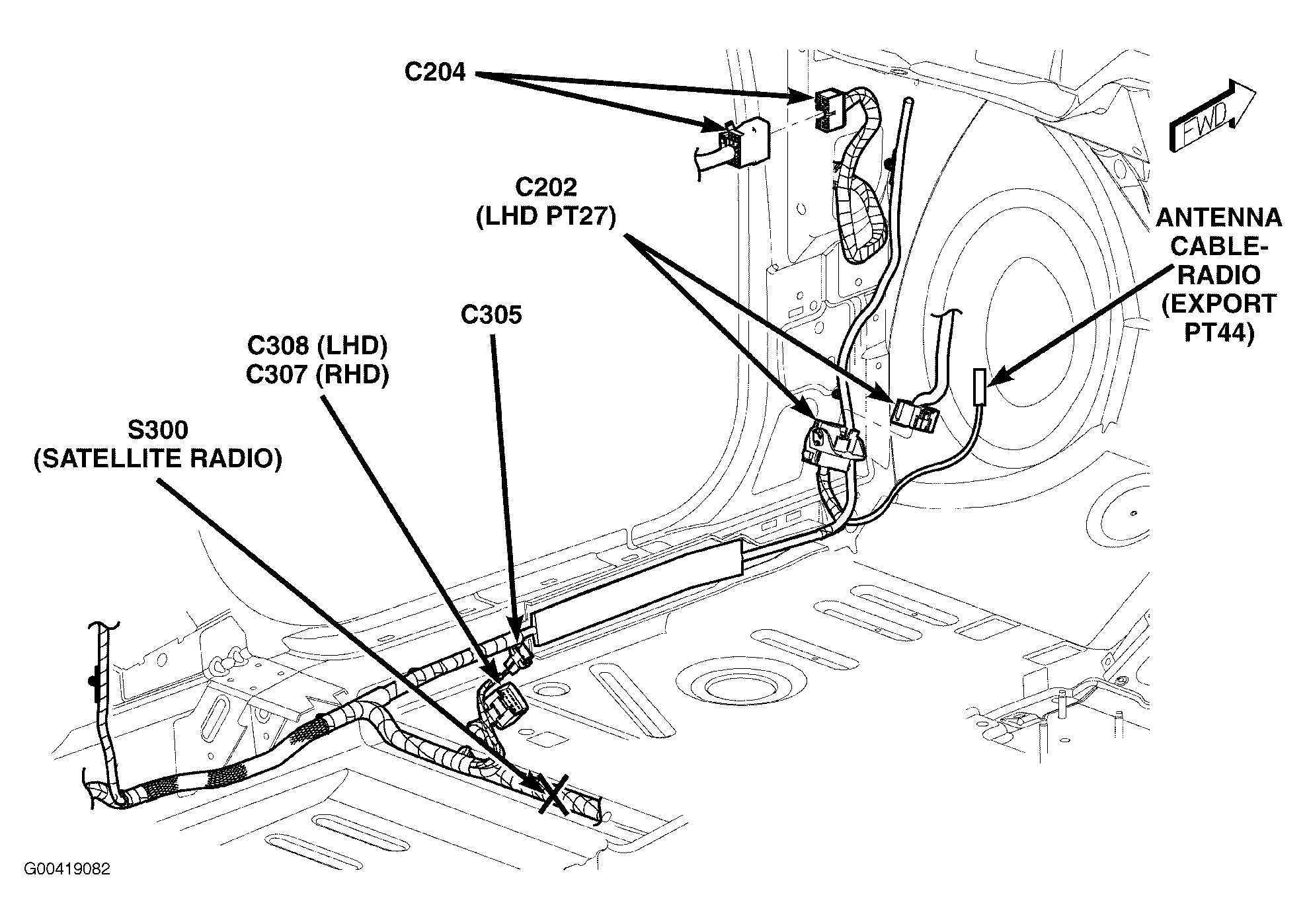

Fig 32: Left Front Body

G00419082

Courtesy of CHRYSLER LLC

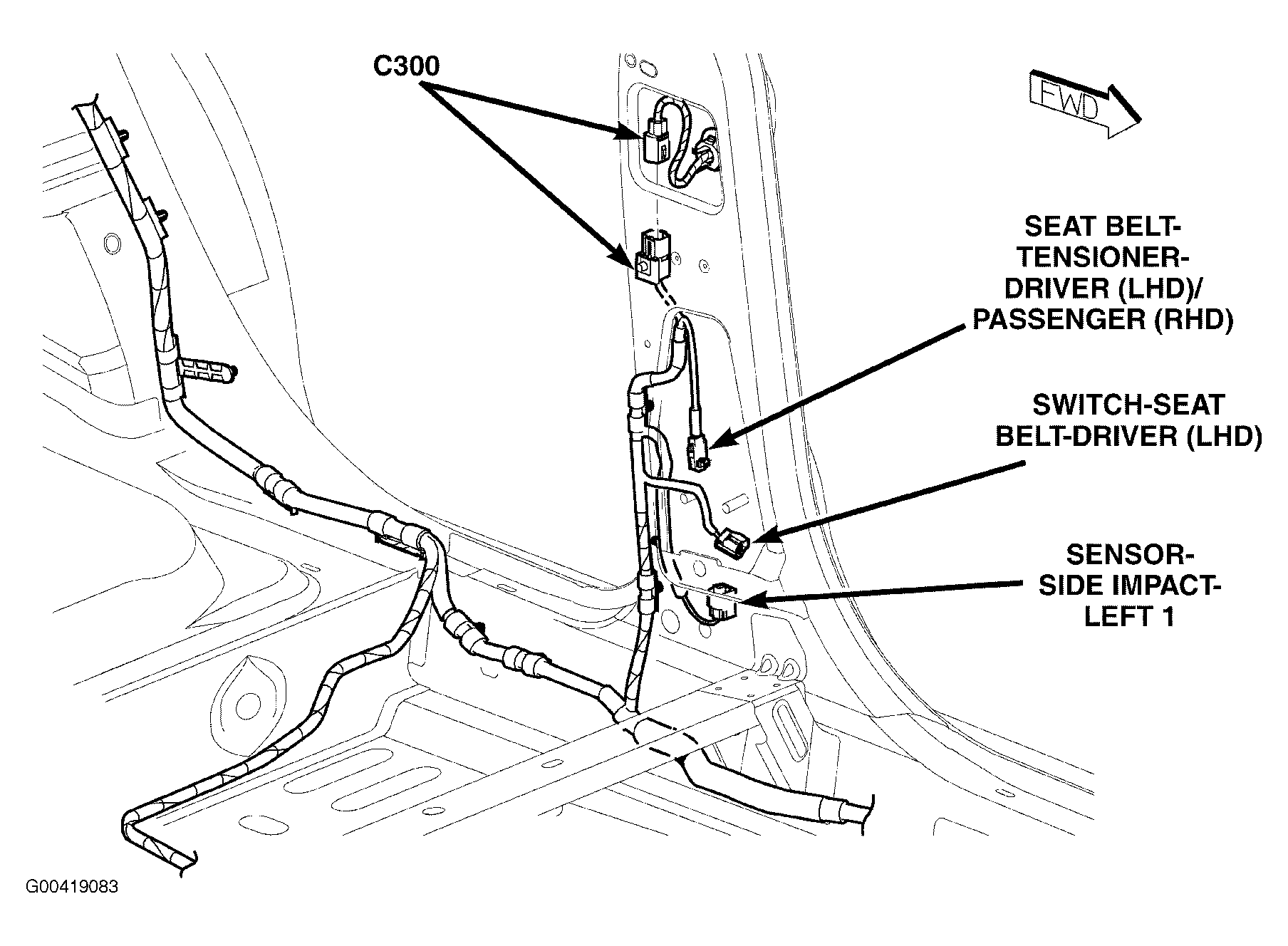

Fig 33: Left "B" Pillar

G00419083

Courtesy of CHRYSLER LLC

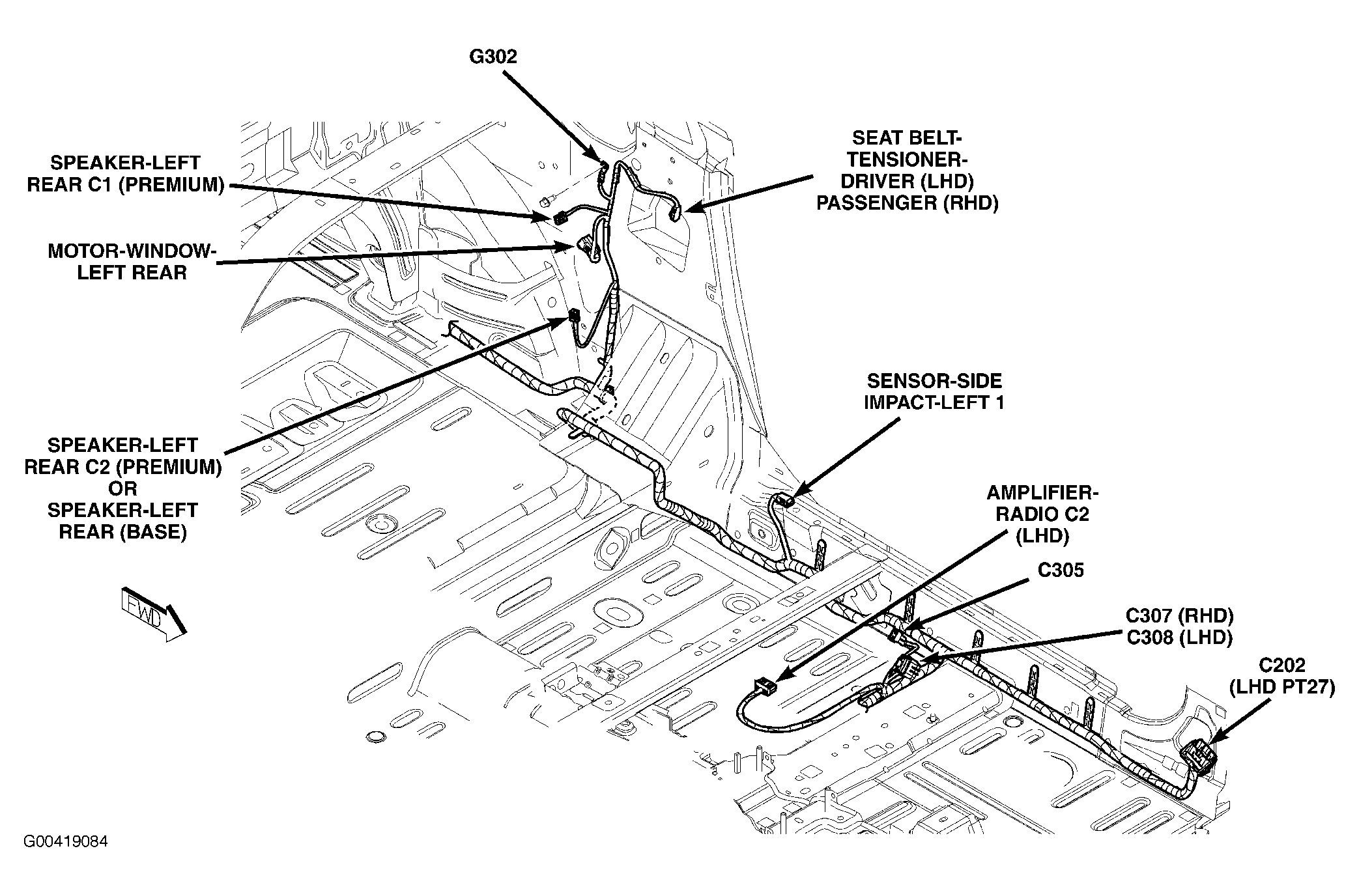

Fig 34: Left Side Body (Convertible)

G00419084

Courtesy of CHRYSLER LLC

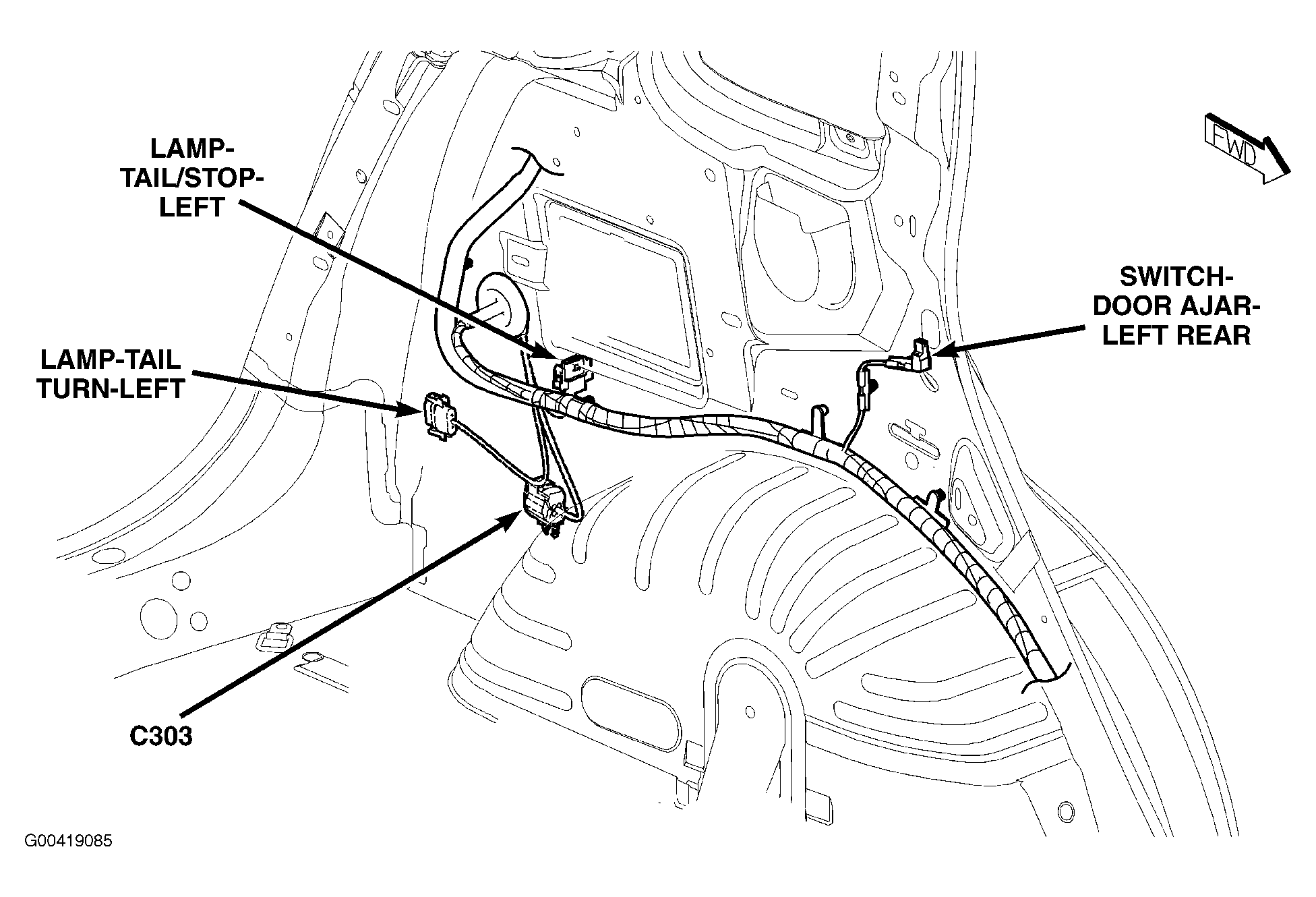

Fig 35: Left Rear Quarter (Except Convertible)

G00419085

Courtesy of CHRYSLER LLC

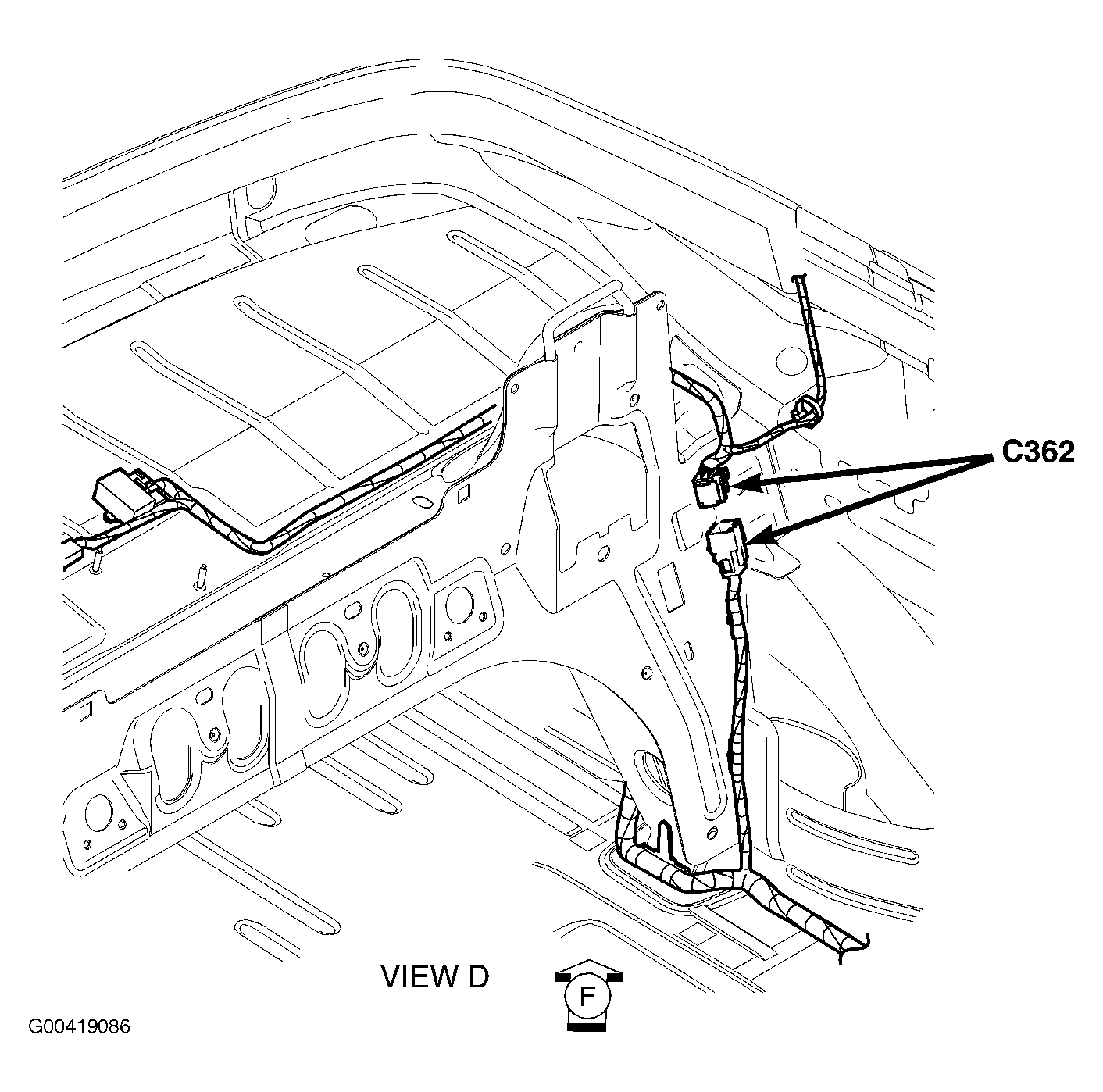

Fig 36: Left Rear Side (Convertible)

G00419086

Courtesy of CHRYSLER LLC

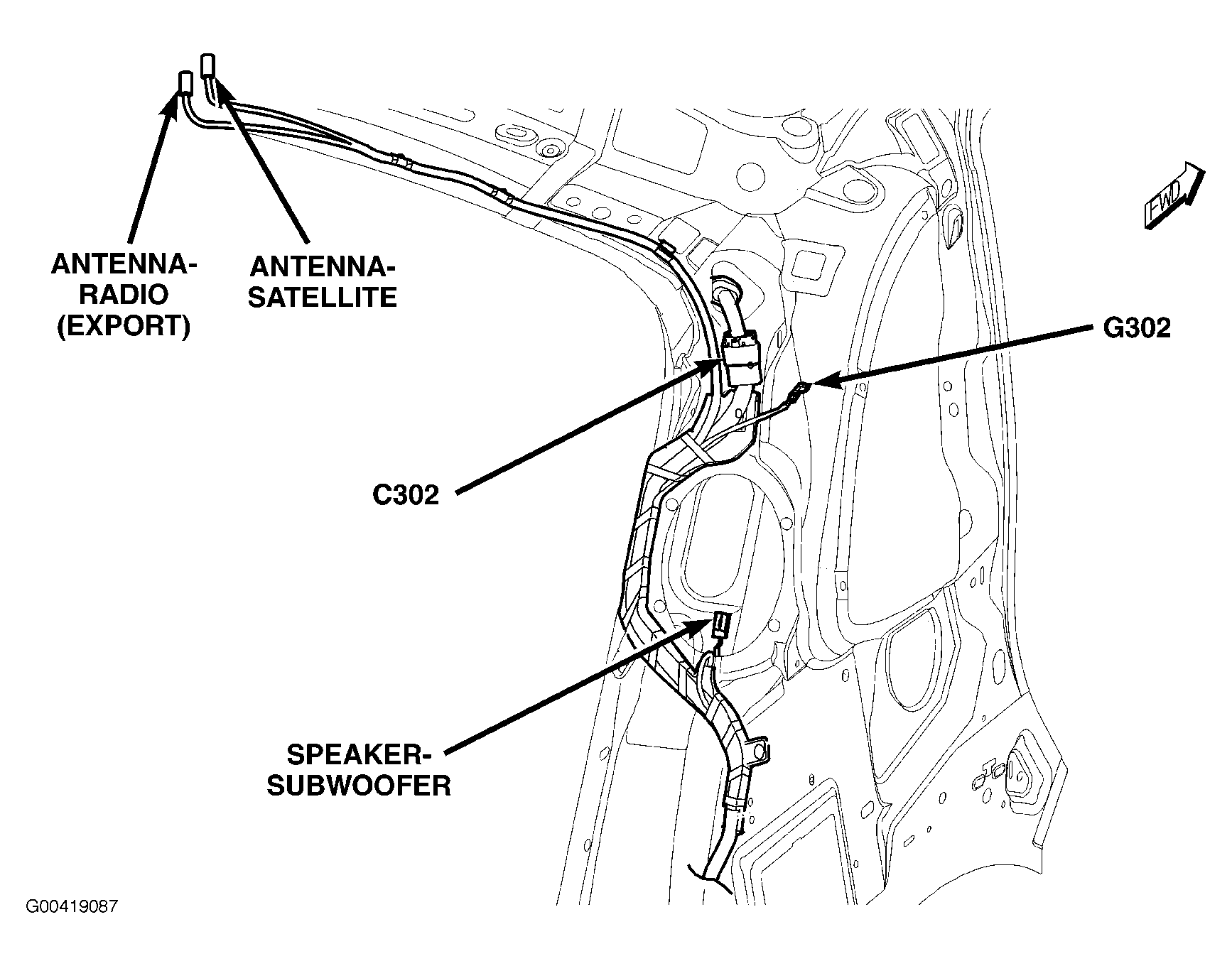

Fig 37: Left "C" Pillar (Except Convertible)

G00419087

Courtesy of CHRYSLER LLC

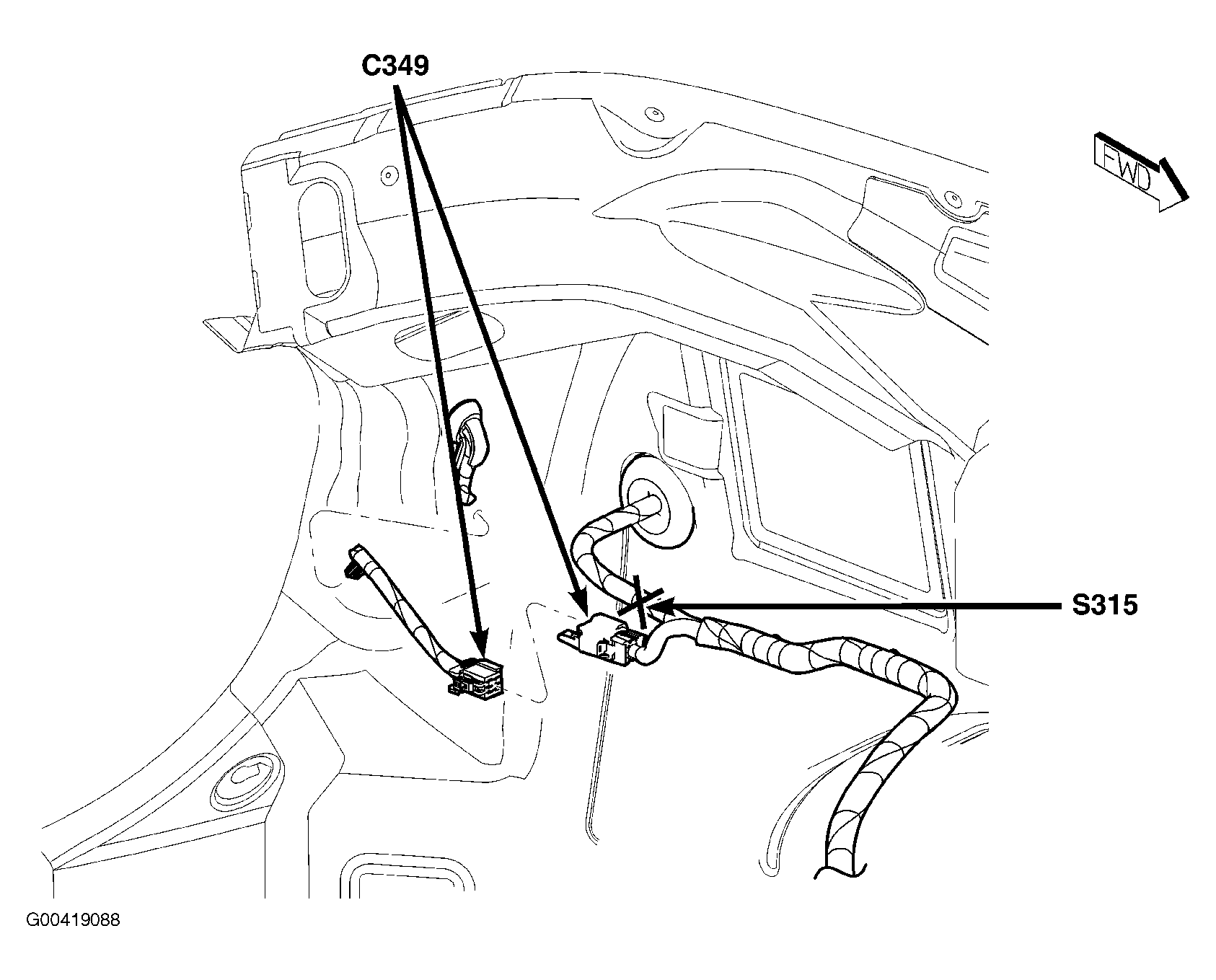

Fig 38: Left Rear Quarter (Convertible)

G00419088

Courtesy of CHRYSLER LLC

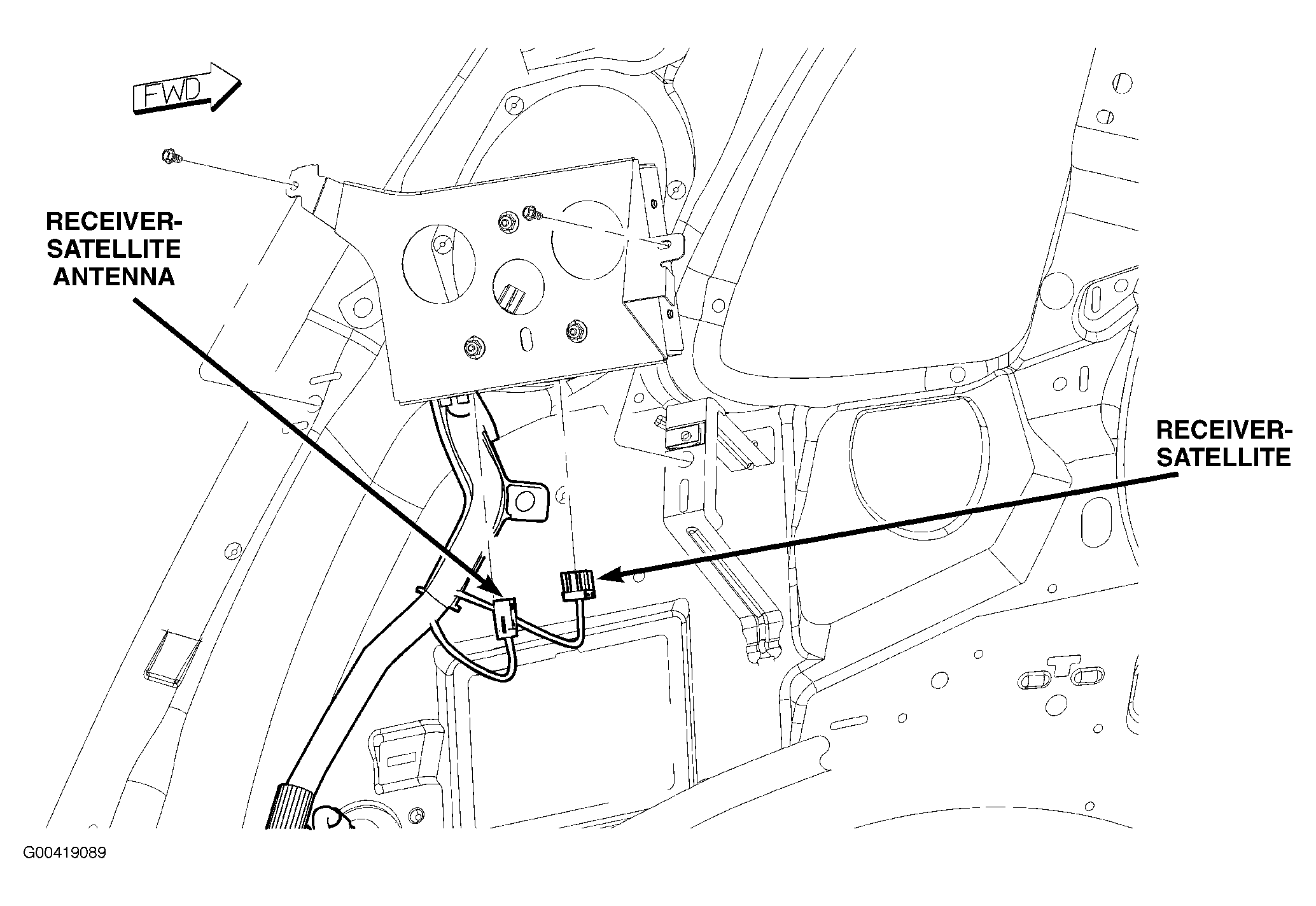

Fig 39: Left Rear "C" Pillar

G00419089

Courtesy of CHRYSLER LLC

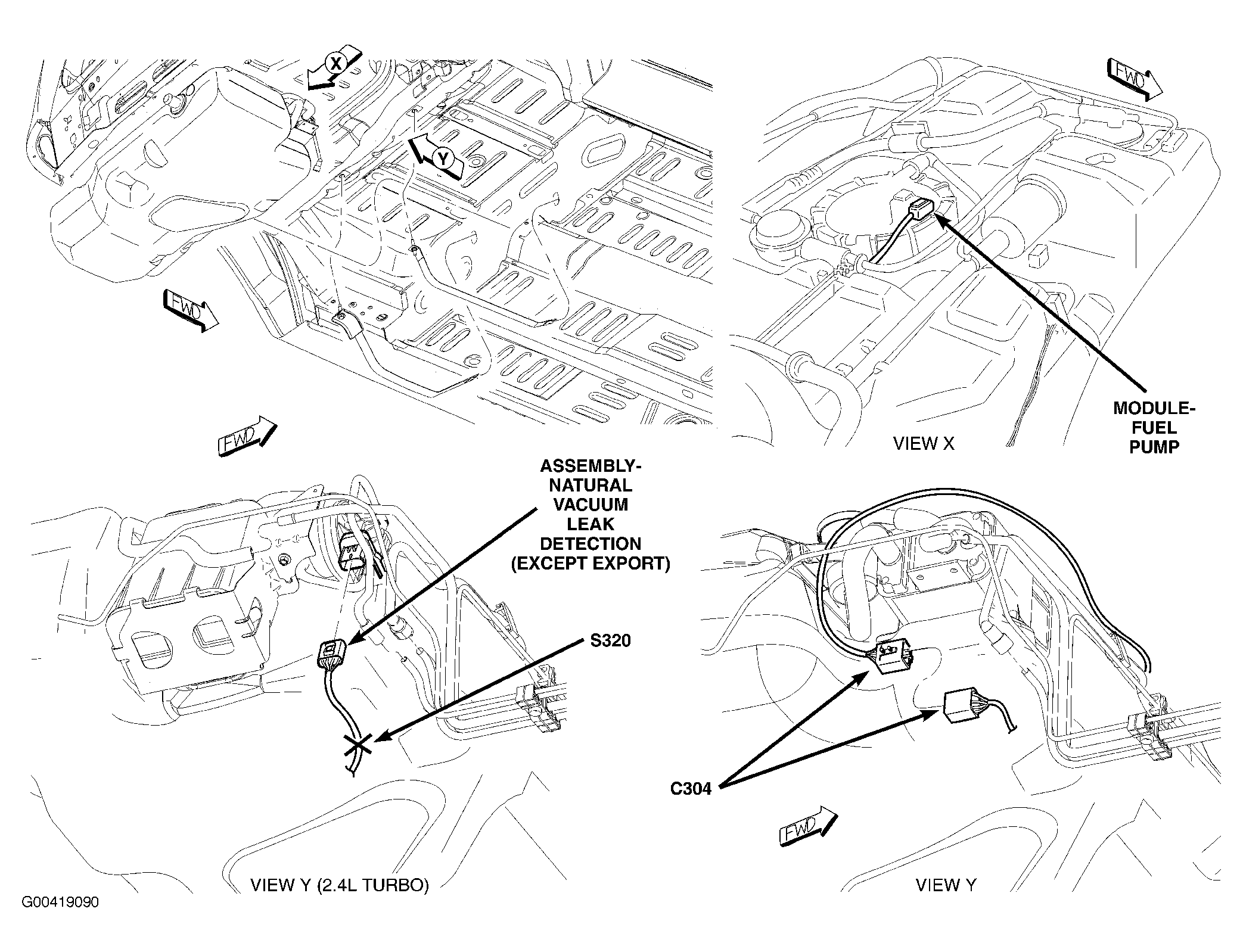

Fig 40: Fuel Tank

G00419090

Courtesy of CHRYSLER LLC

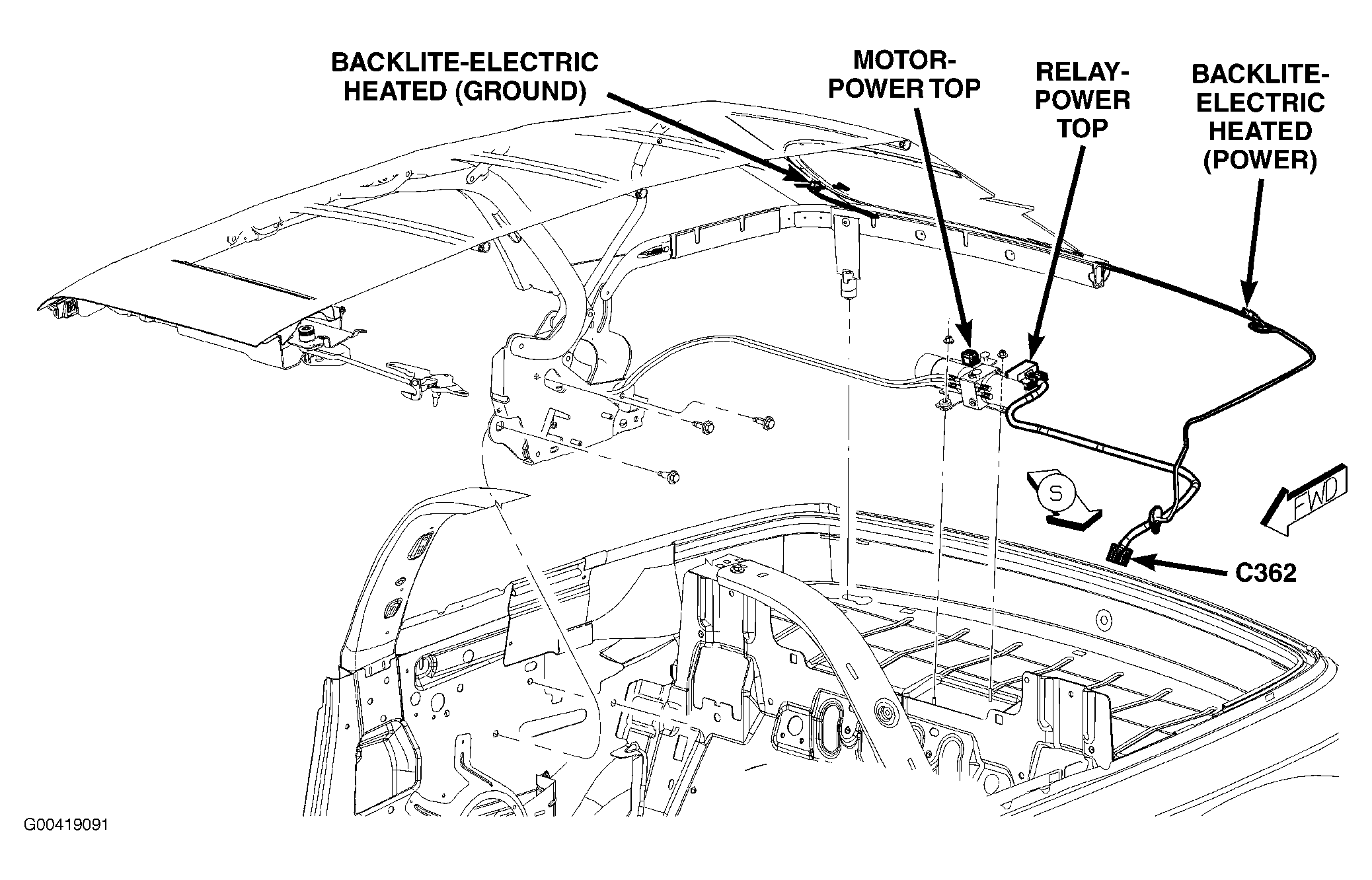

Fig 41: Power Top (Convertible)

G00419091

Courtesy of CHRYSLER LLC

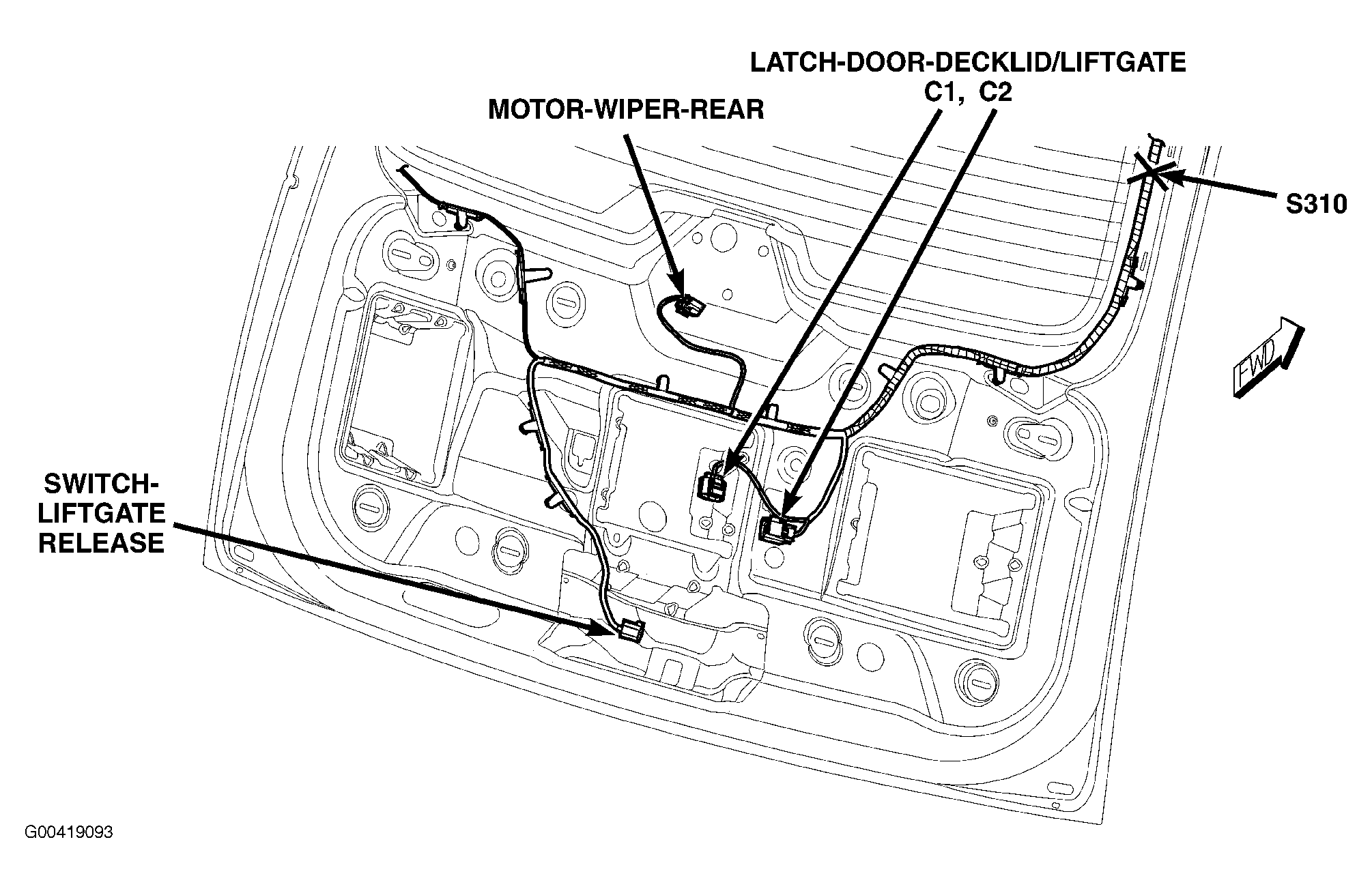

Fig 42: Lower Liftgate (Except Convertible)

G00419093

Courtesy of CHRYSLER LLC

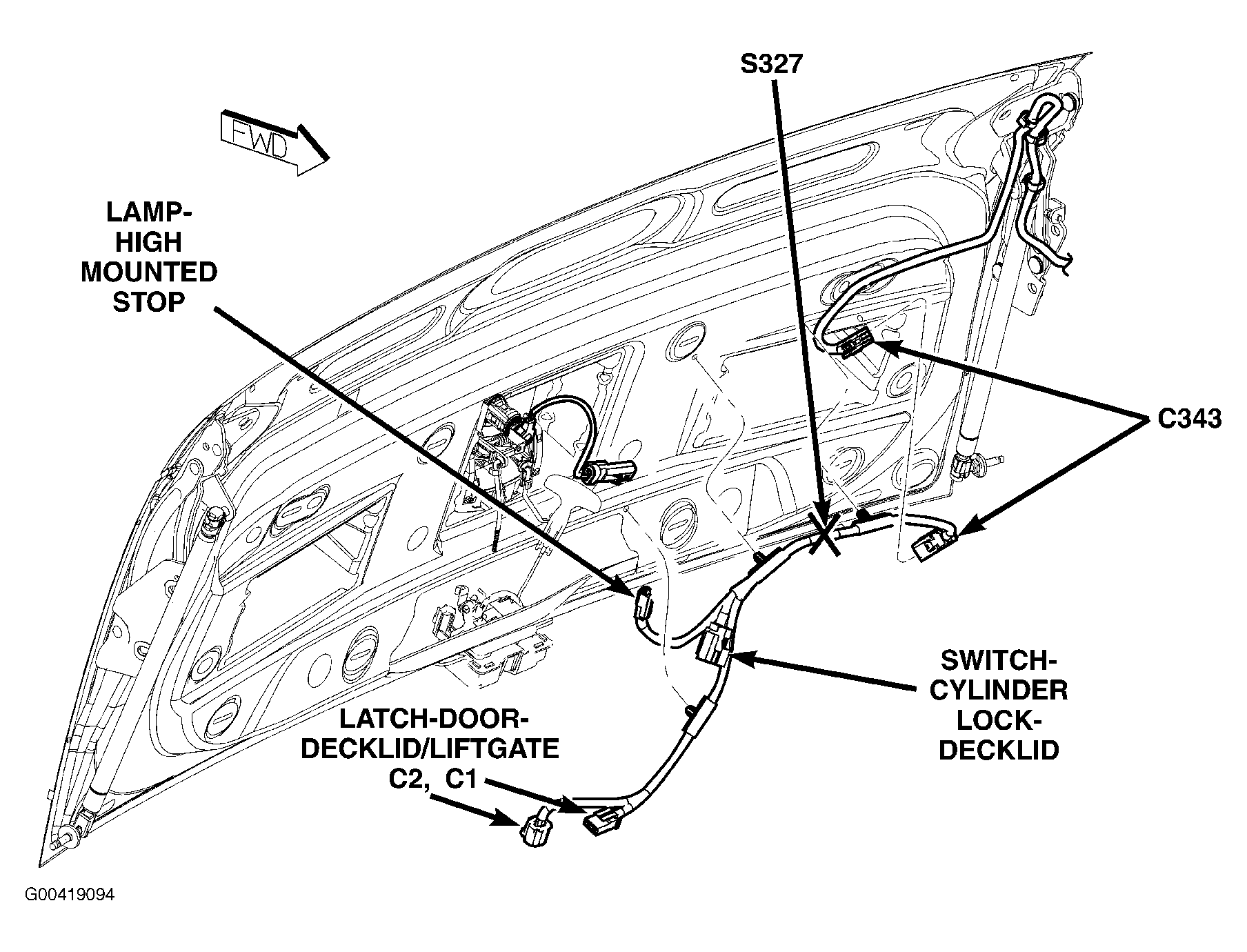

Fig 43: Decklid (Convertible)

G00419094

Courtesy of CHRYSLER LLC

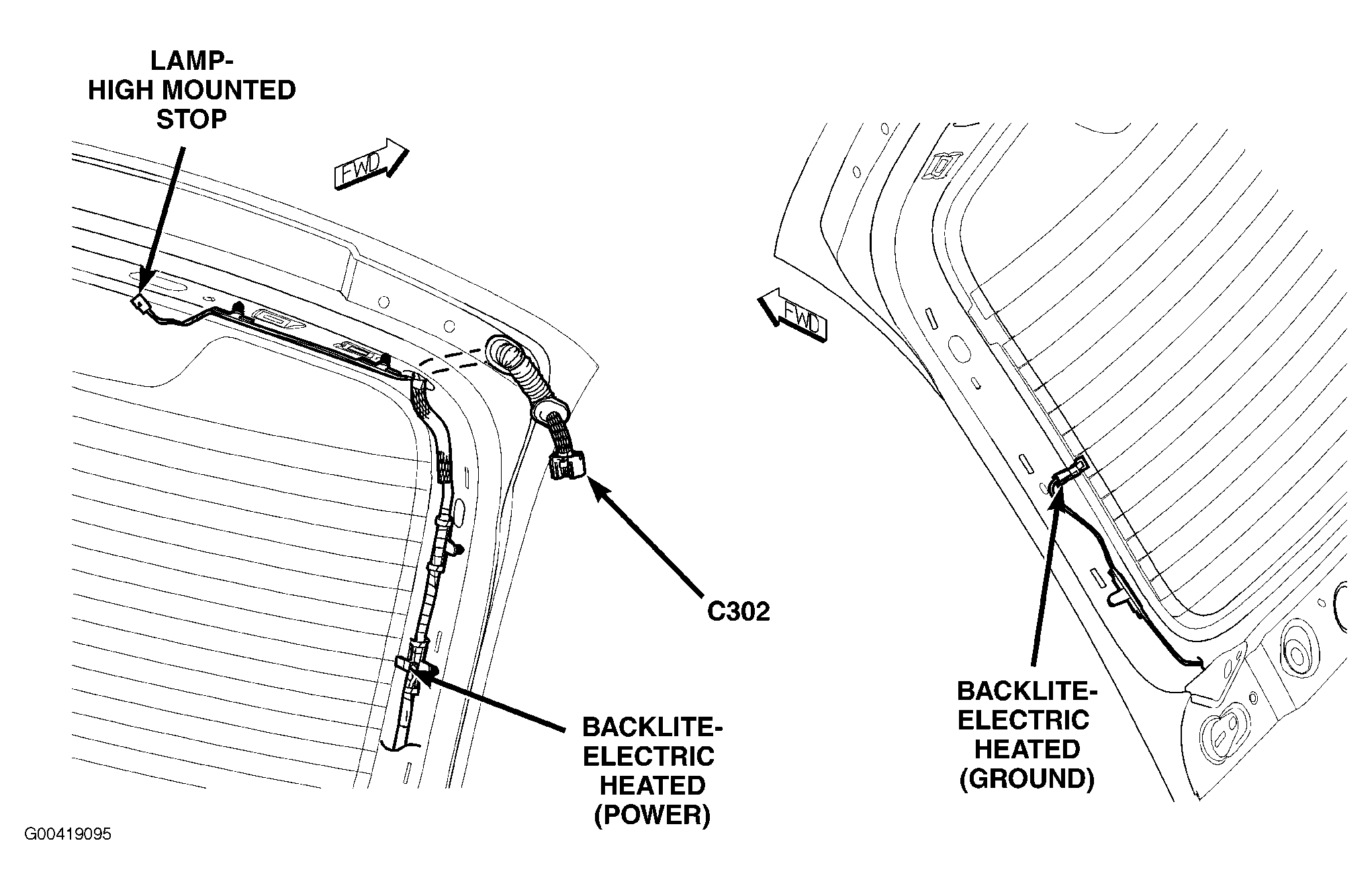

Fig 44: Rear Window

G00419095

Courtesy of CHRYSLER LLC

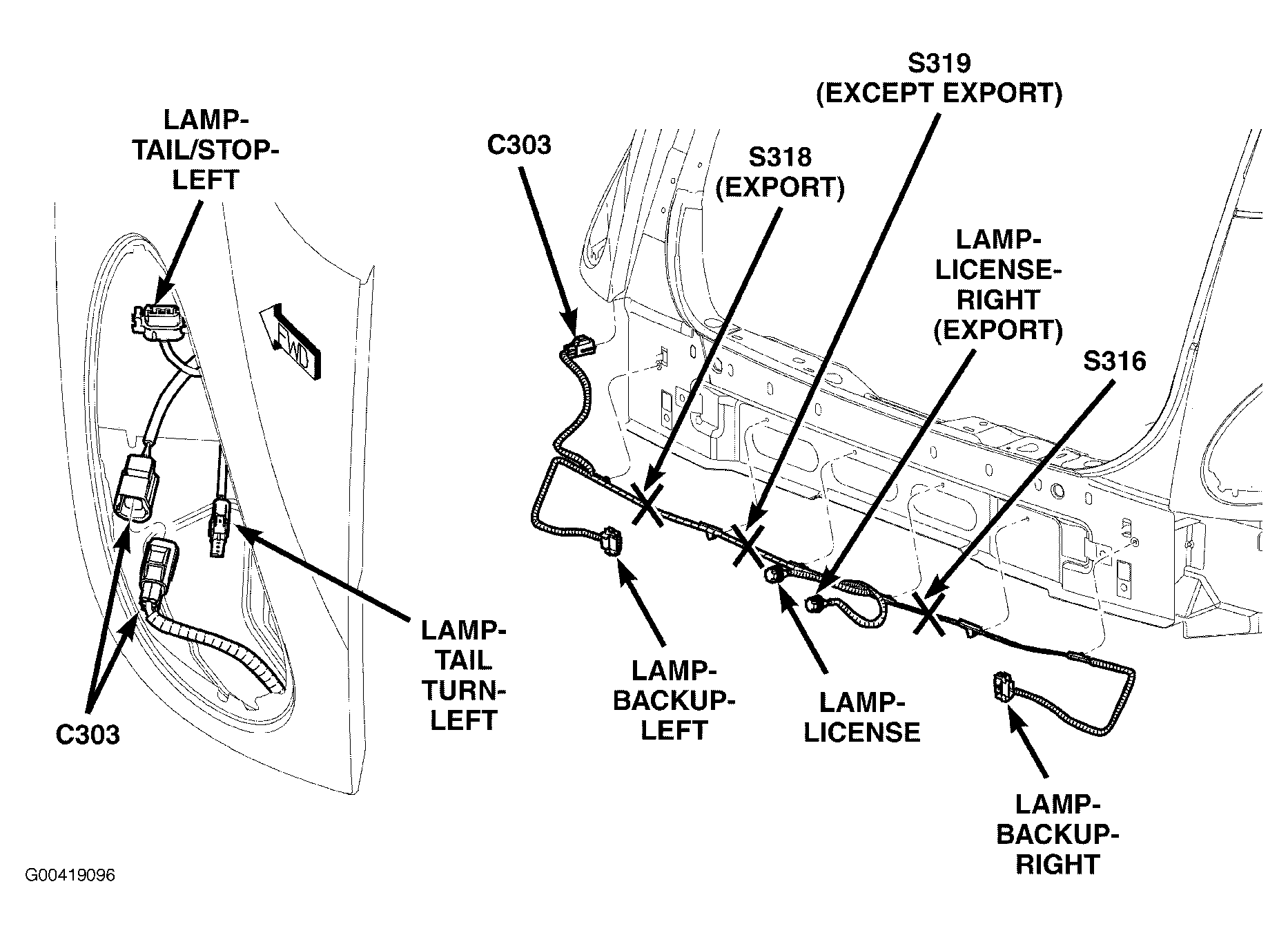

Fig 45: Rear Lighting

G00419096

Courtesy of CHRYSLER LLC

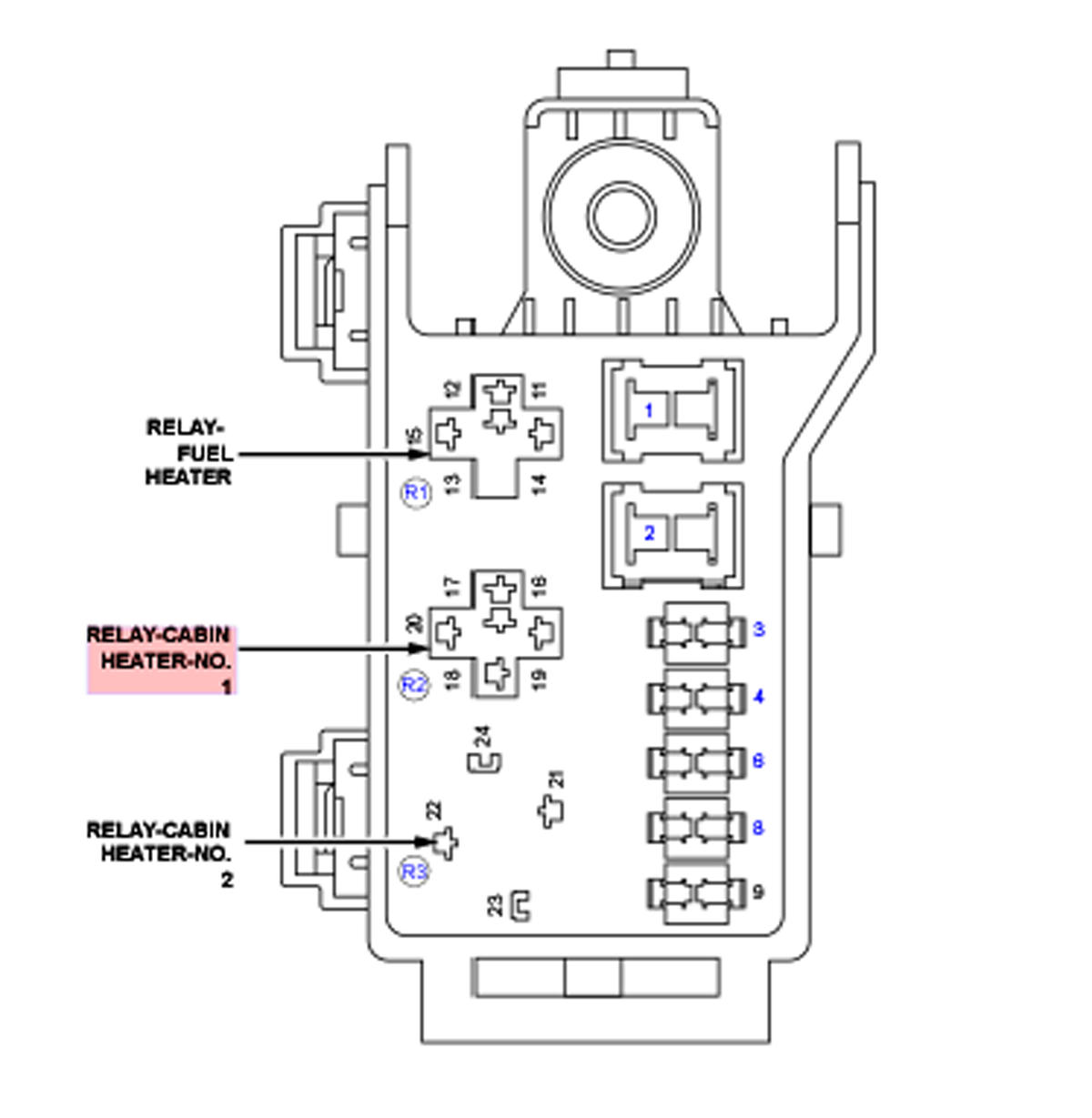

Fig 46: Fuse/Relay Block

G00467011

Courtesy of CHRYSLER LLC
