Steering System: Pump: Installation: Installation

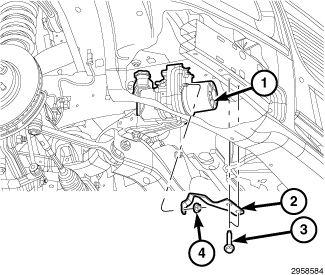

Fig 1: EHPS Pump Bracket Retaining Nut & EHPS Pump
GC0144527Courtesy of CHRYSLER LLC
  1. If Electro Hydraulic Power Steering (EHPS) pump bracket (2) has been removed, install the bracket to the vehicle and tighten fasteners to 12 N.m (9 ft. lbs.).
  2. Install EHPS pump (1) into vehicle and install EHPS bracket retaining nut (4). Tighten retaining nut to 12 N.m (9 ft. lbs.).

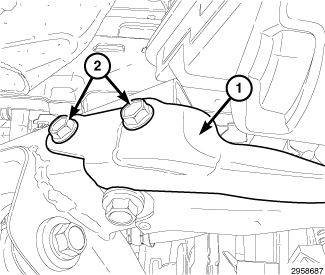

    Fig 2: EHPS Pump Bracket & Bolts
    GC0144528Courtesy of CHRYSLER LLC
  3. Install EHPS pump bracket (1) mounting bolts (2) and tighten to 50 N.m (37 ft. lbs.).

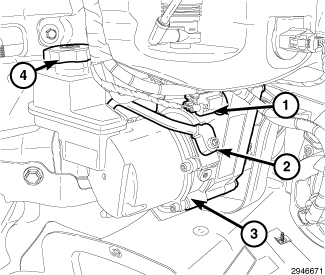

    Fig 3: Pressure Hose Retaining Bolt & (EHPS) Pump
    GC0144516Courtesy of CHRYSLER LLC
    NOTE:

    Always use a new O-ring on the end of the pressure line.

  4. Lubricate the new O-ring on the end of the pressure line with clean power steering fluid.
  5. Install power steering pressure line to EHPS Pump (3).
  6. Install pressure line retaining bolt (2) and tighten to 10 N.m (89 in. lbs.).
  7. Install EHPS pump electrical connectors (1).
    Fig 4: Disconnecting/Connecting Battery Cables
    GC0079763Courtesy of CHRYSLER LLC
  8. Fill and bleed power steering system. Refer to Standard Procedure .
  9. Install right front wheelhouse splash shield. Refer to SHIELD, Splash, Front Wheelhouse, Installation .
  10. Lower vehicle.
  11. Connect battery negative cable (2) to battery post. It is important that this is performed properly.
