Sensor, Boost Pressure: Installation: Installation

Fig 1: Intake Air Temperature Sensor/Boost Pressure Sensor, Fastener & Connector

Courtesy of CHRYSLER GROUP, LLC

1. Install the boost pressure sensor (2) and securely tighten fastener (3).
2. Connect the boost pressure sensor harness connector (1).

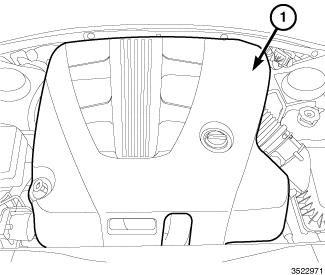

   Fig 2: Engine Cover

   Courtesy of CHRYSLER GROUP, LLC
3. Install the engine cover (1).
4. Connect the negative battery cable.
