Lever, Gearshift: Installation: Installation

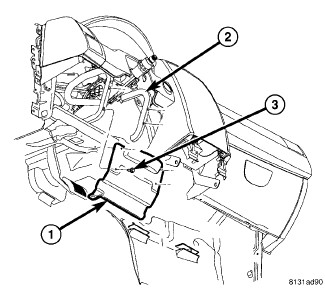

Fig 1: Gear Shift Lever Mounting Screw

Courtesy of CHRYSLER GROUP, LLC

Feed the autostick wiring through the hole in the cluster bezel and slide the gear shift lever (2) into the column shift mechanism.
NOTE:
Before installing gear shift lever mounting screw, clean screw threads and apply Mopar® Lock AND Seal Adhesive.
Line up the threaded hole in the lever with the hole in the shift mechanism and install the gear shift lever mounting screw (1). Tighten the screw to 12 N.m (106 in. lbs.).

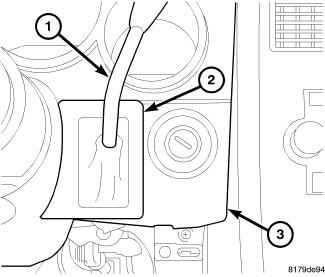

Fig 2: Gear Shift Lever Boot
Courtesy of CHRYSLER GROUP, LLC
Slide the gear shift lever boot down gear shift lever (1) and snap it into place on the cluster bezel (3).

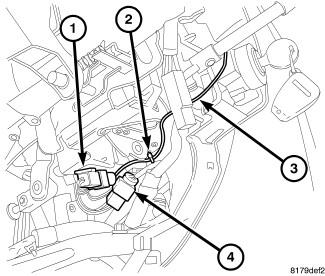

Fig 3: Auto-Stick Wiring Connector
Courtesy of CHRYSLER GROUP, LLC
Route the autostick wiring (3) along the right side of the column gear shift mechanism and install a wiring tie strap (2) securing the autostick wiring to the column.
Connect the autostick wiring connector (1).
Check autostick wiring (3), making sure it is routed away from movable portions of shift mechanism.

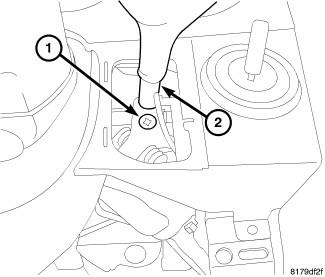

Fig 4: Reinforcement I/P Steering Column
Courtesy of CHRYSLER GROUP, LLC

CAUTION:
If the steering wheel is excessively off-center while driving, outside of Chassis specifications, inadvertent ESC activations may occur on a vehicle so equipped.
Install the steering column opening reinforcement (1).
Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, INSTALLATION .
Install the negative battery terminal on the battery. It is important that this is performed properly.
Test the operation of the gear shift lever and autostick functions.
