Tube, Connecting: Installation: Installation

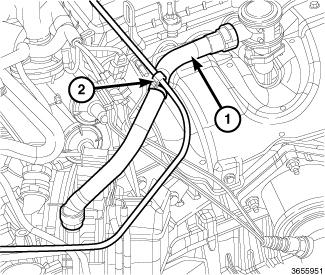

Fig 1: Purge Line Retainer & Connecting Tube

Courtesy of CHRYSLER GROUP, LLC

1. The connecting tube O-rings can be reused if not damaged.
2. Position and install the connecting tube (1) to the air pump and one way check valve.
3. Engage the purge line retainer (2) to the connecting tube (1).
4. Install the engine cover.
