Spark Plug: Removal: 2.4L

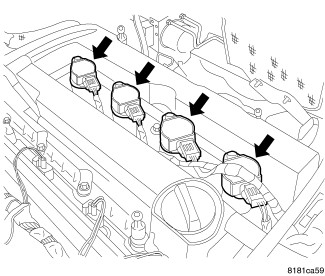

Fig 1: Ignition Coils

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Prior to removing the coil, spray compressed air around coil top to make sure no dirt drops into the spark plug tube.

Disconnect and isolate the negative battery cable.
Disconnect the electrical connectors from the ignition coils.

Fig 2: Ignition Coil Bolt
Courtesy of CHRYSLER GROUP, LLC
Remove the ignition coil mounting bolt.

Fig 3: Ignition Coil Removed
Courtesy of CHRYSLER GROUP, LLC
Twist the ignition coil then pull straight up.

Fig 4: Spark Plug Removed
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Prior to loosening the spark plug, use compressed air to blow out any debris that might be in the spark plug tube.
Remove the spark plug using a quality socket with a rubber or foam insert.
Inspect the spark plug condition.
