Engine Cooling System: Engine: Thermostat: Installation: 3.6L
CAUTION:

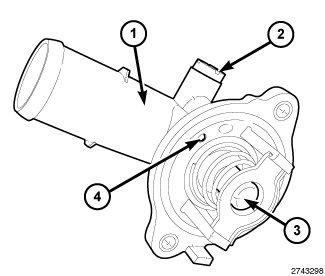

The Thermostat and housing is serviced as an assembly. Do not remove the thermostat from the housing, damage to the thermostat may occur.
- Clean mating areas of timing chain cover and thermostat housing (1).
- Install a new gasket seal on to the thermostat housing.
- Position thermostat housing on the water crossover.
- Install two thermostat housing bolts. Tighten bolts to 12 N.m (106 in. lbs.).
- Install upper radiator hose on thermostat housing (1).
- Install the coolant recovery bottle. Tighten bolts to 8 N.m (70 in. lbs.).
- Fill cooling system. Refer to STANDARD PROCEDURE .
- Connect negative battery cable to battery.
- Start and warm the engine. Check for leaks.
