Sensor, Coolant Temperature: Installation: 5.7L/6.4L

Courtesy of CHRYSLER GROUP, LLC

1. Apply MOPAR® thread sealant with PFTE to the Engine Coolant Temperature (ECT) sensor threads.

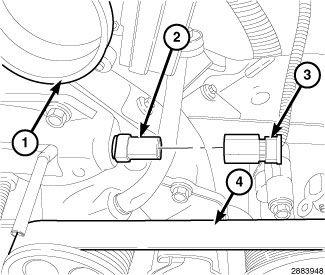

2. Install the ECT sensor (2) and tighten to the proper torque specifications. Refer to TORQUE SPECIFICATIONS .
3. Connect the ECT sensor wire harness connector (3).
4. Install air cleaner body. Refer to BODY, AIR CLEANER, INSTALLATION .
5. Install the engine cover.
6. Fill the cooling system. Refer to STANDARD PROCEDURE .
7. Connect the negative battery cable.
