Home >> Daewoo >> 1999 >> Nubira CDX, 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> System & Component Testing >> Idle Air Control System Check

Idle Air Control System Check

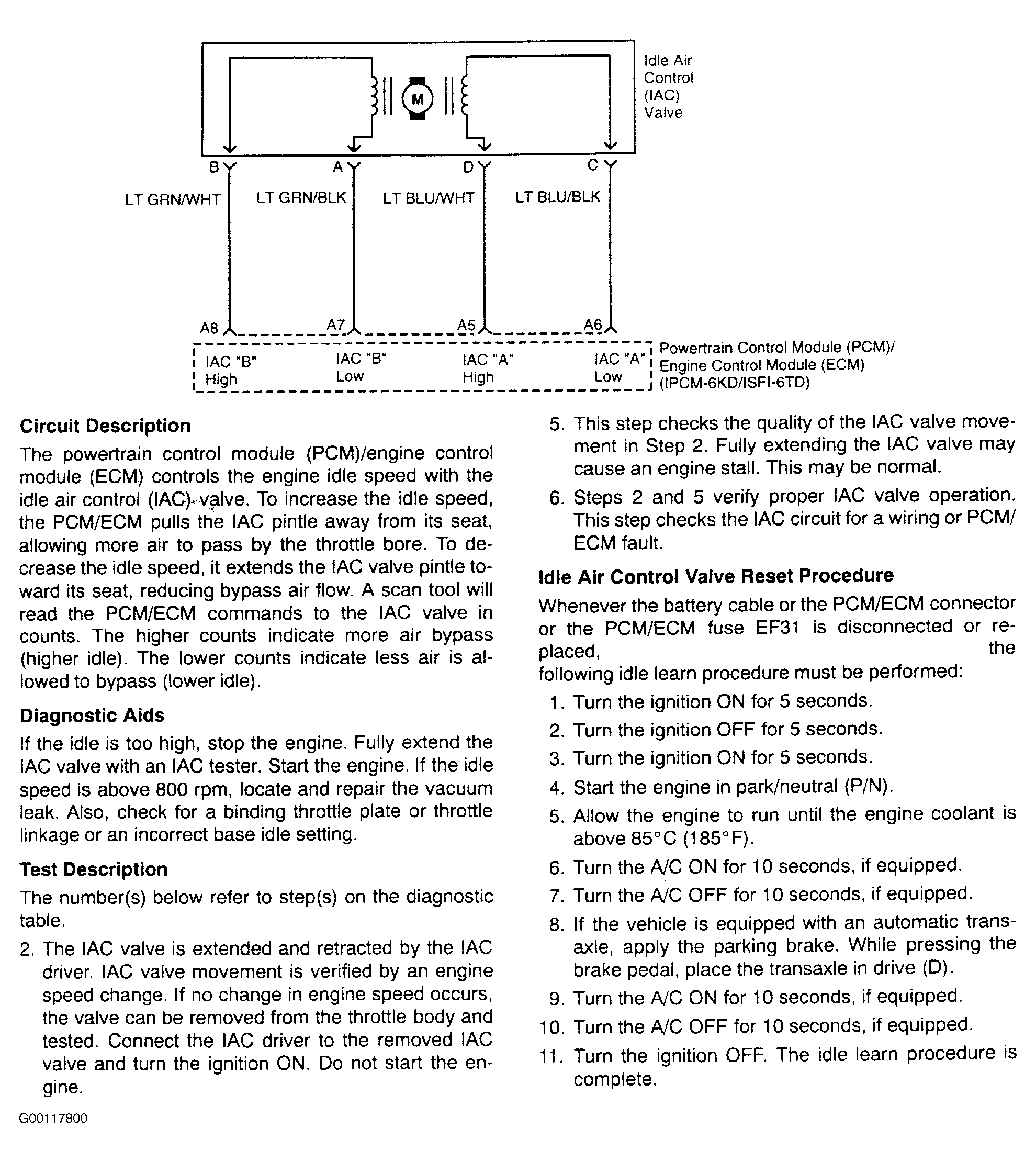

Fig 1: Idle Air Control System Check (1 Of 3)
G00117800Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 2: Idle Air Control System Check (2 Of 3)
G00047582Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 3: Idle Air Control System Check (3 Of 3)
G00047583Courtesy of DAEWOO MOTOR AMERICA, INC.
