Ignition System Check

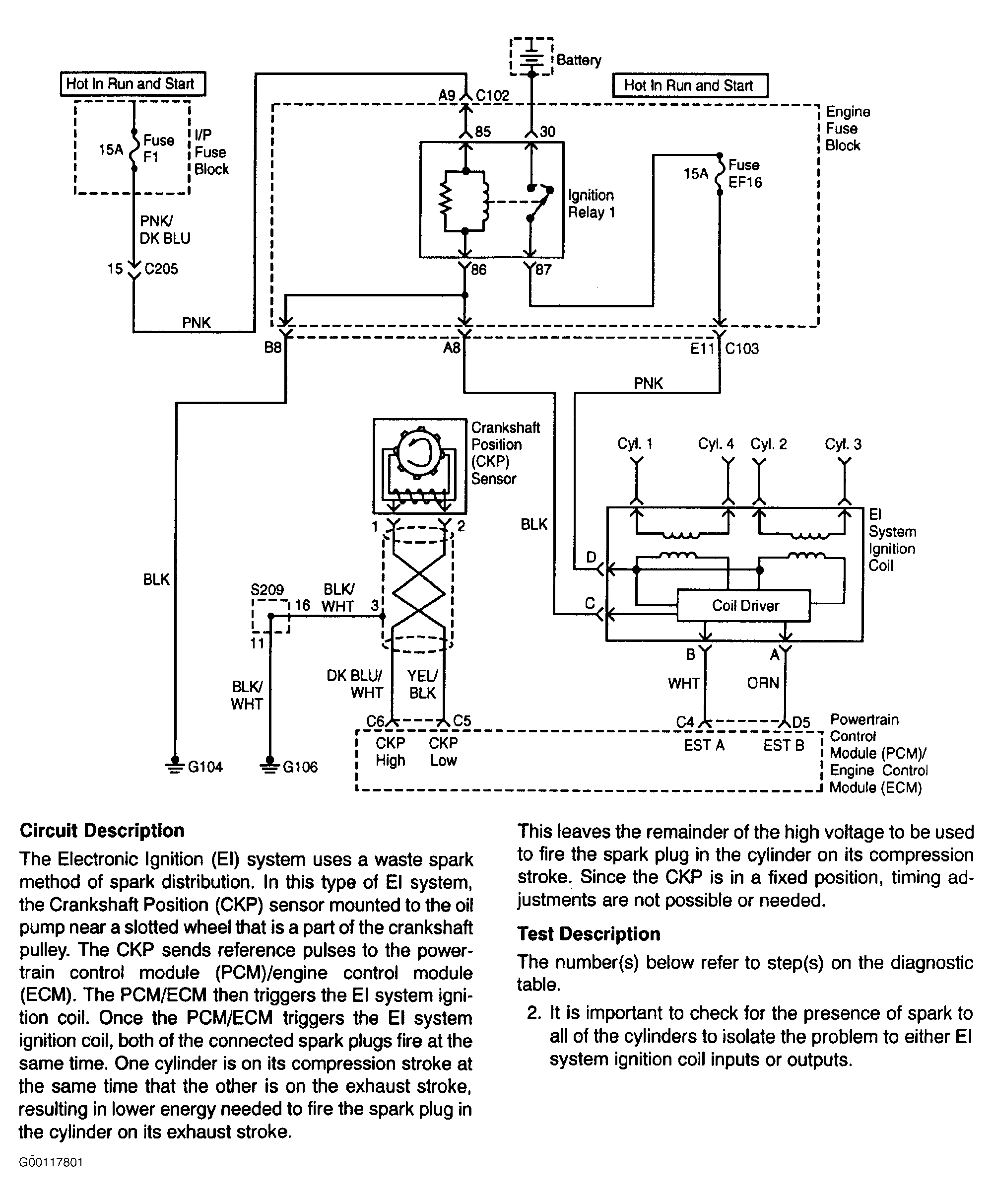

Fig 1: Ignition System Check (1 Of 4)
G00117801Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 2: Ignition System Check (2 Of 4)
G00047585Courtesy of DAEWOO MOTOR AMERICA, INC.

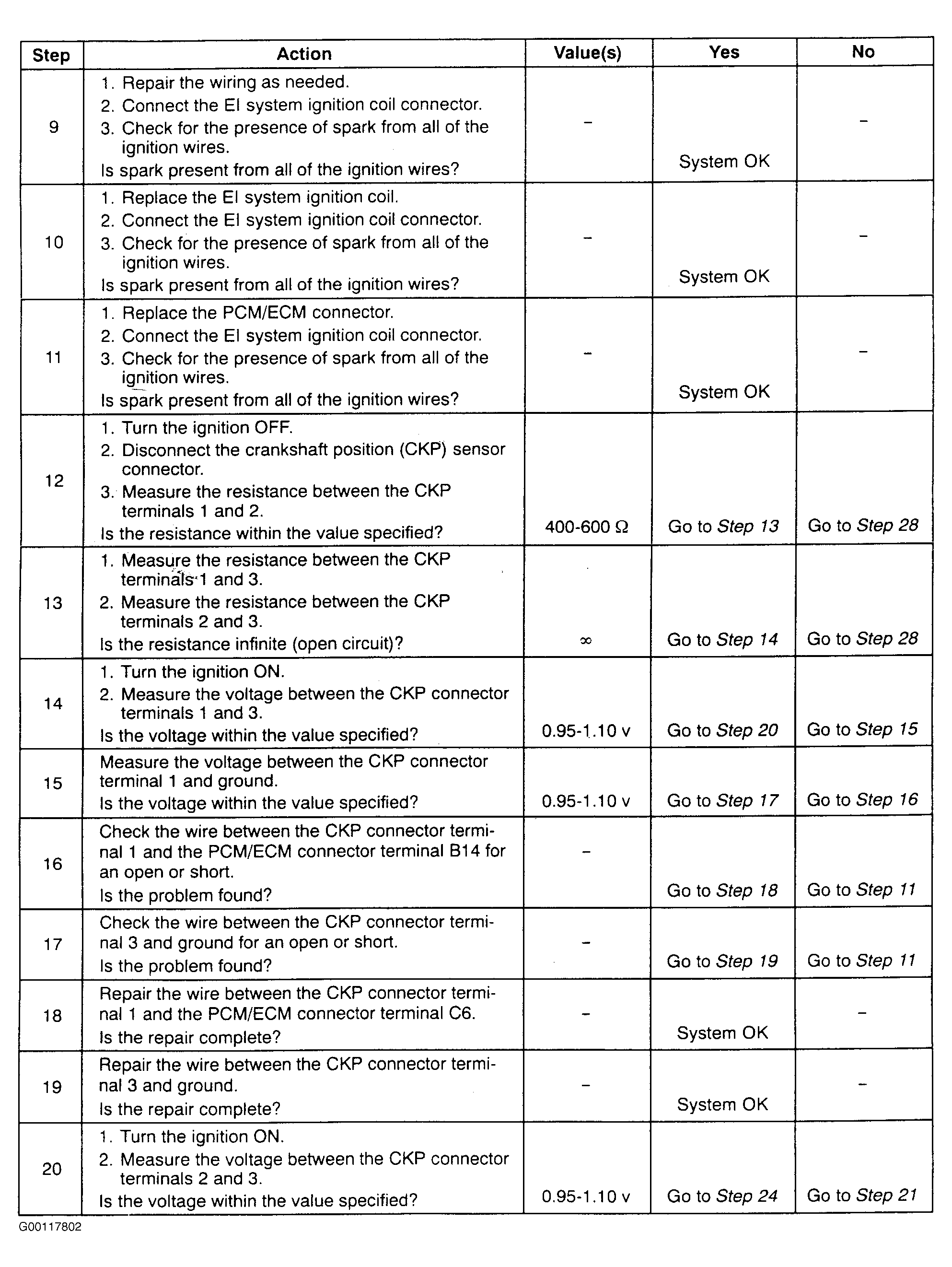

Fig 3: Ignition System Check (3 Of 4)
G00117802Courtesy of DAEWOO MOTOR AMERICA, INC.
Fig 4: Ignition System Check (4 Of 4)
G00047587Courtesy of DAEWOO MOTOR AMERICA, INC.
