Home >> Daewoo >> 2000 >> Lanos SE, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Identification >> Component Locator

Component Locator

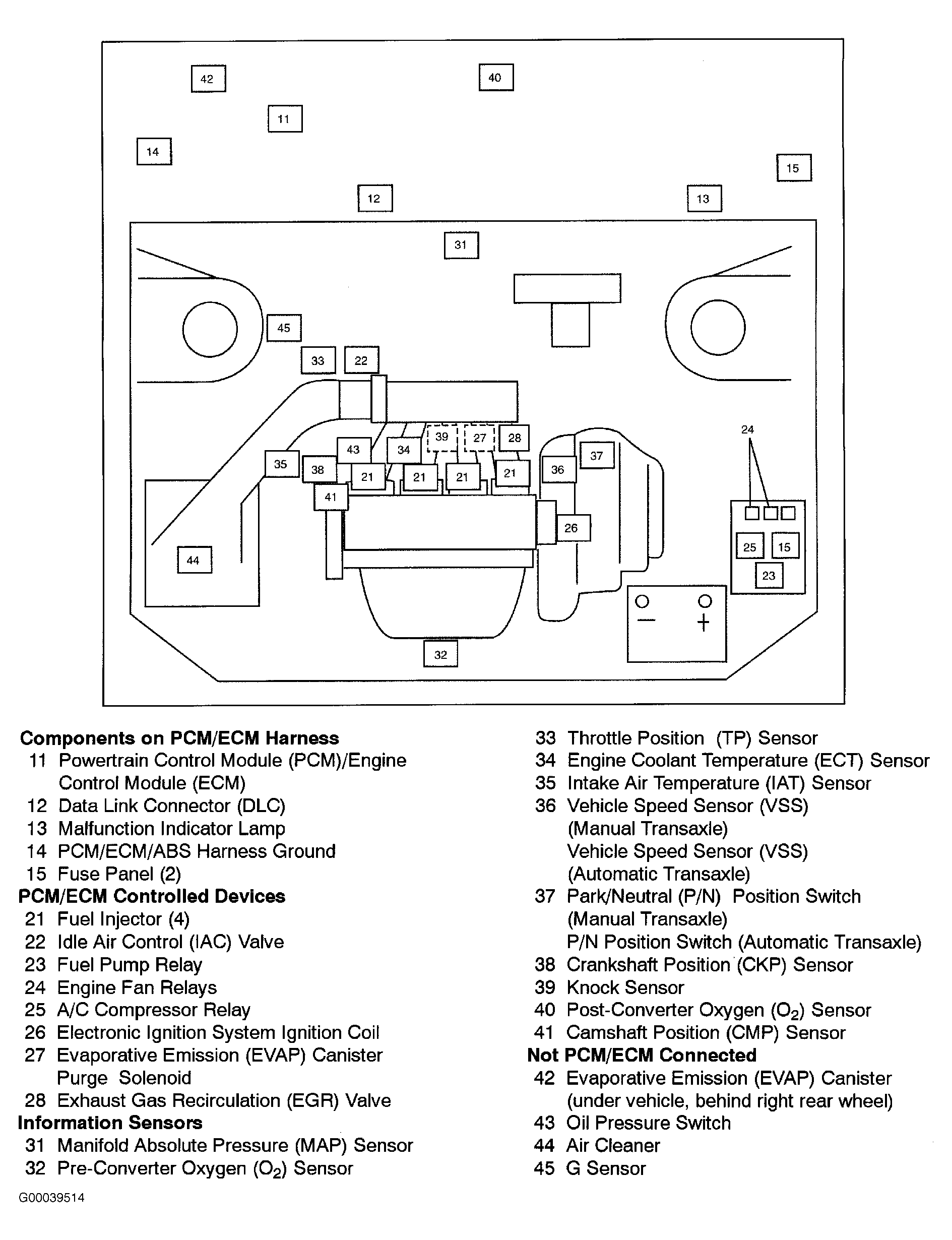

Fig 1: Component Locator - SOHC
G00039514Courtesy of DAEWOO

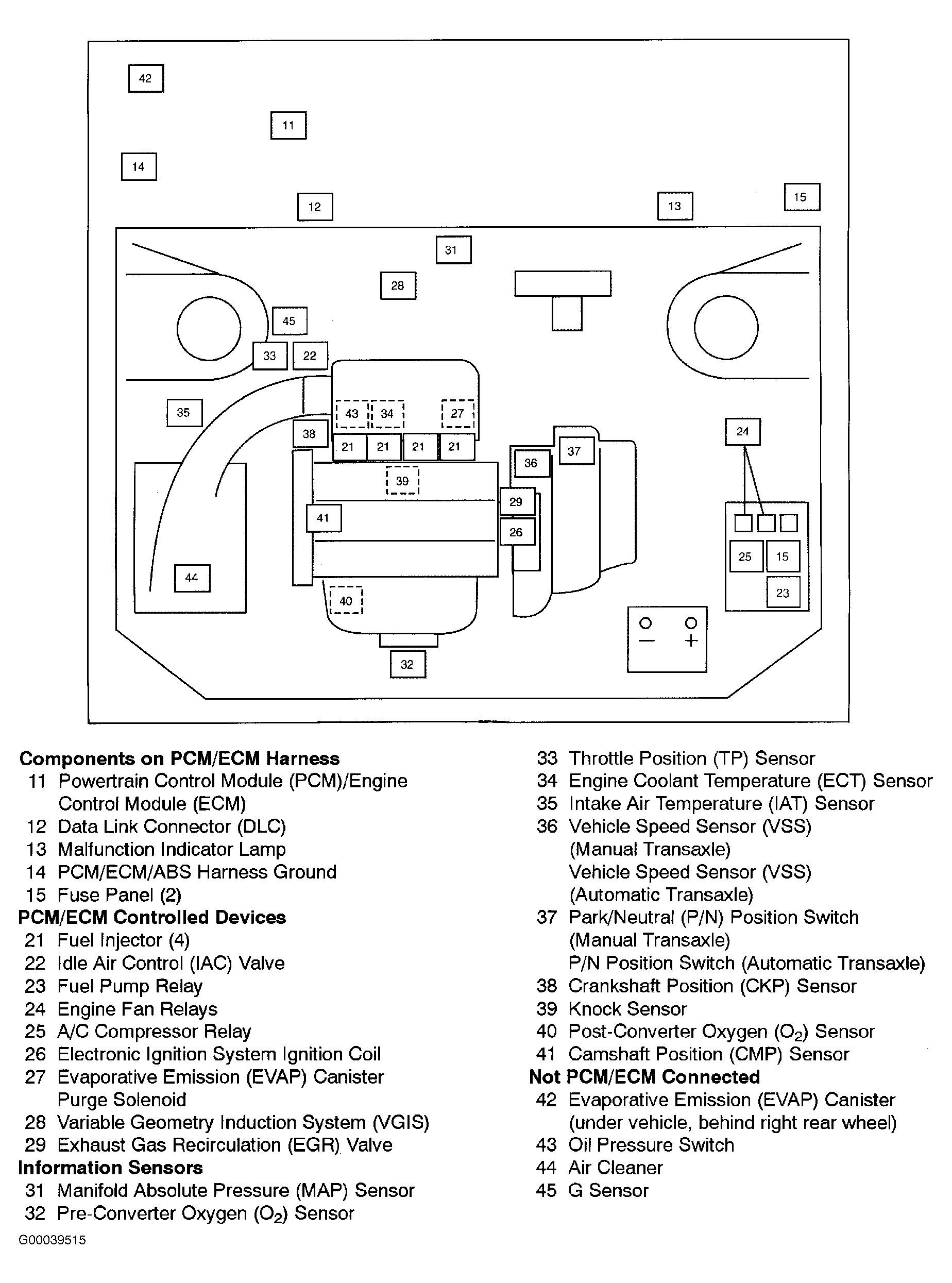

Fig 2: Component Locator - DOHC
G00039515Courtesy of DAEWOO
