General Specifications: Notes
POWER STEERING GEAR GENERAL SPECIFICATIONS
| Application | Specification |
|---|---|
| Lubricant | Power Steering Fluid DEXRON®II or III |
| Pressure (with EVO) | 8500-8960 kPa (1233-1299 psi) |
| Pressure (without EVO) | 8330-8820 kPa (1208-1279 psi) |

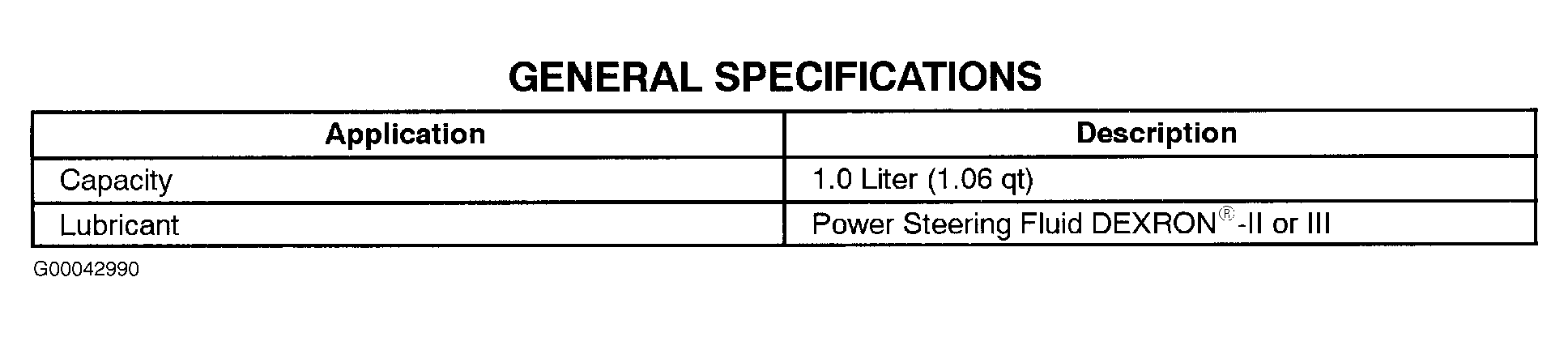

Power Steering Pump General Specifications
| Application | Description |
|---|---|
| Lubricant | Power Steering Fluid DEXRON®-II or III |
| Pressure (with EVO) | 8,500-8,960 kPa (1,233-1,299 psi) |
| Pressure (without EVO) | 8,330-8,820 kPa (1,208-1,279 psi) |
