Idle Air Control System Check

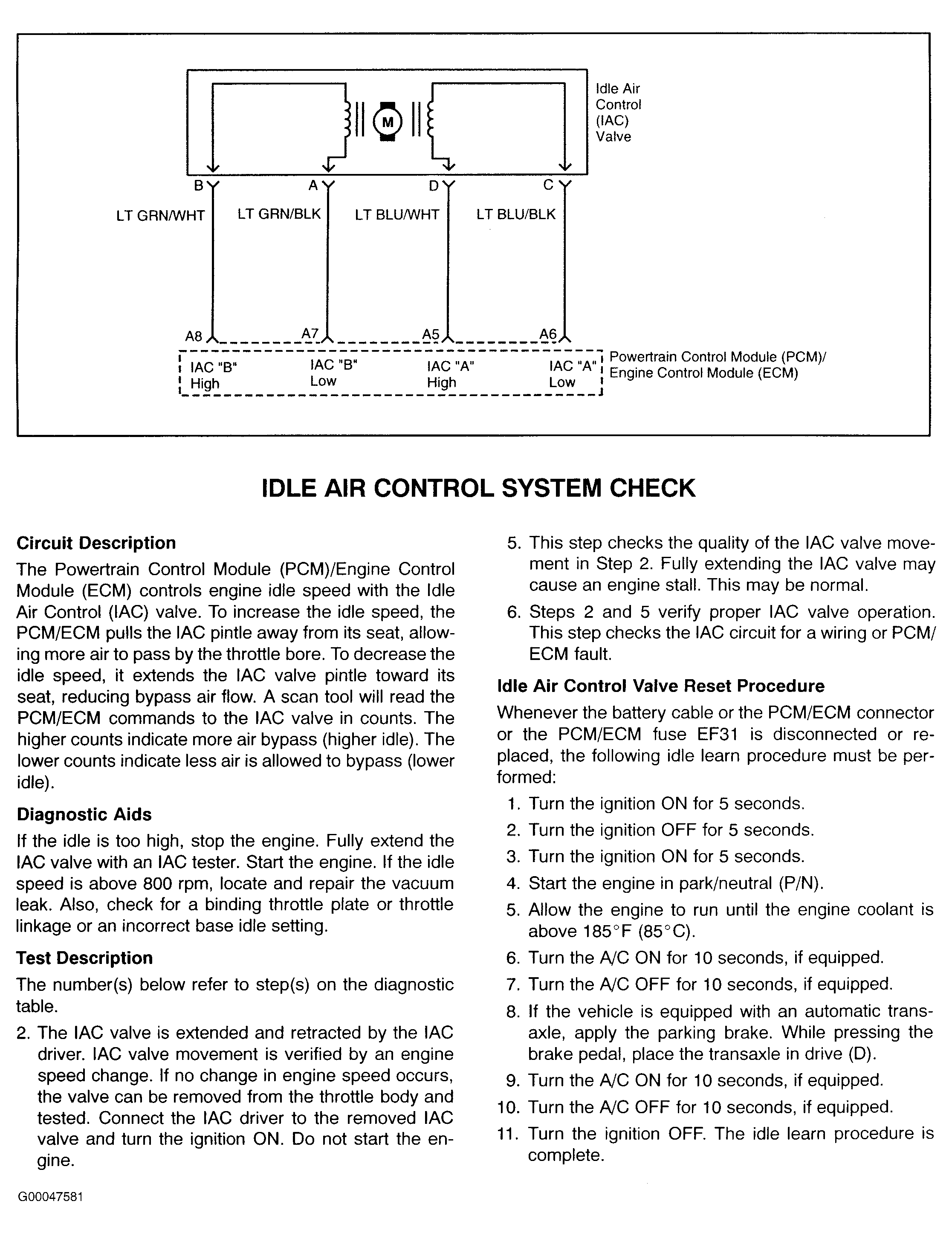

Fig 1: Idle Air Control System check (1 Of 3)
G00047581Courtesy of DAEWOO MOTOR AMERICA, INC.

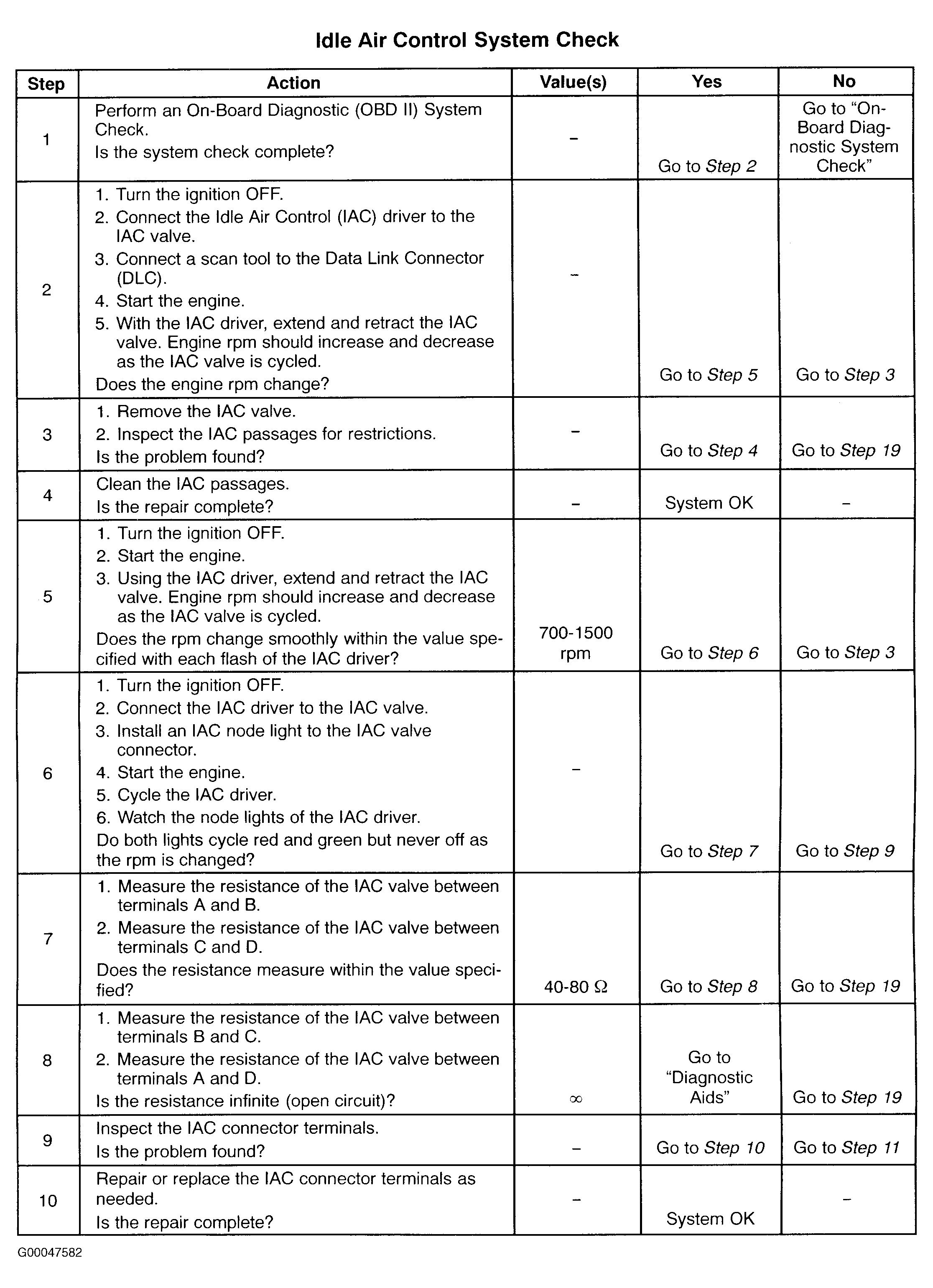

Fig 2: Idle Air Control System check (2 Of 3)
G00047582Courtesy of DAEWOO MOTOR AMERICA, INC.

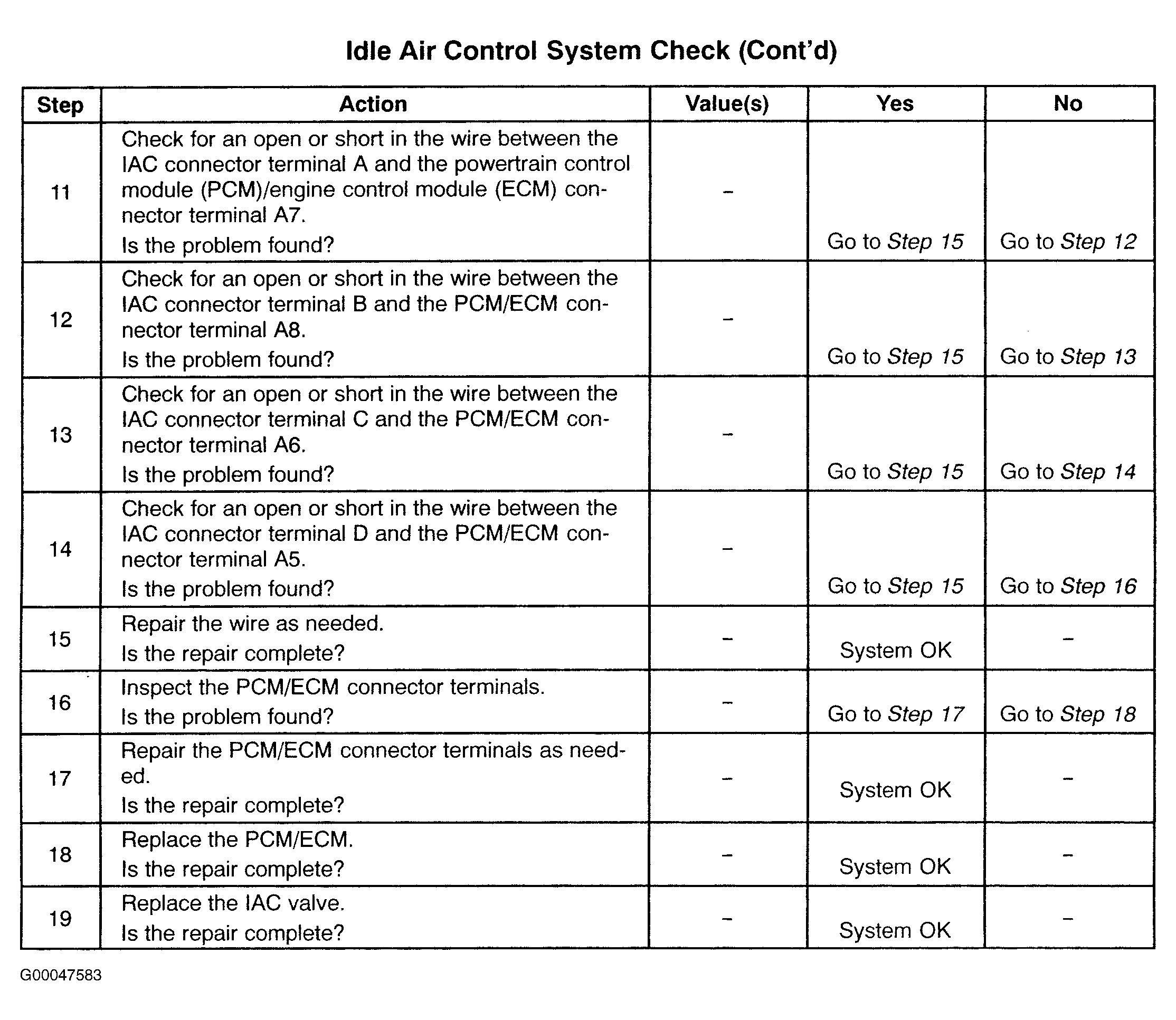

Fig 3: Idle Air Control System check (3 Of 3)
G00047583Courtesy of DAEWOO MOTOR AMERICA, INC.
