Home >> Daewoo >> 2001 >> Leganza CDX >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> System Specifications >> Data Display Tables >> Engine Data Display 04

Engine Data Display 04

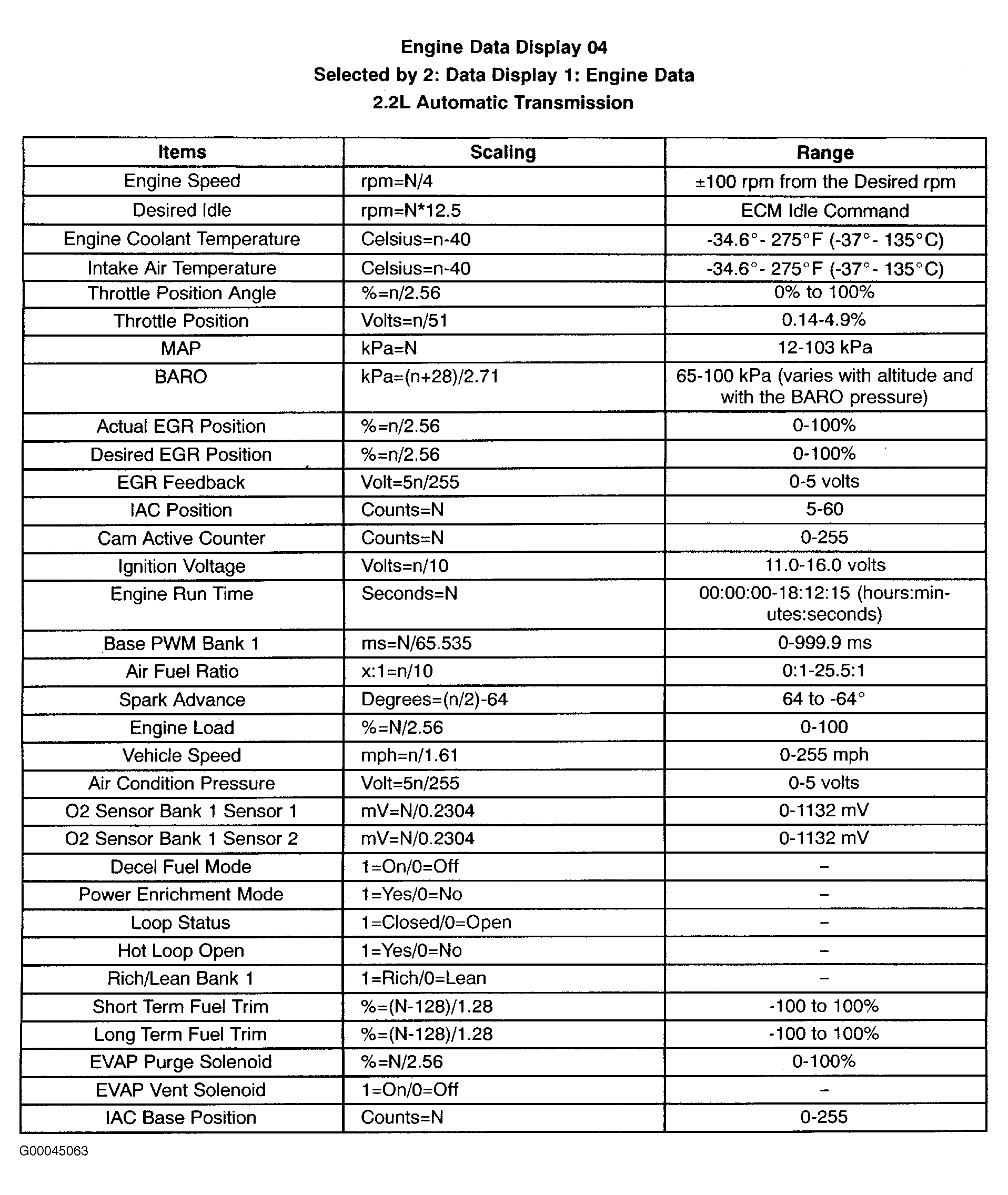

Fig 1: Engine Data Display 04 (1 Of 2)

G00045063

Courtesy of DAEWOO MOTOR AMERICA, INC.

Fig 2: Engine Data Display 04 (2 Of 2)

G00045065

Courtesy of DAEWOO MOTOR AMERICA, INC.
