Home >> Dodge and Ram >> 1992 >> Viper >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics >> Connector Identification >> Relays

Connector Identification: Relays

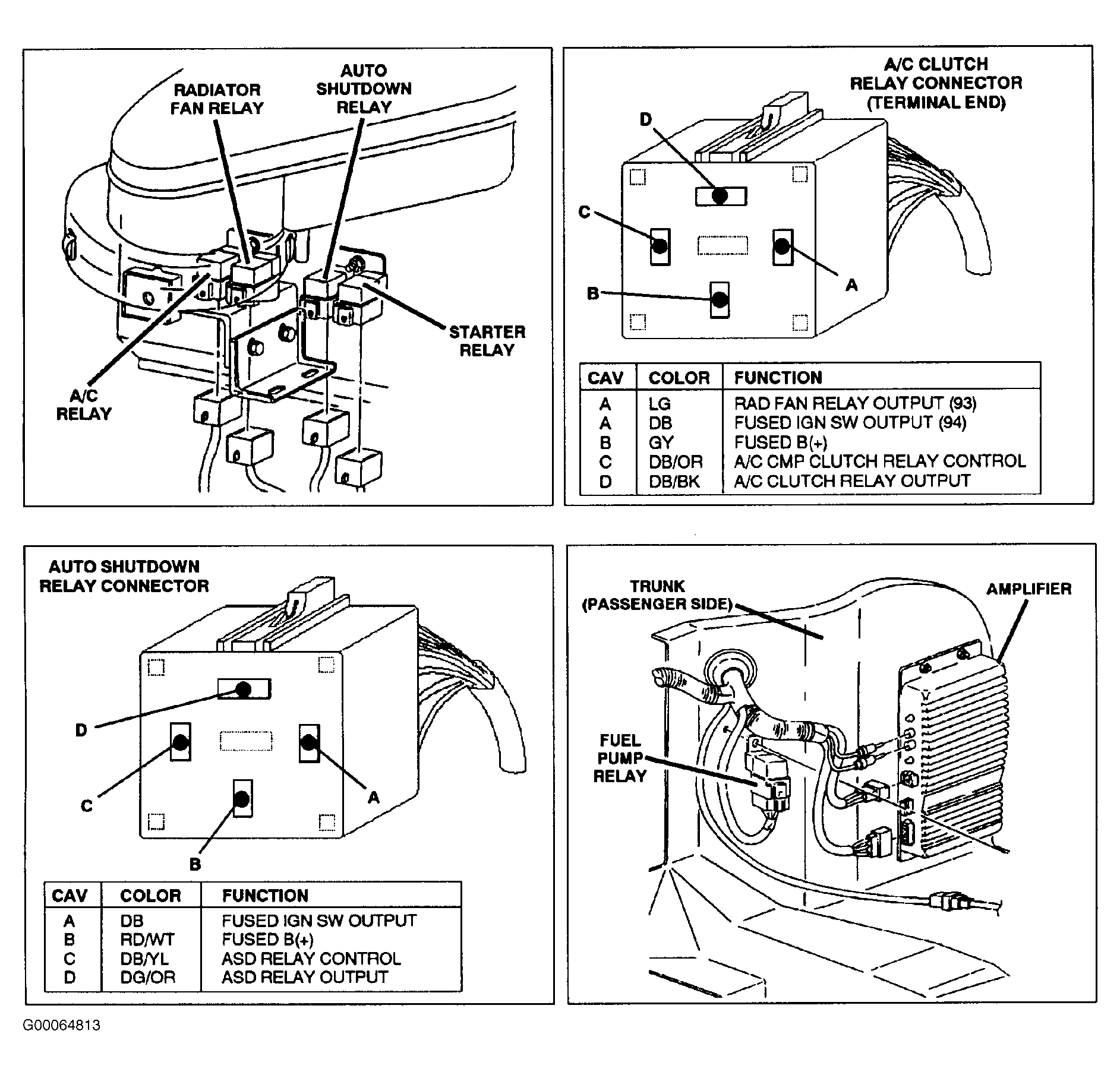

Fig 1: Relays (1 Of 2)

G00064813

Courtesy of DAIMLERCHRYSLER CORPORATION

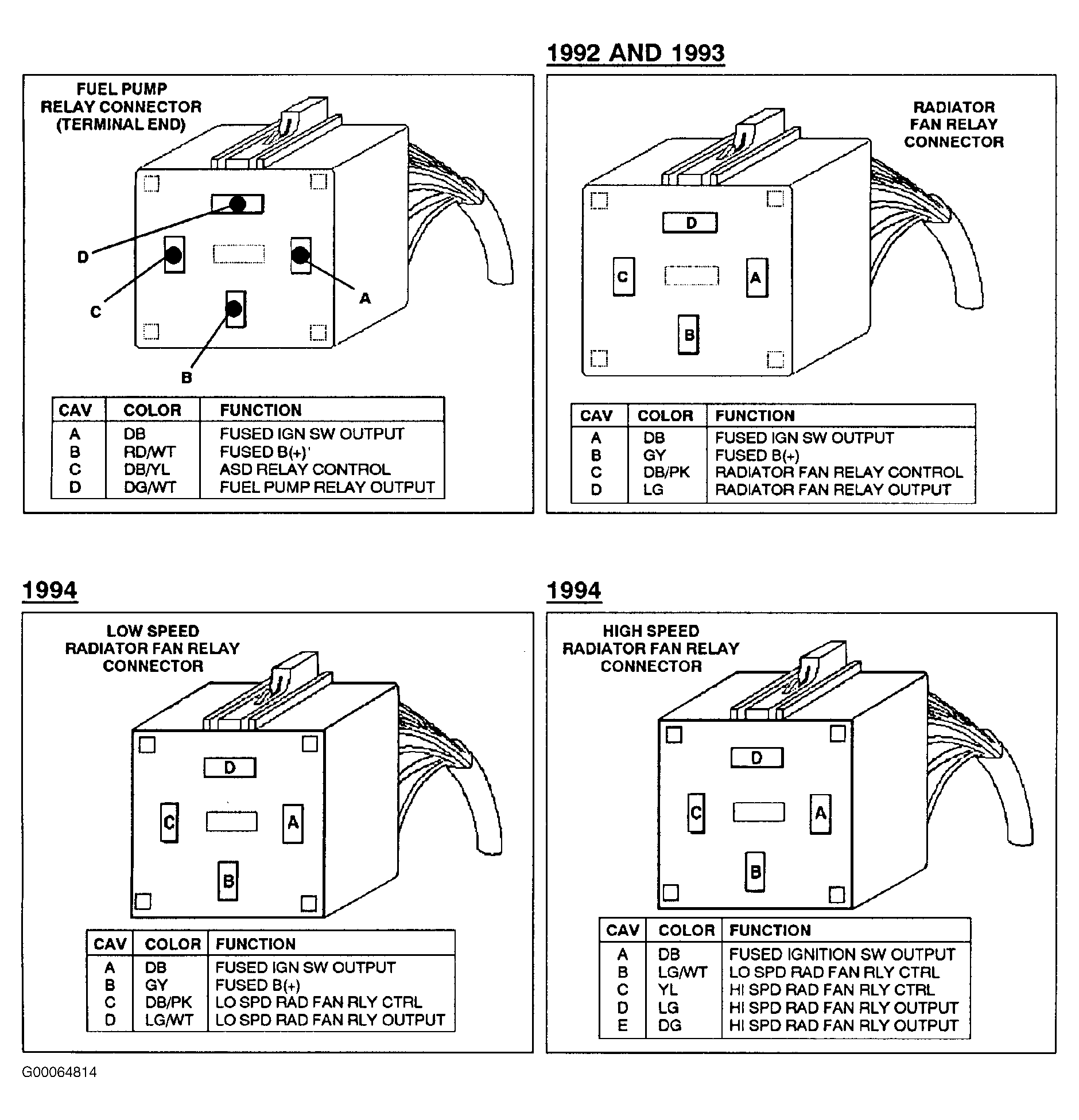

Fig 2: Relays (2 Of 2)

G00064814

Courtesy of DAIMLERCHRYSLER CORPORATION
