TC-102A: 1/1 O2 Sensor Slow Response

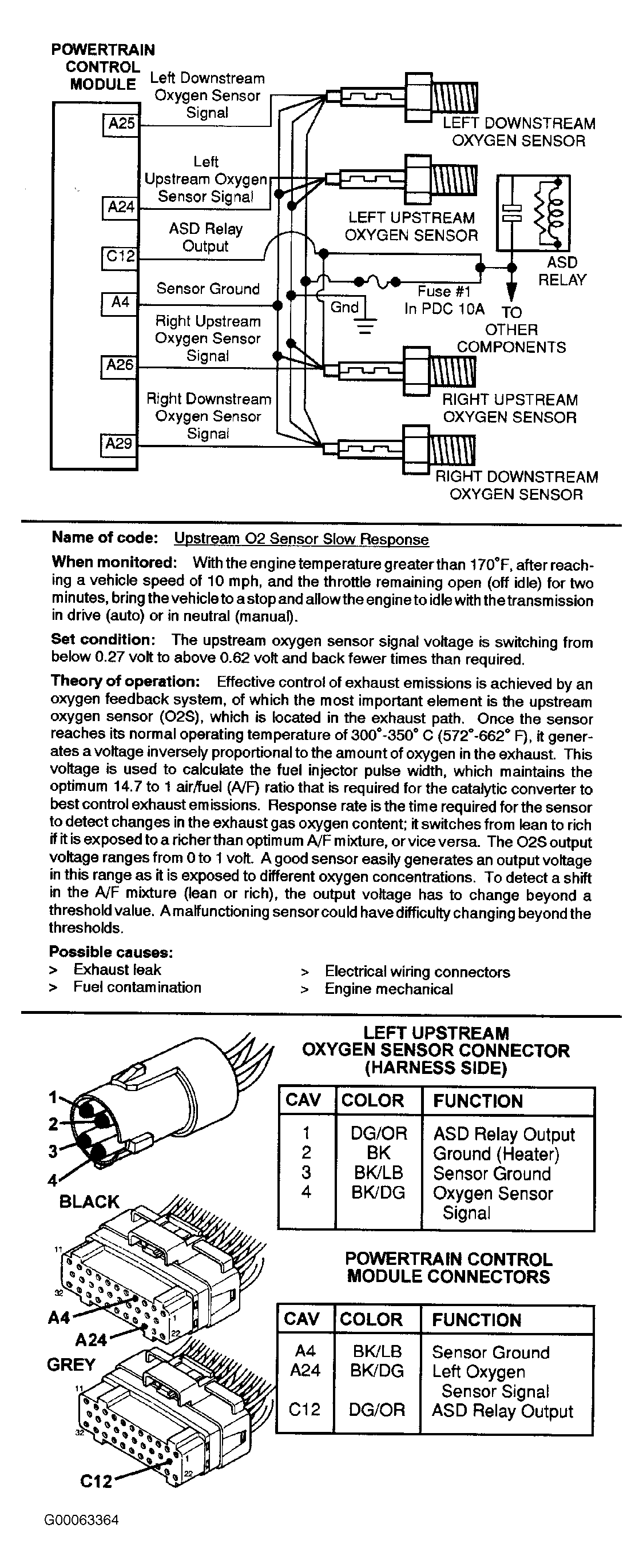

Fig 1: TC-102A: 1/1 O2 Sensor Slow Response (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

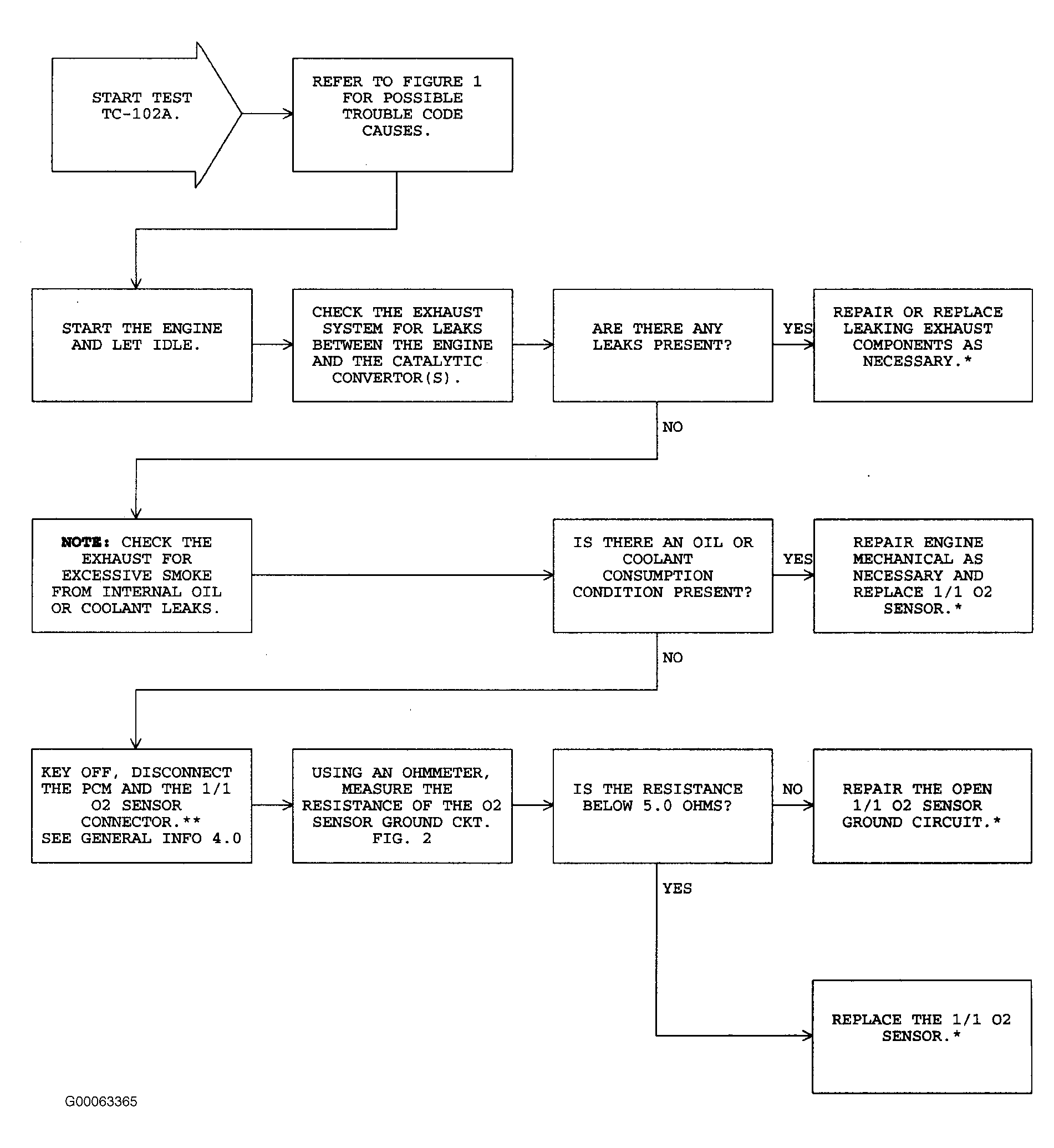

Fig 2: TC-102A: 1/1 O2 Sensor Slow Response (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
