TC-156A: O2 Sensor 1/2 Shorted To Ground

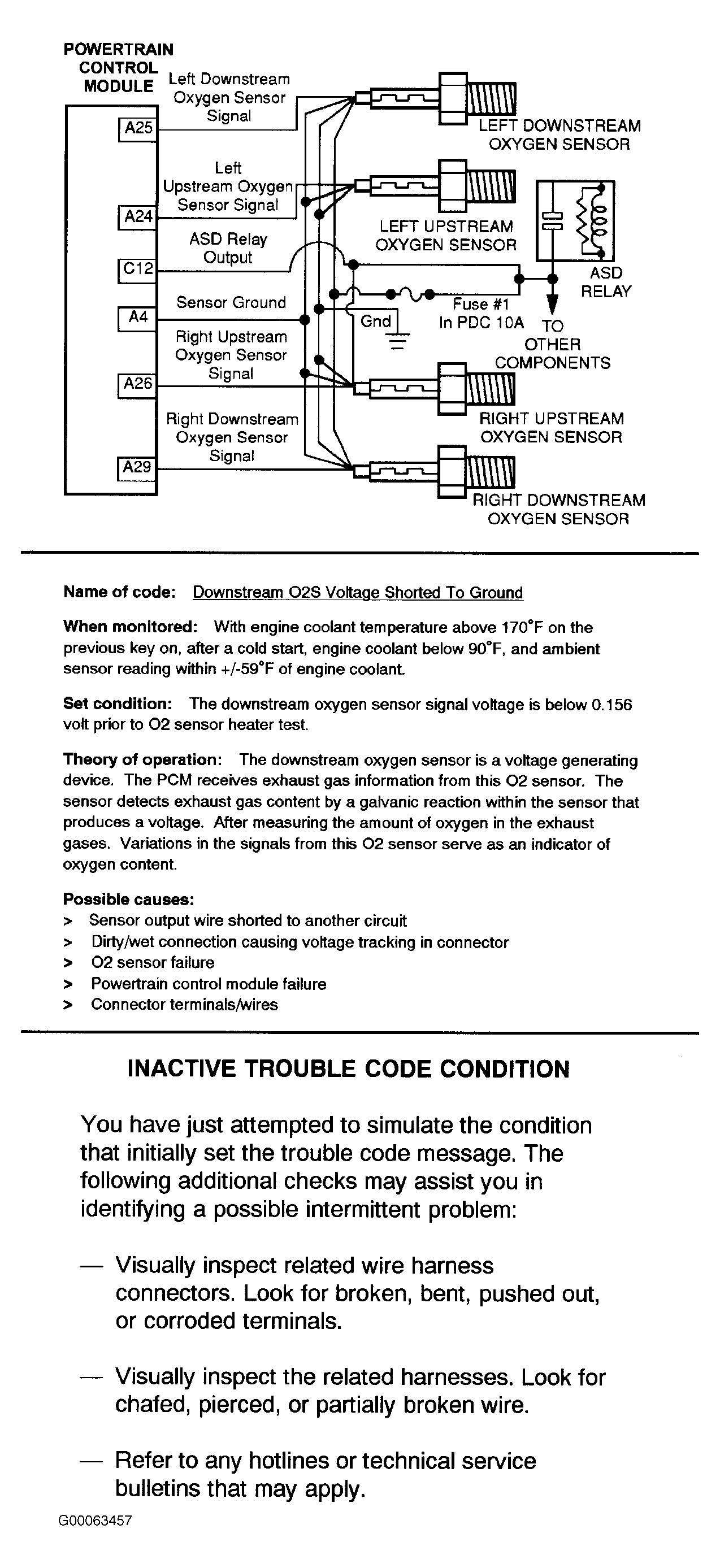

Fig 1: TC-156A: O2 Sensor 1/2 Shorted To Ground (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

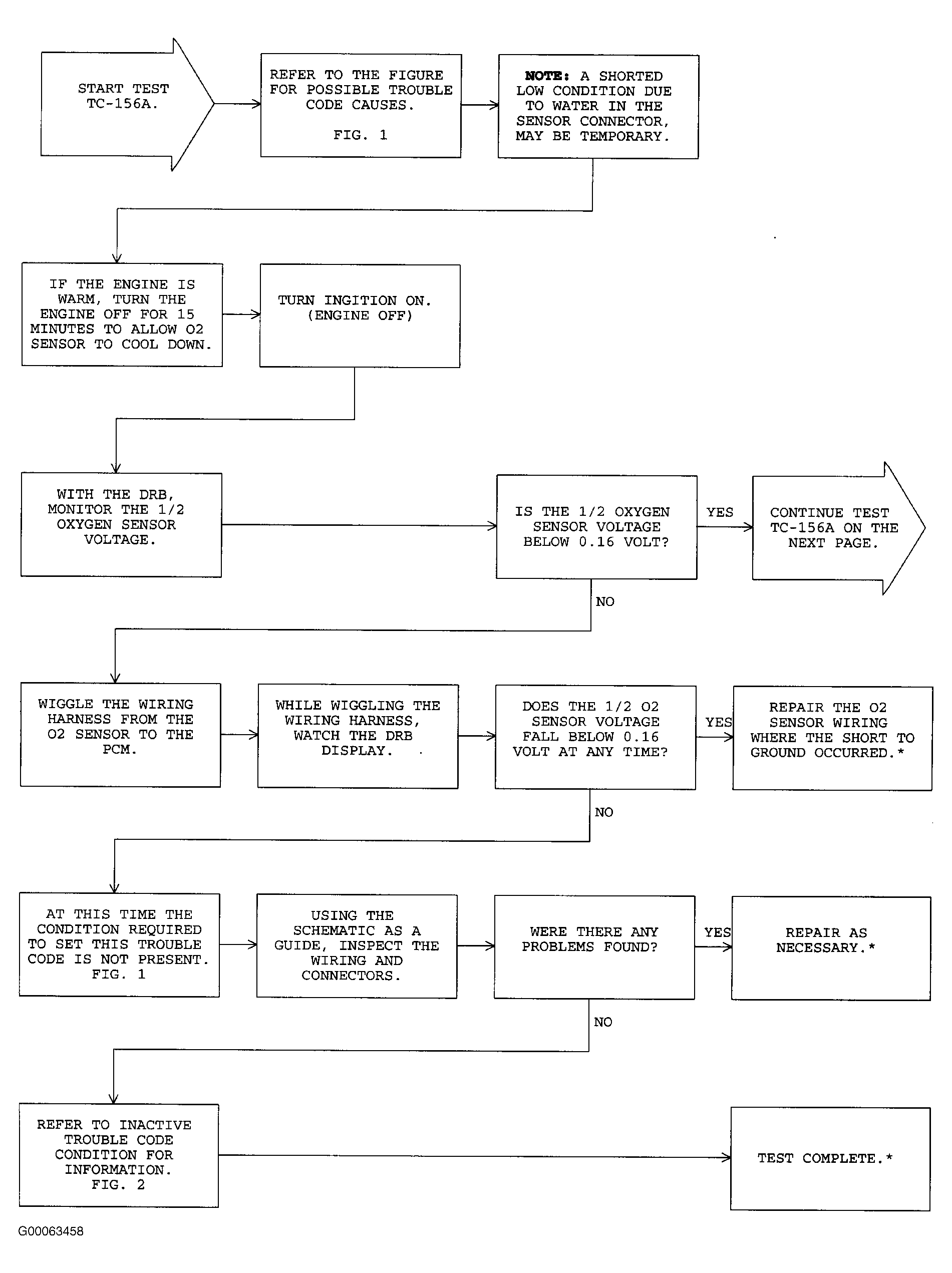

Fig 2: TC-156A: O2 Sensor 1/2 Shorted To Ground (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

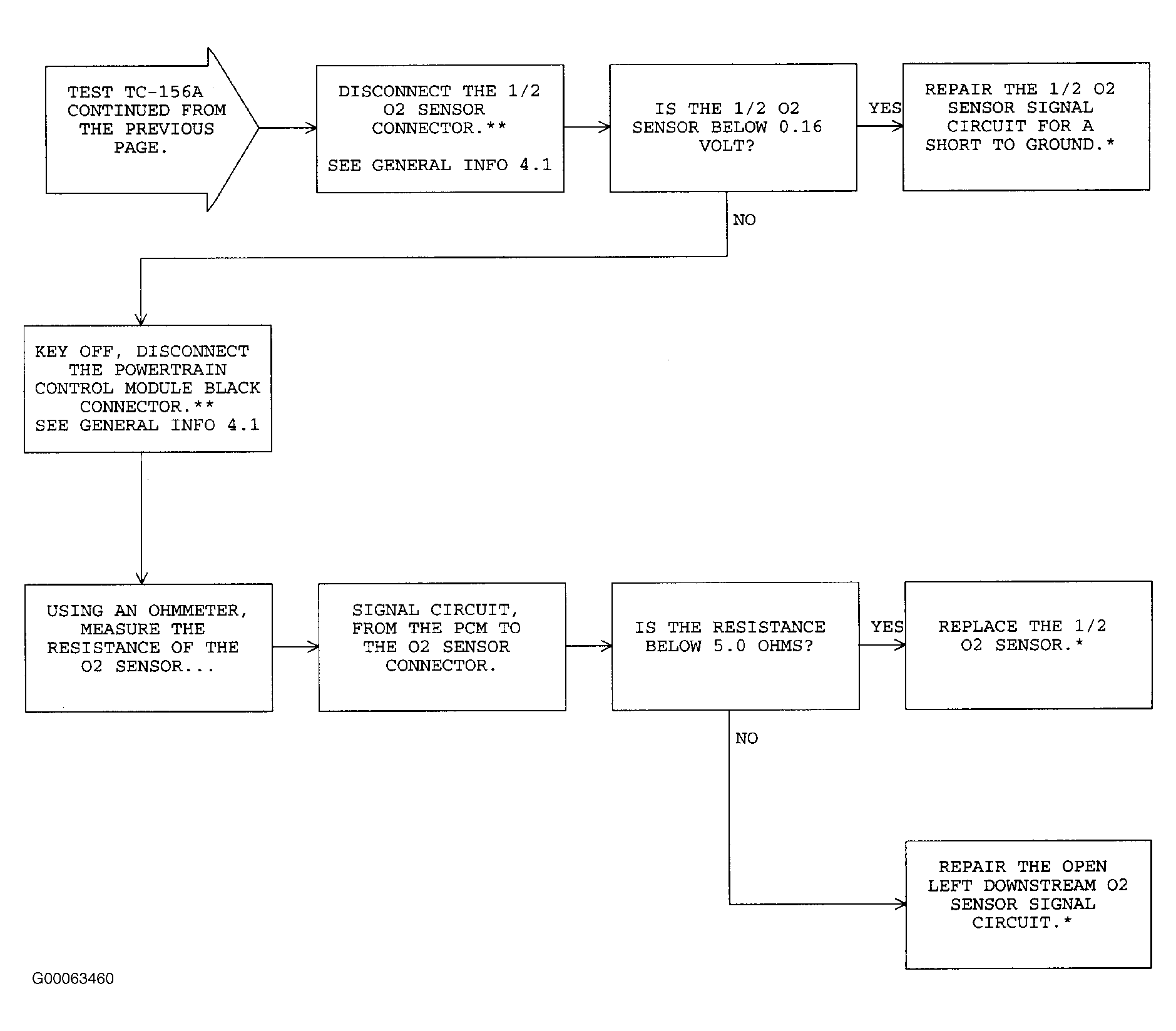

Fig 3: TC-156A: O2 Sensor 1/2 Shorted To Ground (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

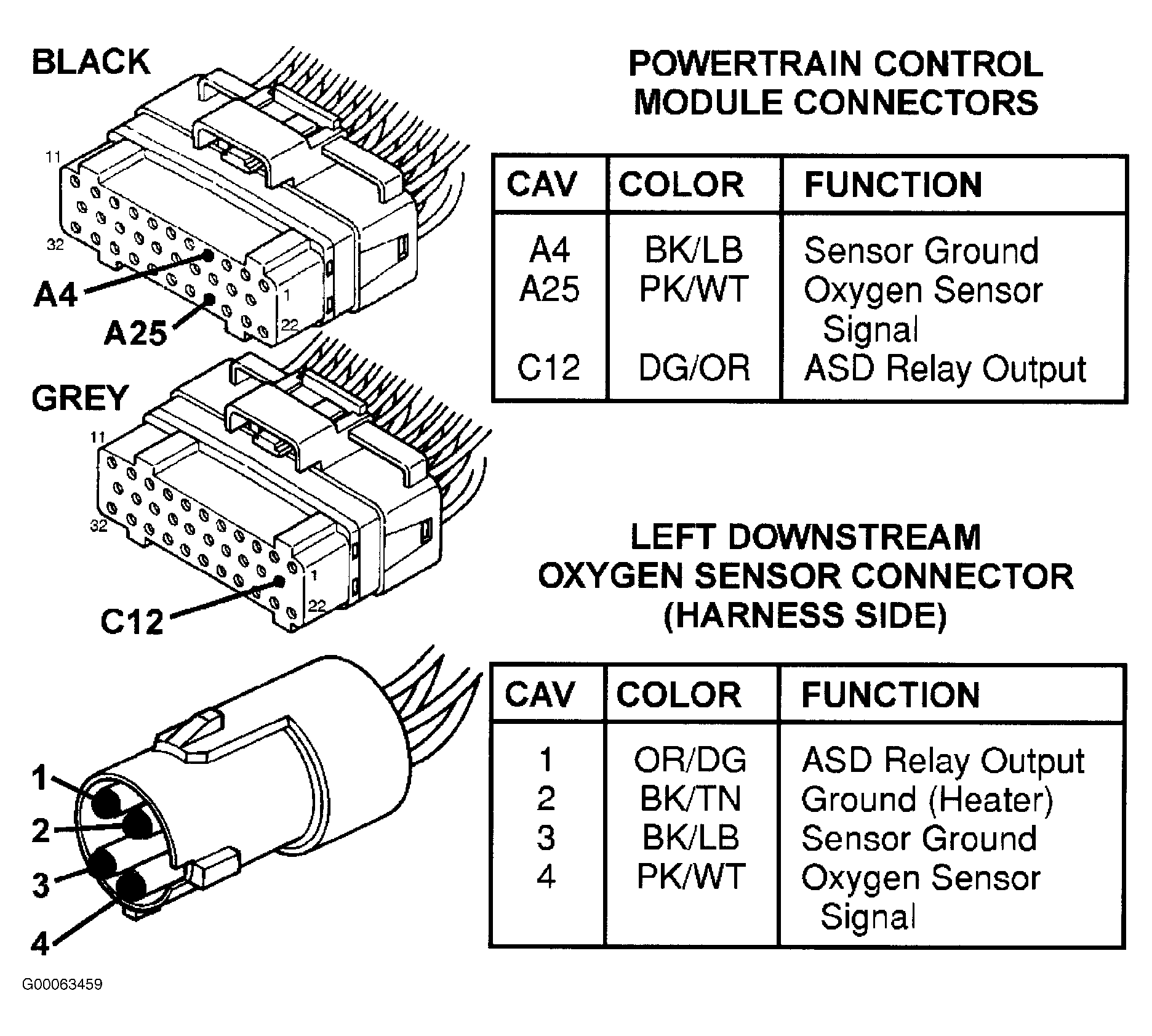

Fig 4: TC-156A: O2 Sensor 1/2 Shorted To Ground (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
