Home >> Dodge and Ram >> 1999 >> Viper ACR >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control - Self-Diagnostics >> Component Identification >> Relays

Component Identification: Relays

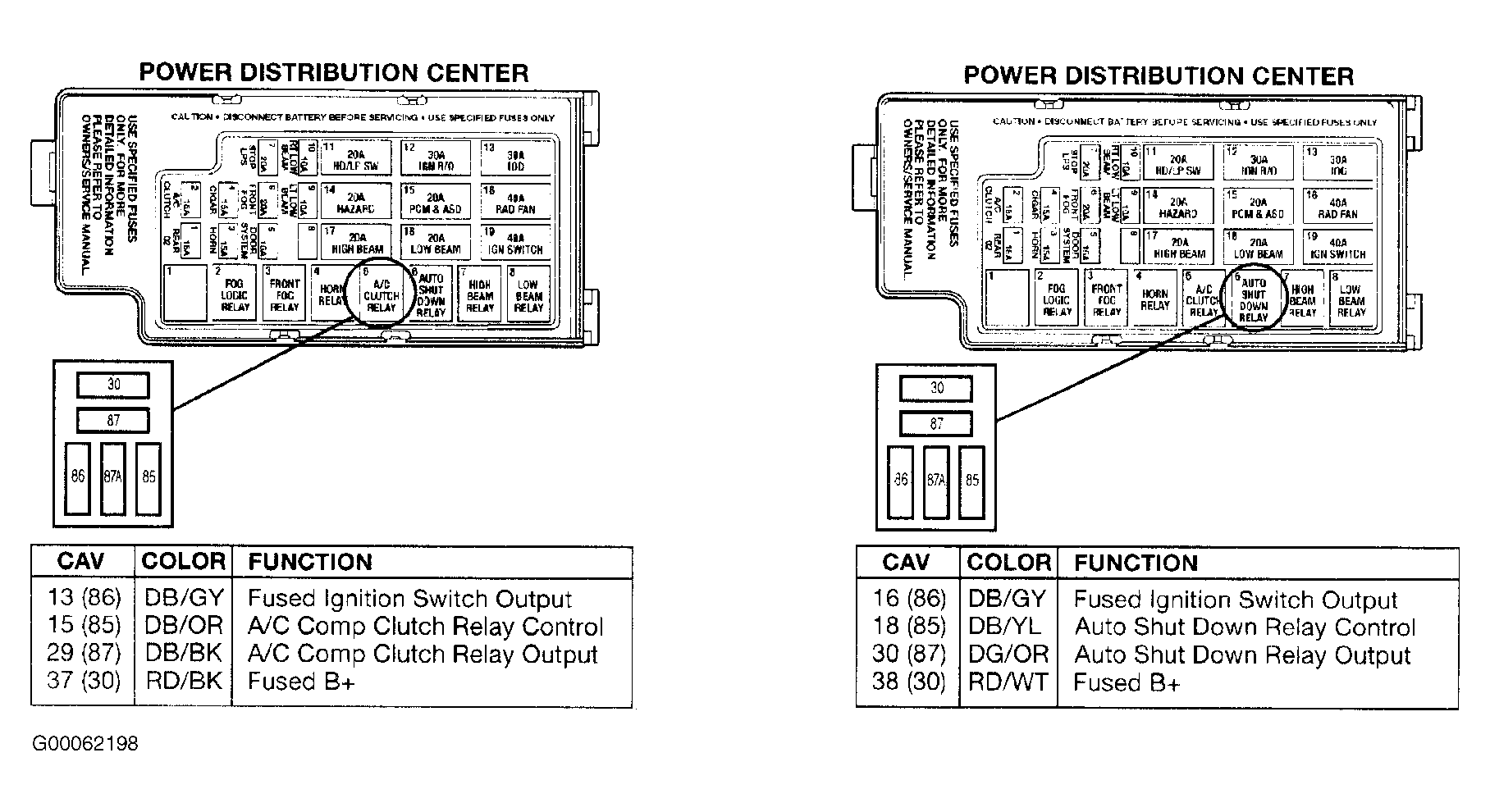

Fig 1: Relays & Relay Panel Identification (1 Of 2)
G00062198Courtesy of DAIMLERCHRYSLER CORPORATION

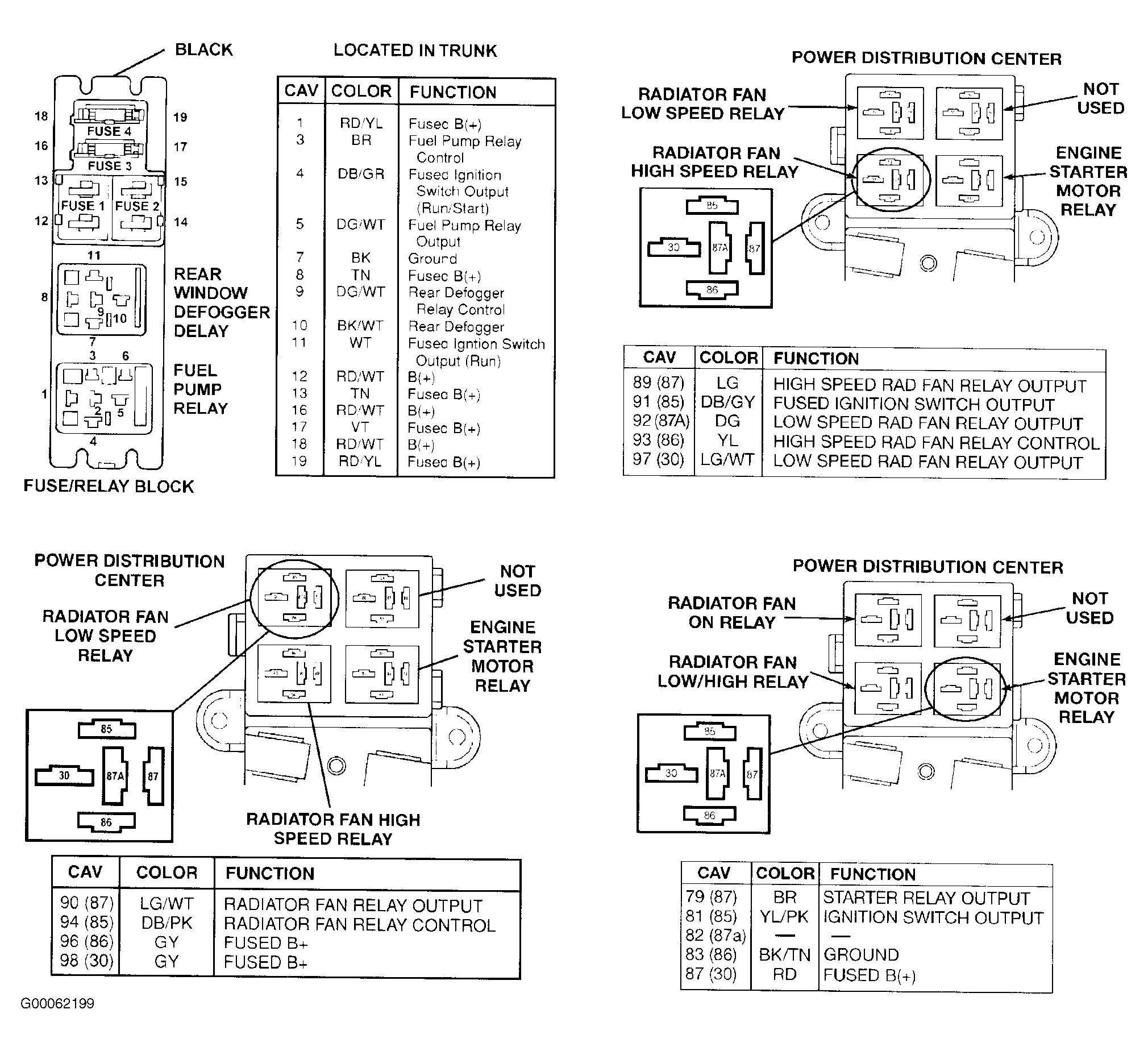

Fig 2: Relays & Relay Panel Identification (2 Of 2)
G00062199Courtesy of DAIMLERCHRYSLER CORPORATION
