DTC P0141-B: 1/2 O2 Sensor Heater Failure

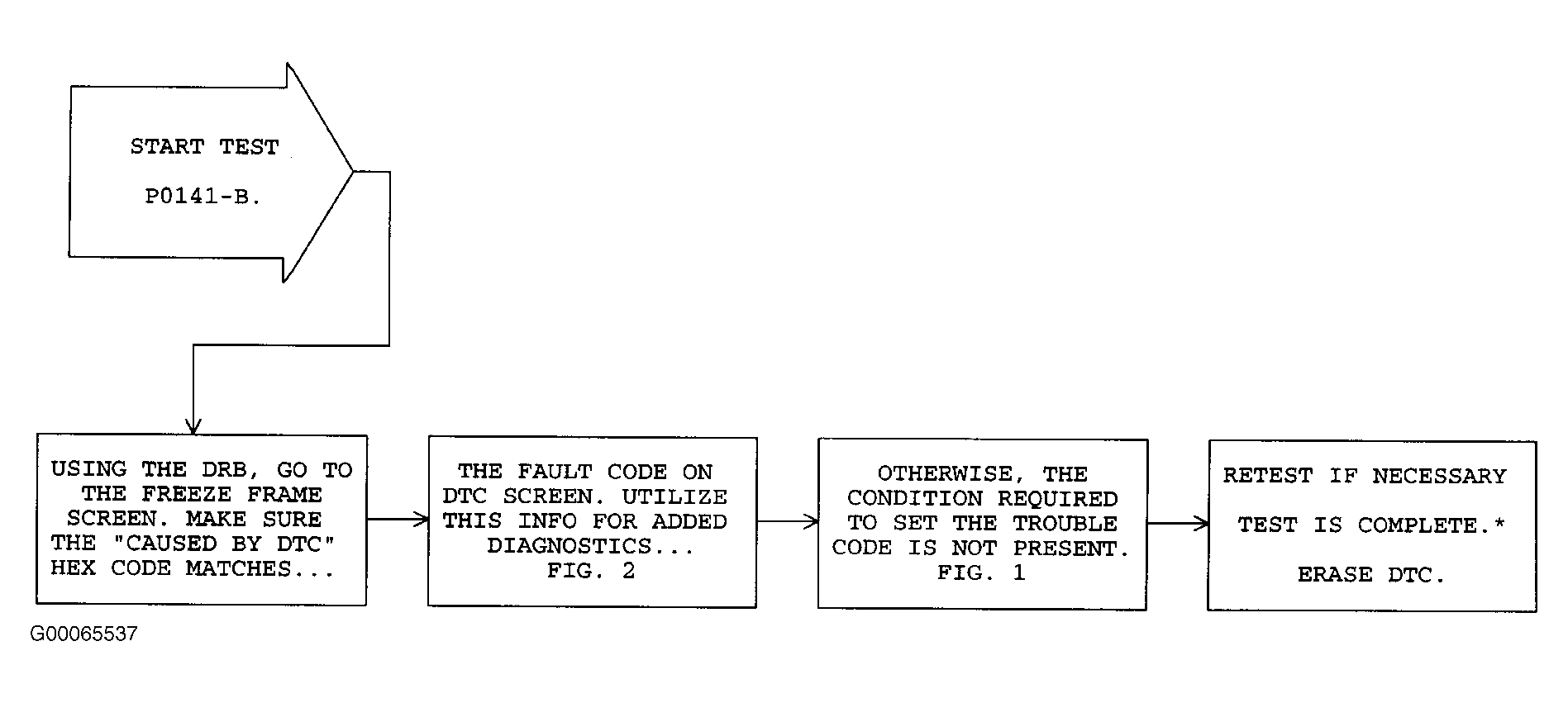

Fig 1: P0141-B: 1/2 O2 Sensor Heater Failure (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

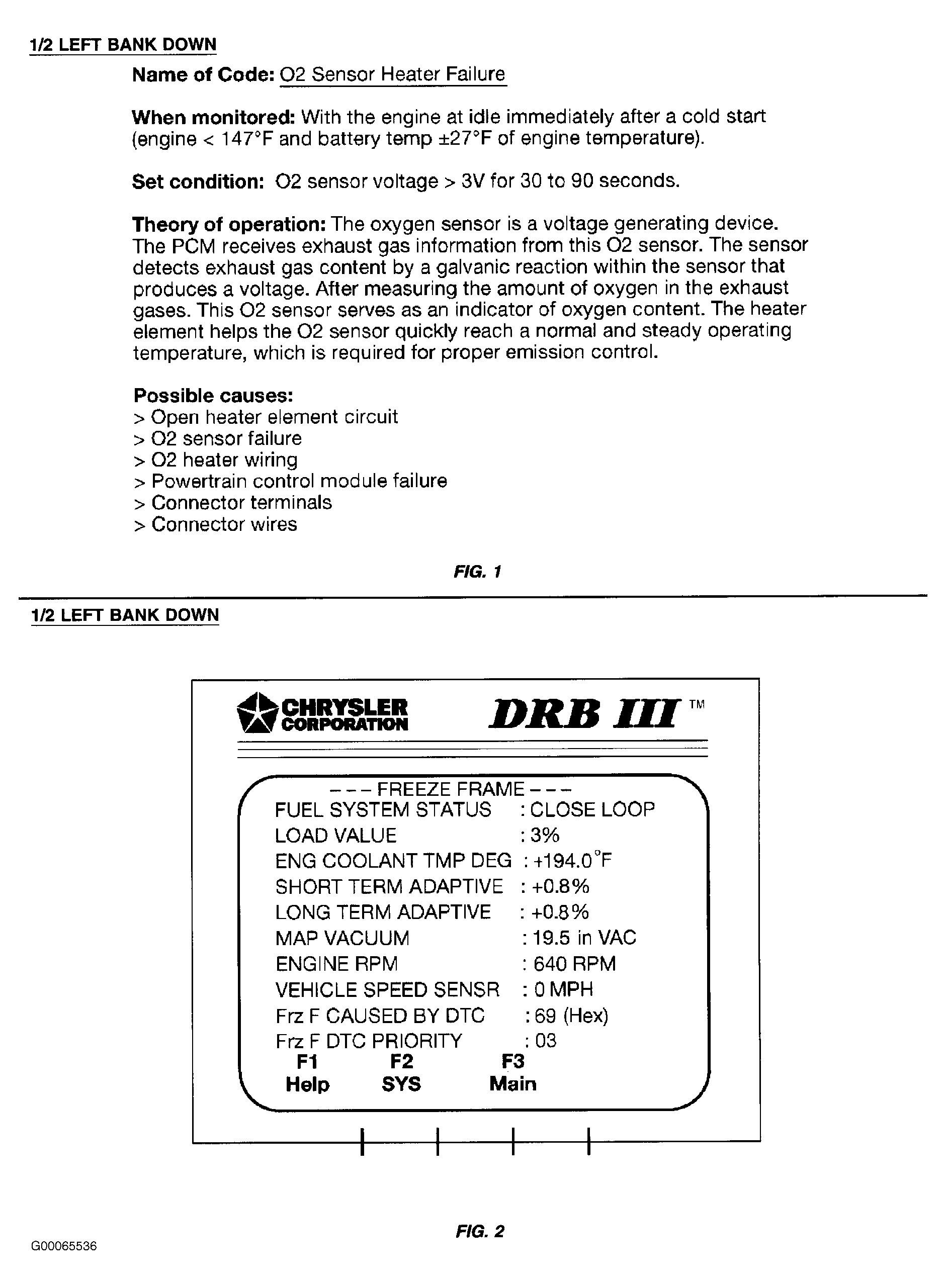

Fig 2: P0141-B: 1/2 O2 Sensor Heater Failure (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
