Home >> Dodge and Ram >> 1999 >> Viper ACR >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control - Self-Diagnostics >> System Tests >> Diagnostic Trouble Code Definitions

Diagnostic Trouble Code Definitions

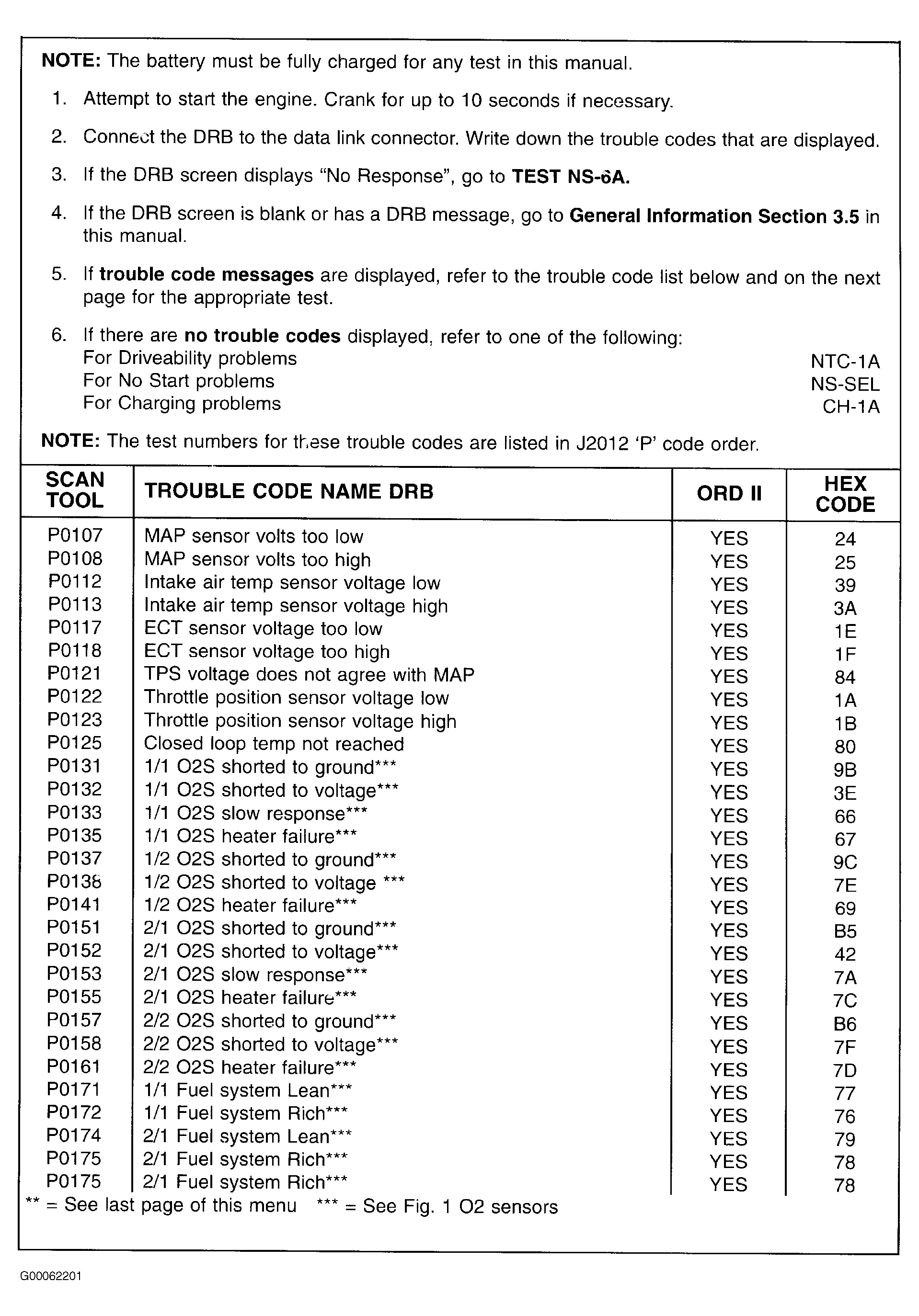

Fig 1: DTC Definitions (1 Of 3)
G00062201Courtesy of DAIMLERCHRYSLER CORPORATION

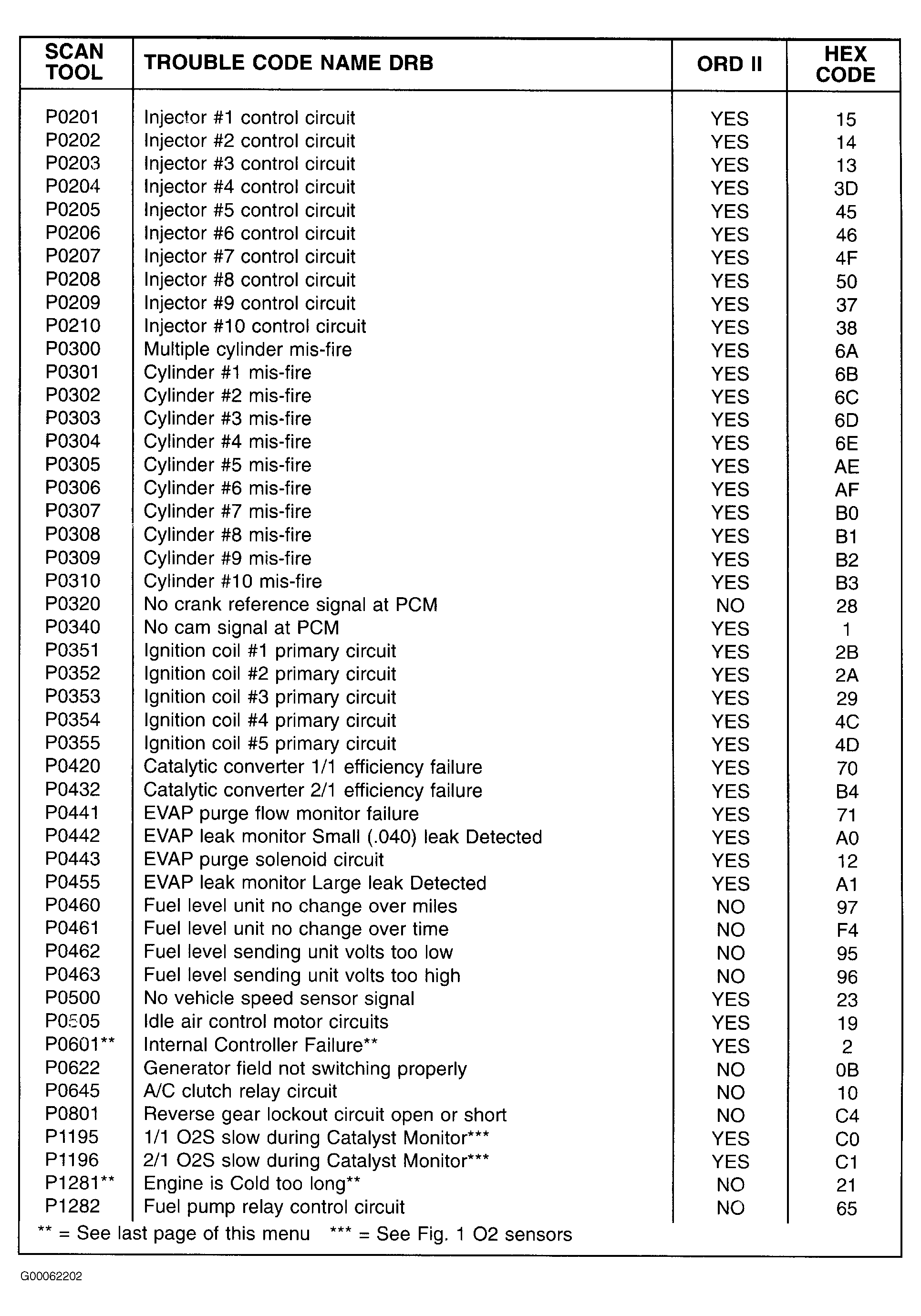

Fig 2: DTC Definitions (2 Of 3)
G00062202Courtesy of DAIMLERCHRYSLER CORPORATION

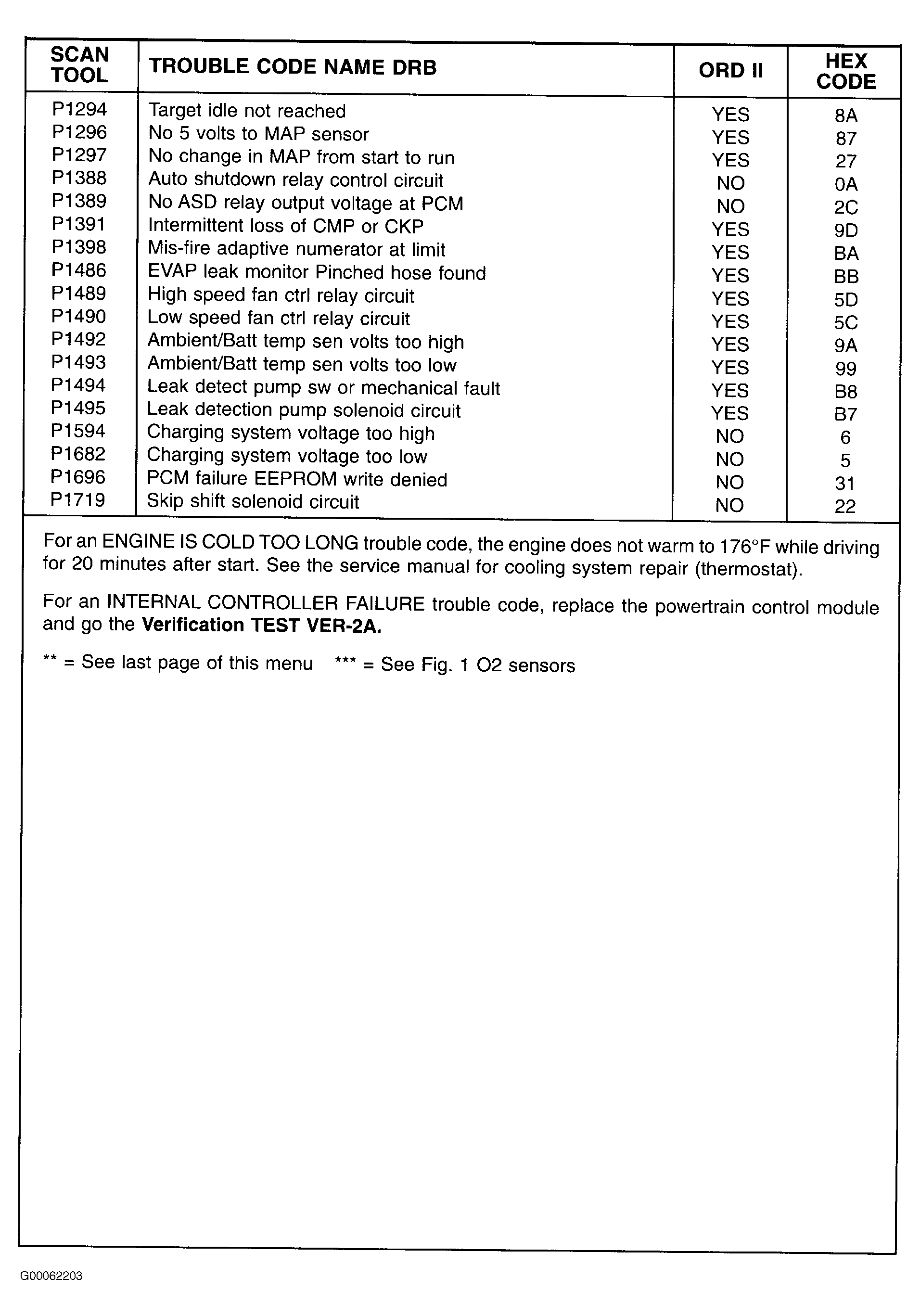

Fig 3: DTC Definitions (3 Of 3)
G00062203Courtesy of DAIMLERCHRYSLER CORPORATION
