Fuel Pump Relay

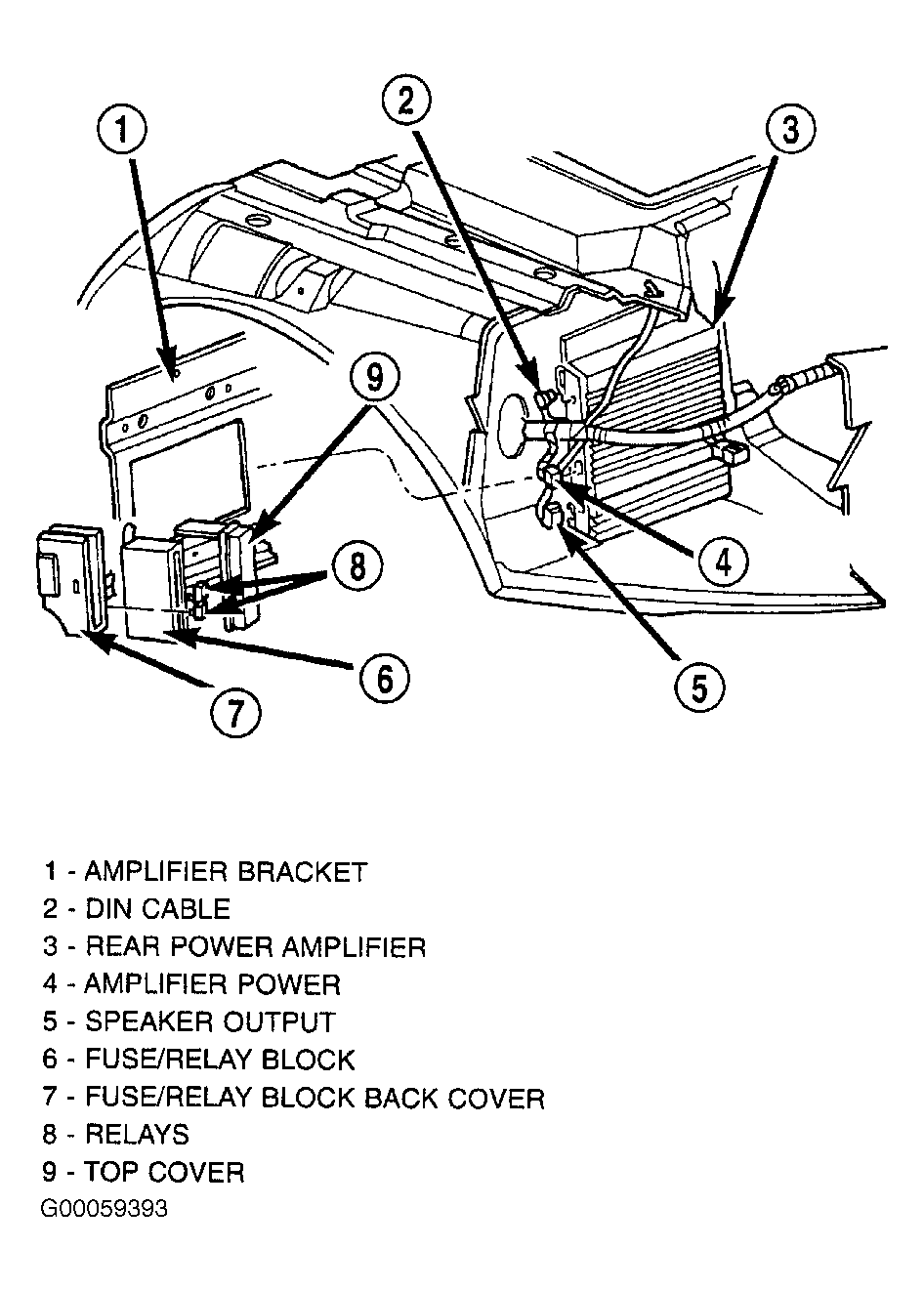

Fig 1: Relay Location
G00059393Courtesy of DAIMLERCHRYSLER CORPORATION

The relay is located in trunk next to stereo amplifier. See Fig 1 . Check electrical terminals for corrosion and repair as necessary.
