Ignition Coil: Removal

The system uses two epoxy filled coil packs mounted on a bracket at the rear of the engine (Fig 1 ). The coil pack on the left side, contains 3 separate coils and fires cylinders 1, 2, 3, 4, 6, and 7. The coil pack on the right side, contains 2 individual coils and fires cylinders 5, 8, 9, and 10.

Fig 1: Identifying Map Sensor Locations

Courtesy of DAIMLERCHRYSLER CORP.

1. Remove cowl cover. Refer to BODY .
2. Disconnect electrical connector from coil pack (Fig 2 ).

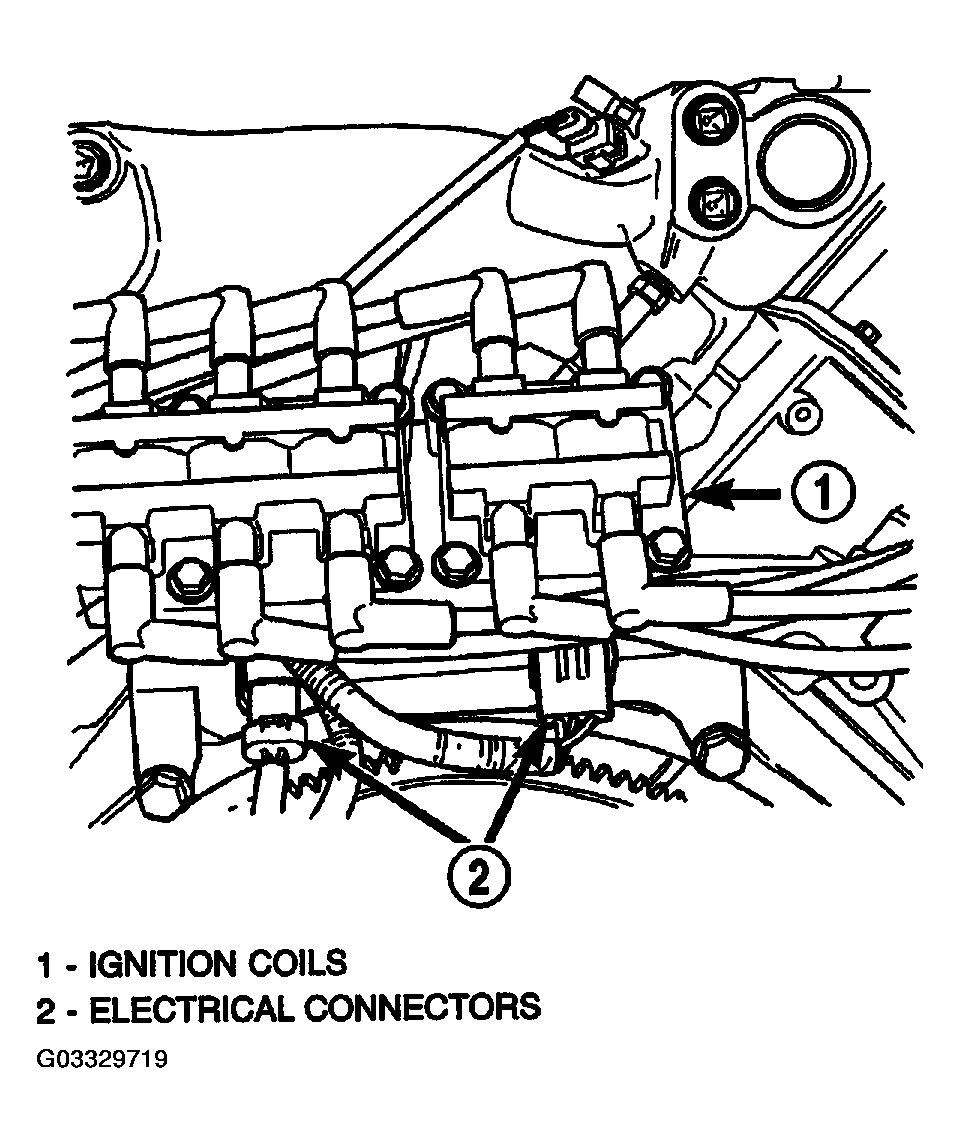

   Fig 2: Identifying Ignition Coil Electrical Connectors

   Courtesy of DAIMLERCHRYSLER CORP.
3. Remove coil pack mounting screws.
4. Transfer spark plug cables one at a time from original coil pack to the corresponding terminal on the new coil pack.
