Charts And Graphs

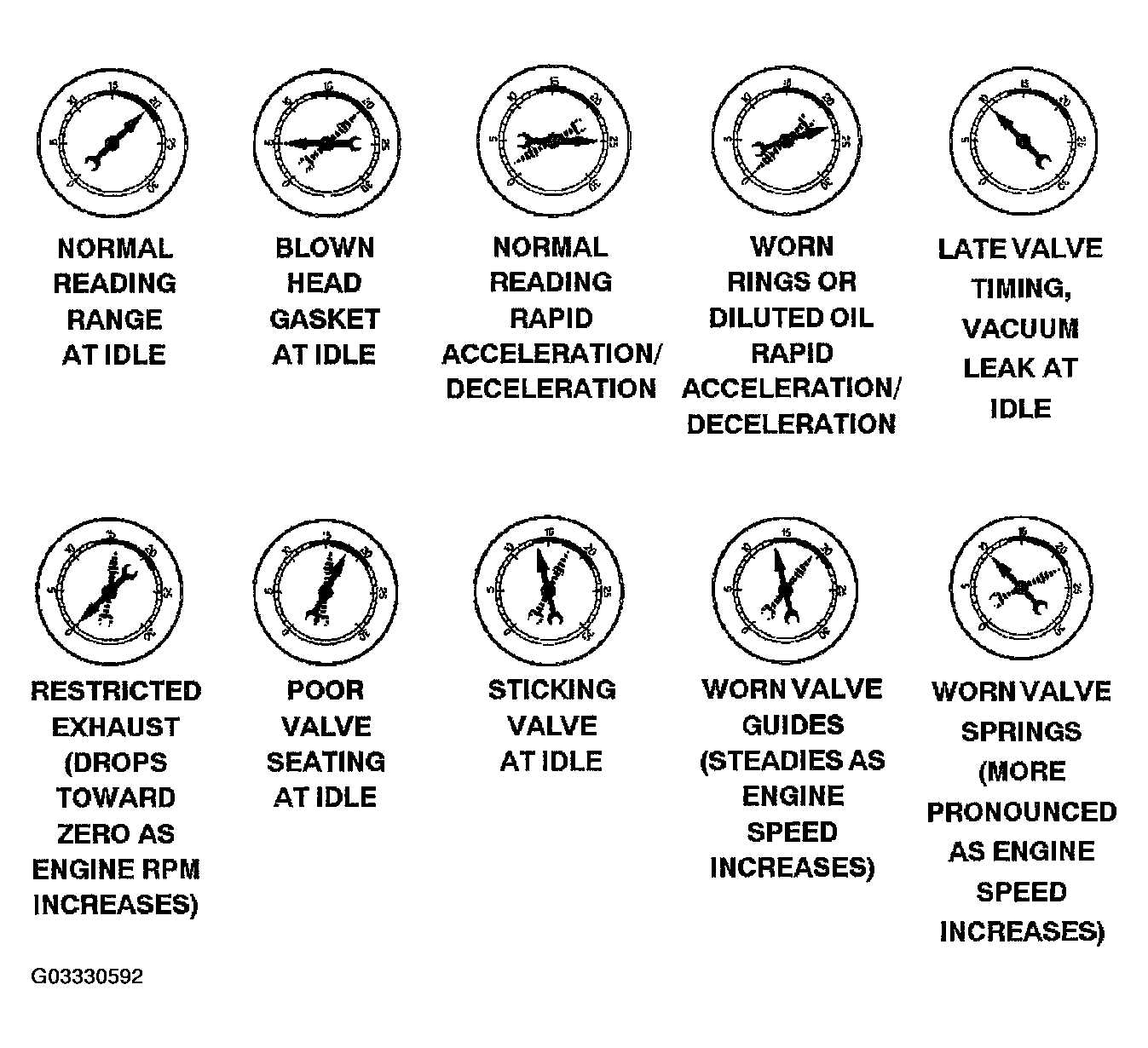

Fig 1: Identifying Vacuum Gauge Readings

Courtesy of DAIMLERCHRYSLER CORP.

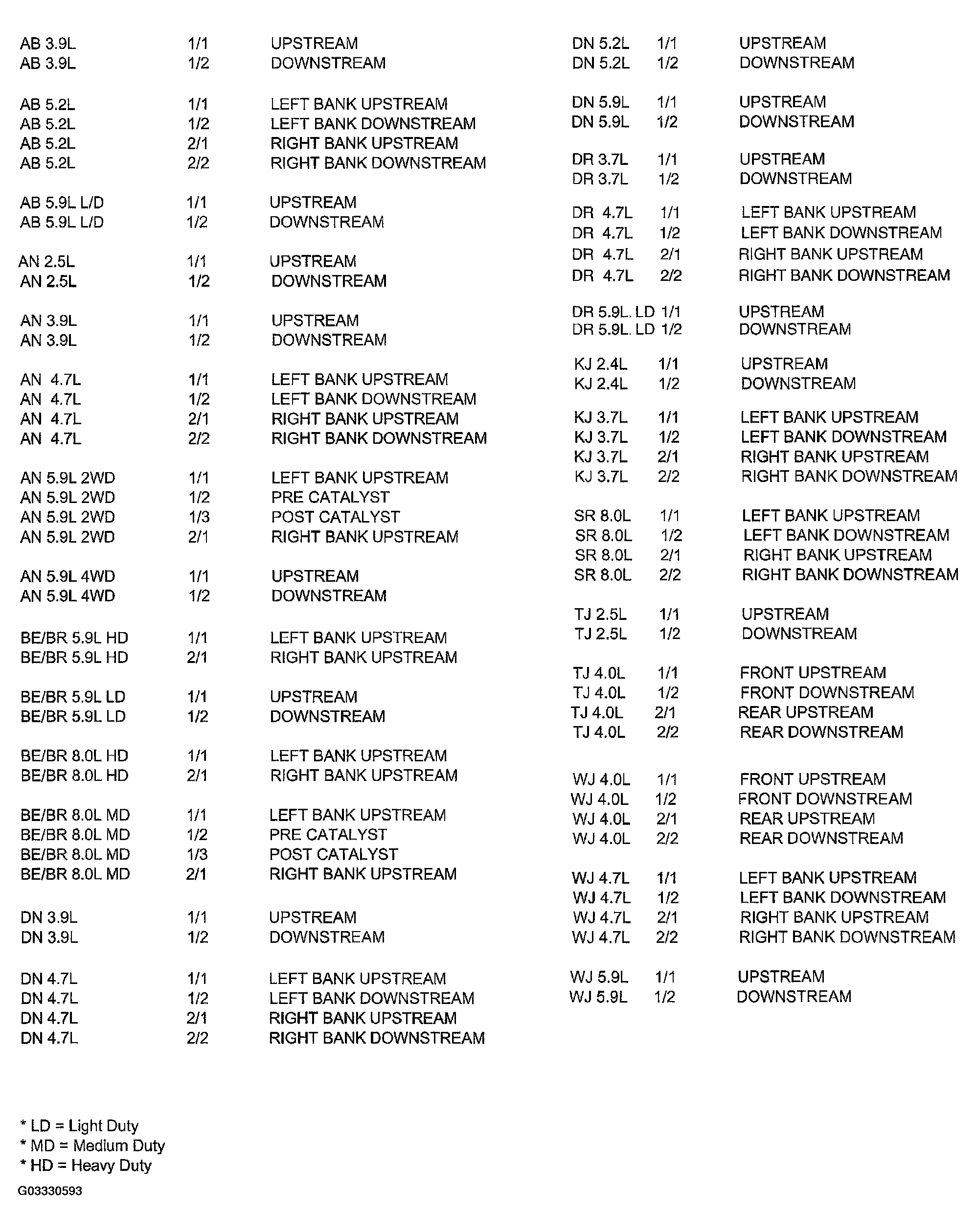

Fig 2: O2 Sensor Configuration

Courtesy of DAIMLERCHRYSLER CORP.

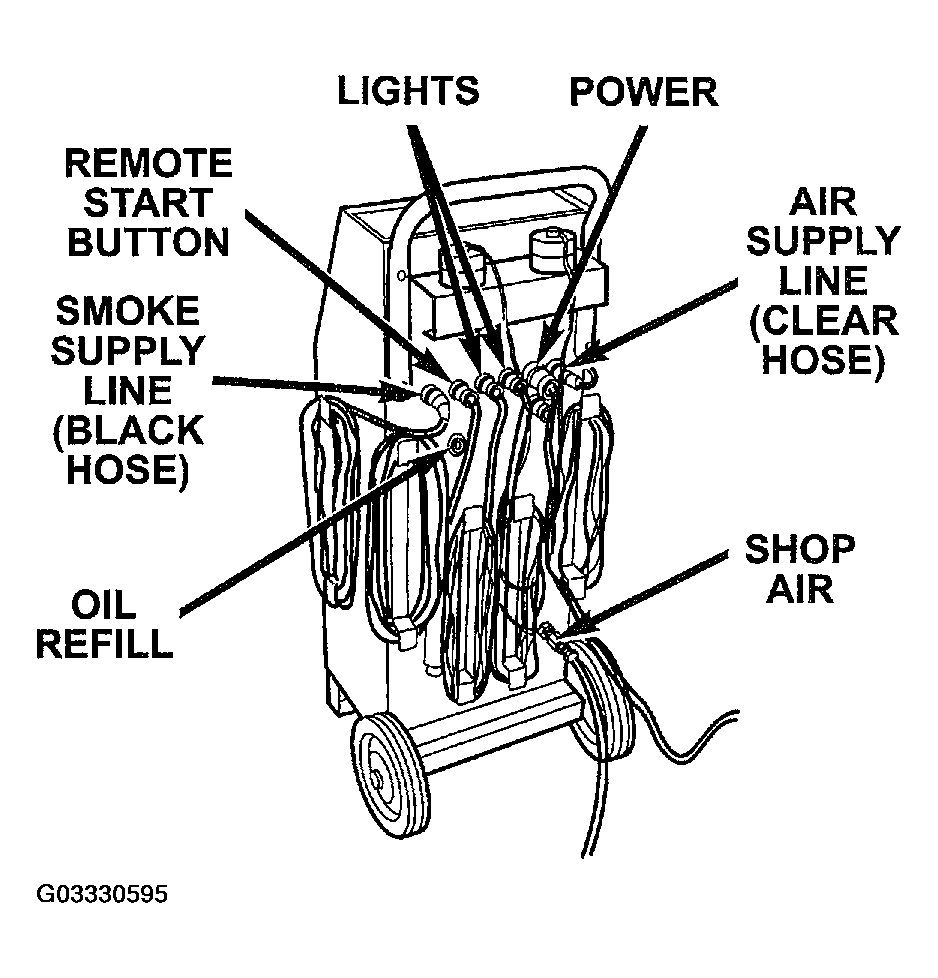

Fig 3: Identifying Components Of Special Tools (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

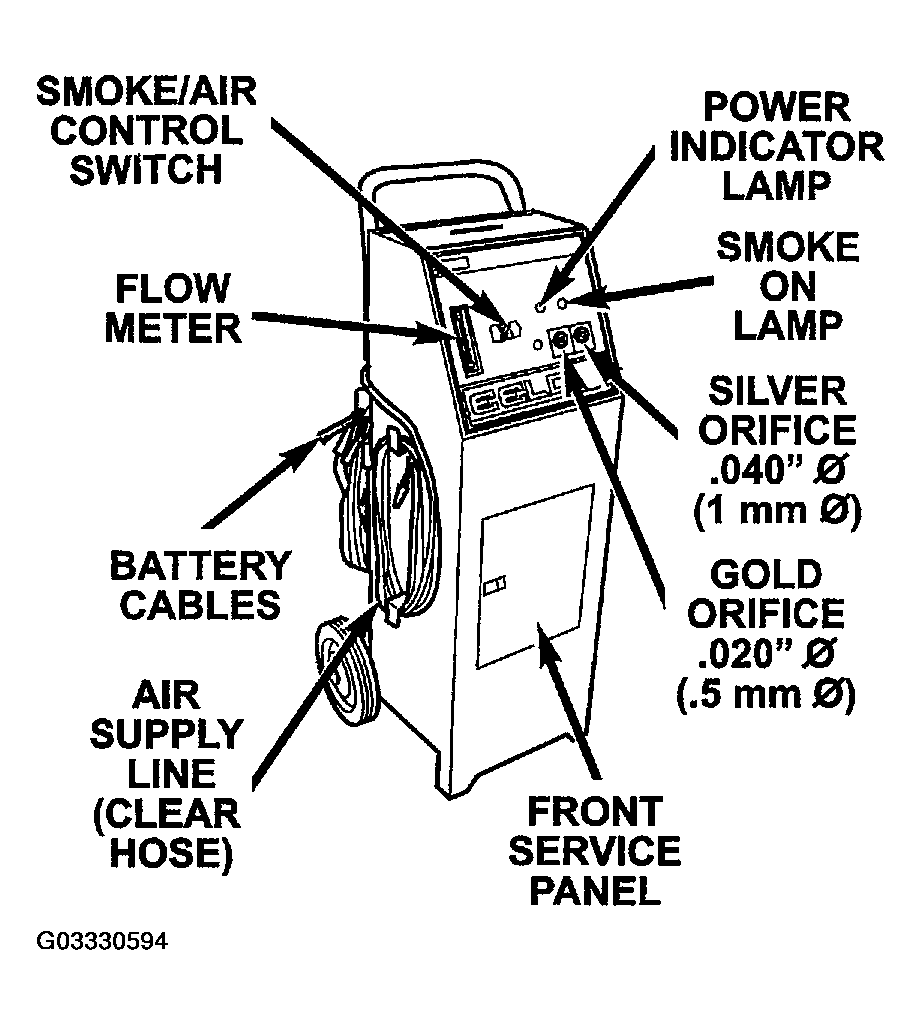

Fig 4: Identifying Components Of Special Tools (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

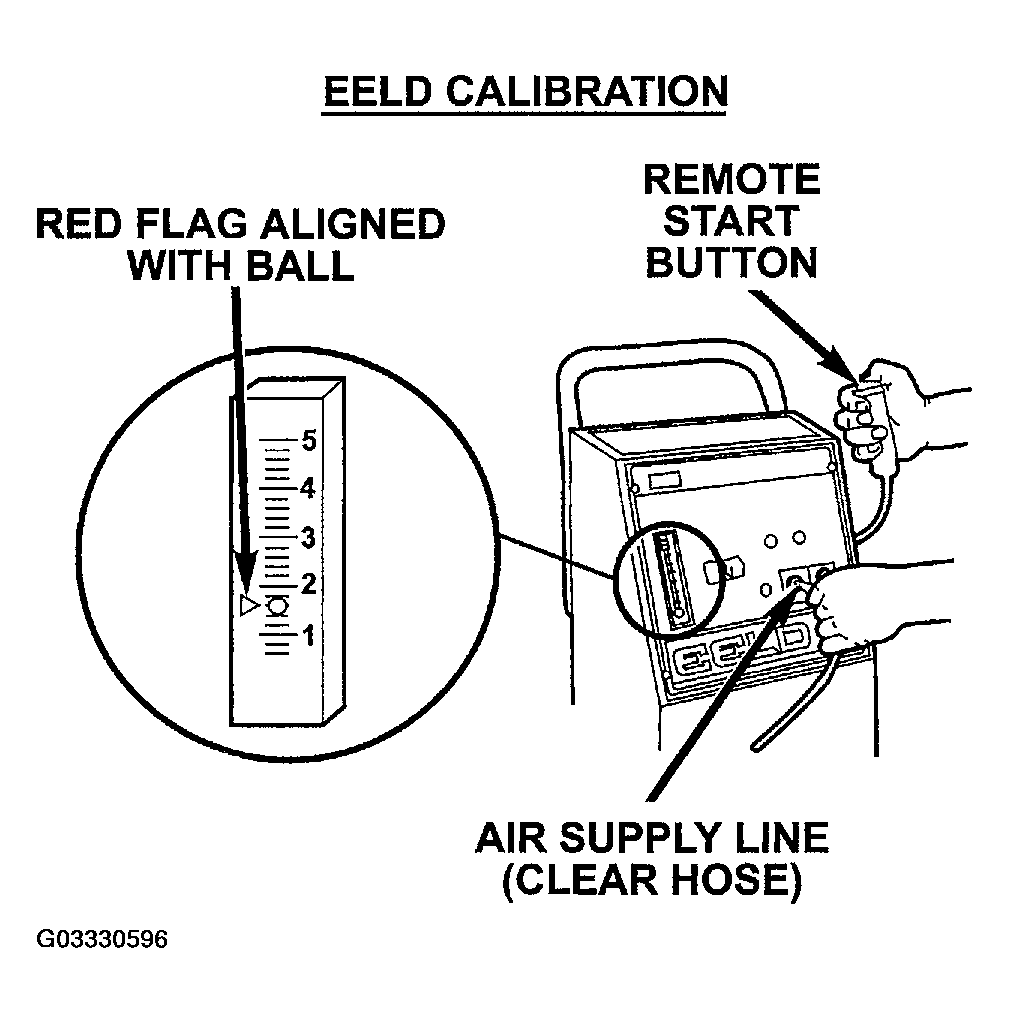

Fig 5: Identifying EELD Calibration

Courtesy of DAIMLERCHRYSLER CORP.

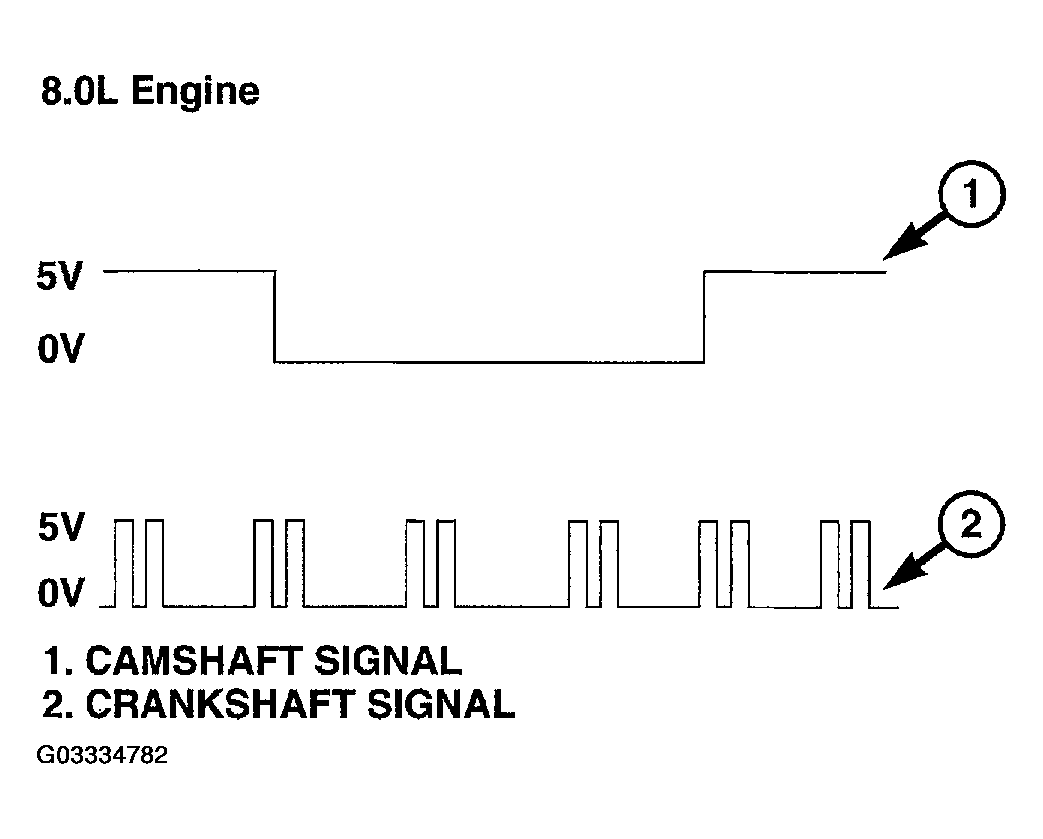

Fig 6: Identifying Camshaft Signal Graph And Crankshaft Signal Graph

Courtesy of DAIMLERCHRYSLER CORP.

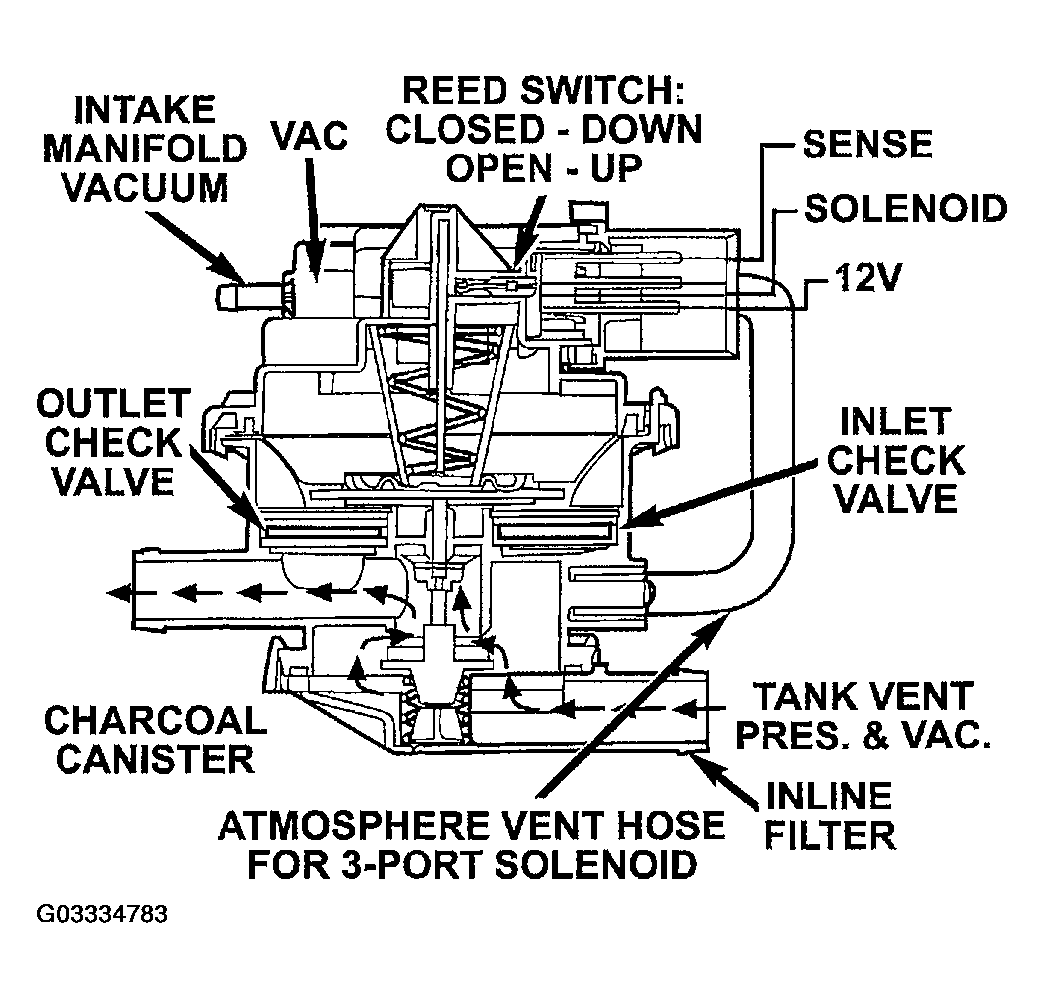

Fig 7: Identifying Tank Vent Pressure And Vacuum

Courtesy of DAIMLERCHRYSLER CORP.
