Control Modules And PDC

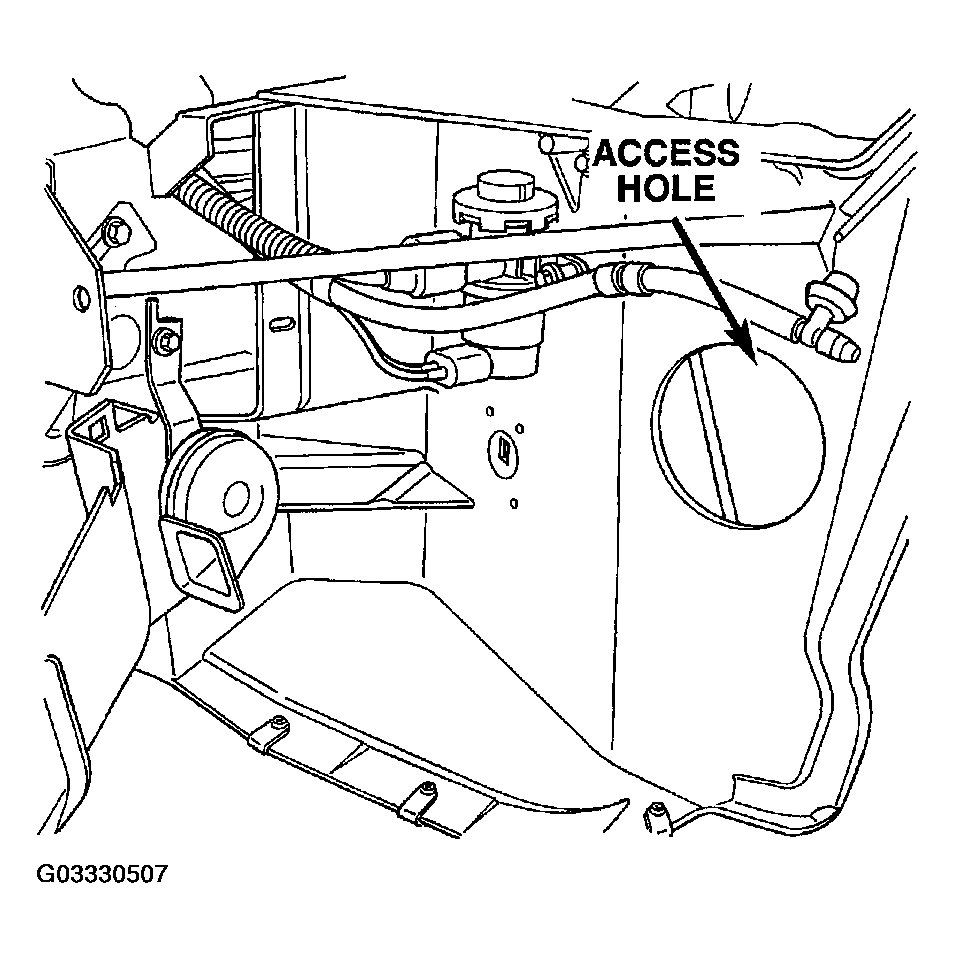

Fig 1: Identifying Components - Control Modules And PDC (1 Of 6)
G03330507Courtesy of DAIMLERCHRYSLER CORP.

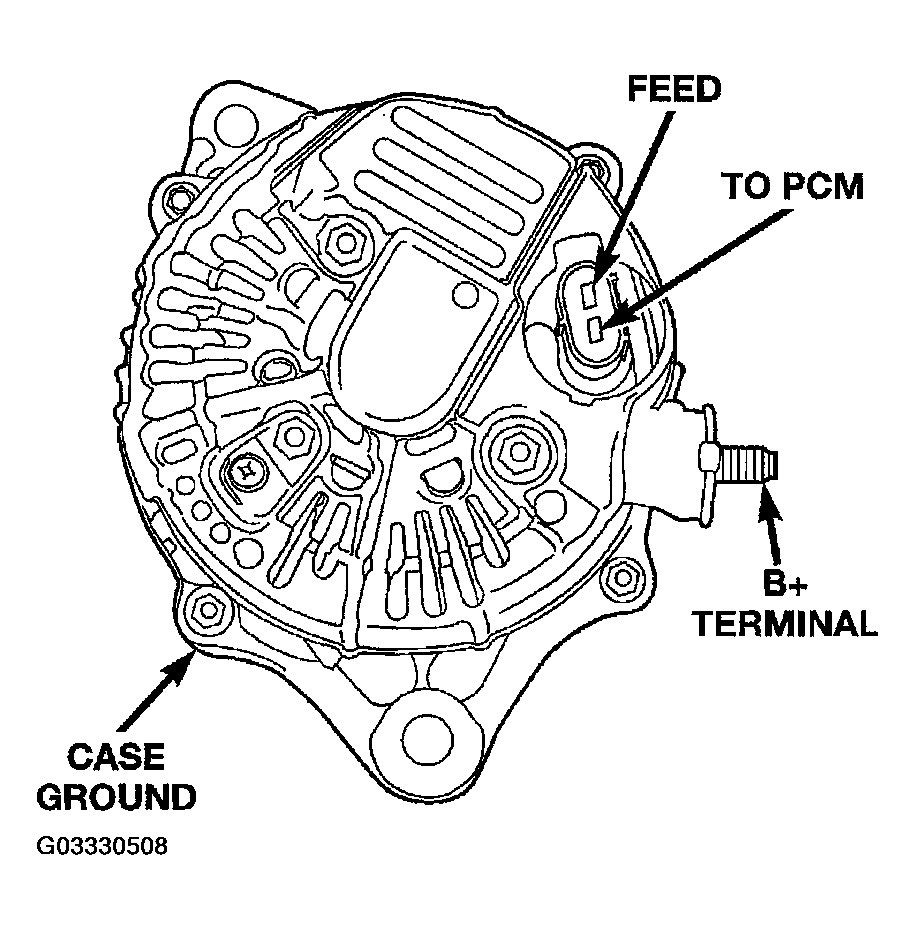

Fig 2: Identifying Components - Control Modules And PDC (2 Of 6)
G03330508Courtesy of DAIMLERCHRYSLER CORP.

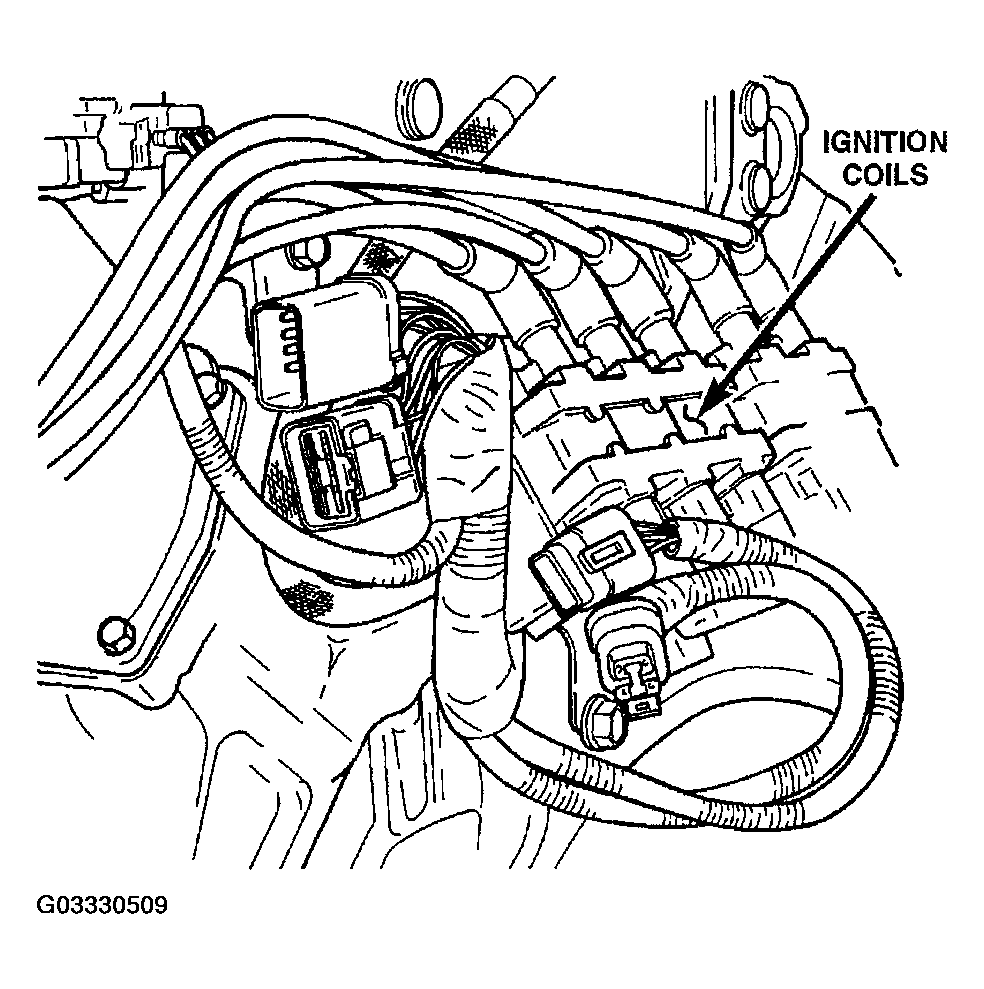

Fig 3: Identifying Components - Control Modules And PDC (3 Of 6)
G03330509Courtesy of DAIMLERCHRYSLER CORP.

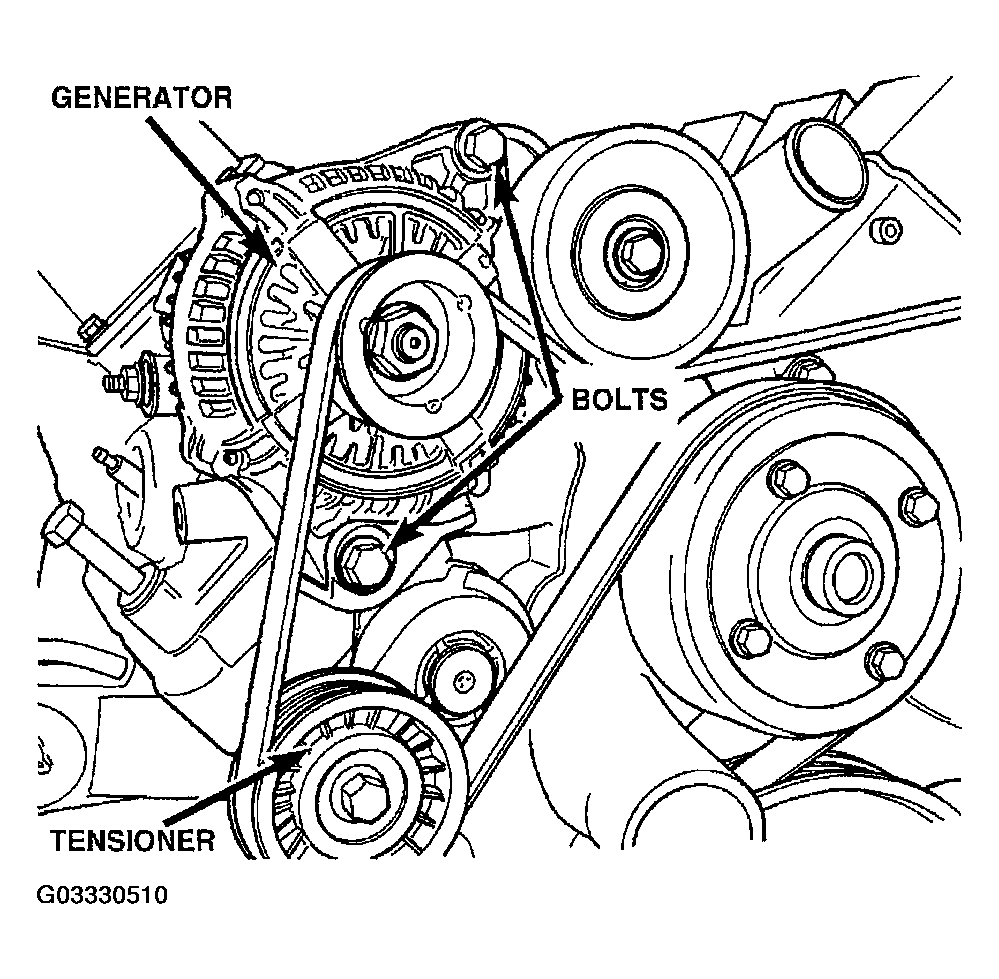

Fig 4: Identifying Components - Control Modules And PDC (4 Of 6)
G03330510Courtesy of DAIMLERCHRYSLER CORP.

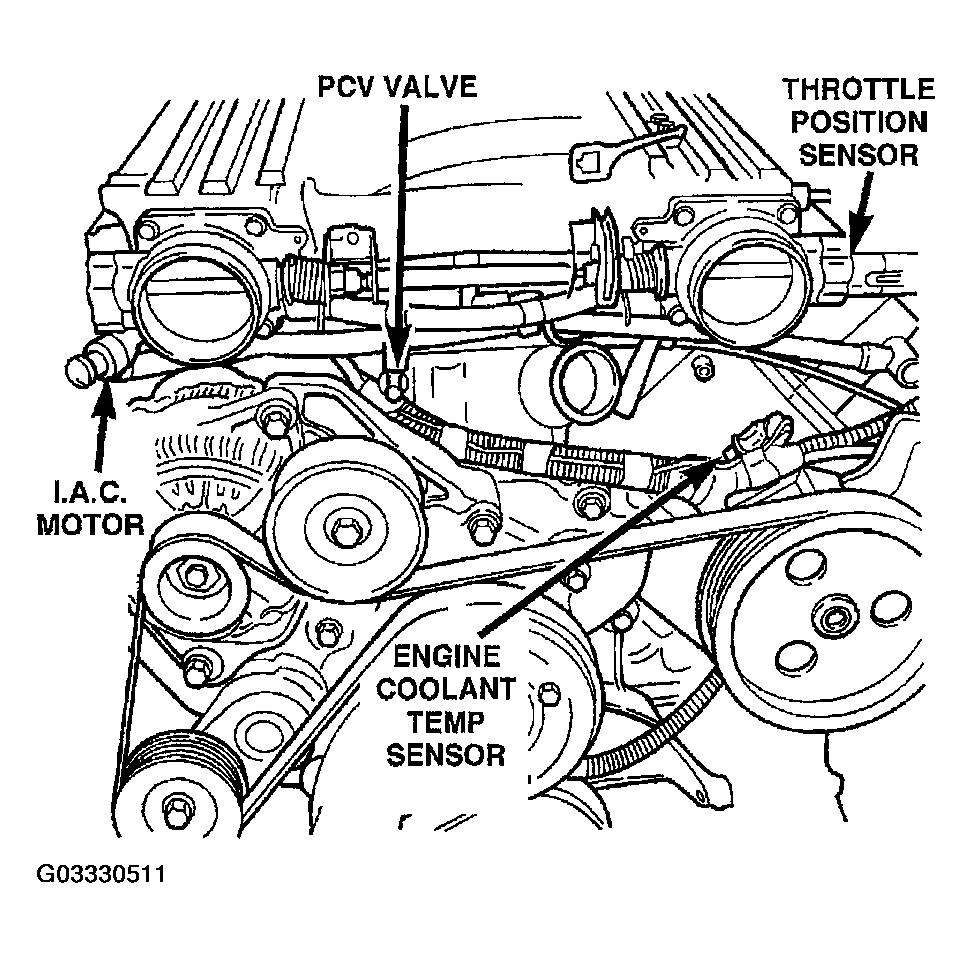

Fig 5: Identifying Components - Control Modules And PDC (5 Of 6)
G03330511Courtesy of DAIMLERCHRYSLER CORP.

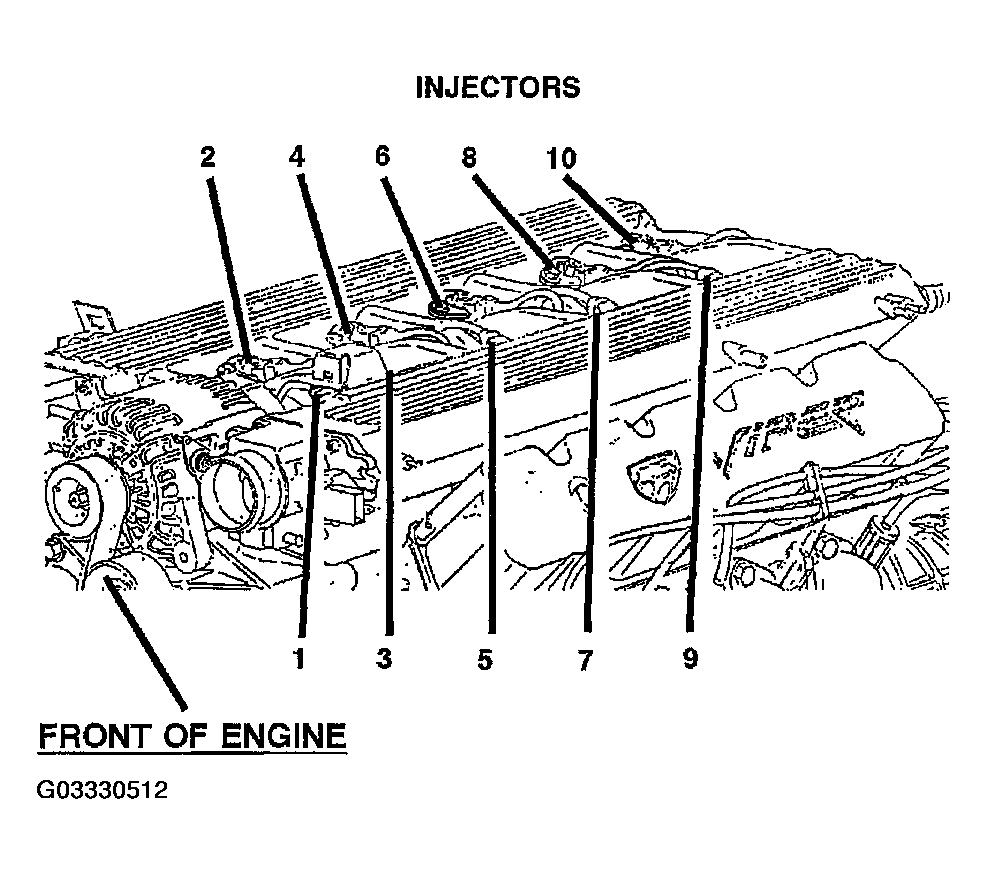

Fig 6: Identifying Components - Control Modules And PDC (6 Of 6)
G03330512Courtesy of DAIMLERCHRYSLER CORP.
