Engine Control Module

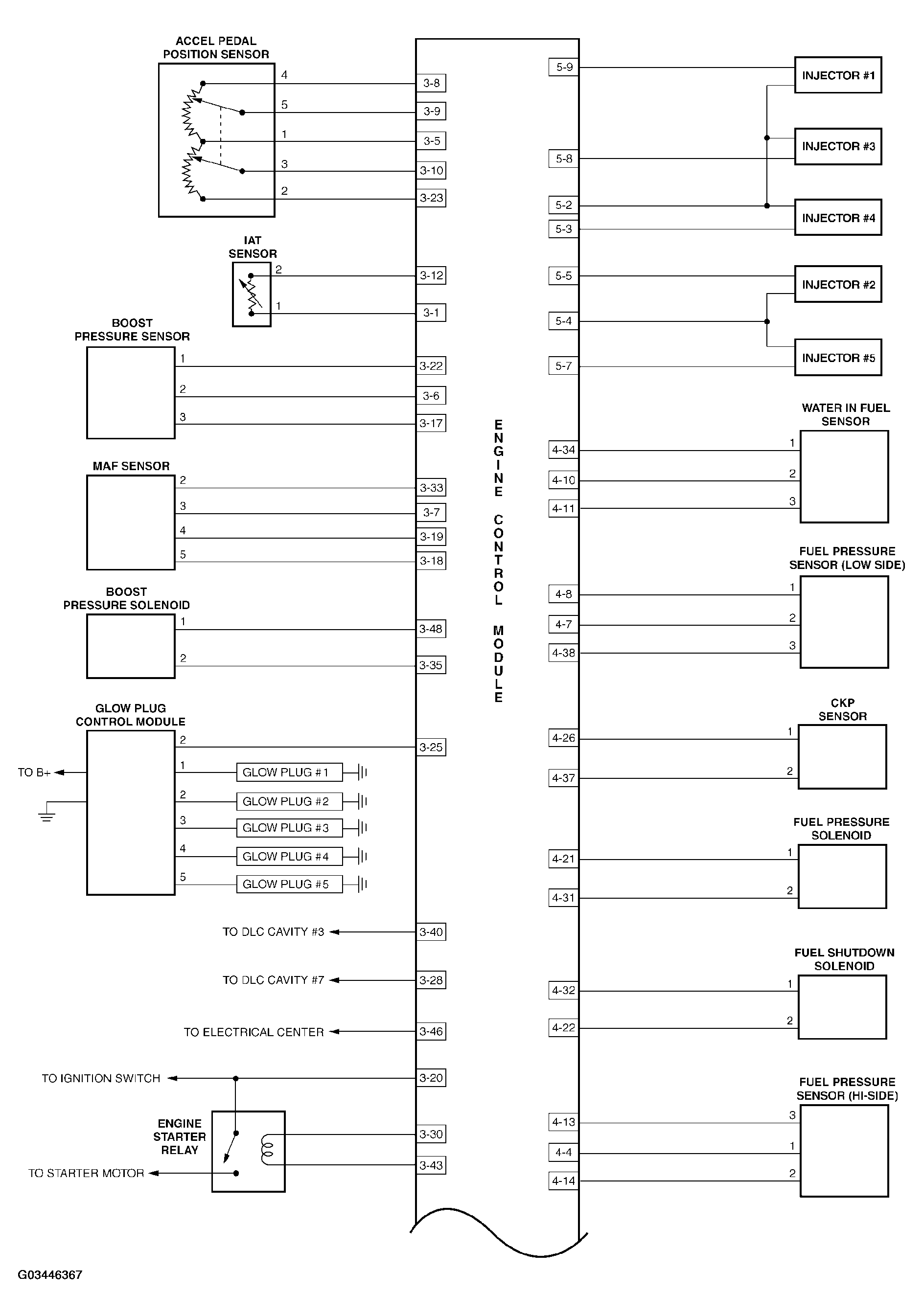

Fig 1: Engine Control Module Schematic Diagrams (1 Of 2)

G03446367

Courtesy of DAIMLERCHRYSLER CORP.

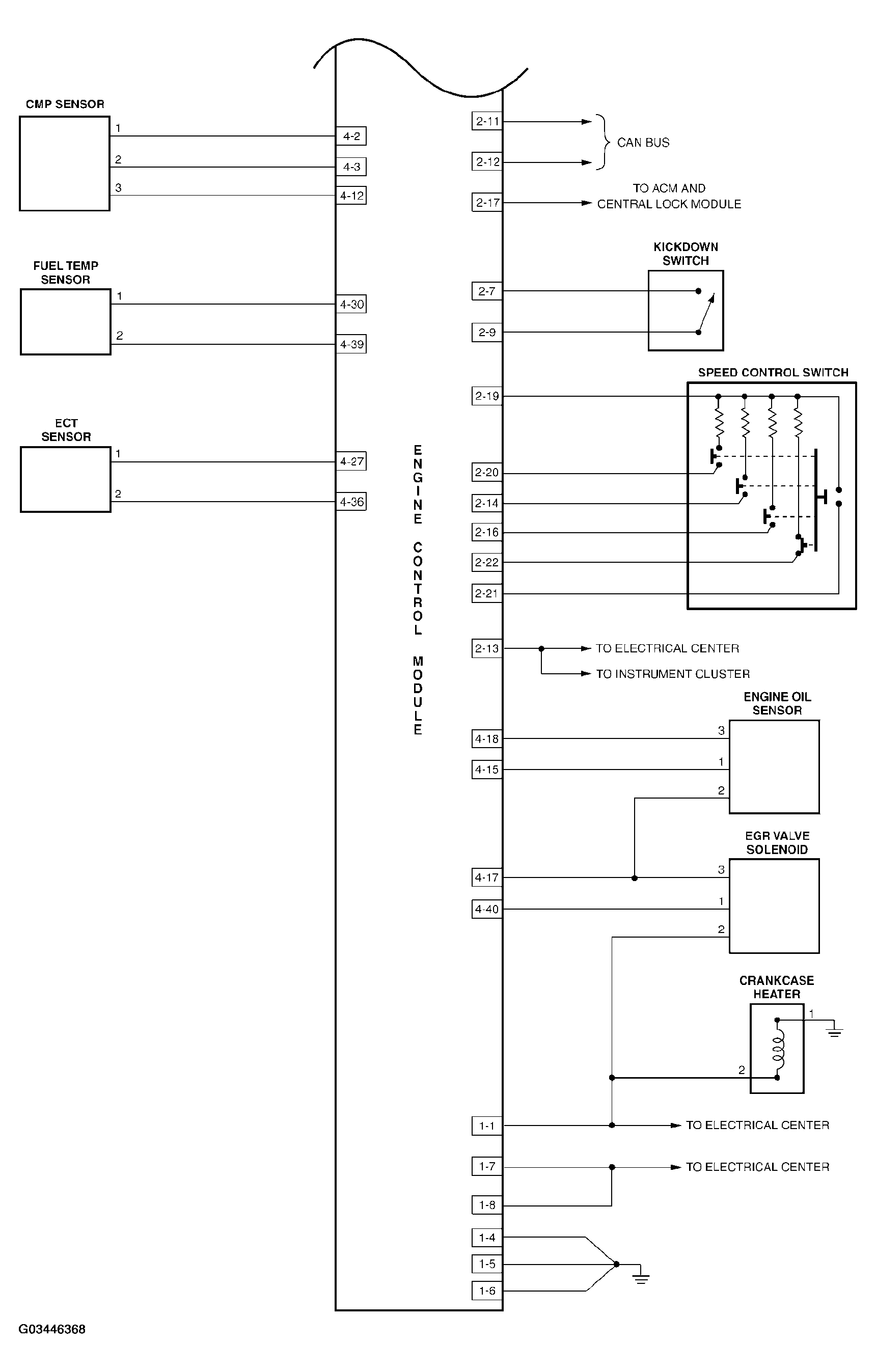

Fig 2: Engine Control Module Schematic Diagrams (2 Of 2)

G03446368

Courtesy of DAIMLERCHRYSLER CORP.
