Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

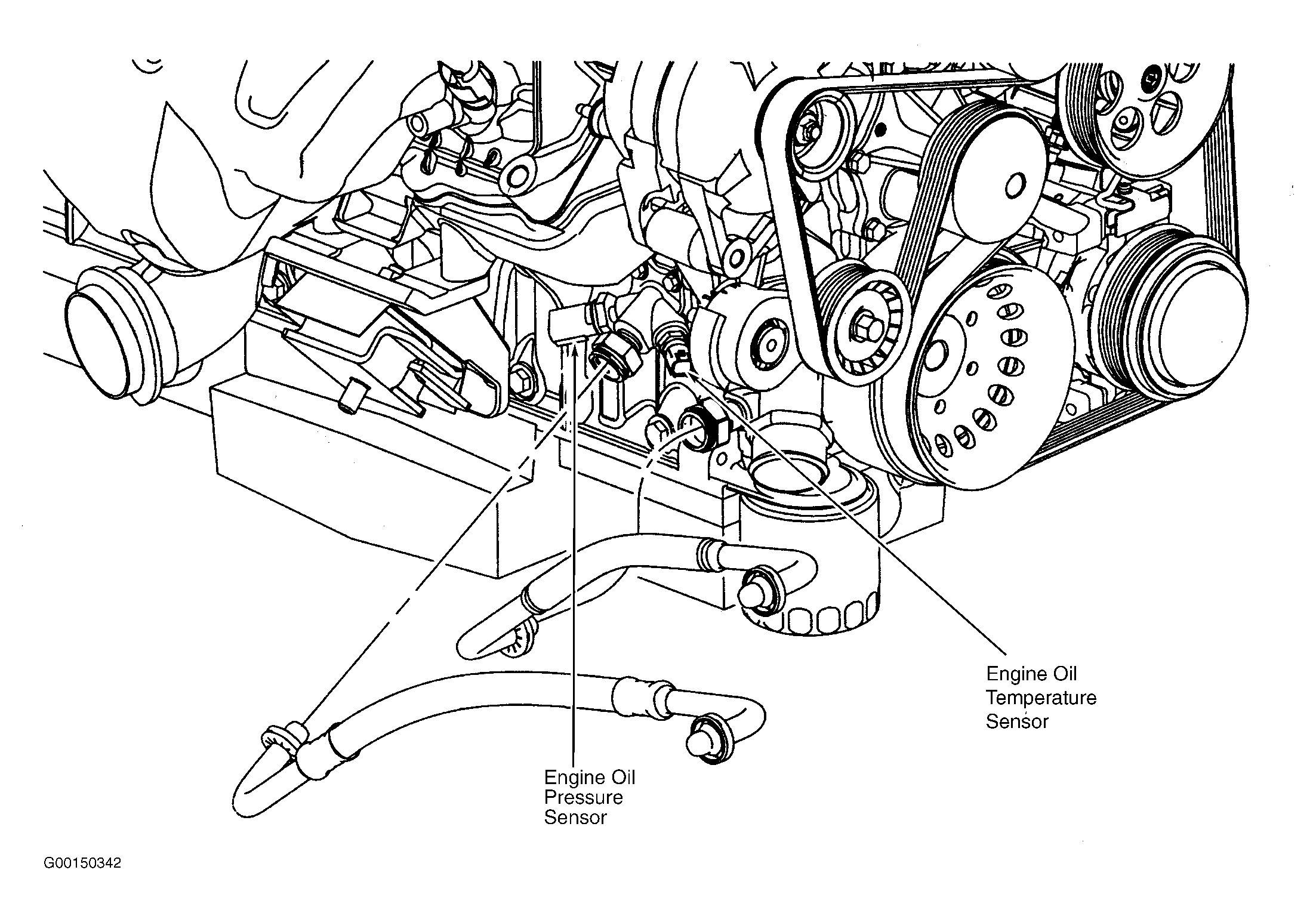

Fig 1: Left Side Of Engine

Courtesy of DAIMLERCHRYSLER CORP.

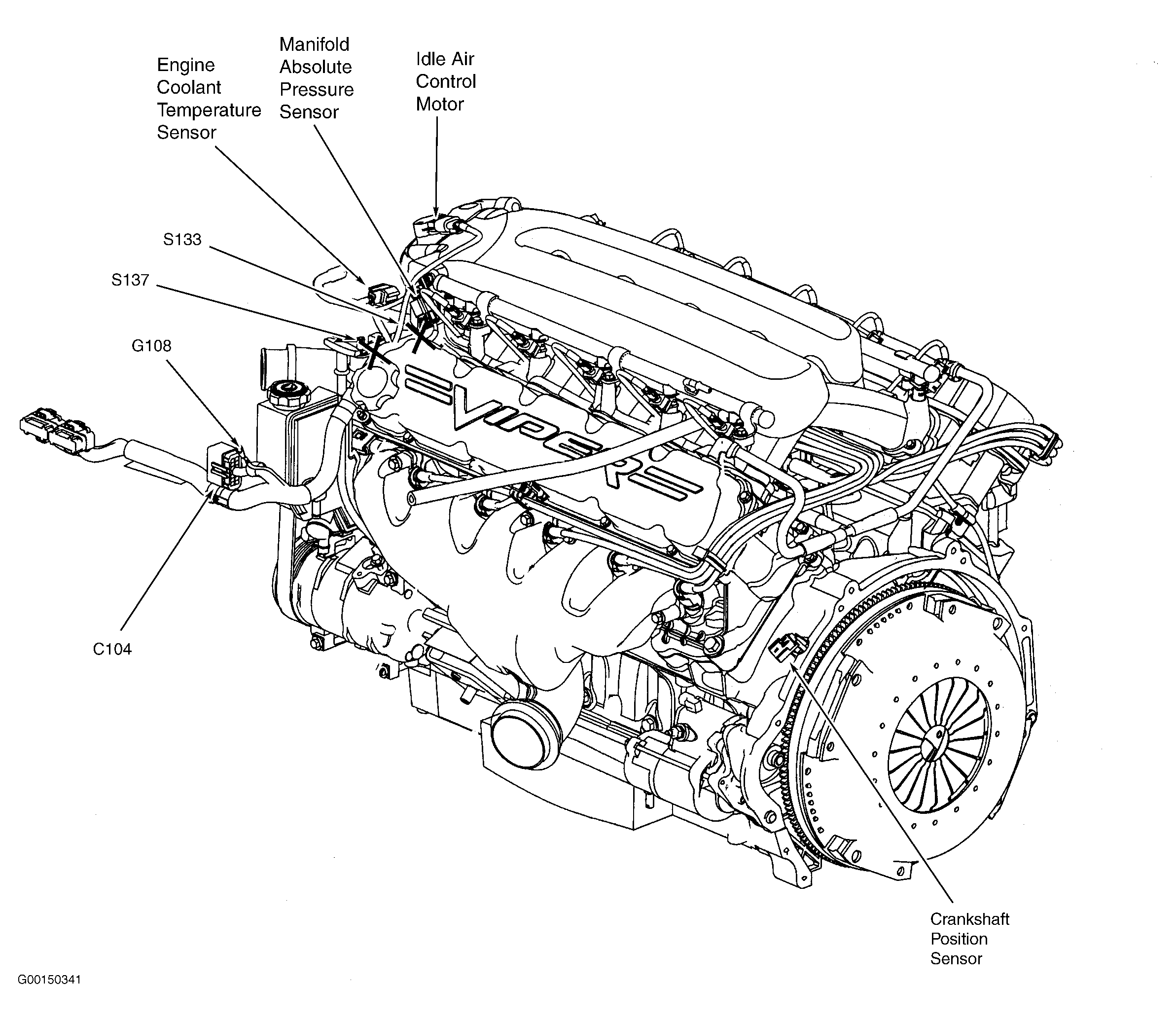

Fig 2: Front Of Engine

Courtesy of DAIMLERCHRYSLER CORP.

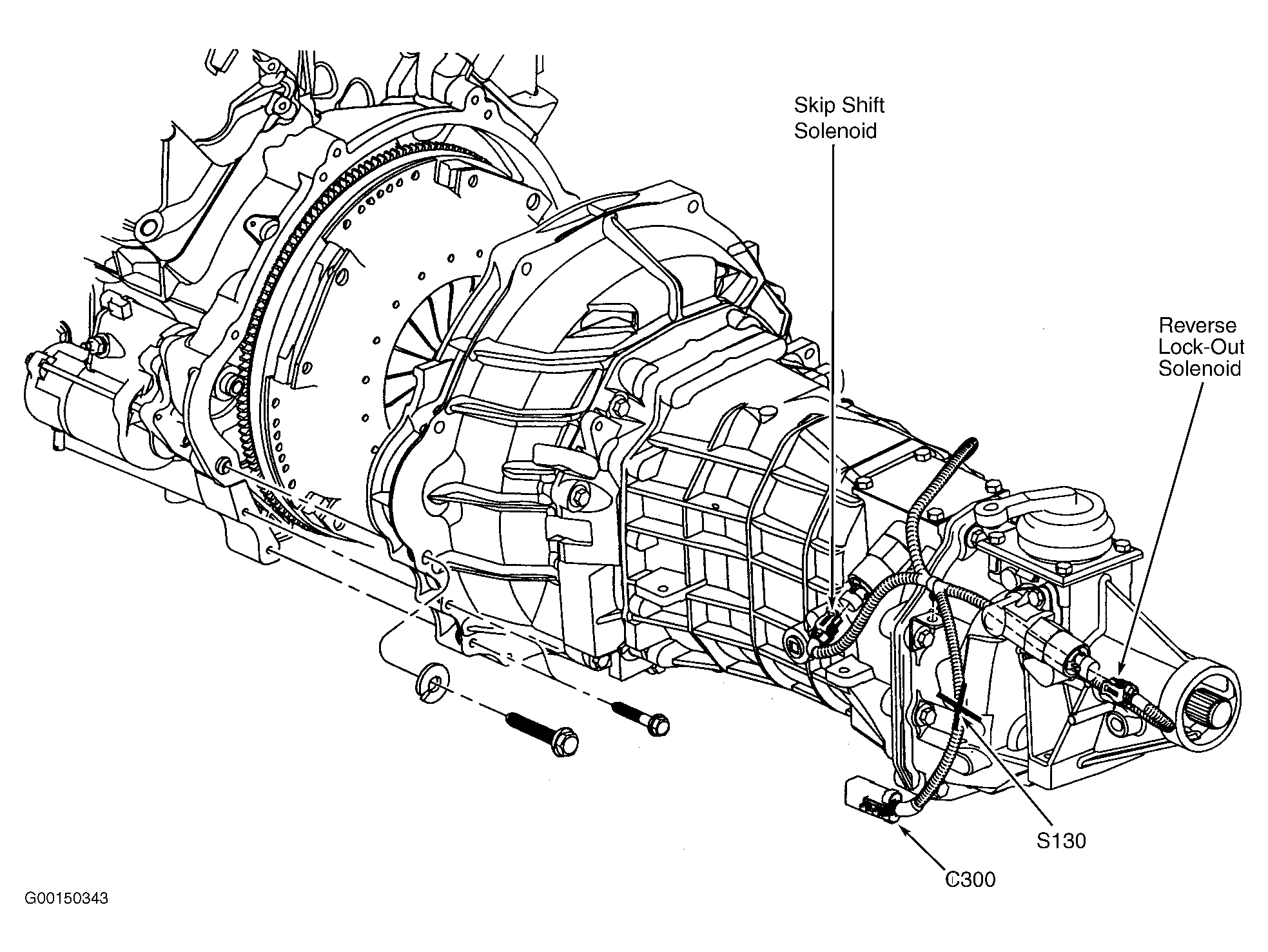

Fig 3: Left Rear Of Transmission

Courtesy of DAIMLERCHRYSLER CORP.

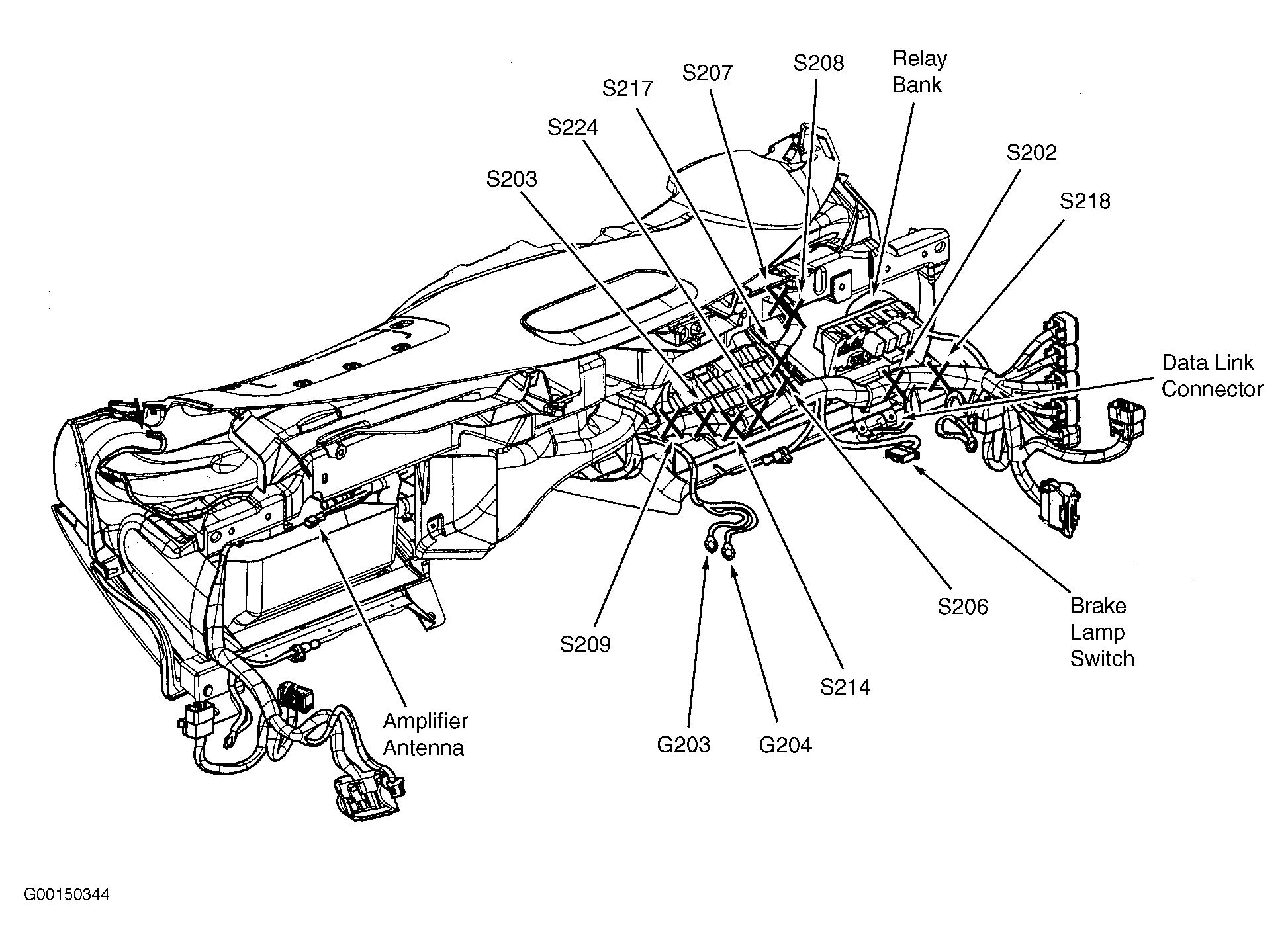

Fig 4: Rear Of Dash

Courtesy of DAIMLERCHRYSLER CORP.

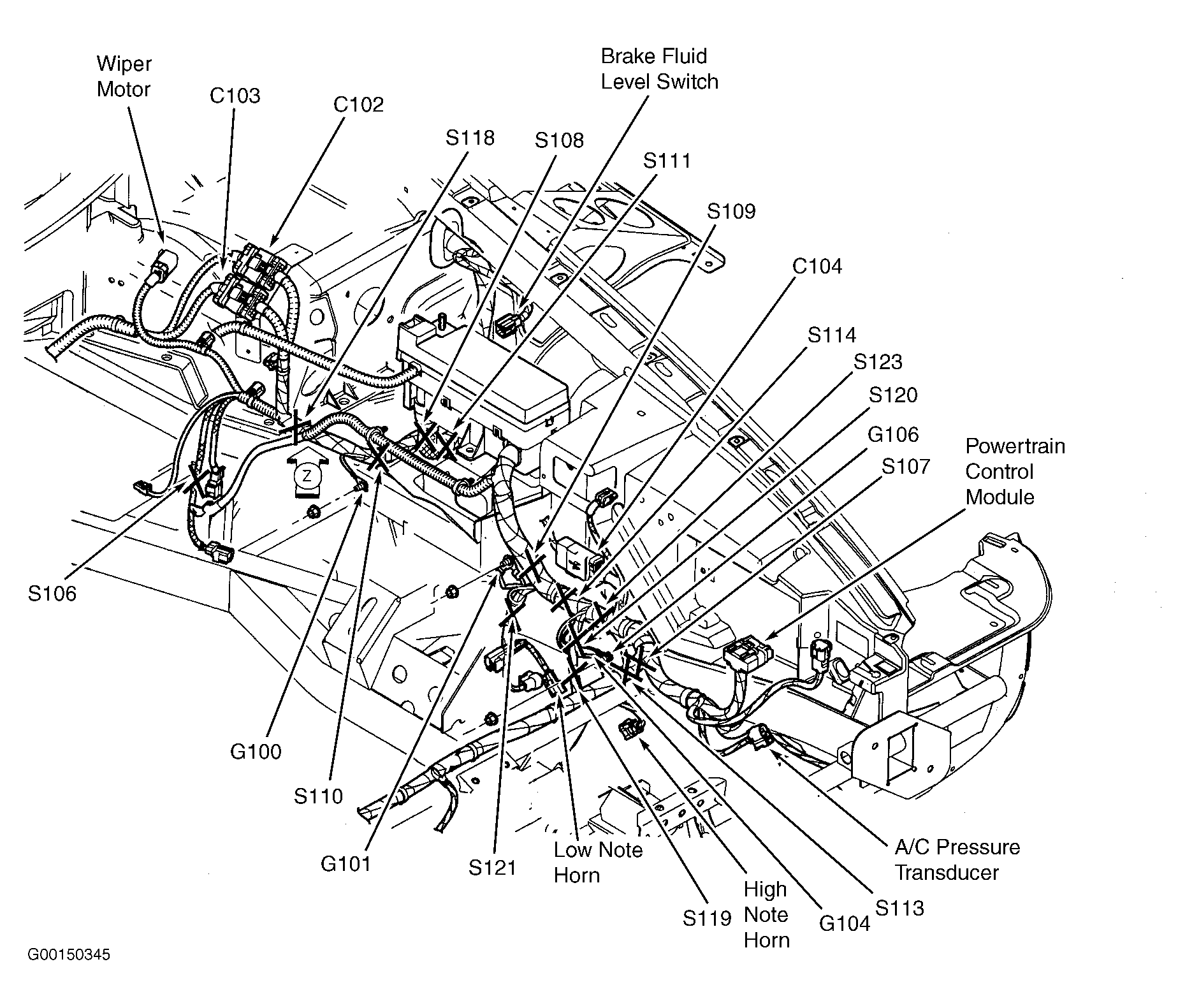

Fig 5: Left Side Of Engine Compartment

Courtesy of DAIMLERCHRYSLER CORP.

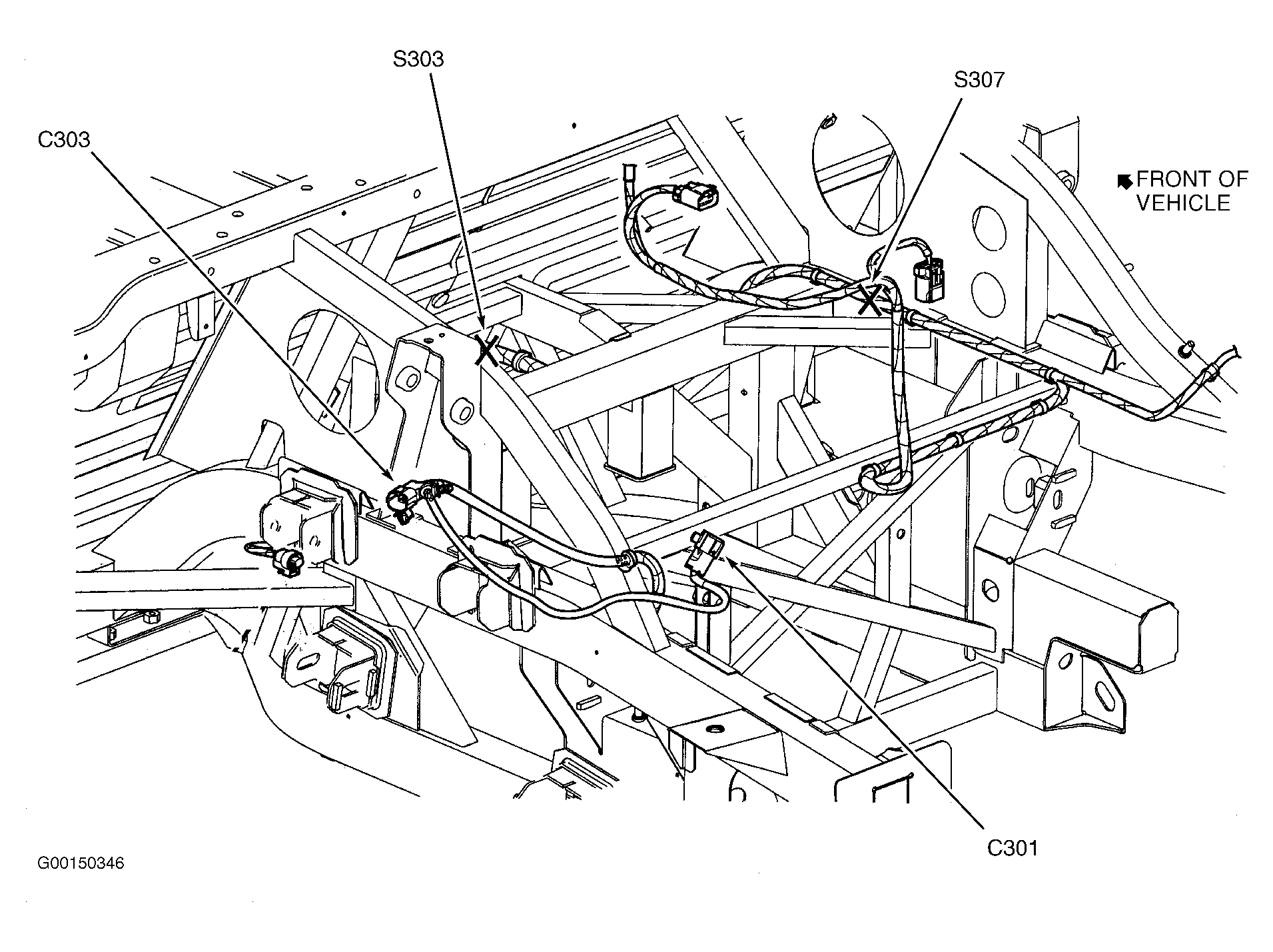

Fig 6: Left Rear Of Chassis

Courtesy of DAIMLERCHRYSLER CORP.

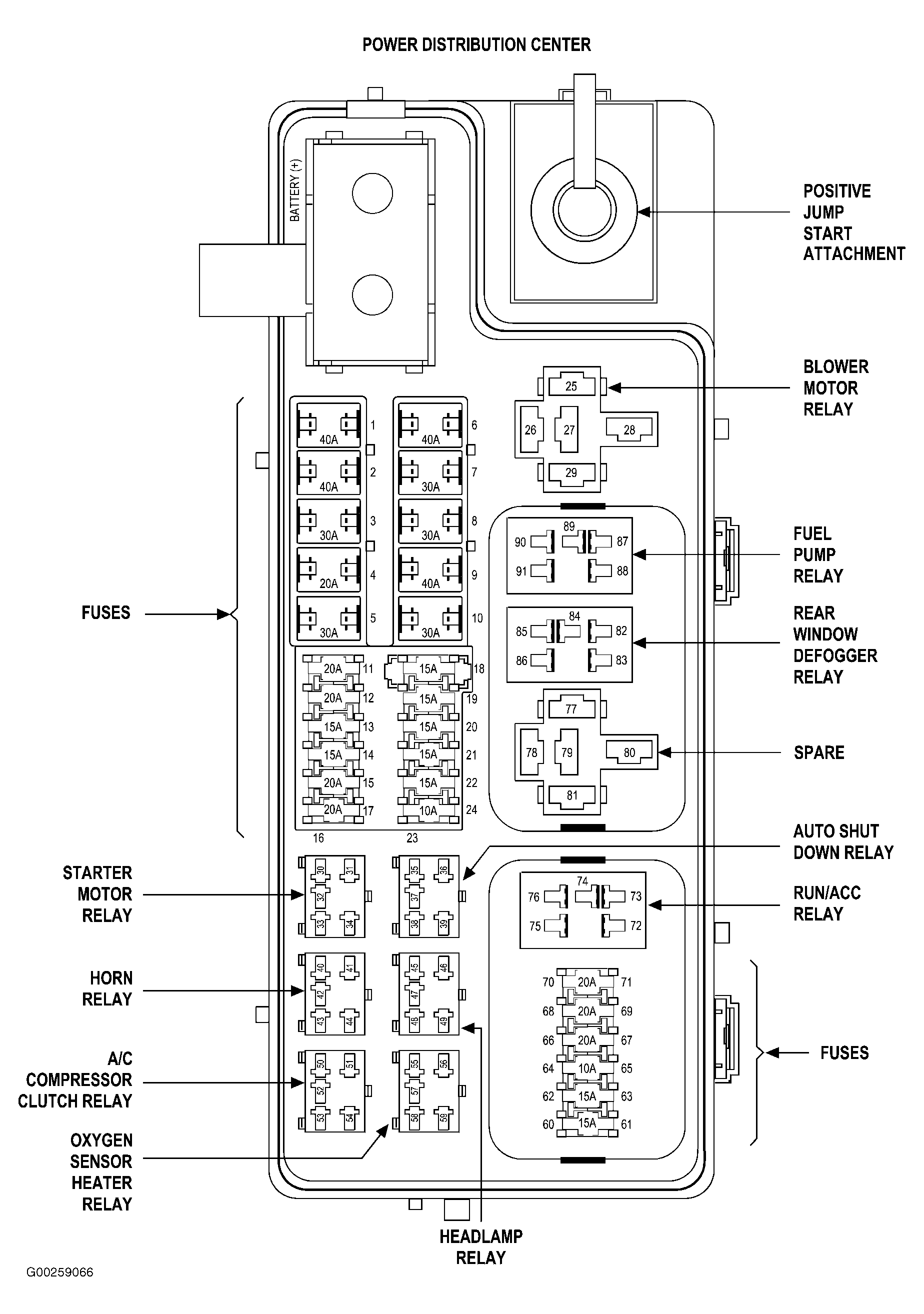

Fig 7: Power Distribution Center

Courtesy of DAIMLERCHRYSLER CORP.
