Inlet Air Temperature Sensor: Installation

NOTE: Take care not to damage the open thermistor pill when installing the sensor.
  1. Install sensor (Fig 1 ), use a little water to add in insertion of sensor.

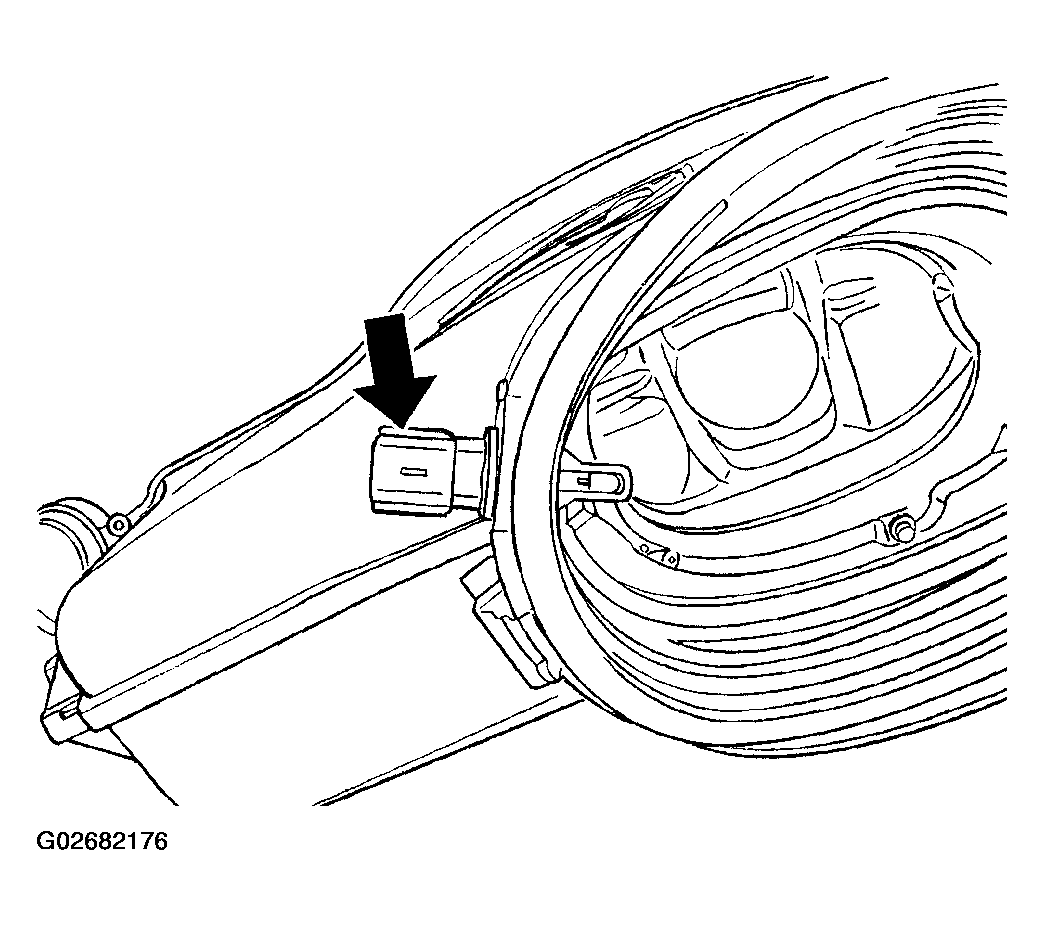

    Fig 1: Identifying Sensor Orientation
    G02682176Courtesy of DAIMLERCHRYSLER CORP.
  2. Make sure that the rib on the sensor matches up with the rib on the inlet hose. The thermistor pill should be in direct contact with the inlet air stream.
  3. Connect the electrical connector.
  4. Connect the negative battery cable and install battery cover.
