Map Sensor: Description

The MAP sensor (Fig 1 ) mounts to the drivers side intake manifold plenum.

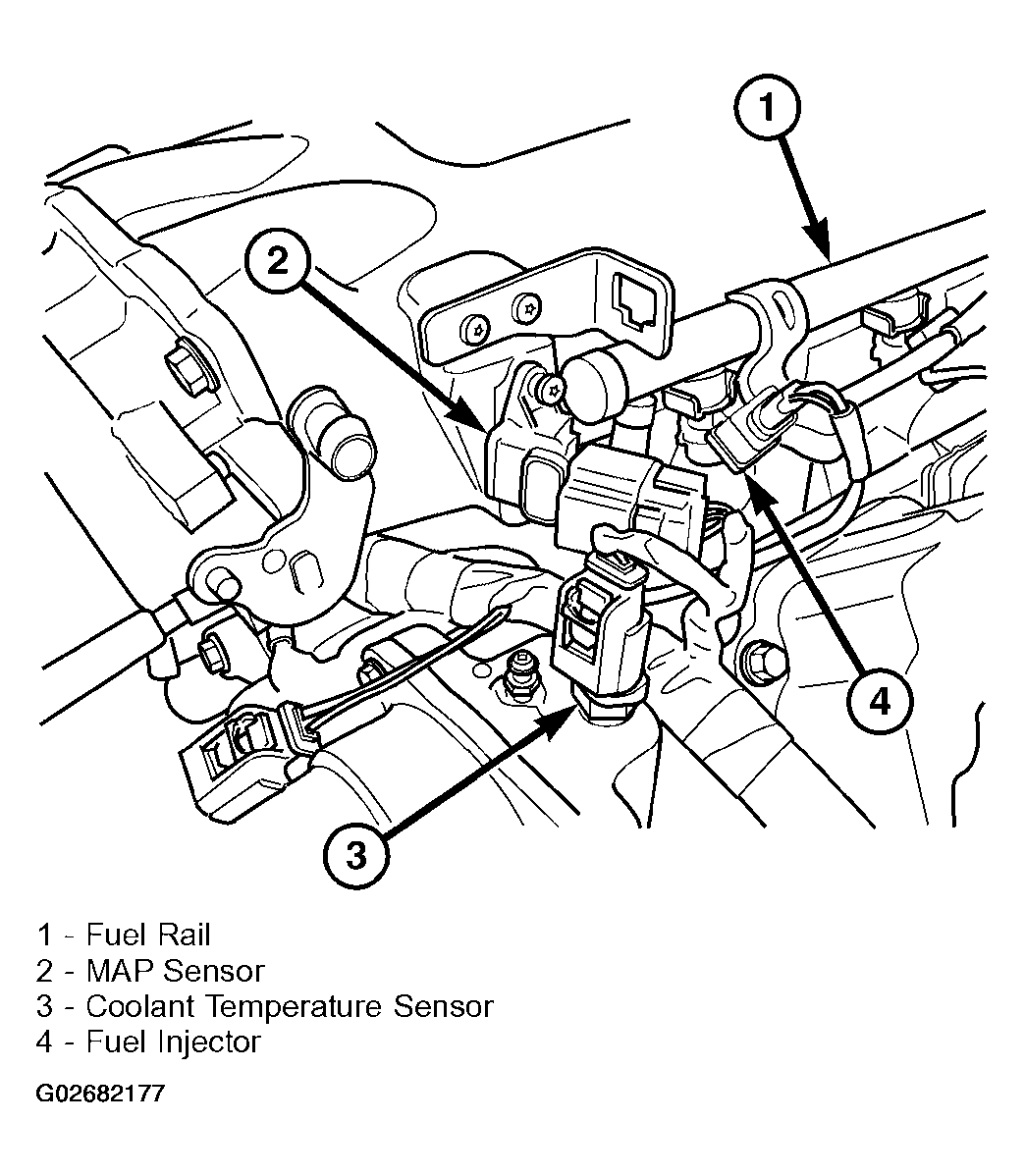

Fig 1: Locating Map & Coolant Temp. Sensor

G02682177

Courtesy of DAIMLERCHRYSLER CORP.
