Throttle Cable: Installation

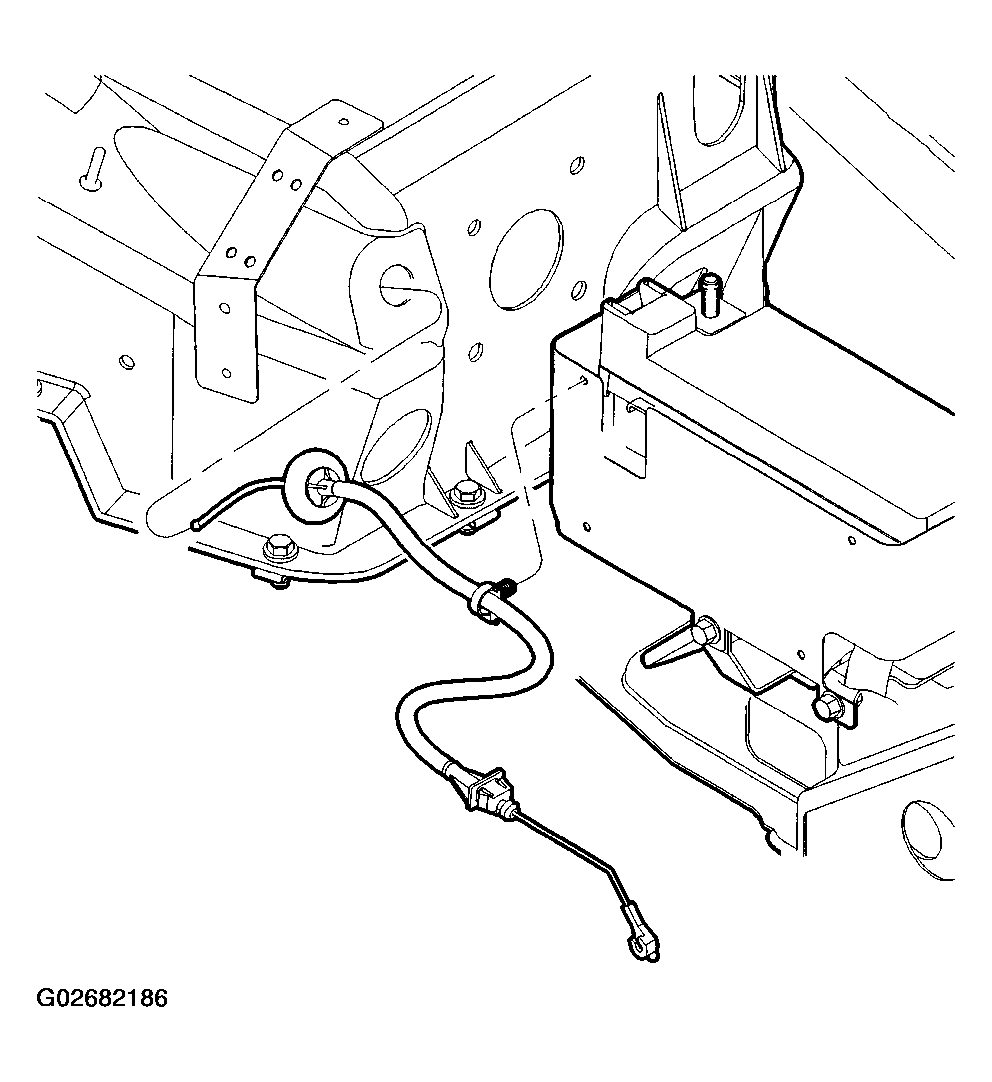

- Insert cable assembly through opening in dash panel (Figure
). Seat cable retainer in dash panel.

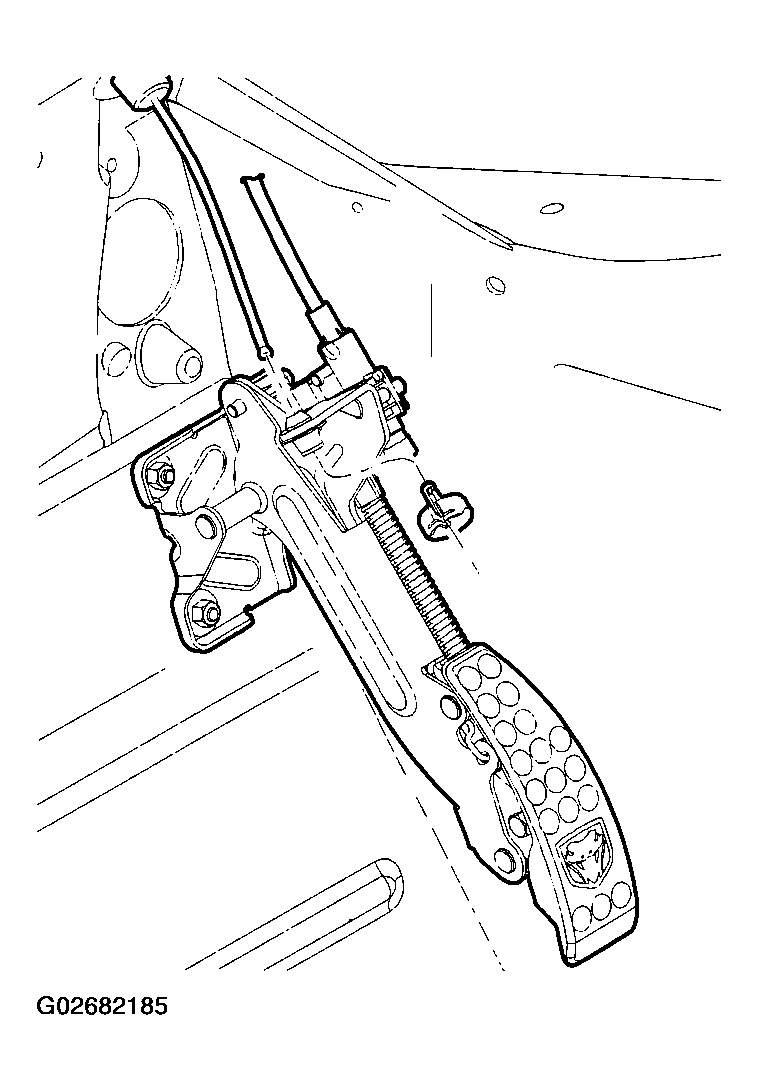

- From inside the vehicle, hold up the pedal and install the throttle cable and cable retainer in the upper end of the pedal shaft (Figure
).

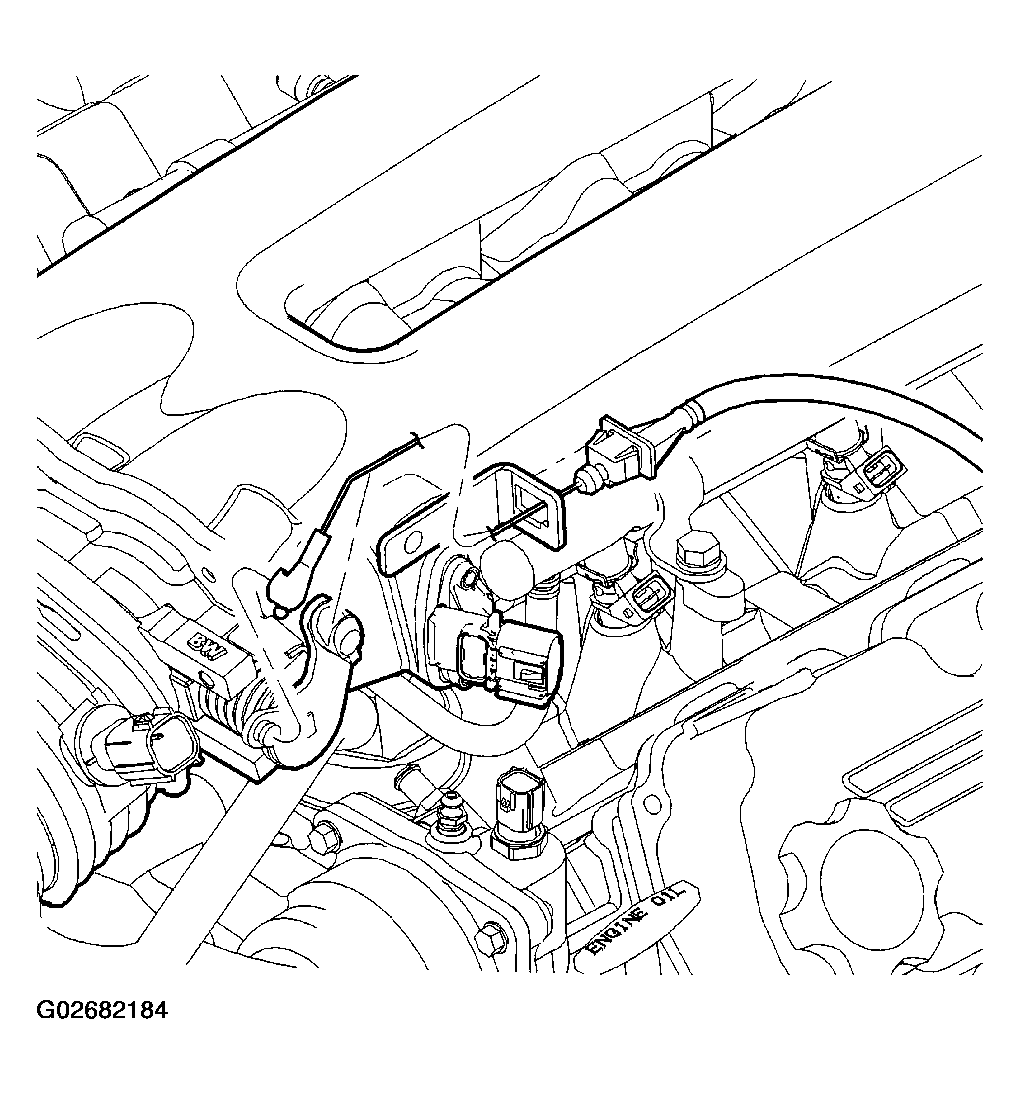

- Connect the throttle cable to the throttle body (Figure
).
