Specifications - Firing Order

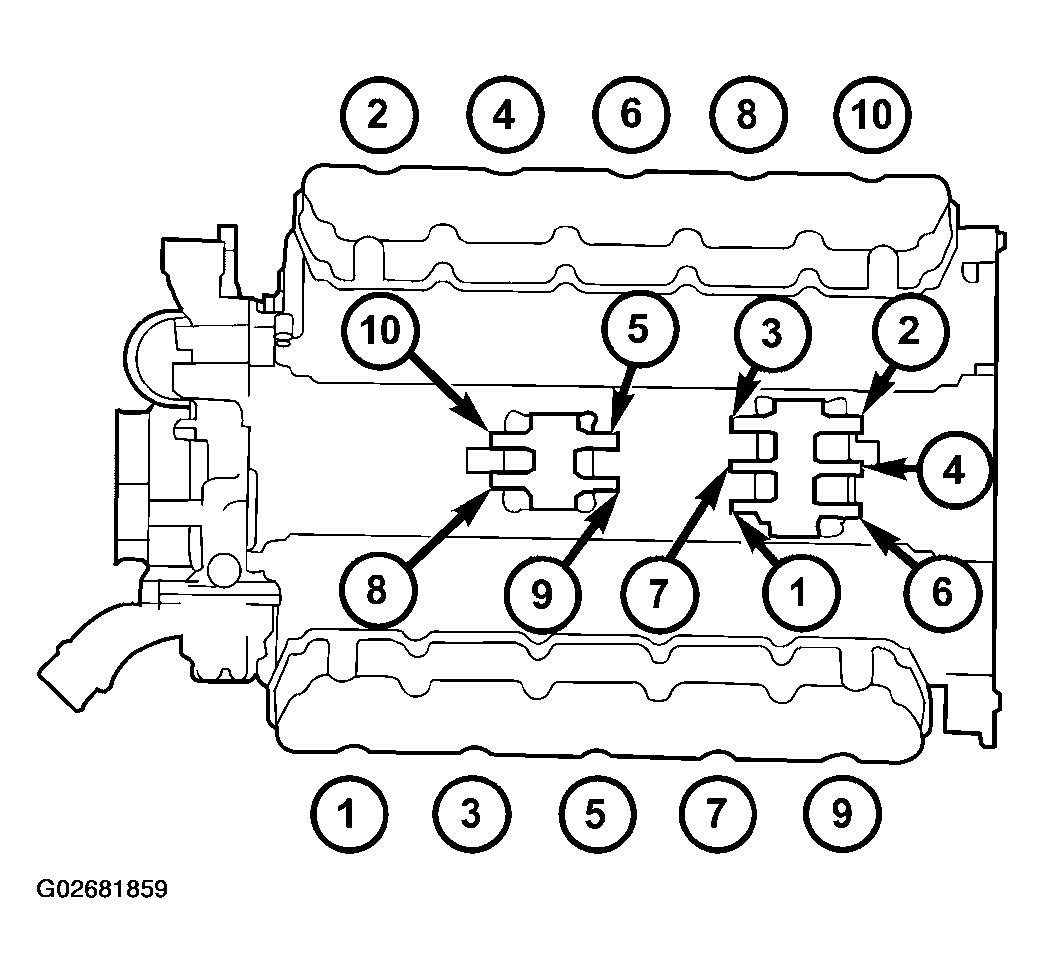

Fig 1: Identifying Firing Order

G02681859

Courtesy of DAIMLERCHRYSLER CORP.

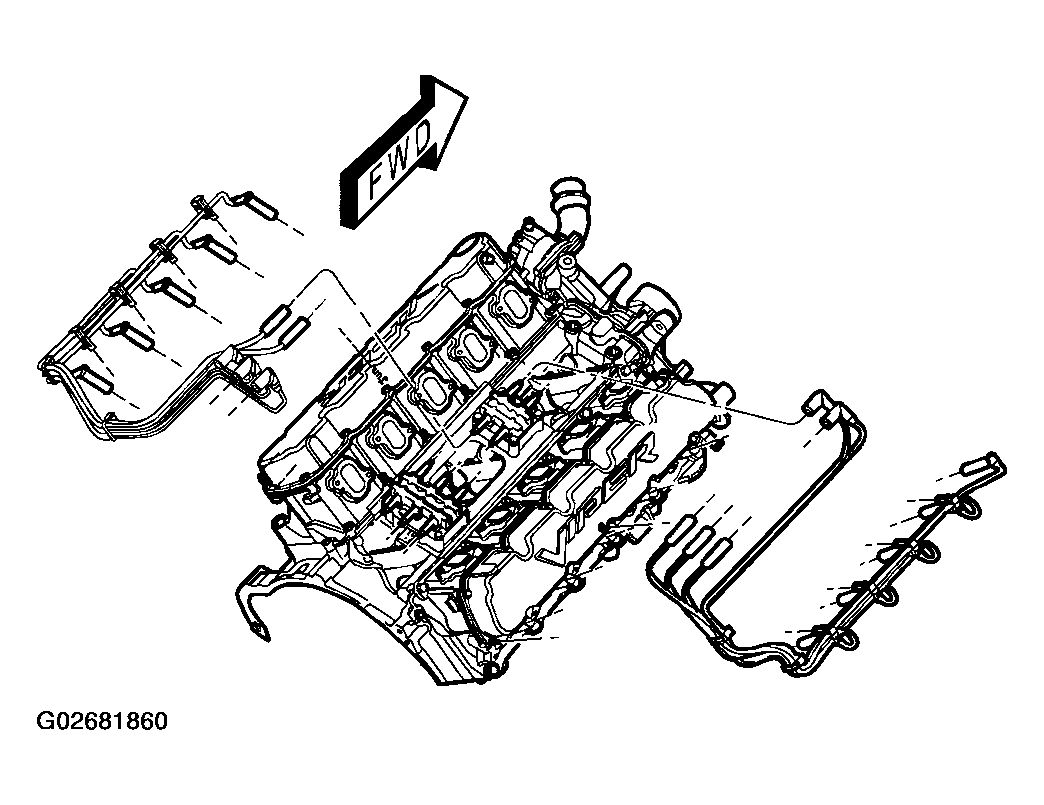

Fig 2: Identifying Wire Routing

G02681860

Courtesy of DAIMLERCHRYSLER CORP.
