Integrated Power Module: Removal
- Disconnect the negative and positive battery cables.
- Remove the battery thermal guard from the vehicle. Refer to the BATTERY SYSTEM
.
- Remove the battery from the vehicle. Refer to the BATTERY SYSTEM
.

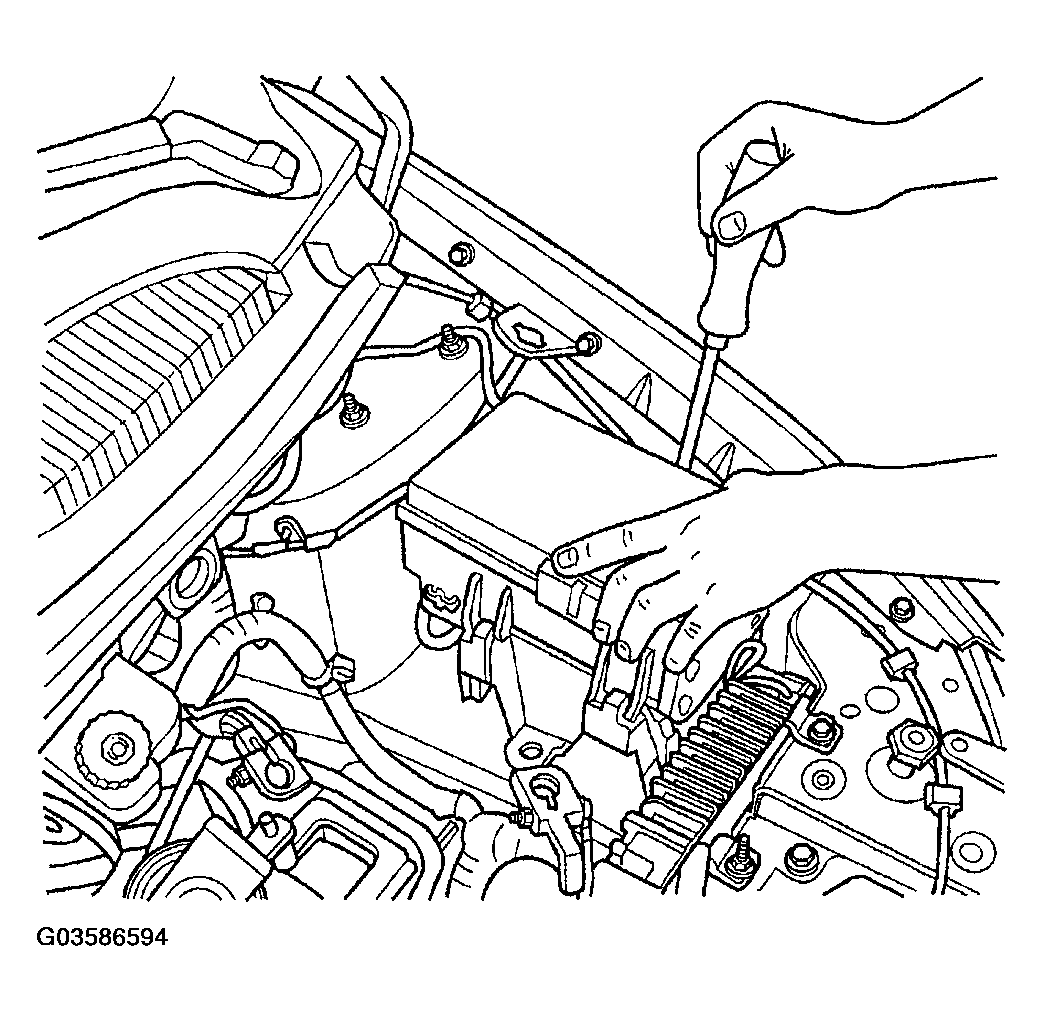

- Using a flat-bladed screwdriver, twist the Integrated Power Module (IPM) bracket retaining latch outward to free the intelligent power module from its mounting bracket (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.

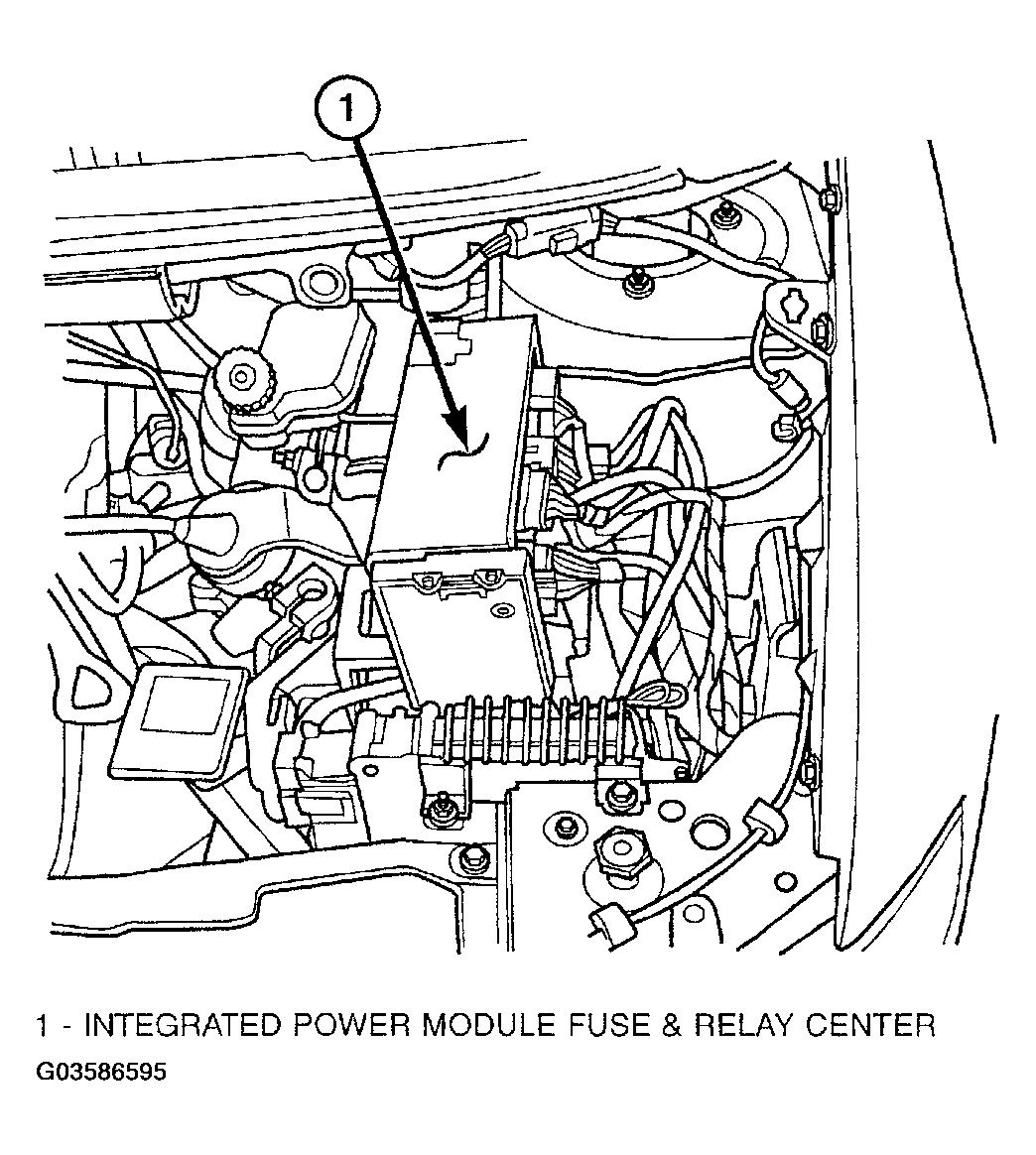

- Rotate the IPM counter-clockwise to access and disconnect the various electrical connectors (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
- Free the IPM from its mounting bracket by removing the IPM bracket clips from the hinge. A screwdriver slipped up from under the hinge will free the clips.
