O2 Sensor Location (3.3L/3.8L)

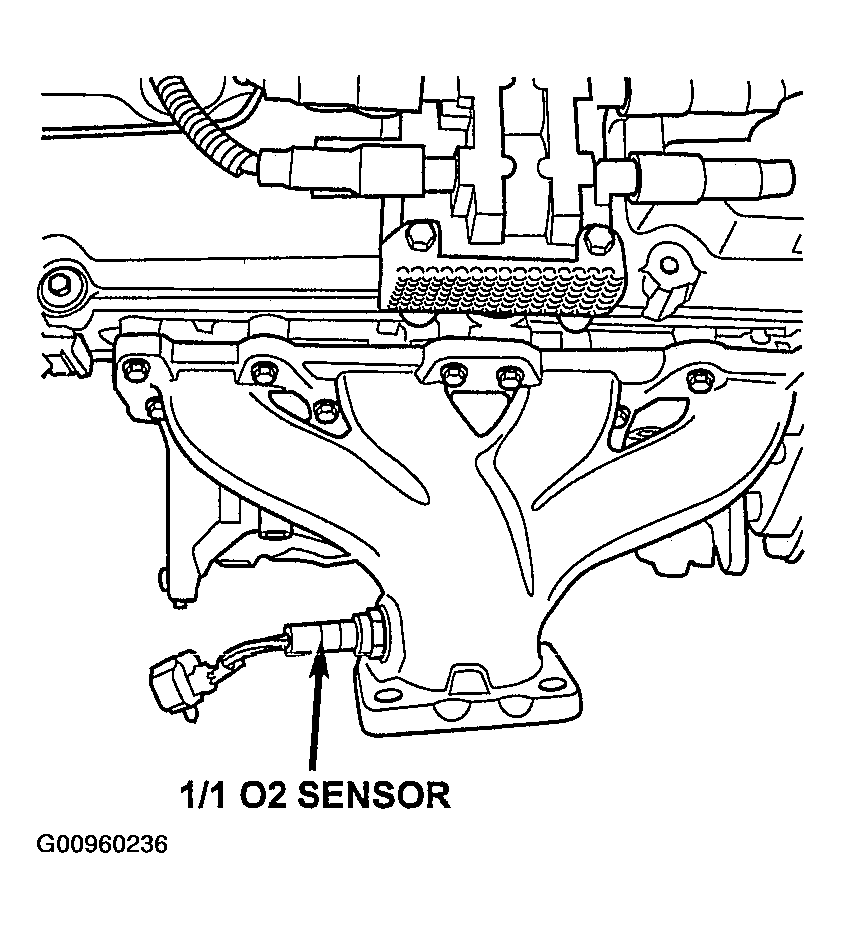

Fig 1: Identifying 1/1 O2 Sensor Location (2.4L)

G00960236

Courtesy of DAIMLERCHRYSLER CORP.

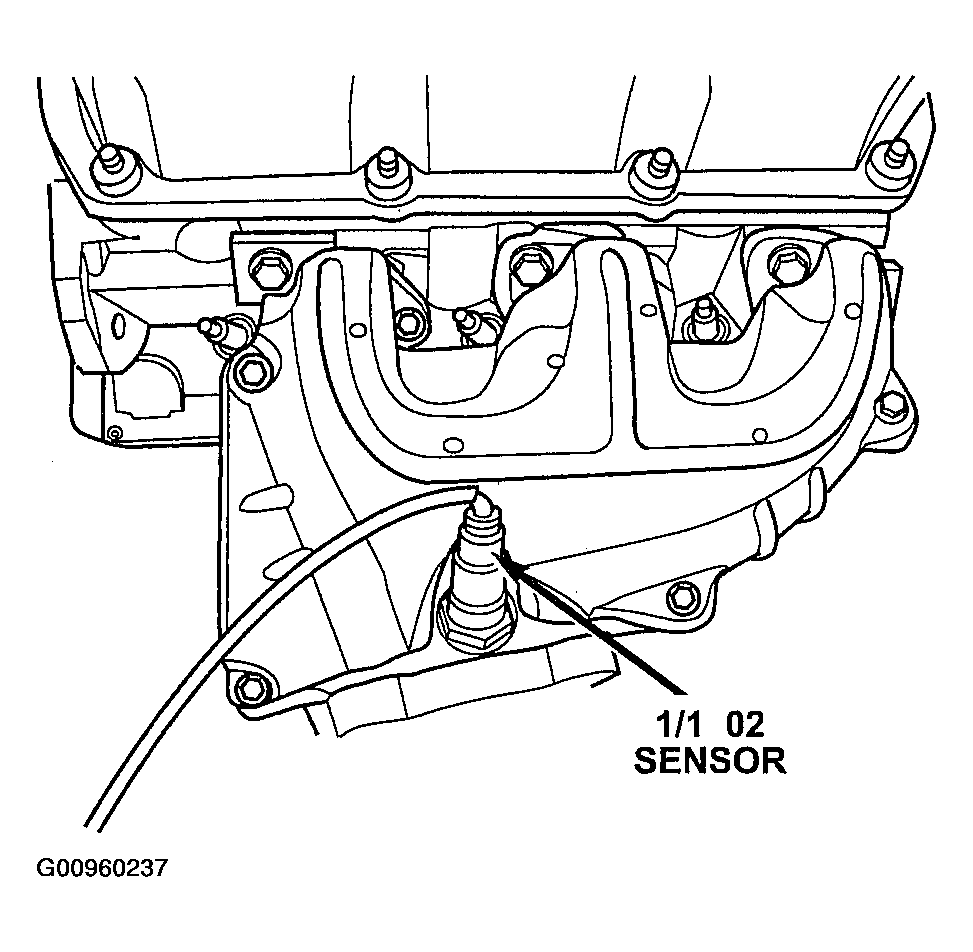

Fig 2: Identifying 1/1 O2 Sensor Location (3.3L/3.8L)

G00960237

Courtesy of DAIMLERCHRYSLER CORP.
