Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Bag Control Module | Under center console, behind shift lever. See Figure. |

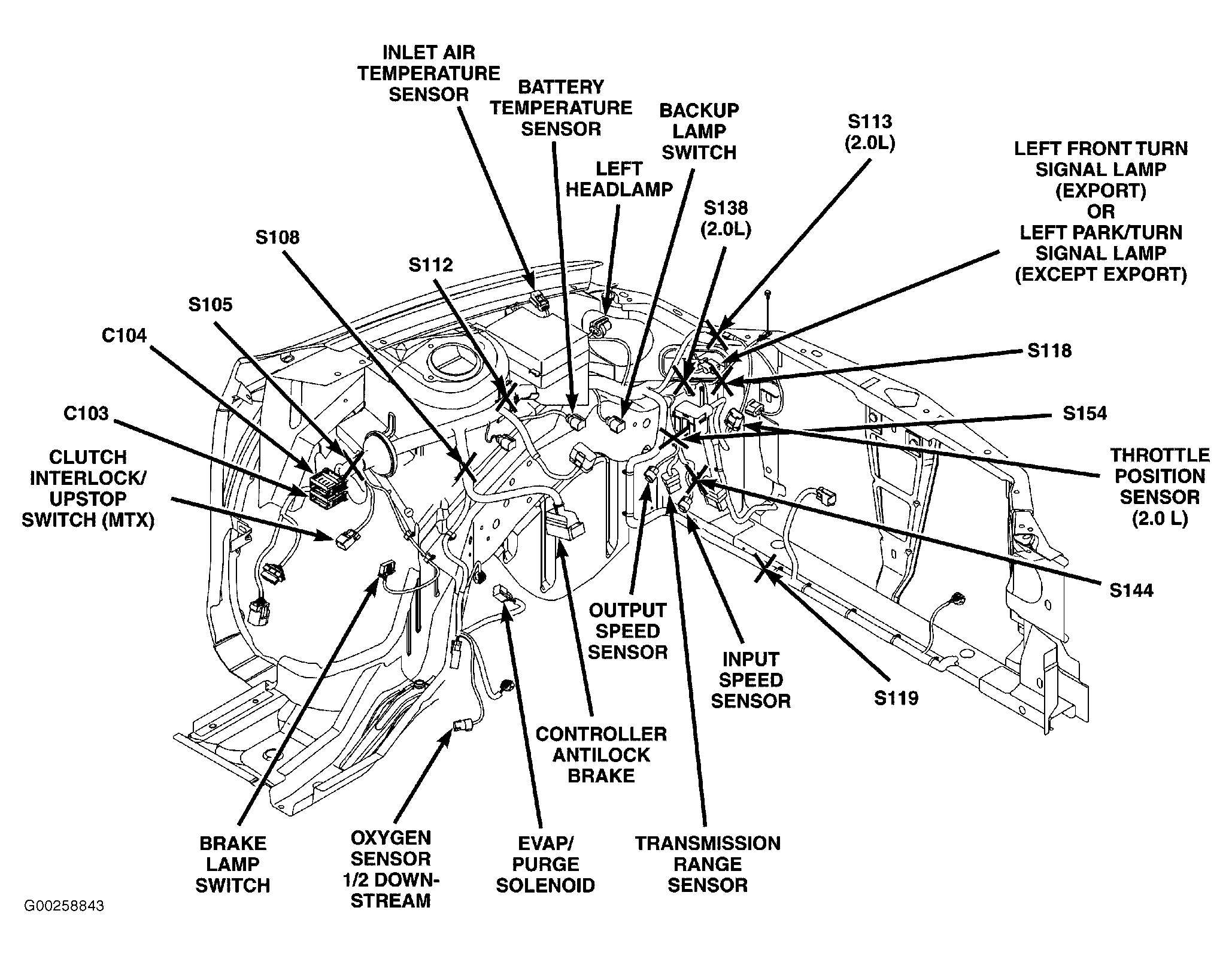

| Controller Anti-Lock Brake (2.0L) | On left front frame rail, near strut tower. See Figure. |

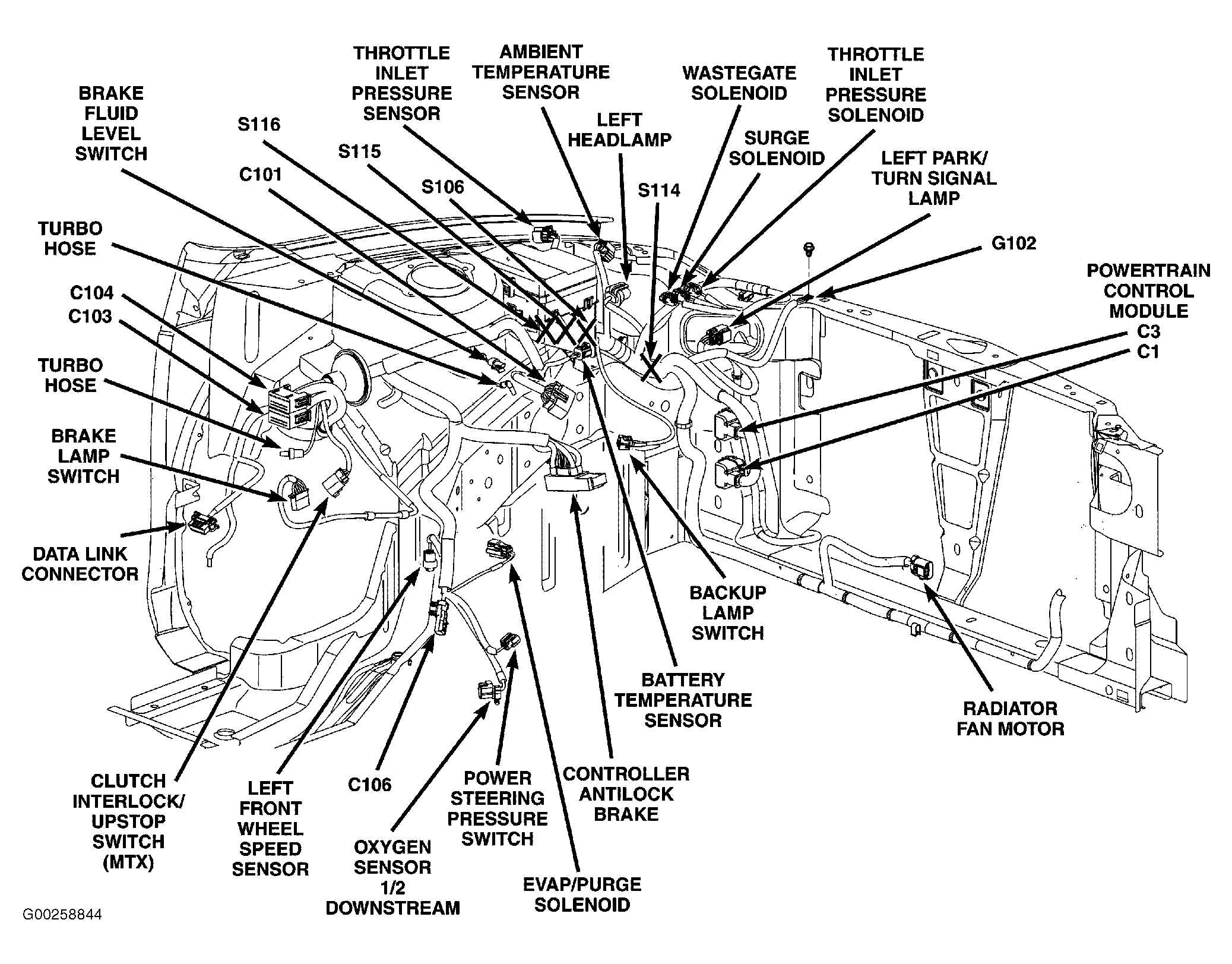

| Controller Anti-Lock Brake (2.4L) | On left front frame rail, near strut tower. See Figure. |
| Fuel Pump Module | On fuel tank. |

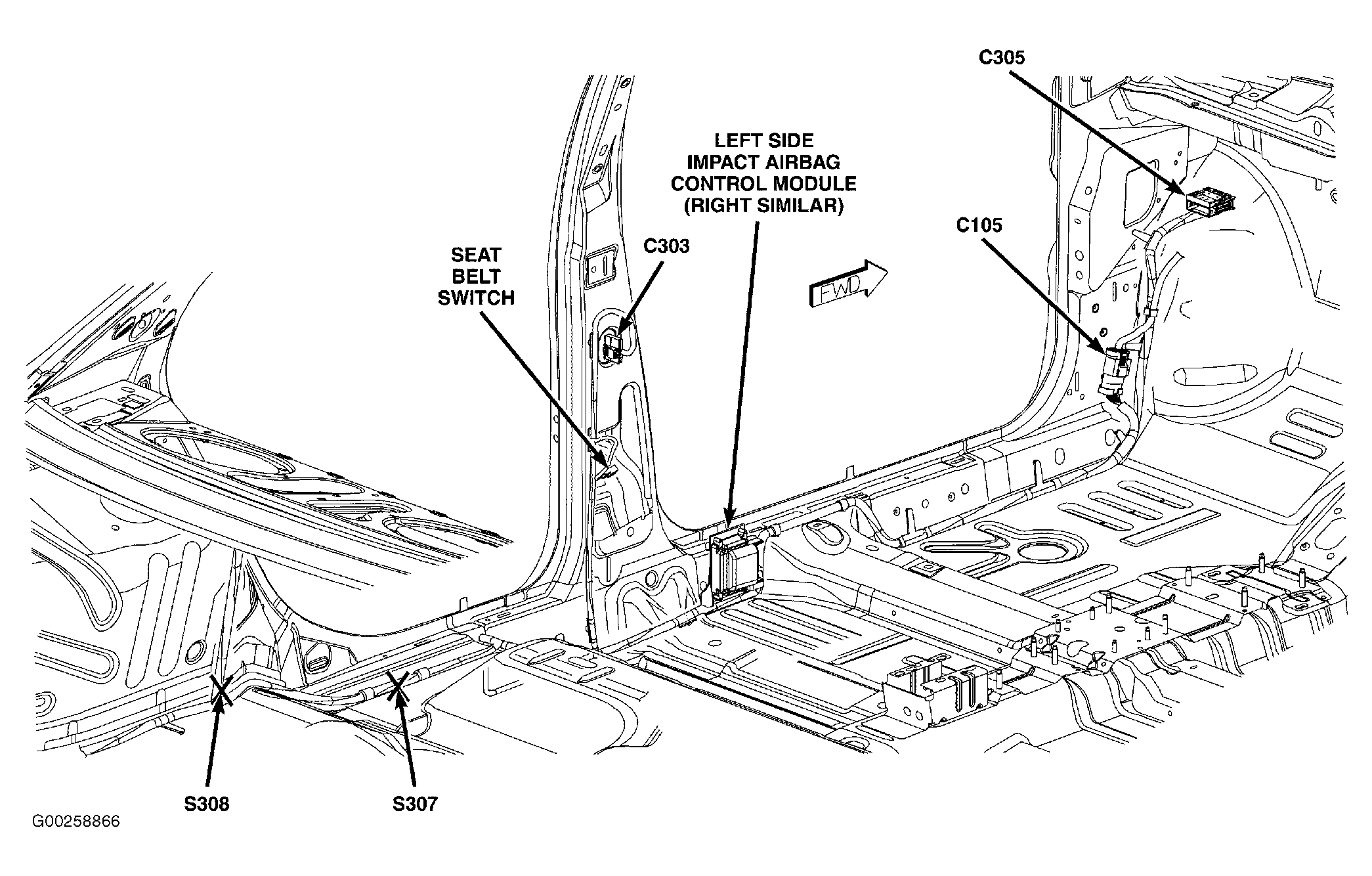

| Left Side Impact Air Bag Control Module | At base of left "B" pillar. See Figure. |

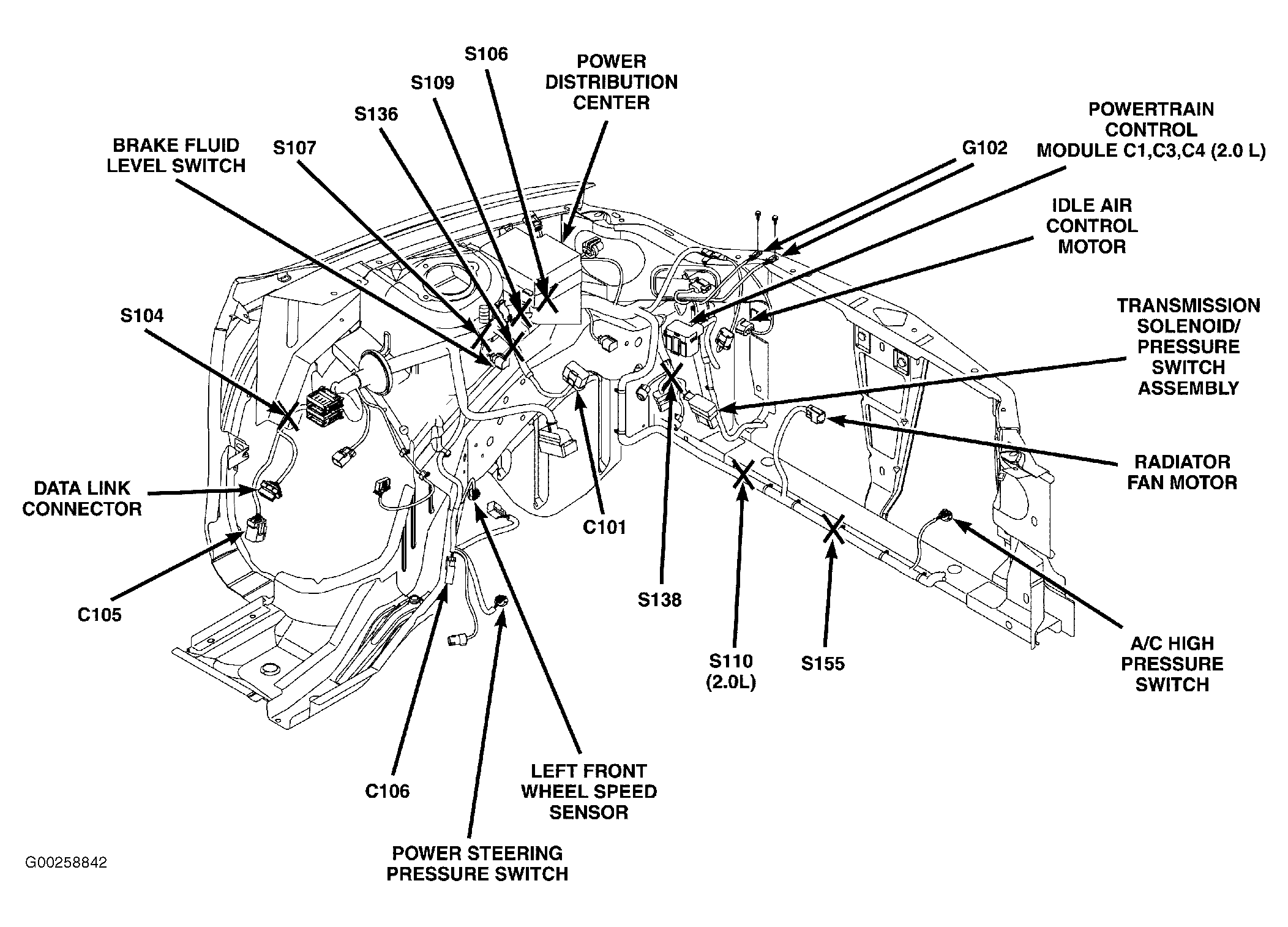

| Powertrain Control Module (PCM) (2.0L) | Front left corner of engine compartment. See Figure. |
| Powertrain Control Module (PCM) (2.4L) | Front left corner of engine compartment. See Figure. |

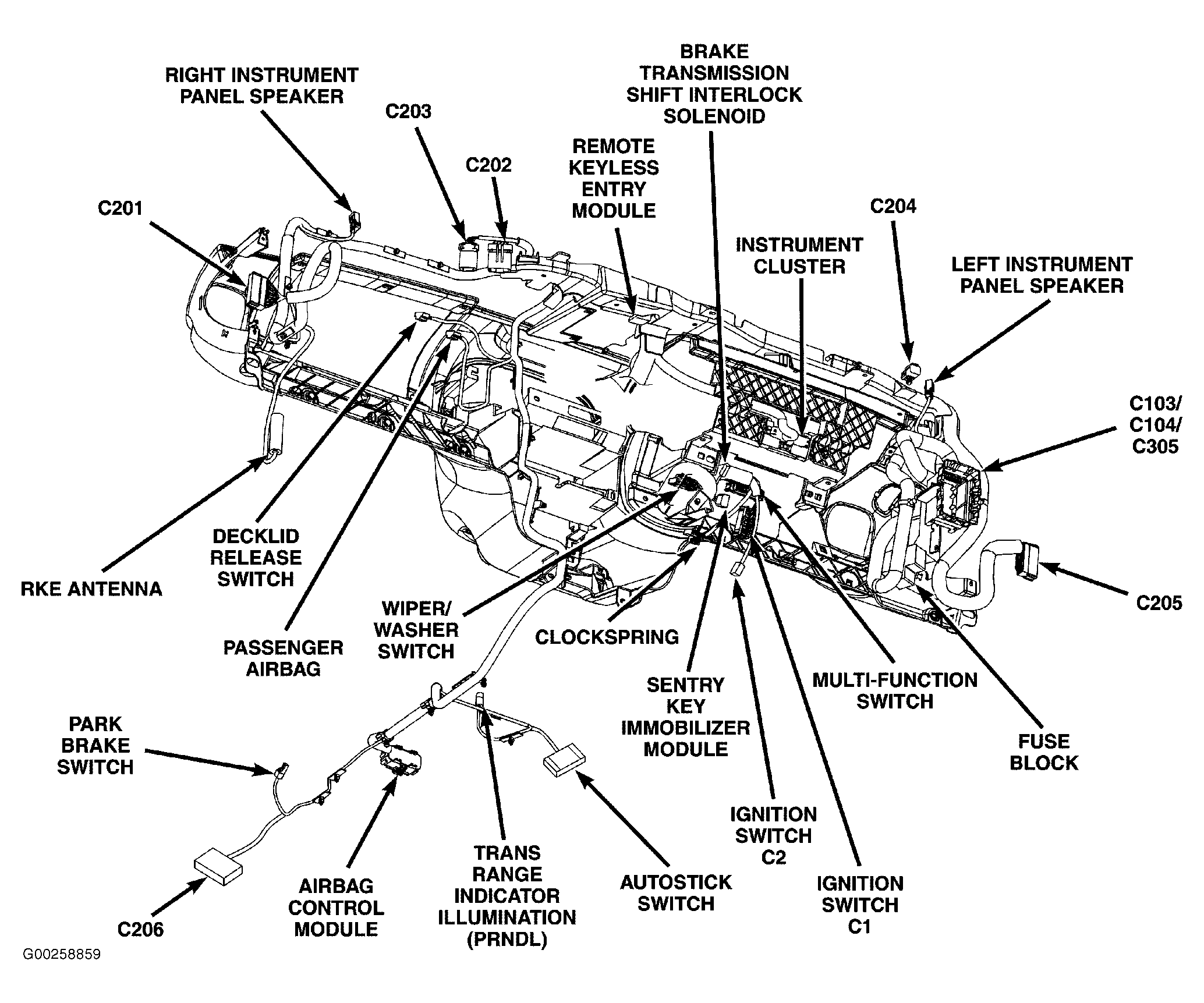

| Remote Keyless Entry Module | Under center of dash, above HVAC controls. See Figure. |
| Right Side Impact Air Bag Control Module | At base of right "B" pillar. |
| Sentry Key Immobilizer Module | On right side of steering column. See Figure. |
| Sun Roof Control Module | Above headliner, on center roof support bracket. |
