Control Modules And PDC: 2.0L

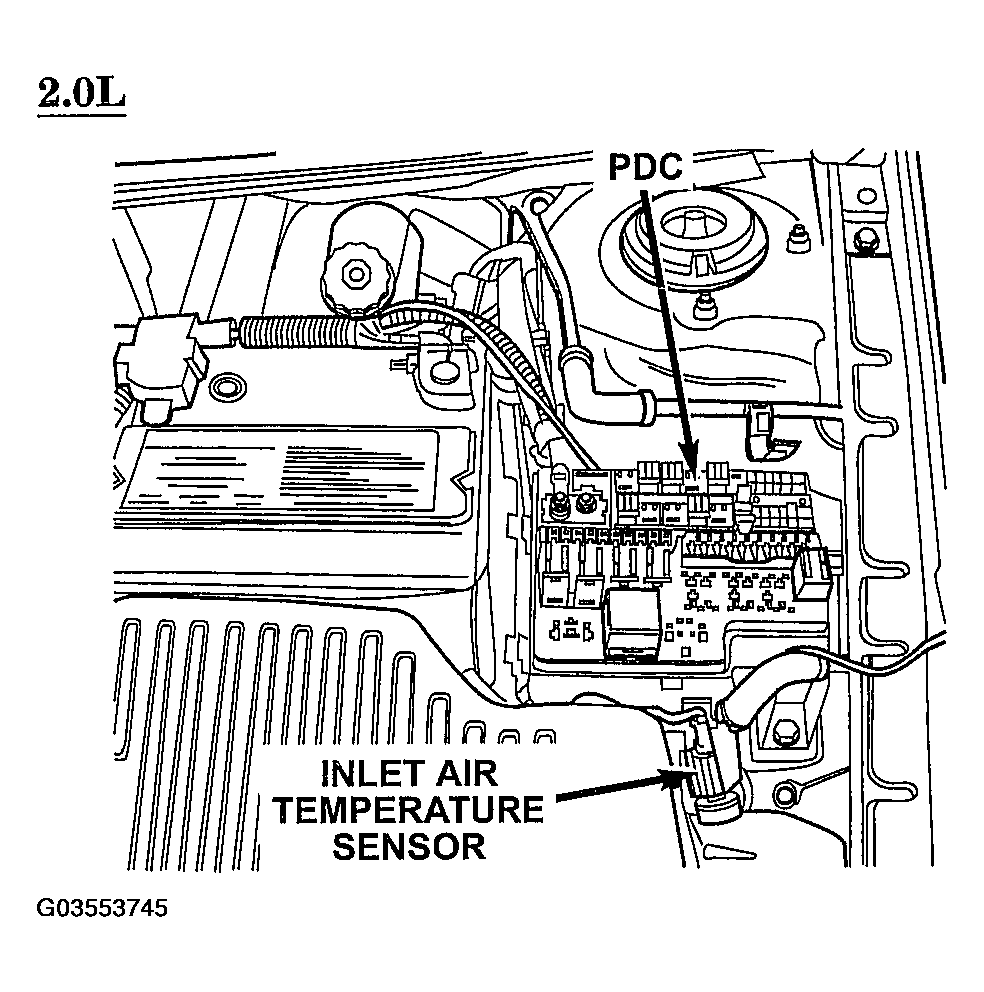

Fig 1: Identifying Inlet Air Temperature Sensor And PDC
G03553745Courtesy of DAIMLERCHRYSLER CORP.

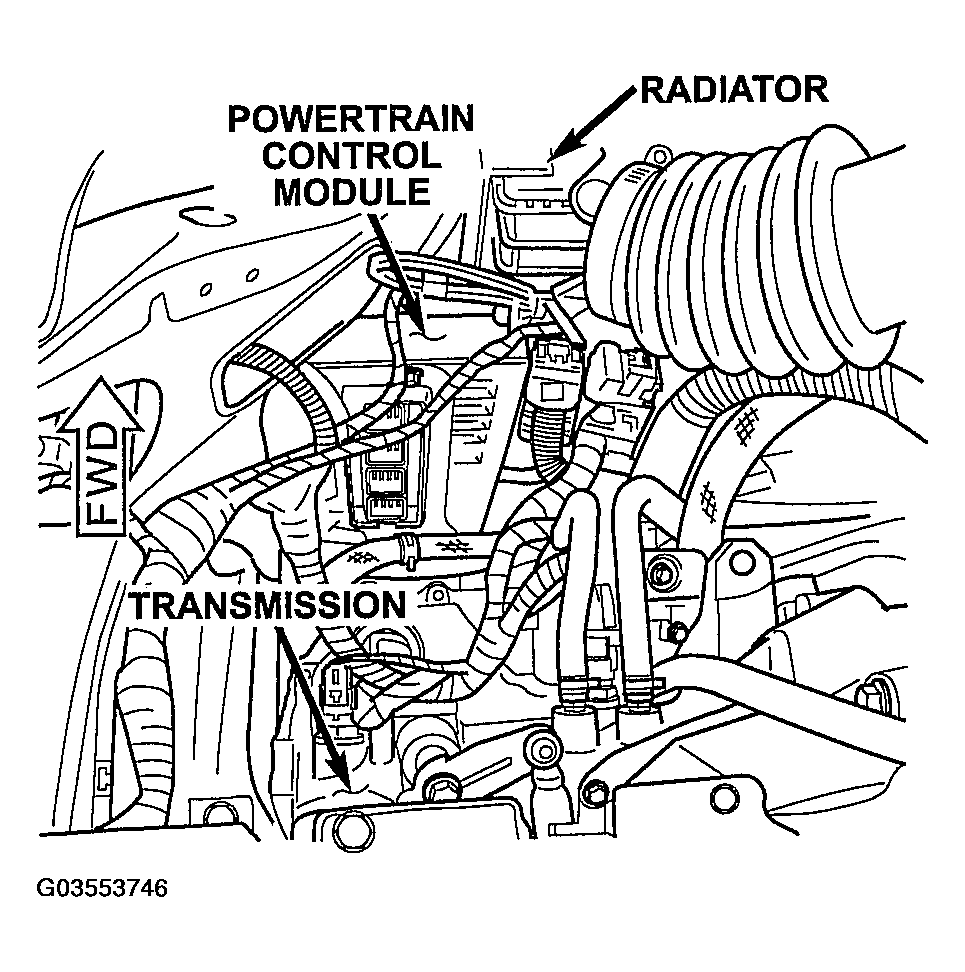

Fig 2: Identifying Power Control Module, Transmission And Radiator
G03553746Courtesy of DAIMLERCHRYSLER CORP.
