Installation - 1.6L

  1. Make sure that the manifold is clean (Fig 1).

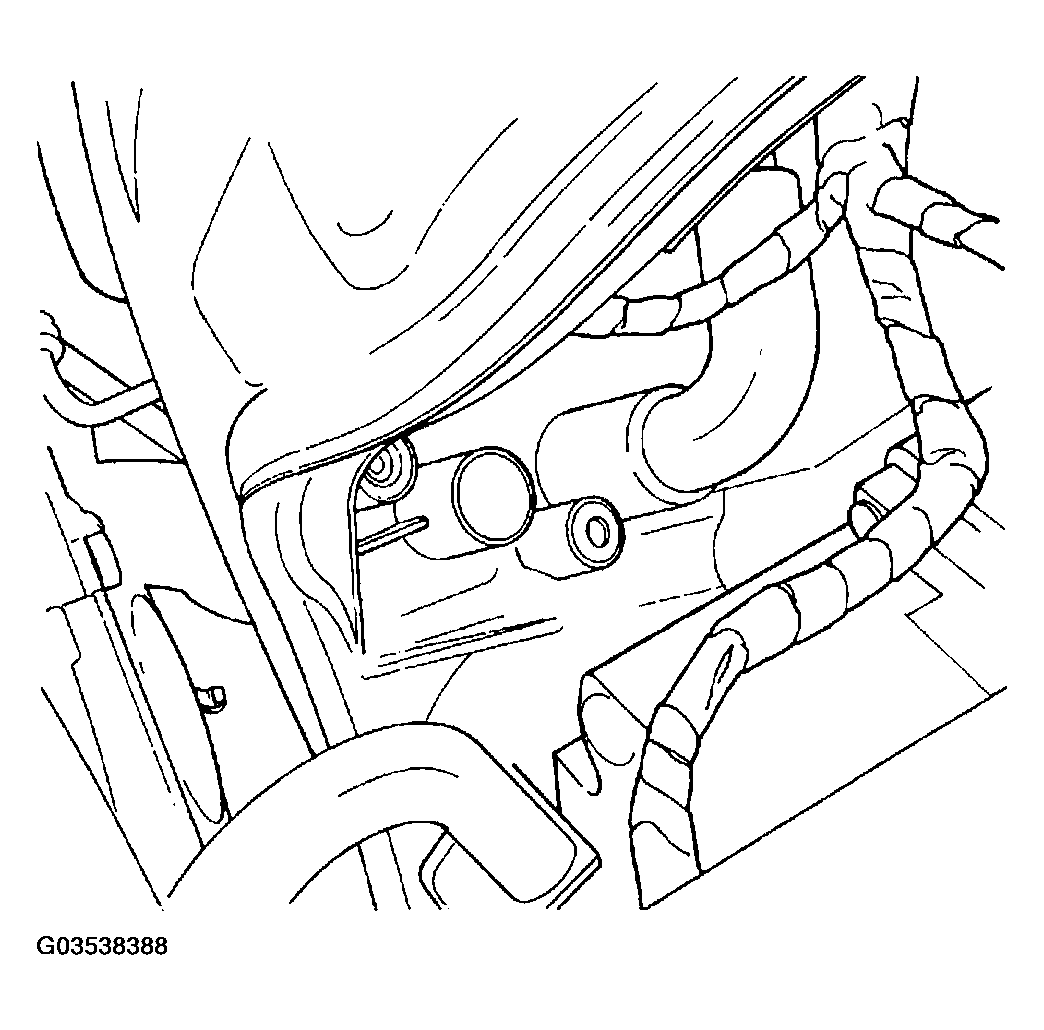

    Fig 1: Installing MAP Sensor (1.6L)
    G03538388Courtesy of DAIMLERCHRYSLER CORP.
  2. Install sensor to manifold.
  3. Tighten screws.
  4. Connect the electrical connetor to the sensor.
  5. Connect the negative battery cable
