Installation - 2.0L

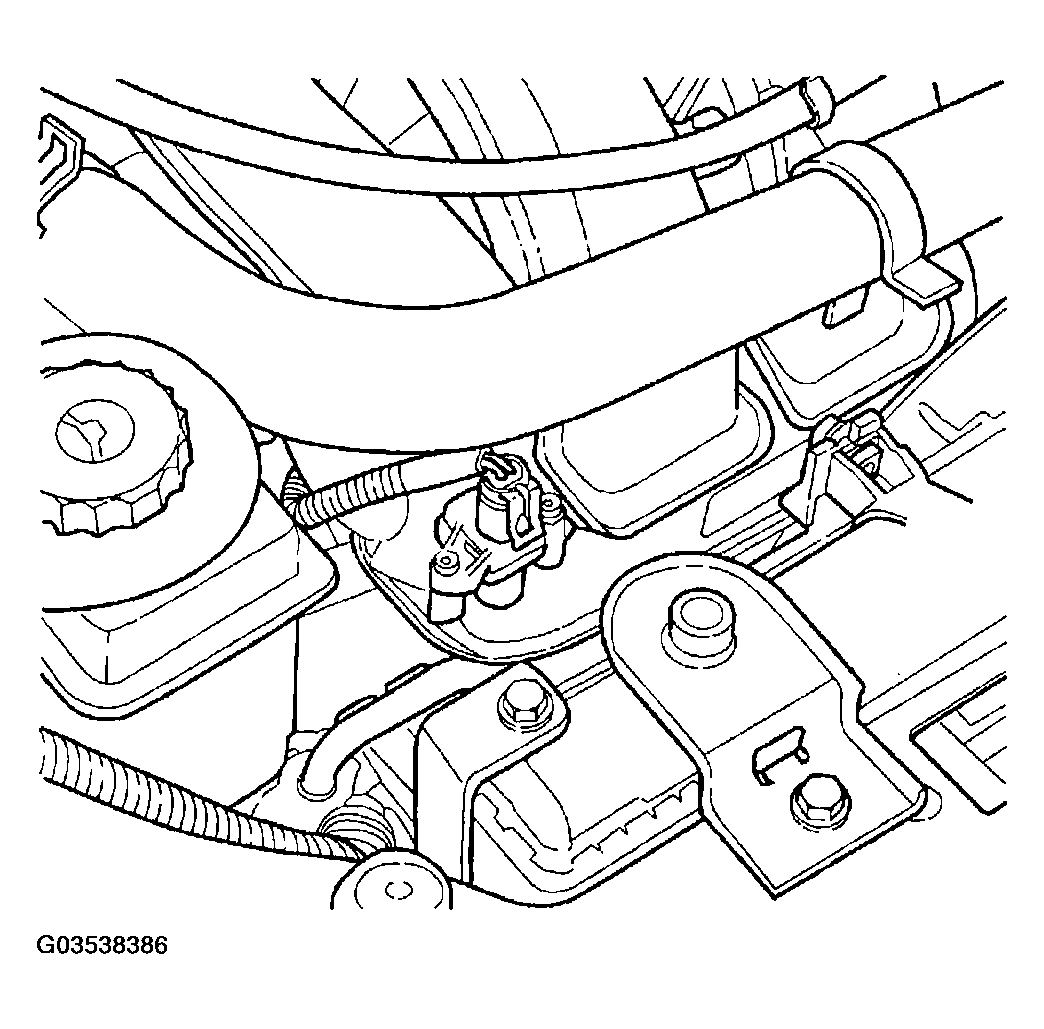

The MAP sensor attaches to the intake manifold plenum (Figure).

1. Insert sensor into intake manifold while making sure not to damage O-ring seal.
2. Tighten mounting screws to 4.5 N.m (40 in. lbs.) torque for plastic manifold.
3. Attach electrical connector to sensor.
