Ignition Coil: Description

The coil pack consists of 2 coils molded together. The coil pack is mounted on the valve cover (Fig 1 ).

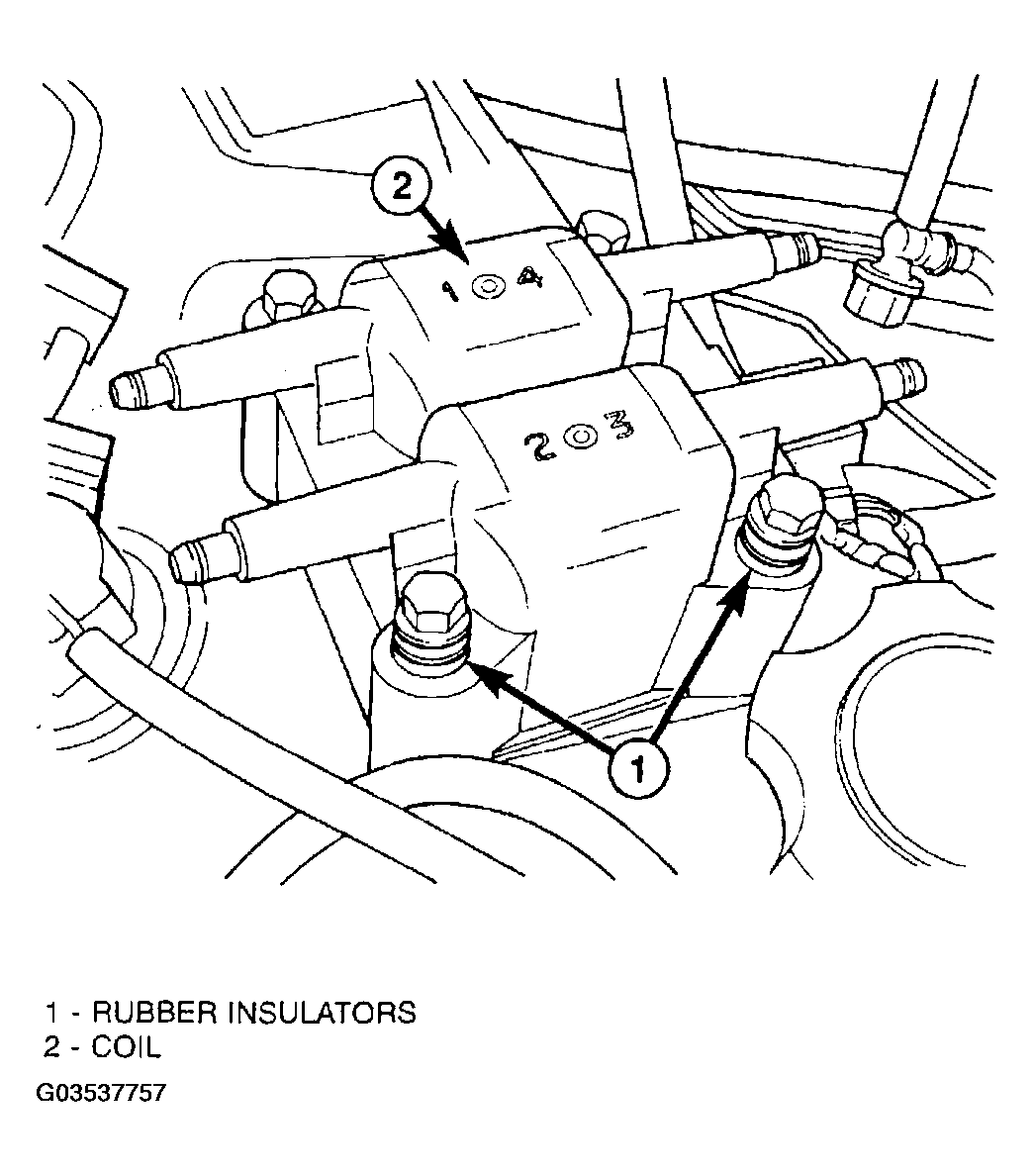

Fig 1: Locating Ignition Coil Pack
G03537757Courtesy of DAIMLERCHRYSLER CORP.
