Multi-Function Switch-Gray 2 Way
Multi-Function Switch-Gray 2 Way

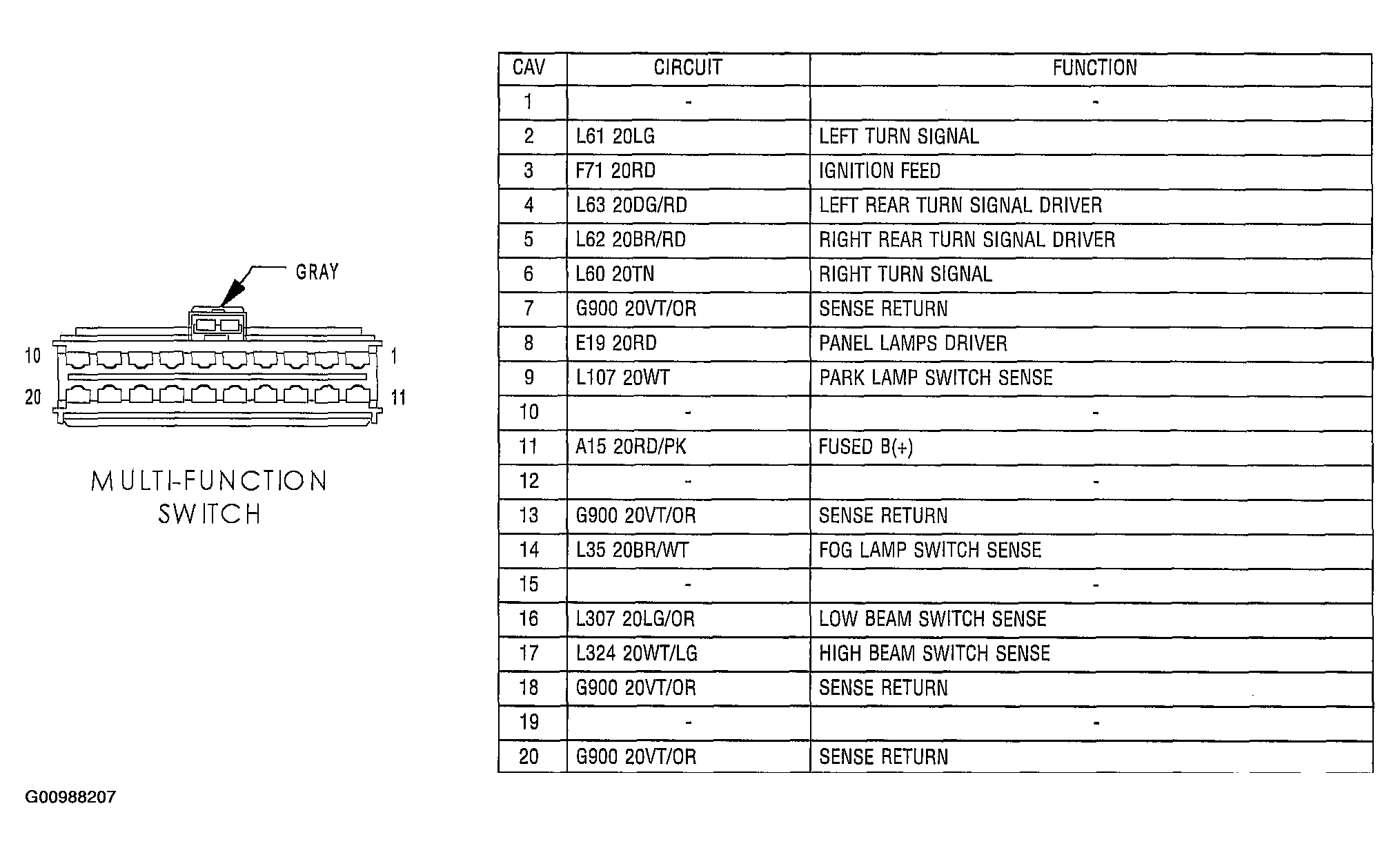

Fig 1: View Of Multi-Function Switch 2 Way Connector Pinouts And Function Description Chart
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
