Tire Pressure Monitor Module-Blue 6 Way

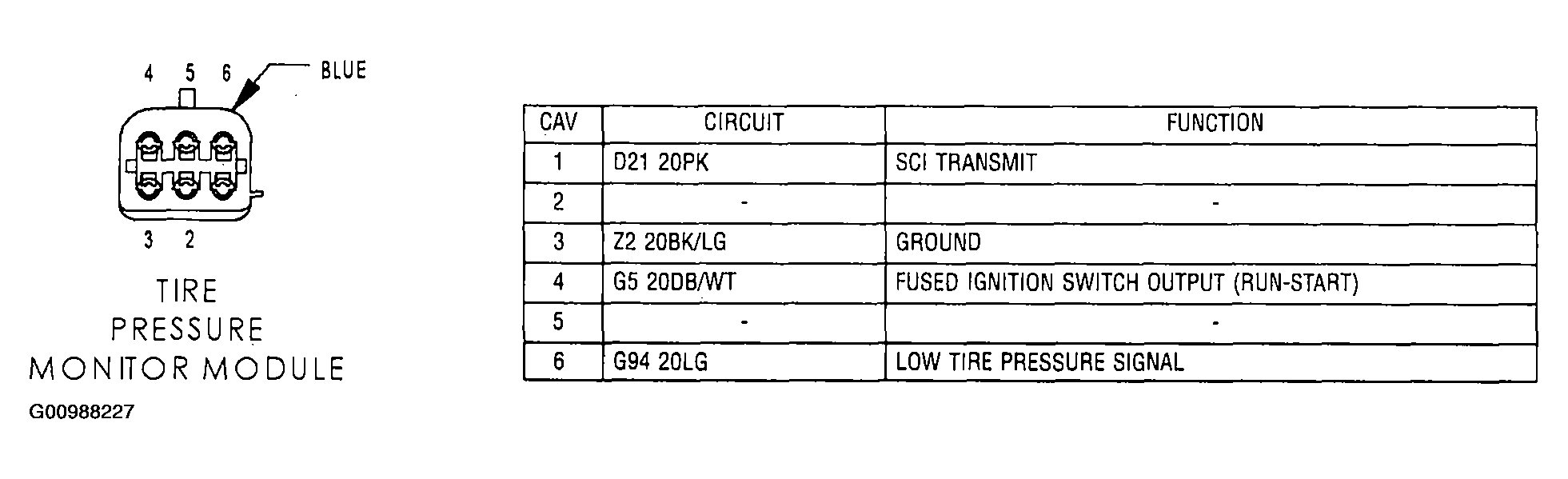

Fig 1: View Of Tire Pressure Monitor Module 6 Way Connector Pinouts And Function Description Chart

G00988227

Courtesy of DAIMLERCHRYSLER CORP.
