Home >> Dodge and Ram >> 2005 >> Caravan SXT >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Window Switch >> Removal

Window Switch: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Using a trim stick, start at the bottom of the switch and bezel assembly and pry up to remove the switch and bezel assembly from the door trim panel. See Fig 1.

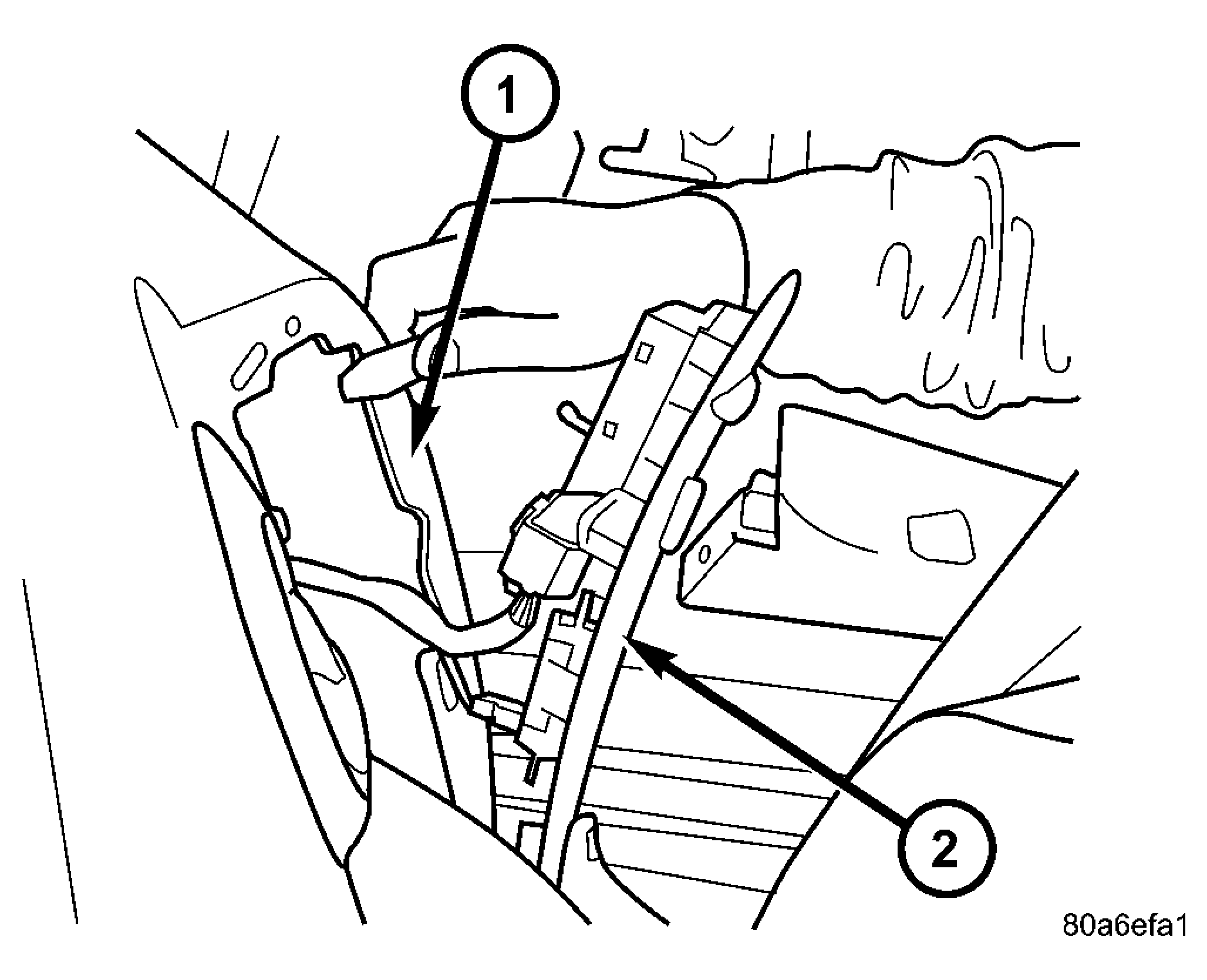

    Fig 1: POWER WINDOW SWITCH
    GC0024819Courtesy of DAIMLERCHRYSLER CORP.
    1 - DOOR TRIM PANEL
    2 - POWER WINDOW SWITCH AND BEZEL ASSEMBLY
  3. Unlatch the locking tab on the harness side connector of the switch.
  4. Disconnect wire harness connectors from switch.
