Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

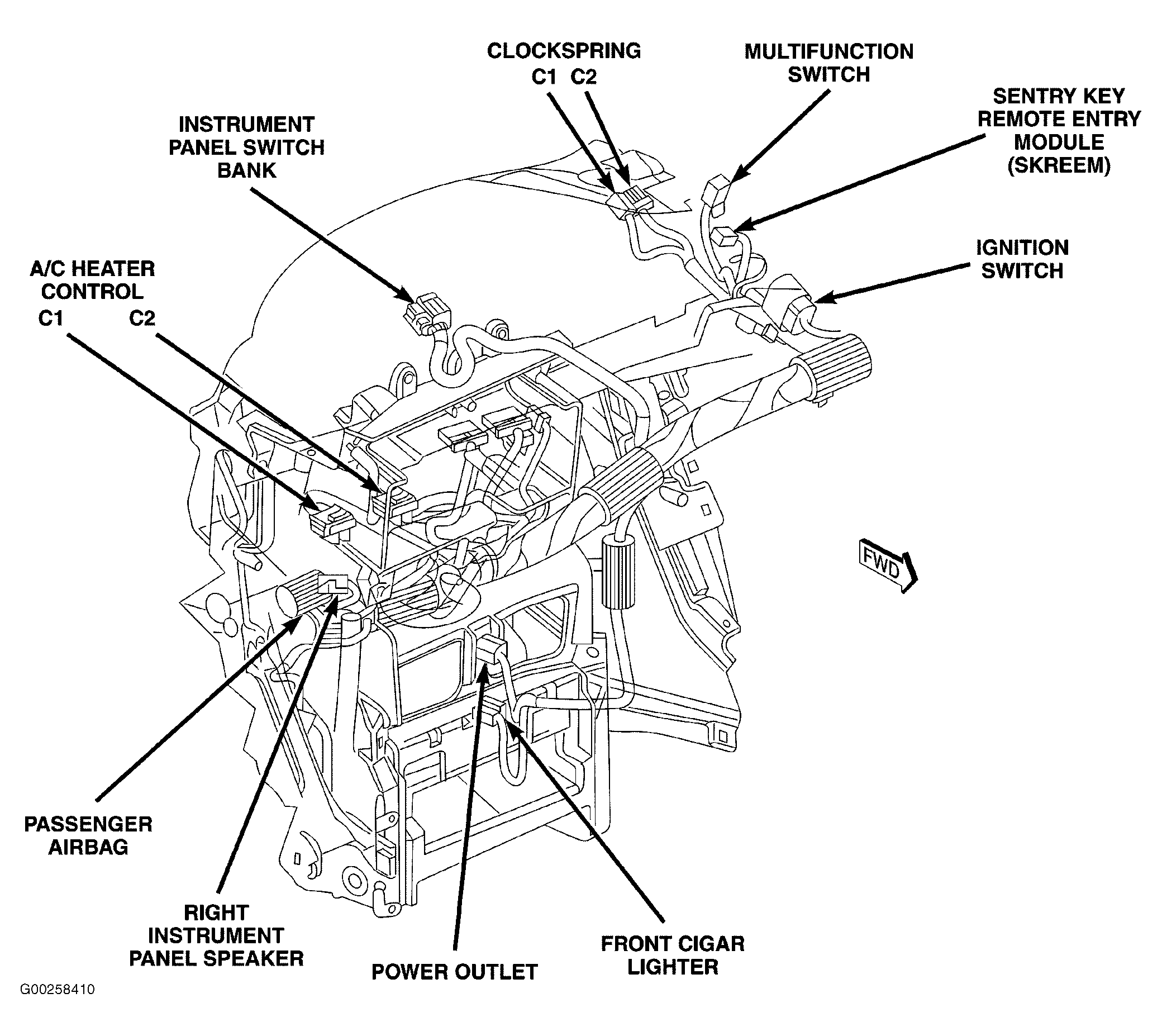

| A/C Heater Control | Center of dash. See Figure. |
| Adjustable Pedals Module | Near brake light switch. |

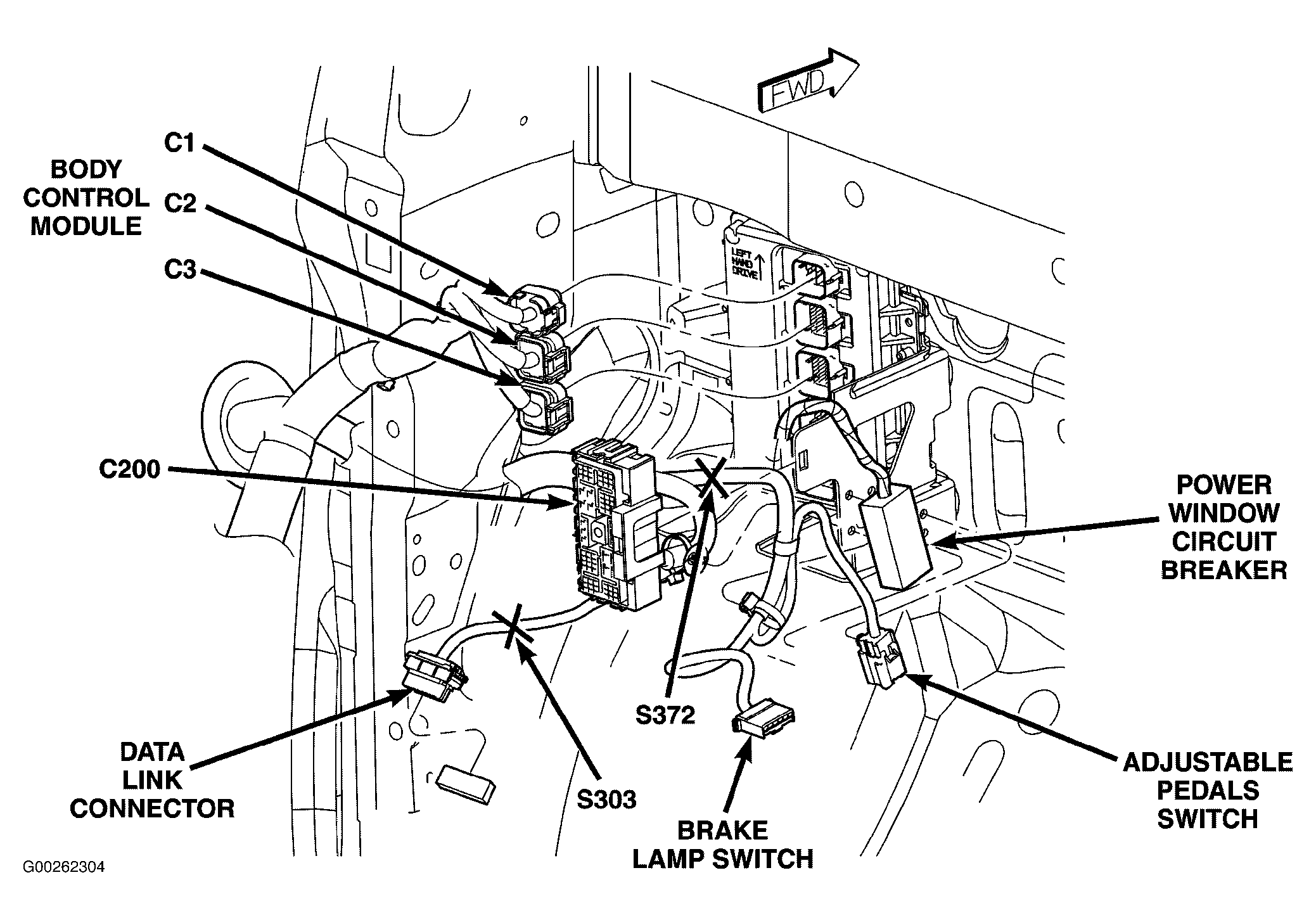

| Body Control Module | Behind left side of dash. See Figure. |

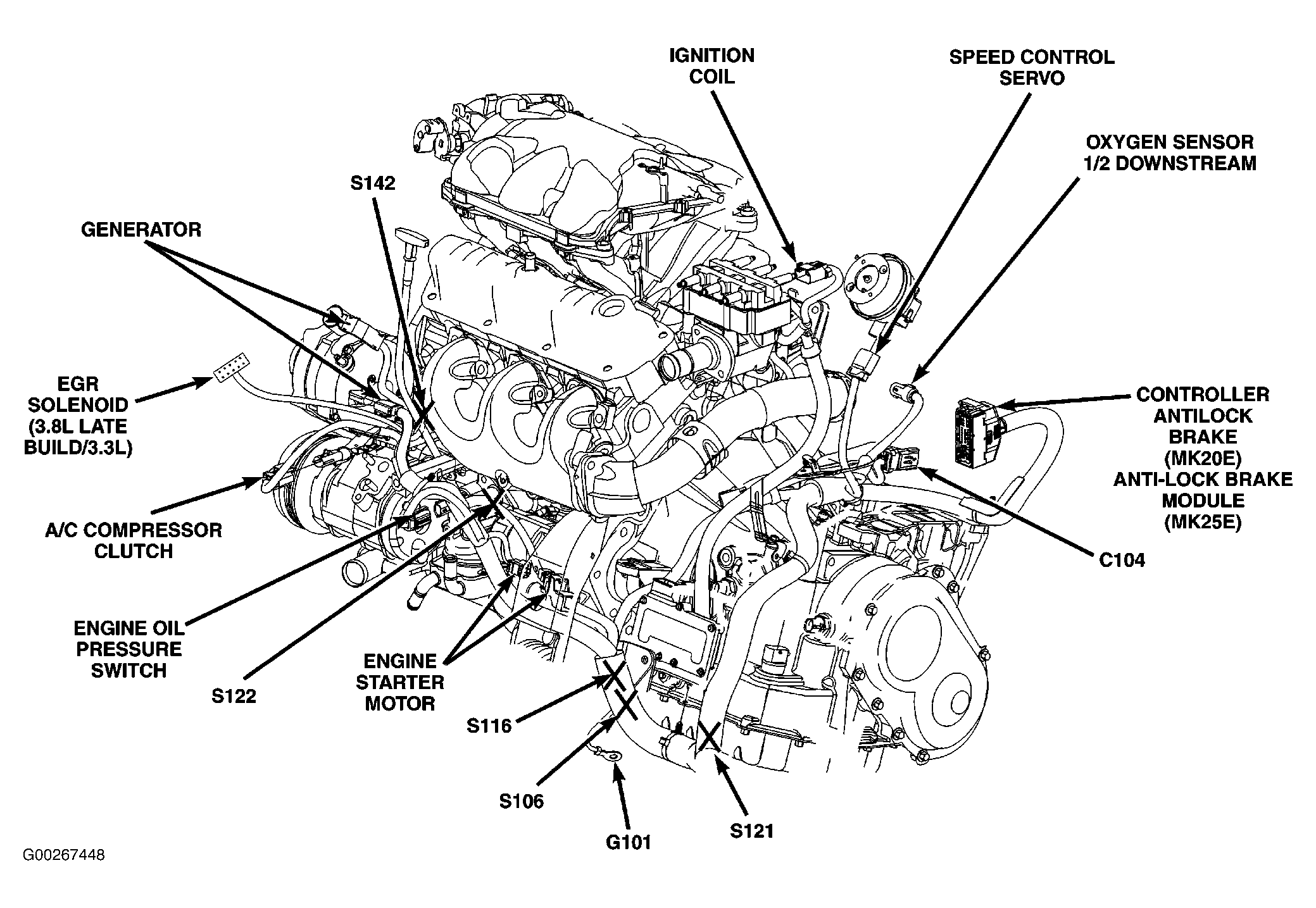

| Controller Antilock Brake (2.4L) | Right side of engine compartment. See Figure. |

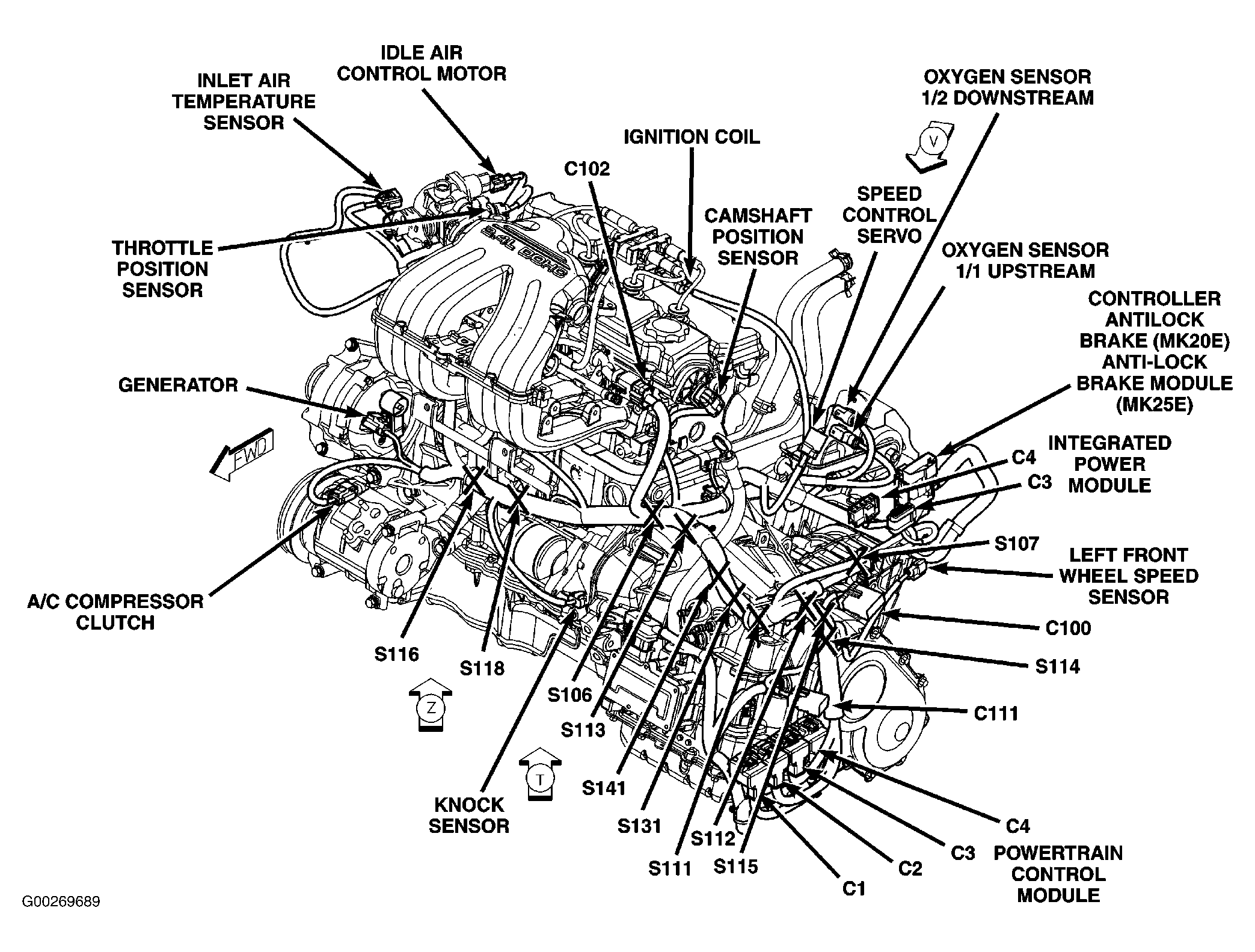

| Controller Antilock Brake (3.3L & 3.8L) | Right side of engine compartment. See Figure. |
| Driver Heated Seat Module | Below driver's seat. |
| Engine Control Module | Right side of engine. |
| Front Blower Module | On HVAC unit. |
| Front Control Module | In integrated power module. |

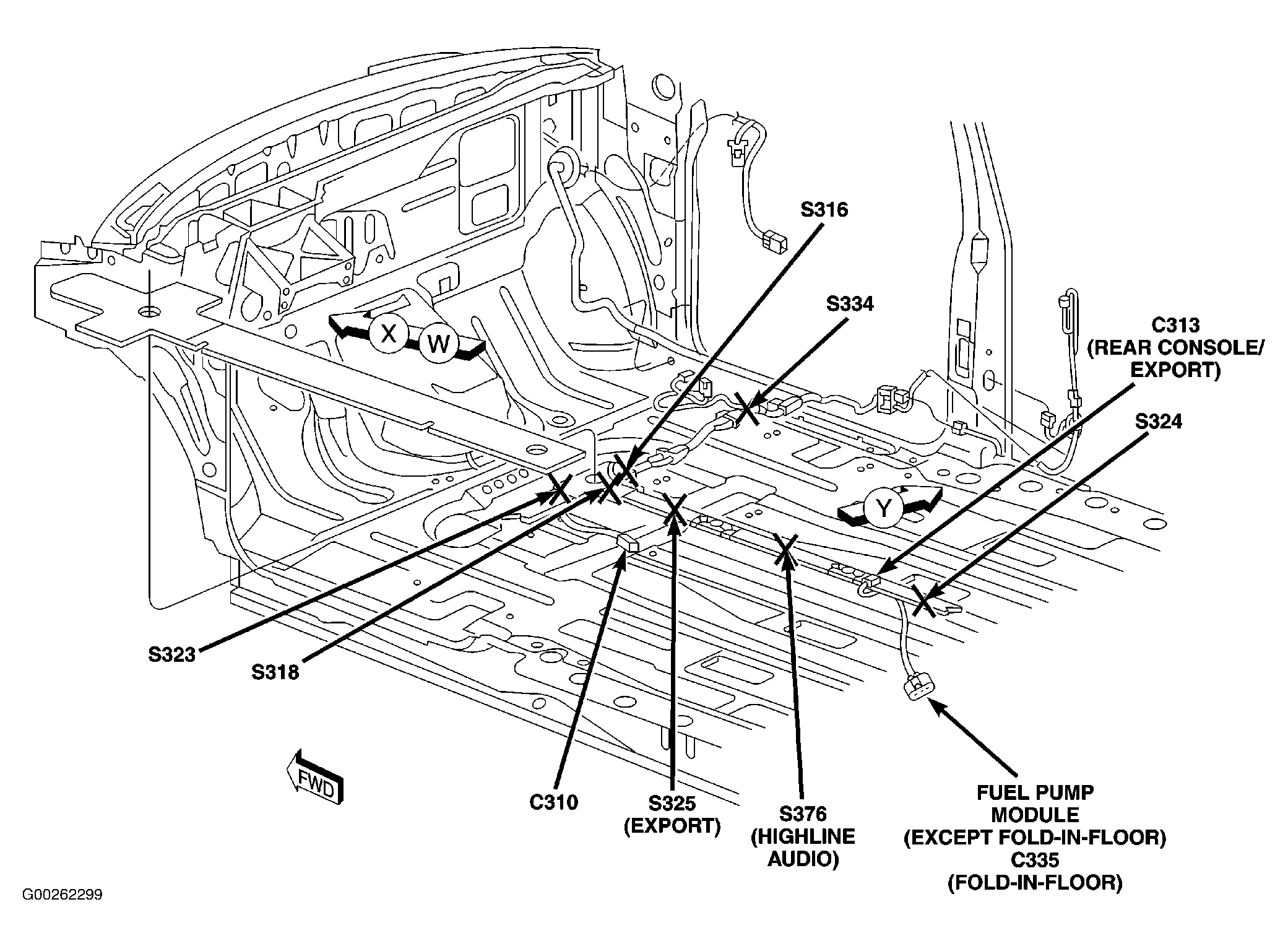

| Fuel Pump Module | Side of fuel tank. See Figure. |

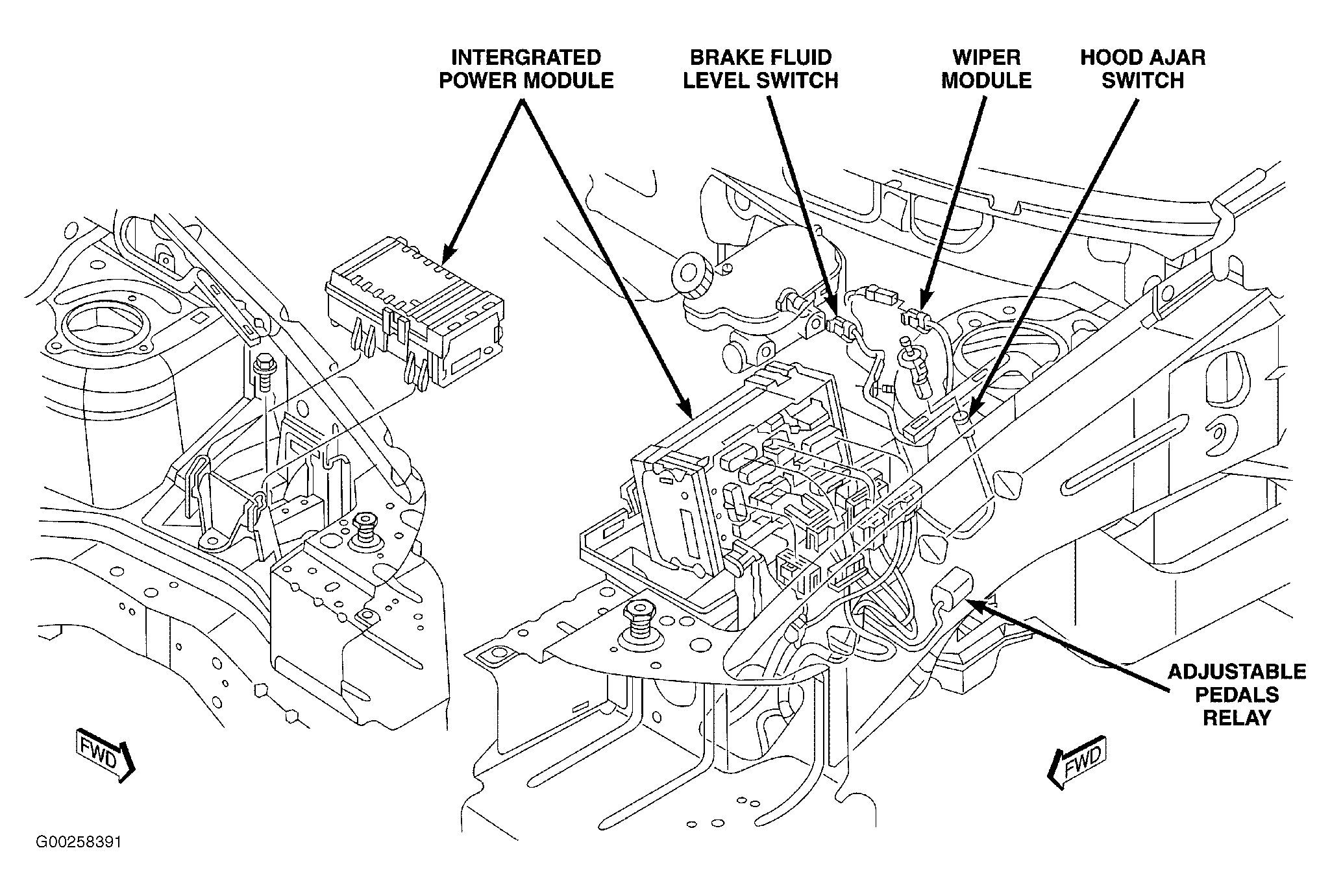

| Integrated Power Module | Left front of engine compartment. See Figure. |
| Left Side Impact Air Bag Control Module | On left lower "B" pillar. |
| Left Sliding Door Control Module | In left sliding door, above motor. |
| Memory Seat/Mirror/Adjustable Pedals Module | Under driver's seat. |
| Occupant Classification Module | In passenger seat. |

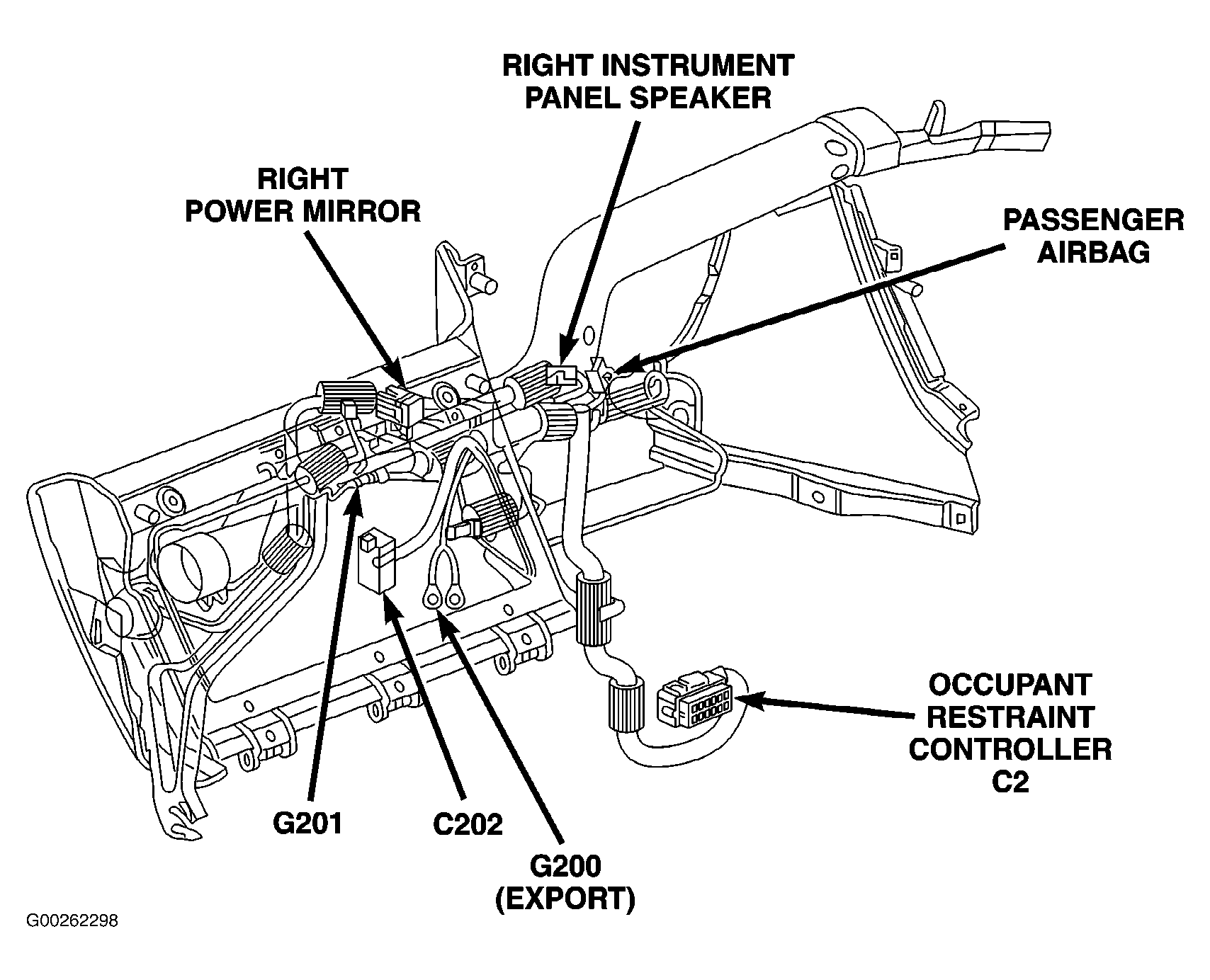

| Occupant Restraint Controller | Behind right side of dash. See Figure. |
| Passenger Heated Seat Module | Below passenger's seat. |
| Passenger's Heated Seat Module | In passenger's seat. |

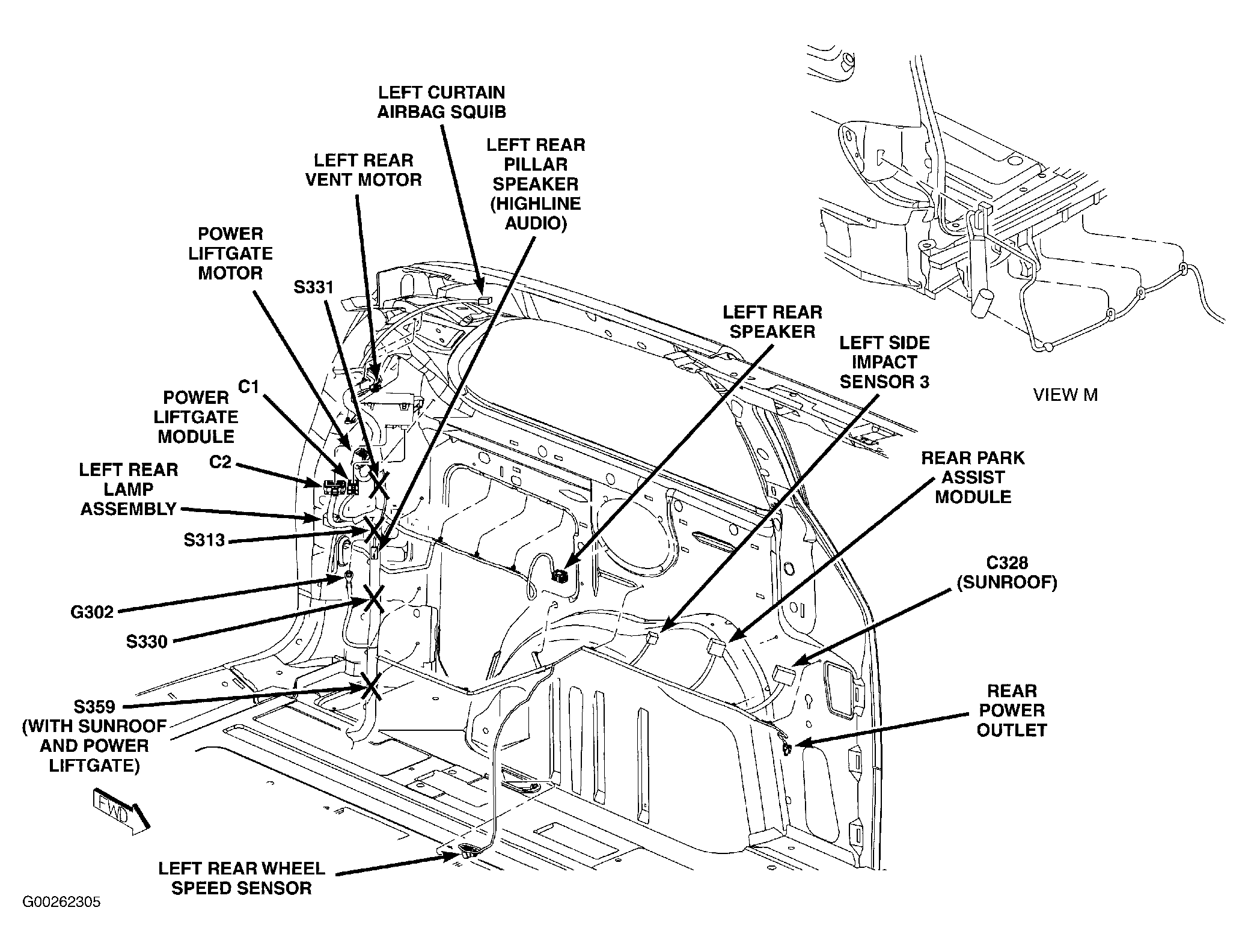

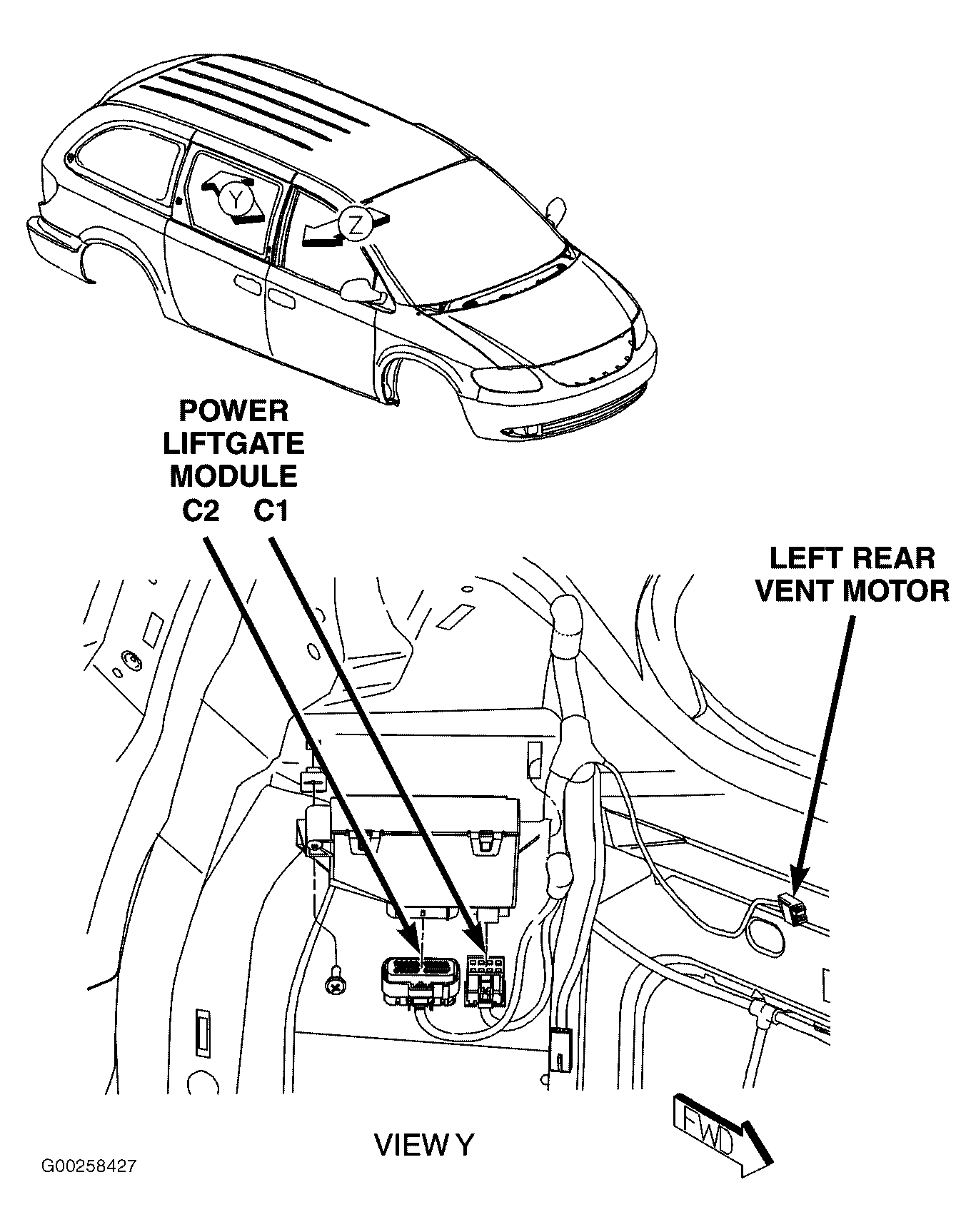

| Power Liftgate Module | Mounted on left "D" pillar. See Figure. |

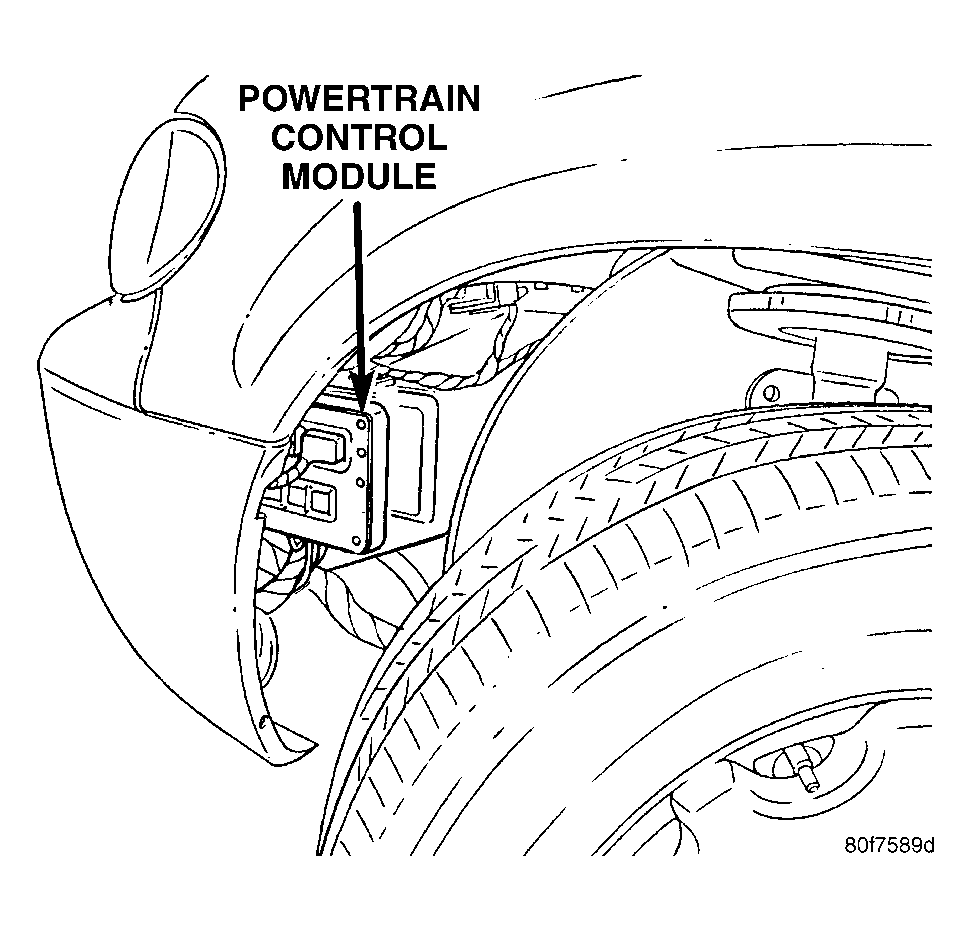

| Powertrain Control Module | Behind liner, in left front wheelwell. See Figure. |
| Rear A/C Heater Unit | At right quarterpanel. |
| Rear Blower Motor Power Module | Right quarterpanel. |
| Rear Park Assist Display Module | In overhead console. |
| Rear Park Assist Module | At left quarterpanel. See Figure. |
| Remote Keyless Entry Module | Under left side of dash top cover. |
| Right Side Impact Air Bag Control Module | On right lower "B" pillar. |

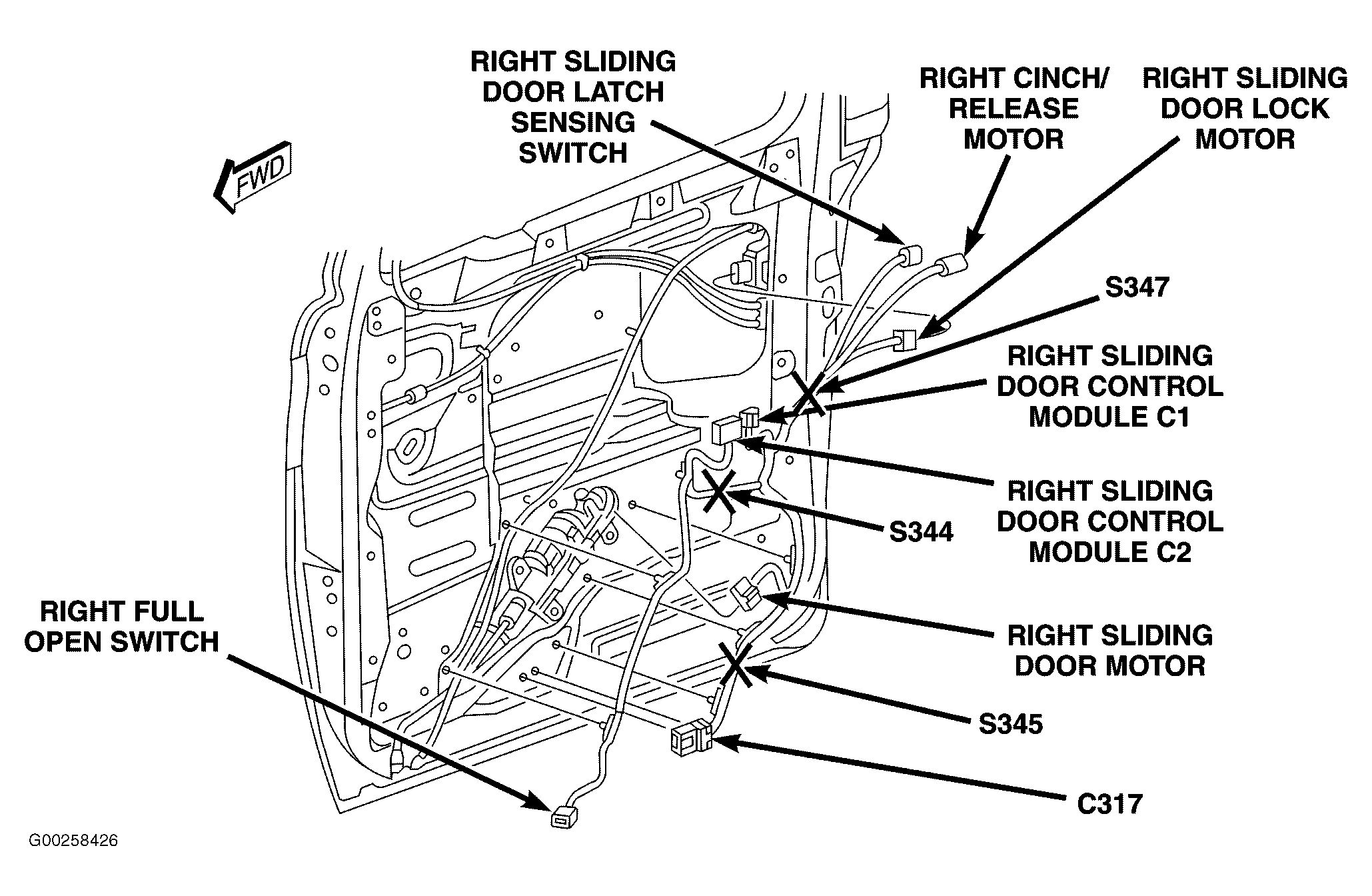

| Right Sliding Door Control Module | In right sliding door, above motor. See Figure. |
| Sentry Key Immobilizer Module | At steering column. |
| Sentry Key Remote Entry Module | Left side of dash. See Figure. |
| Sun Roof Module | At sun roof. |
| Thatcham Alarm Module | Behind top right side of dash, near speaker. |
| Wiper Module | Left rear of engine compartment. See Figure. |
