Map Sensor: Description

The MAP sensor or mounts to the intake manifold. See Fig 1 and Fig 2. The sensor is connects electrically to the PCM.

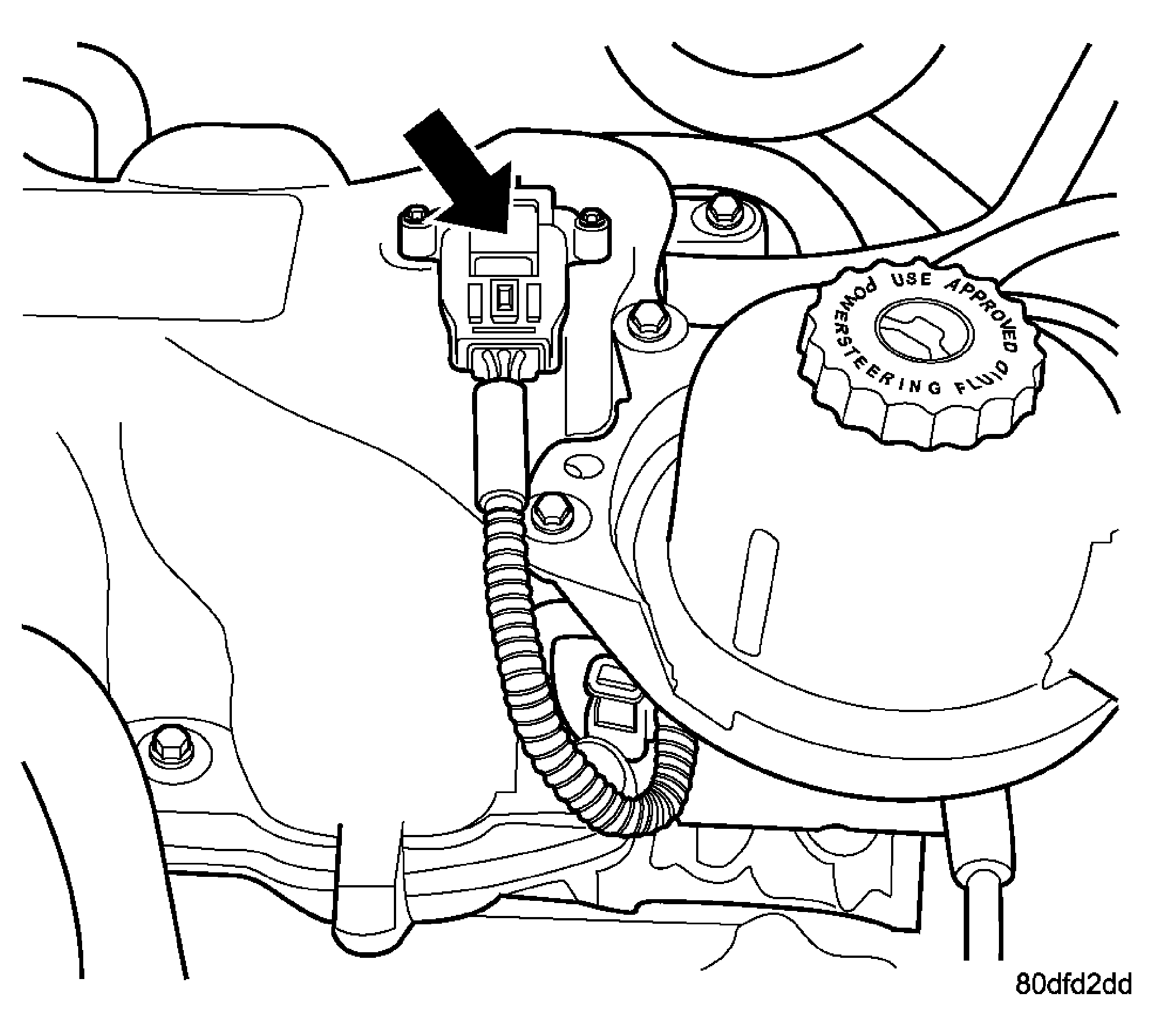

Fig 1: MAP Sensor - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

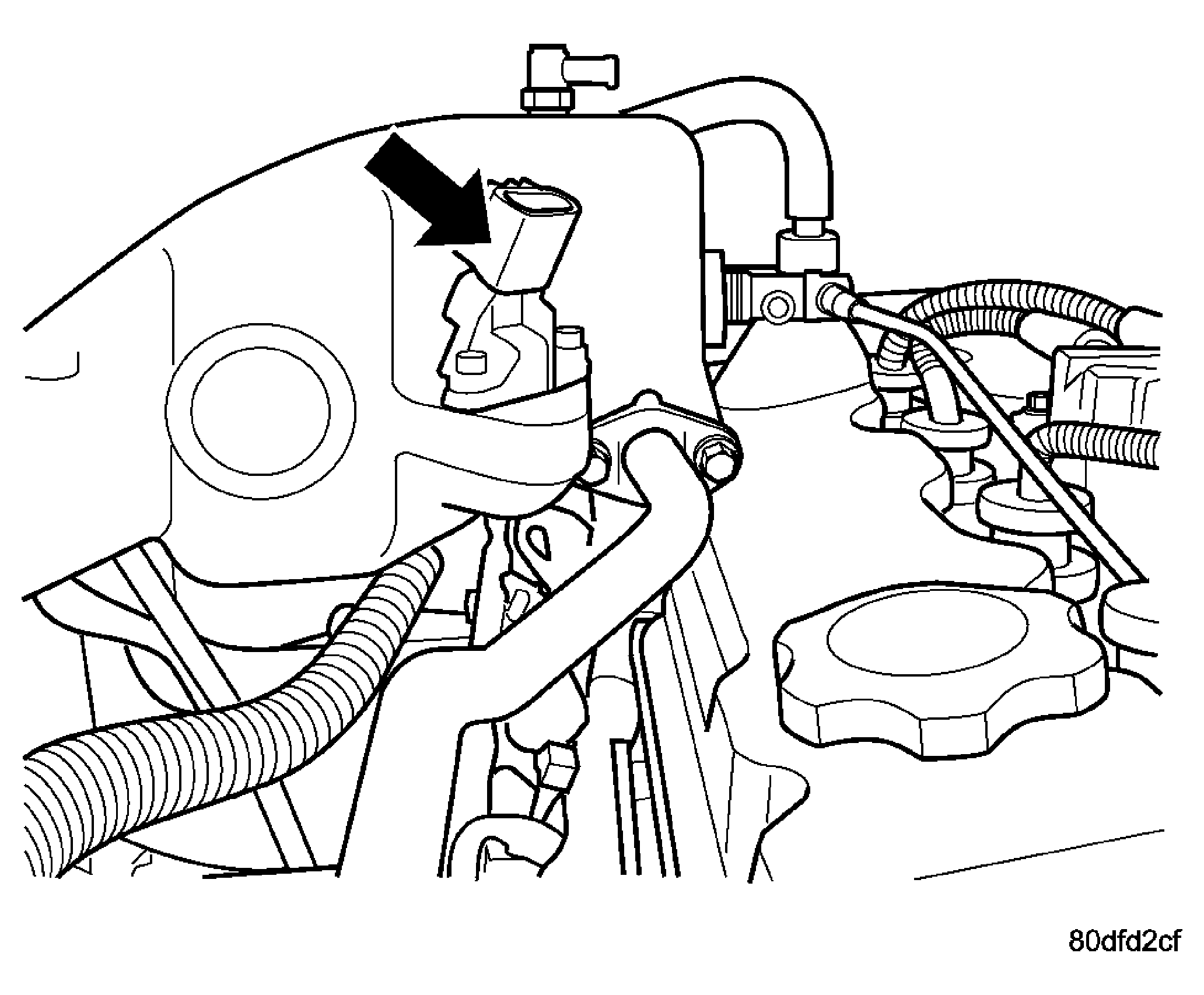

Fig 2: MAP SENSOR - 3.3/3.8L

Courtesy of DAIMLERCHRYSLER CORP.
