Airbag Control Module: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Wait two minutes for the system reserve capacitor to discharge before servicing any airbag components.
  3. Remove center console. Refer to FLOOR CONSOLE .
  4. Remove module mounting nuts and remove module. See Fig 1.

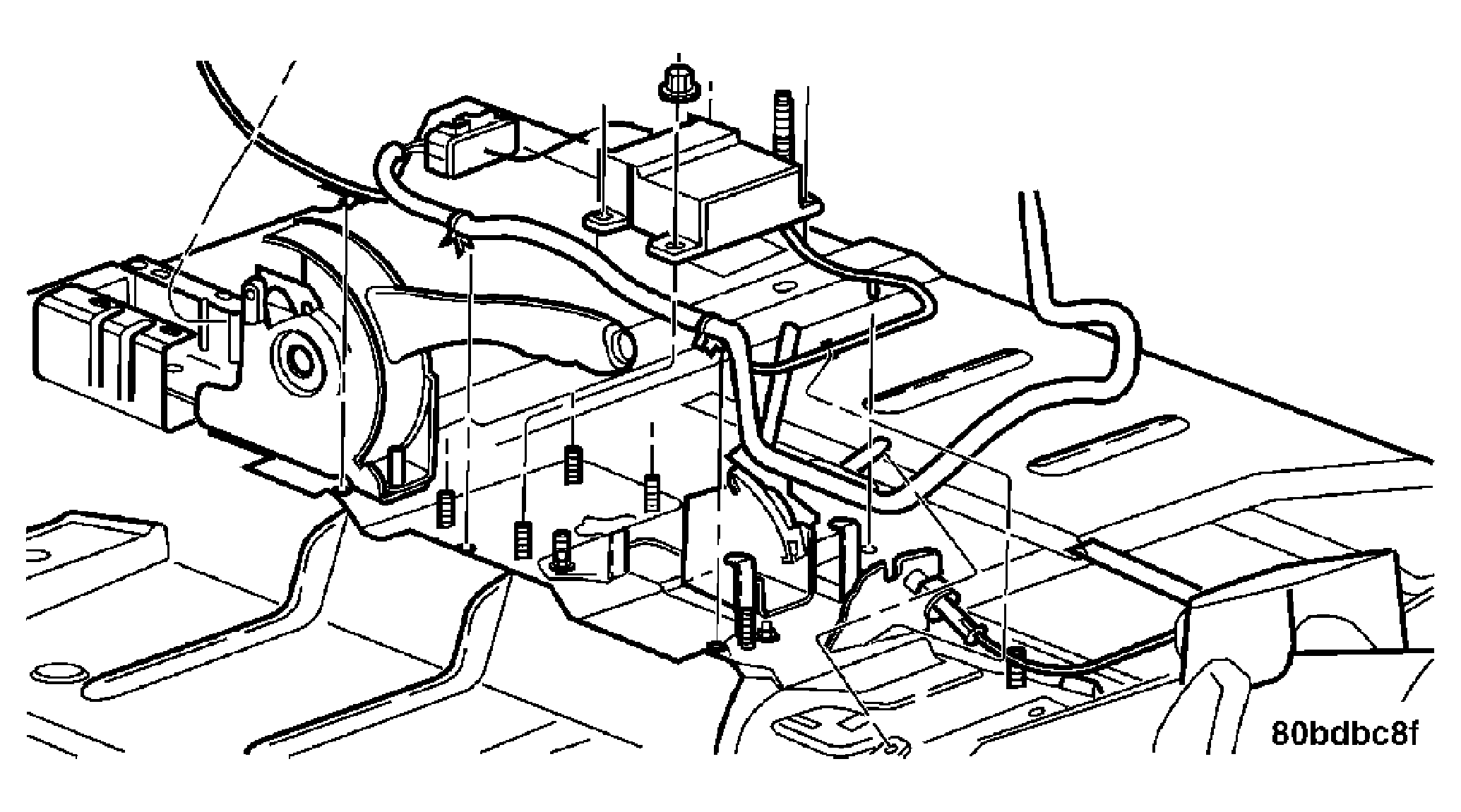

    Fig 1: Airbag Control Module (ACM) Remove/Install
    GC0019990Courtesy of DAIMLERCHRYSLER CORP.
  5. Disconnect ACM 23-way connector.
  6. Remove ACM from vehicle.
