Throttle Control Cable: Installation

  1. Install grommet into dashpanel.
  2. From the engine compartment, push the housing end fitting into the dashpanel grommet.

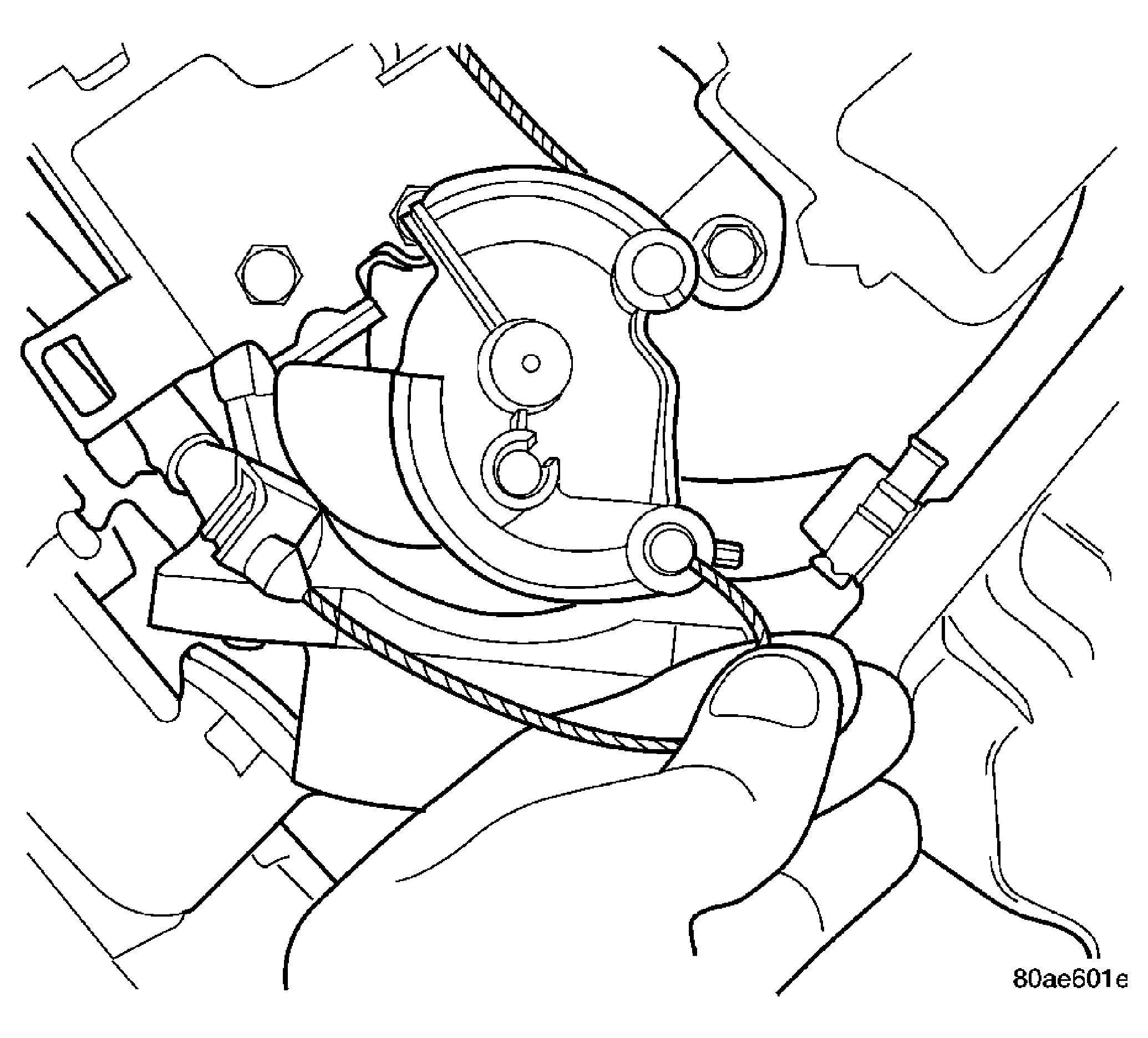

  3. From the engine compartment, rotate the throttle lever forward to the wide open position and install cable clasp. See Figure.
  4. Install cable housing (throttle body end) into the cable mounting bracket on the engine.
  5. Install throttle cable cover.
  6. From inside the vehicle, hold up pedal and feed throttle cable core wire through hole in upper end of the pedal shaft. Install cable retainer. See Figure .
  7. Install cable retainer clip. See Figure.
  8. Install grommet into dashpanel.
  9. From the engine compartment, push the housing end fitting into the dashpanel grommet.
  10. From the engine compartment, rotate the throttle lever forward to the wide open position and install cable clasp. See Figure.
  11. Install cable housing (throttle body end) into the cable mounting bracket on the engine.
  12. From inside the vehicle, hold up pedal and feed throttle cable core wire through hole in upper end of the pedal shaft. Install cable retainer. See Figure.
  13. Install cable retainer clip. See Figure.
  14. Install the hose from the turbo to air cleaner box at the turbo and tighten clamp.
  15. Install the air cleaner box and install the hose from the turbo to air cleaner box and tighten clamp.
  16. Connect the negative battery cable.
