Charts And Graphs

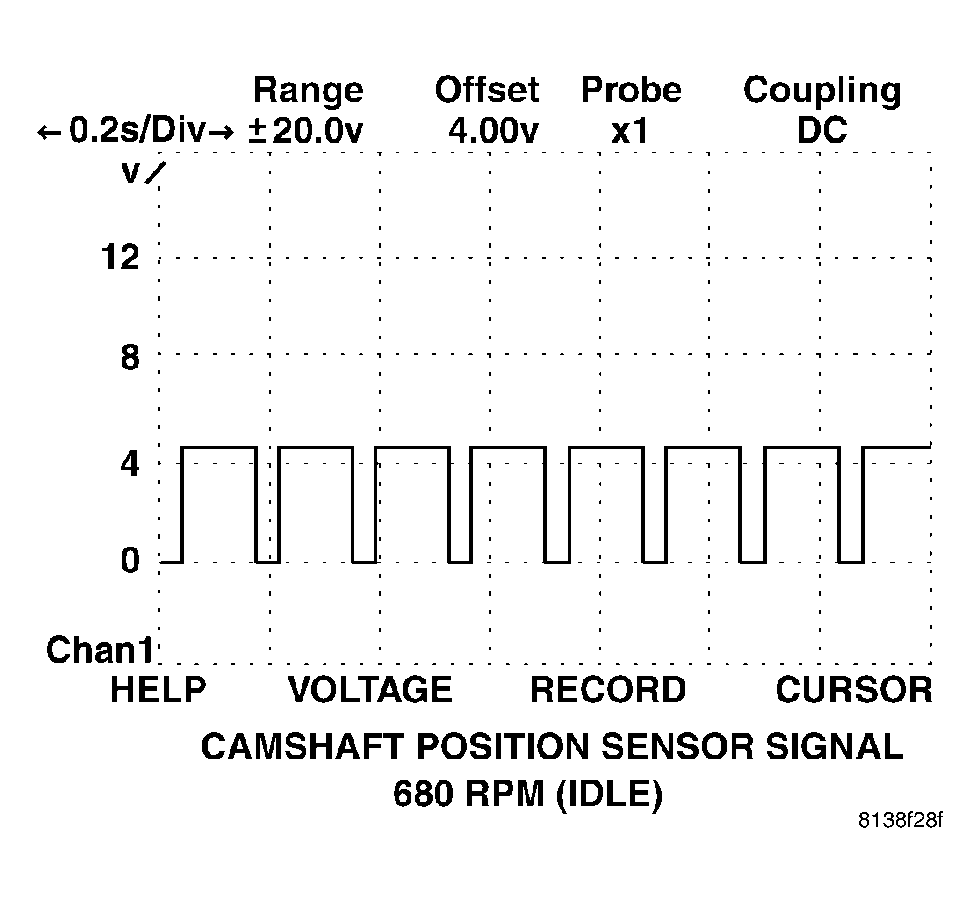

Fig 1: Camshaft Position Sensor Signal
G04536663Courtesy of DAIMLERCHRYSLER CORP.

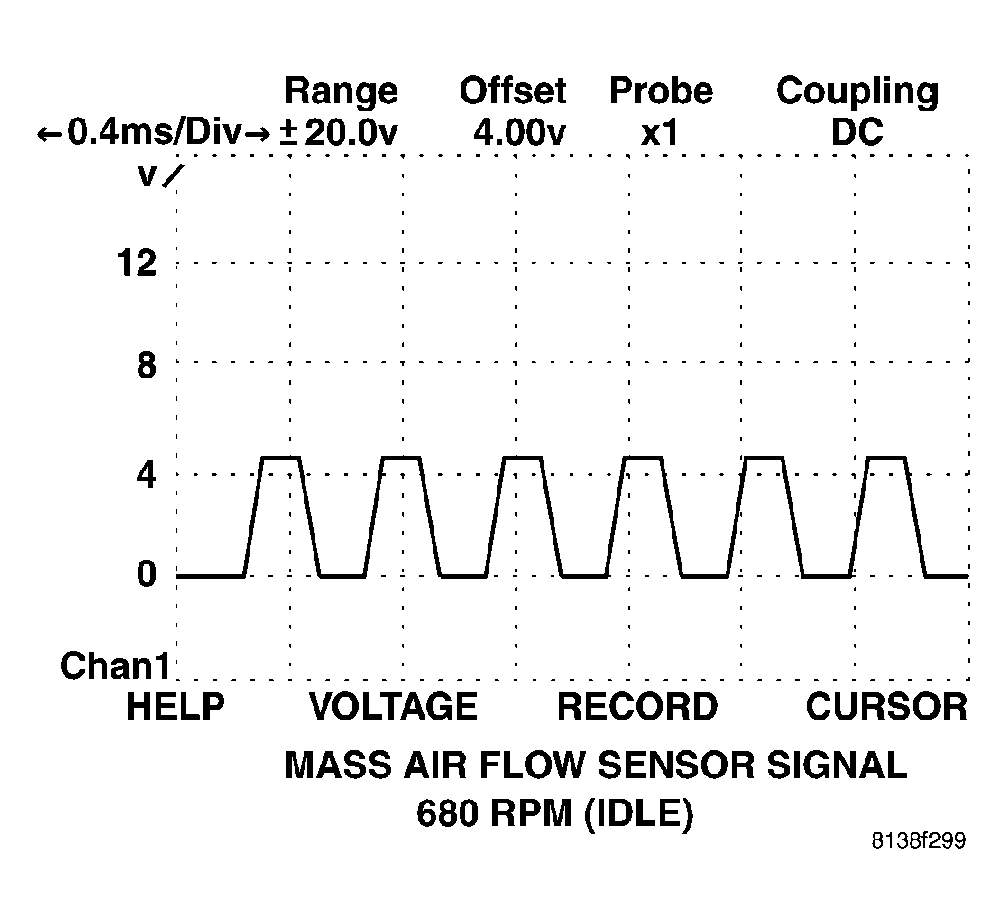

Fig 2: Mass Air Flow Sensor Signal
G04536664Courtesy of DAIMLERCHRYSLER CORP.

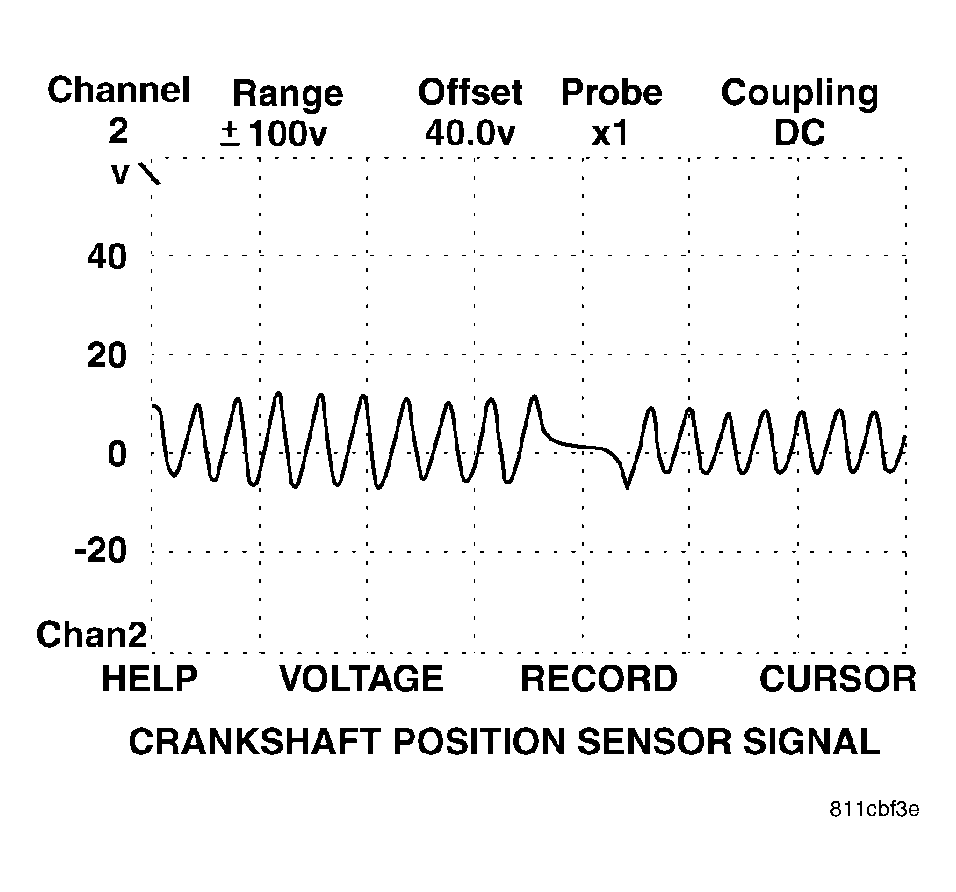

Fig 3: Crankshaft Position Sensor Signal
G04536665Courtesy of DAIMLERCHRYSLER CORP.

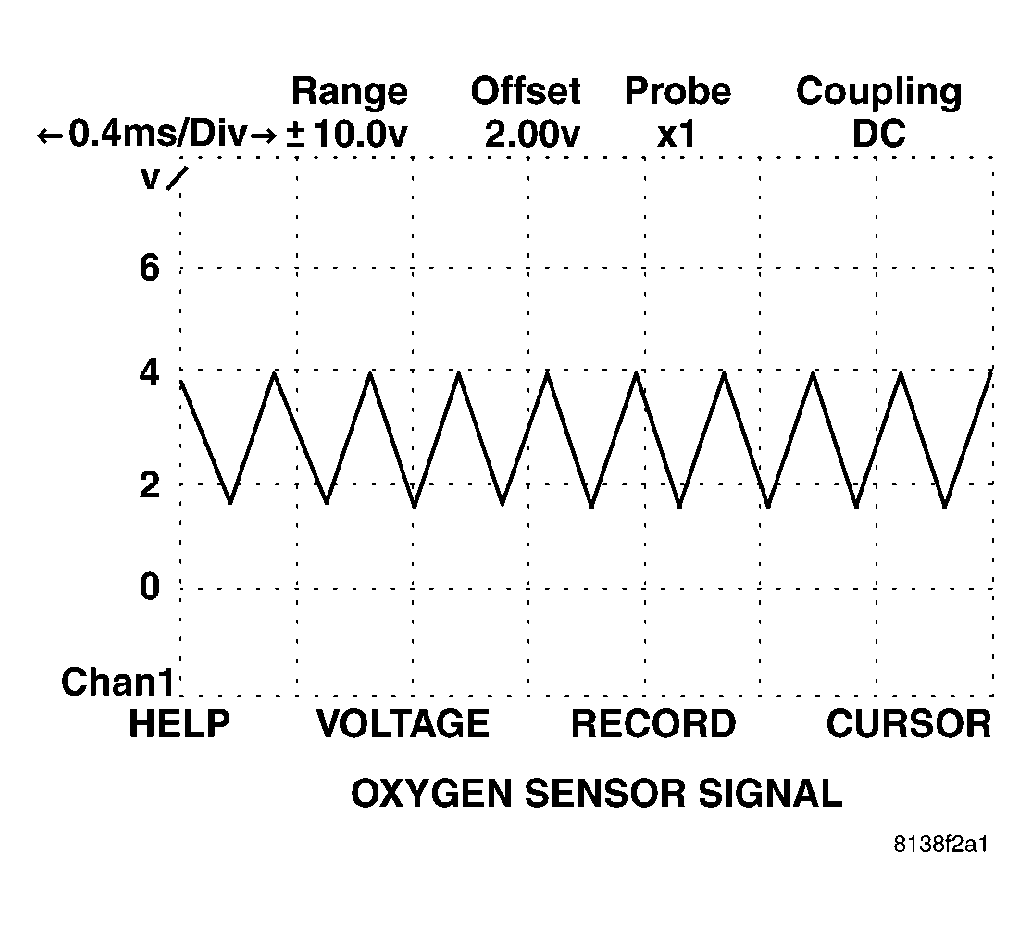

Fig 4: Oxygen Sensor Signal
G04536666Courtesy of DAIMLERCHRYSLER CORP.
