O2 Sensor Locations

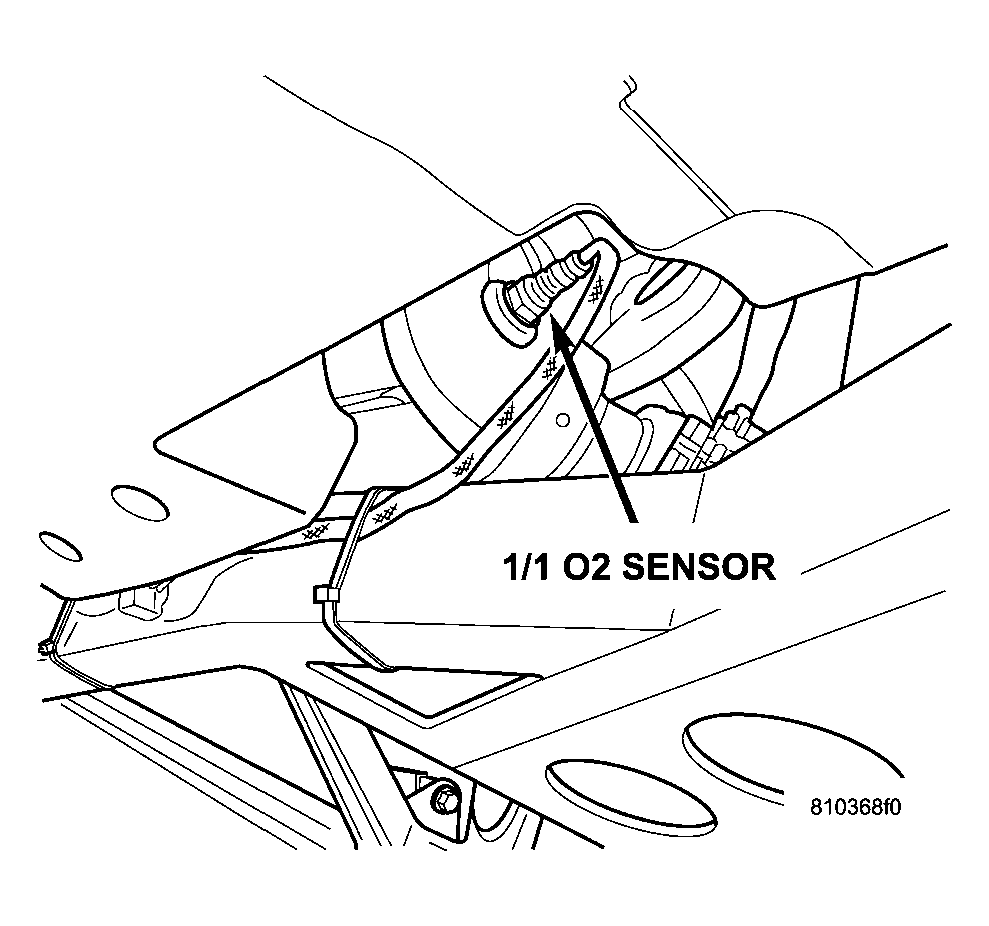

Fig 1: Identifying 1/1 O2 Sensor

G04550305

Courtesy of DAIMLERCHRYSLER CORP.

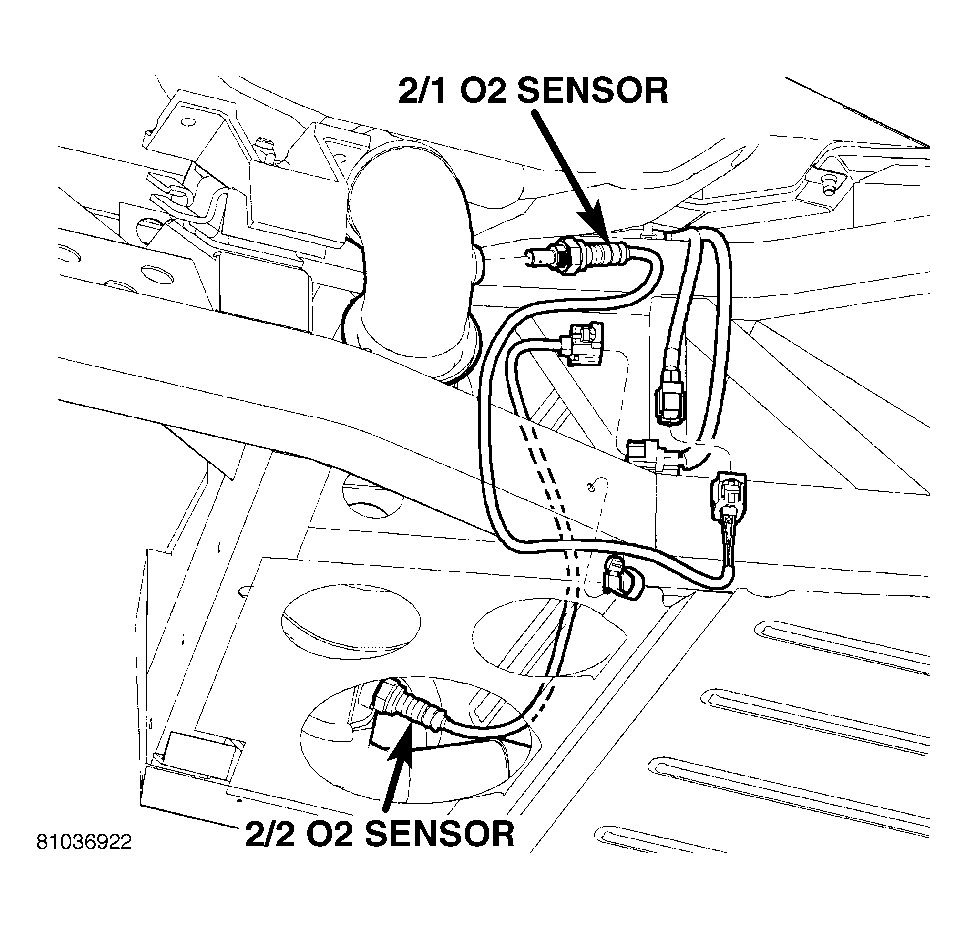

Fig 2: Identifying 2/1 O2 Sensor And 2/2 O2 Sensor

G04550306

Courtesy of DAIMLERCHRYSLER CORP.
