Valve, One Way Check: Installation: Installation

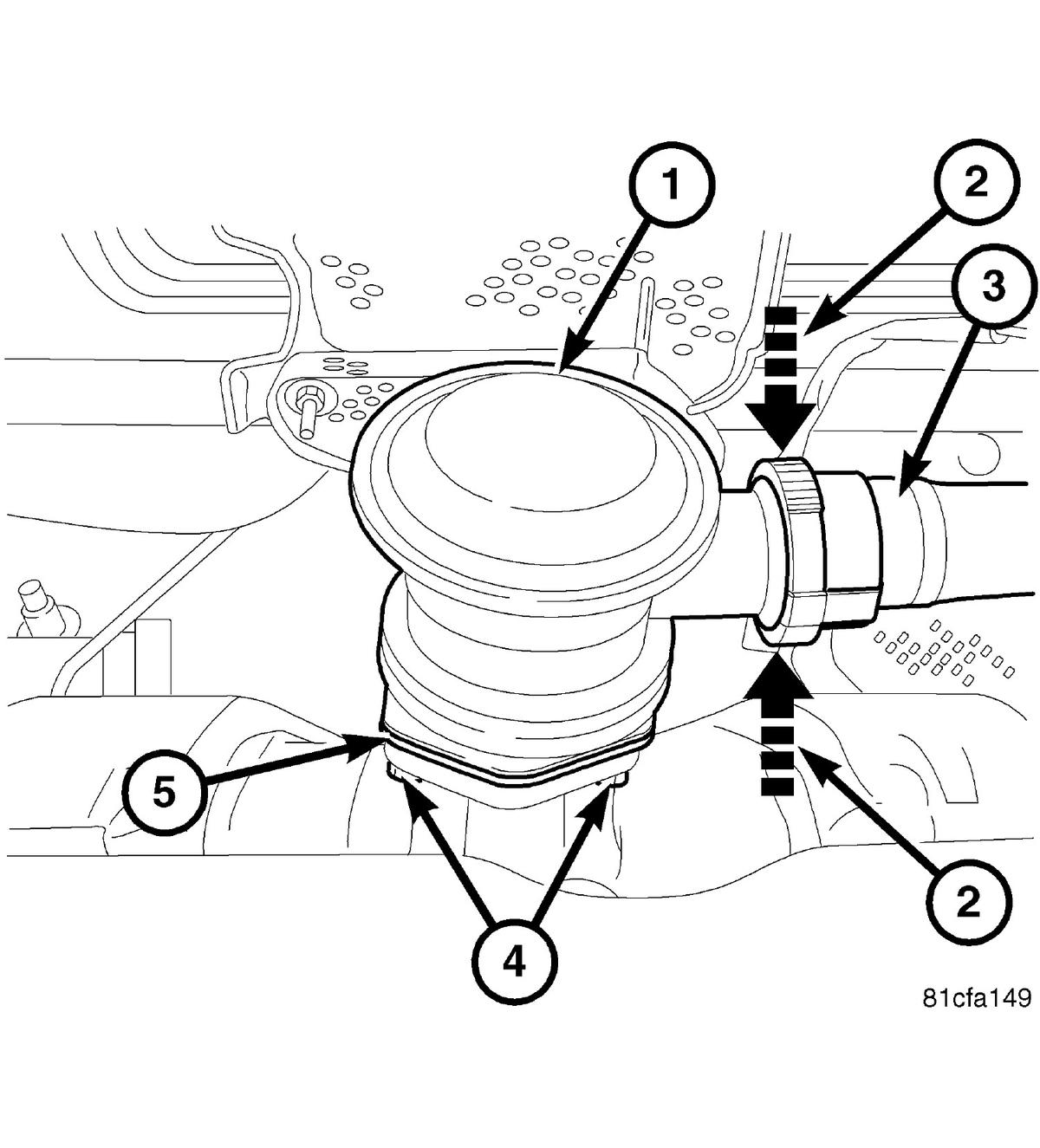

Fig 1: Air Injection Check Valve
GC0099922Courtesy of CHRYSLER LLC
NOTE:

Make sure the old gasket material is completely removed from the mounting flange.

  1. Install new gasket (5) and one way check valve (1) to the exhaust manifold flange.
  2. Install the one way check valve mounting bolts (4) and tighten to 12 N.m (105 in. lbs.).
    NOTE:

    The quick connect fitting on the air outlet tube is slotted to fit the one way check valve. Line the slot up when making the connection.

  3. Install the connecting tube (3) to the one way check valve (1). A click noise will indicate a good connection.
  4. Install the engine cover.
