Power Distribution: Relay: Installation: Installation

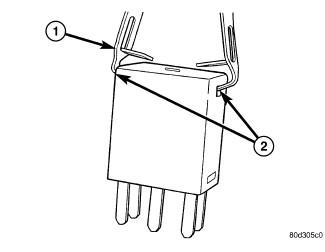

Fig 1: Special Tool & Relay

Courtesy of CHRYSLER LLC

1. Align relay (2) with Totally Integrated Power Module (TIPM) and press into position.
2. Install cover to TIPM.
3. Connect battery negative cable.
