Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

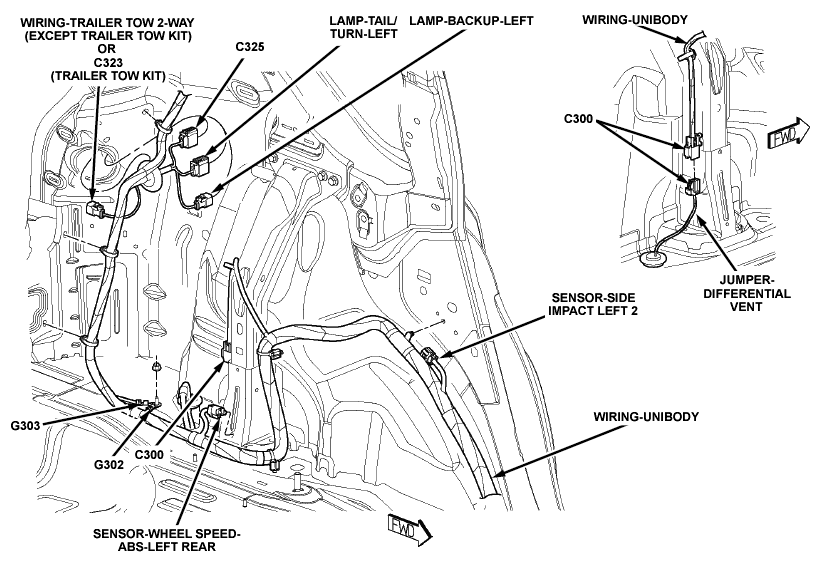

Fig 1: Under Rear Of Vehicle
Courtesy of CHRYSLER LLC

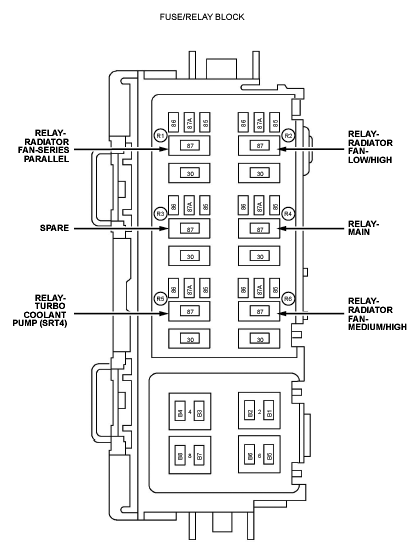

Fig 2: Fuse/Relay Block
Courtesy of CHRYSLER LLC

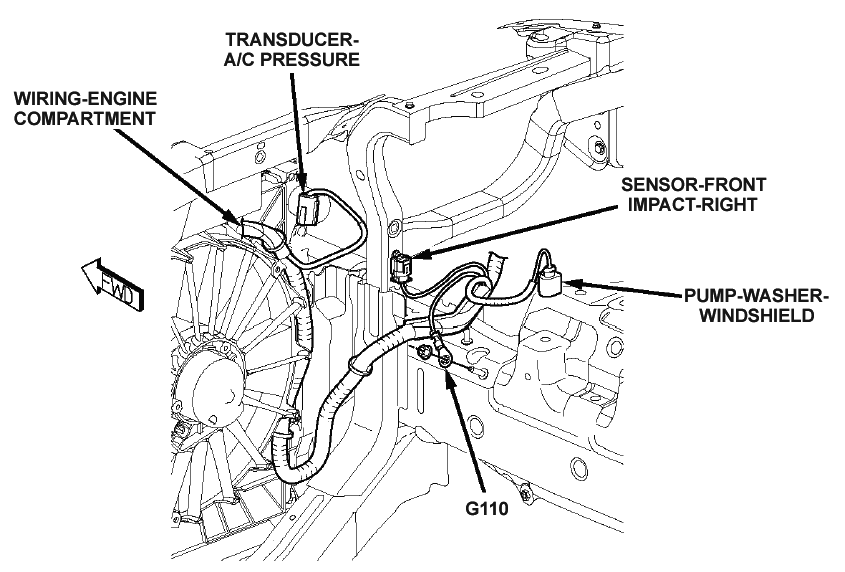

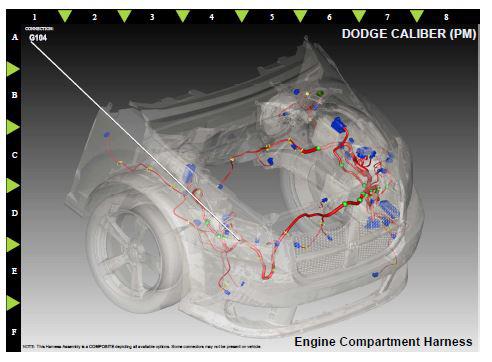

Fig 3: Right Front Of Engine Compartment
Courtesy of CHRYSLER LLC

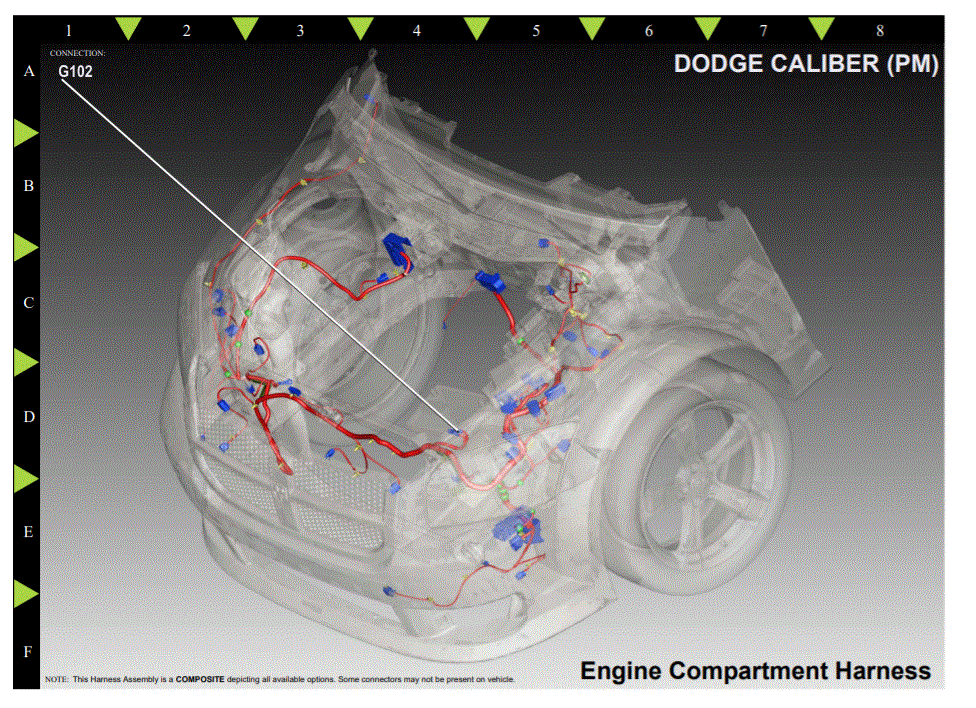

Fig 4: Front Of Engine Compartment
Courtesy of CHRYSLER LLC
Fig 5: Steering Column
Courtesy of CHRYSLER LLC
Fig 6: Right "B" Pillar
Courtesy of CHRYSLER LLC

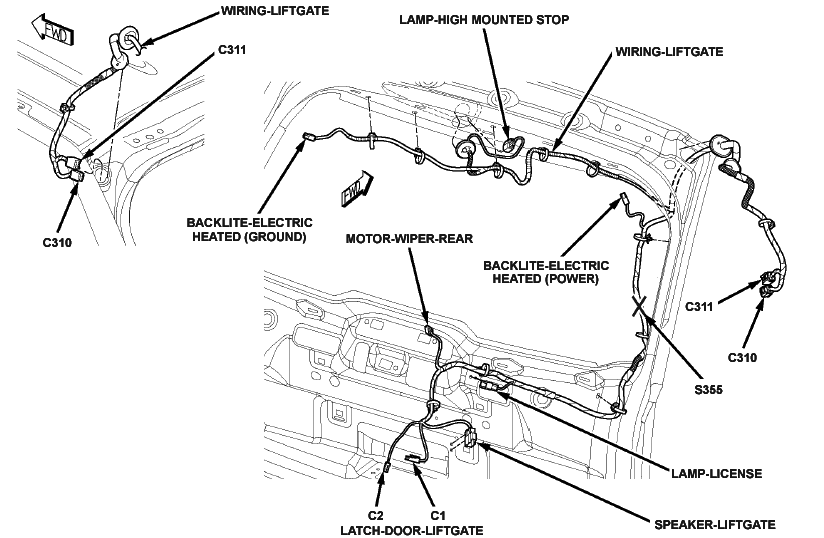

Fig 7: Liftgate
Courtesy of CHRYSLER LLC
Fig 8: Right Side Of Engine Compartment
Courtesy of CHRYSLER LLC
Fig 9: Left Side Of Engine Compartment
Courtesy of CHRYSLER LLC

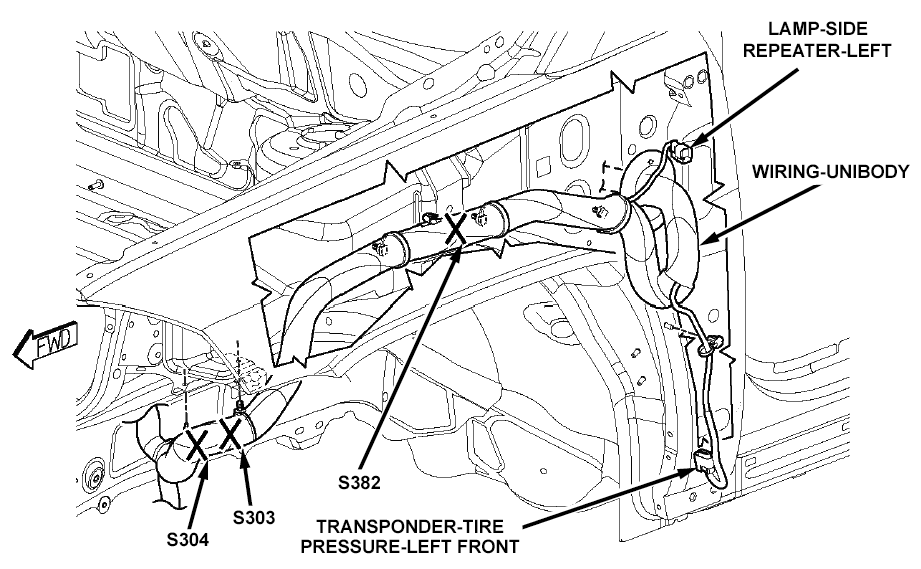

Fig 10: Left Front Wheelwell
Courtesy of CHRYSLER LLC

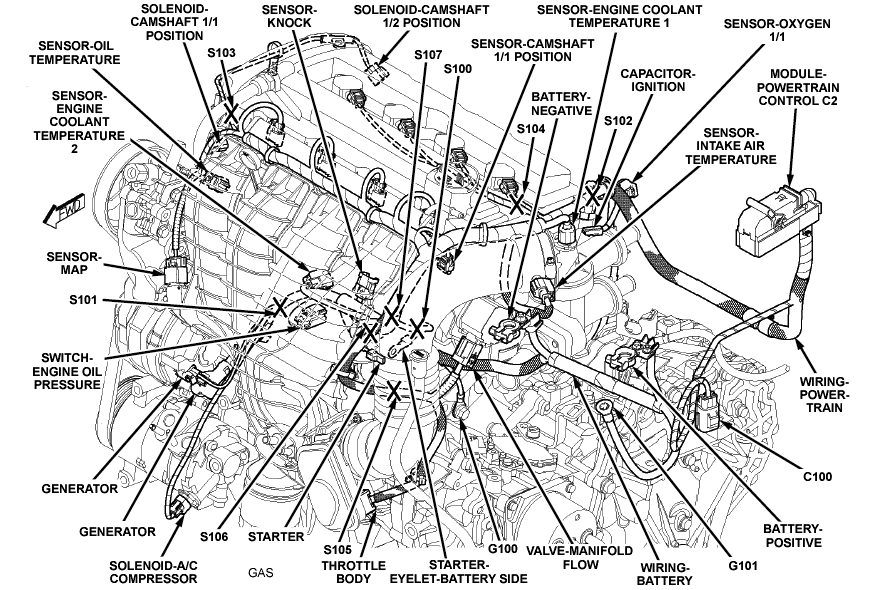

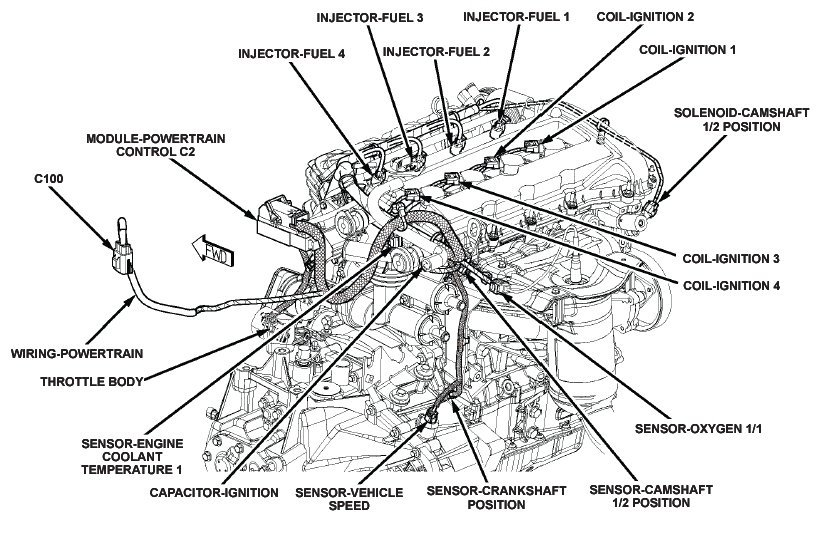

Fig 11: Engine
Courtesy of CHRYSLER LLC
Fig 12: Center Of Dash
Courtesy of CHRYSLER LLC
Fig 13: Behind Left End Of Dash & Kick Panel
Courtesy of CHRYSLER LLC
Fig 14: Center & Right Side Of Dash
Courtesy of CHRYSLER LLC

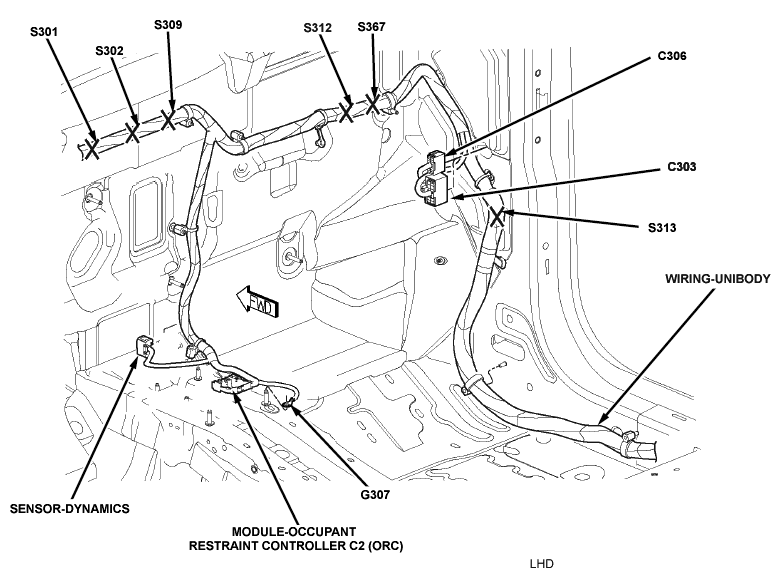

Fig 15: Left "B" Pillar
Courtesy of CHRYSLER LLC

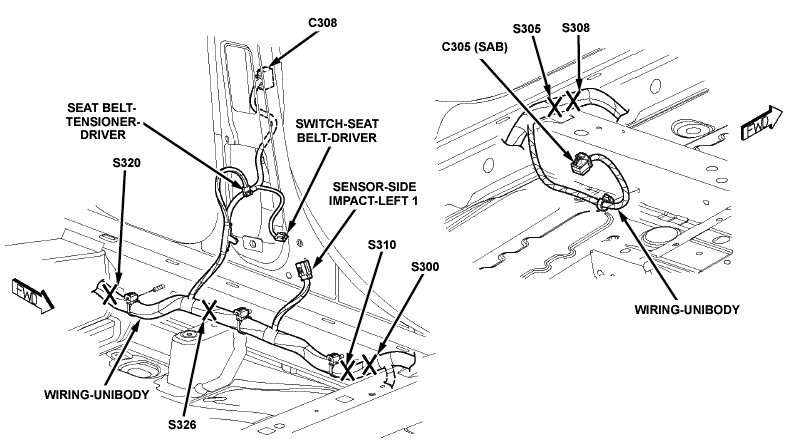

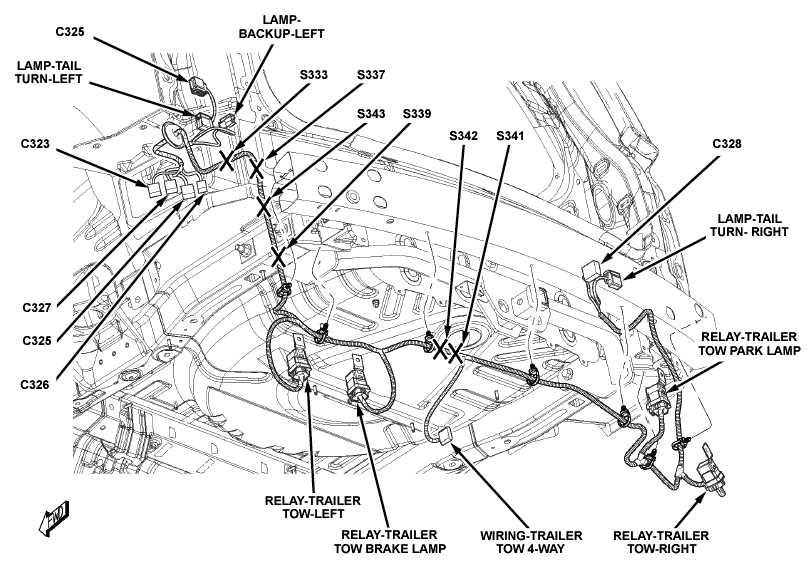

Fig 16: Left Rear Of Vehicle
Courtesy of CHRYSLER LLC

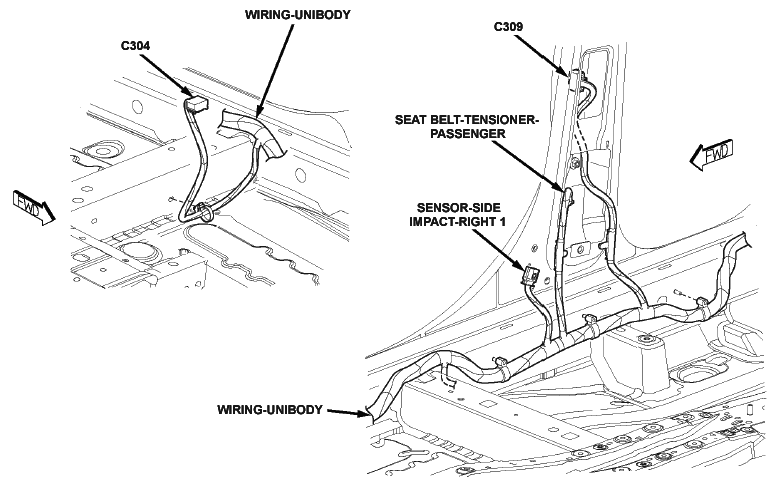

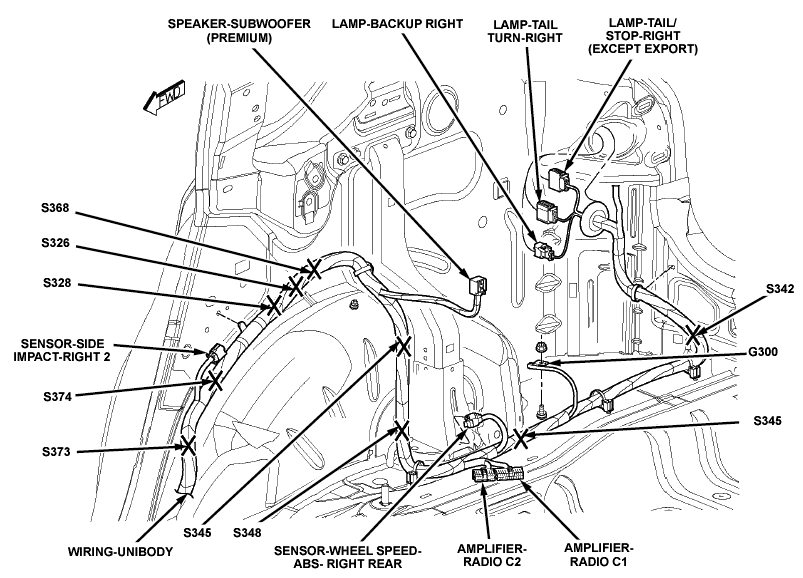

Fig 17: Right Rear Of Vehicle
Courtesy of CHRYSLER LLC

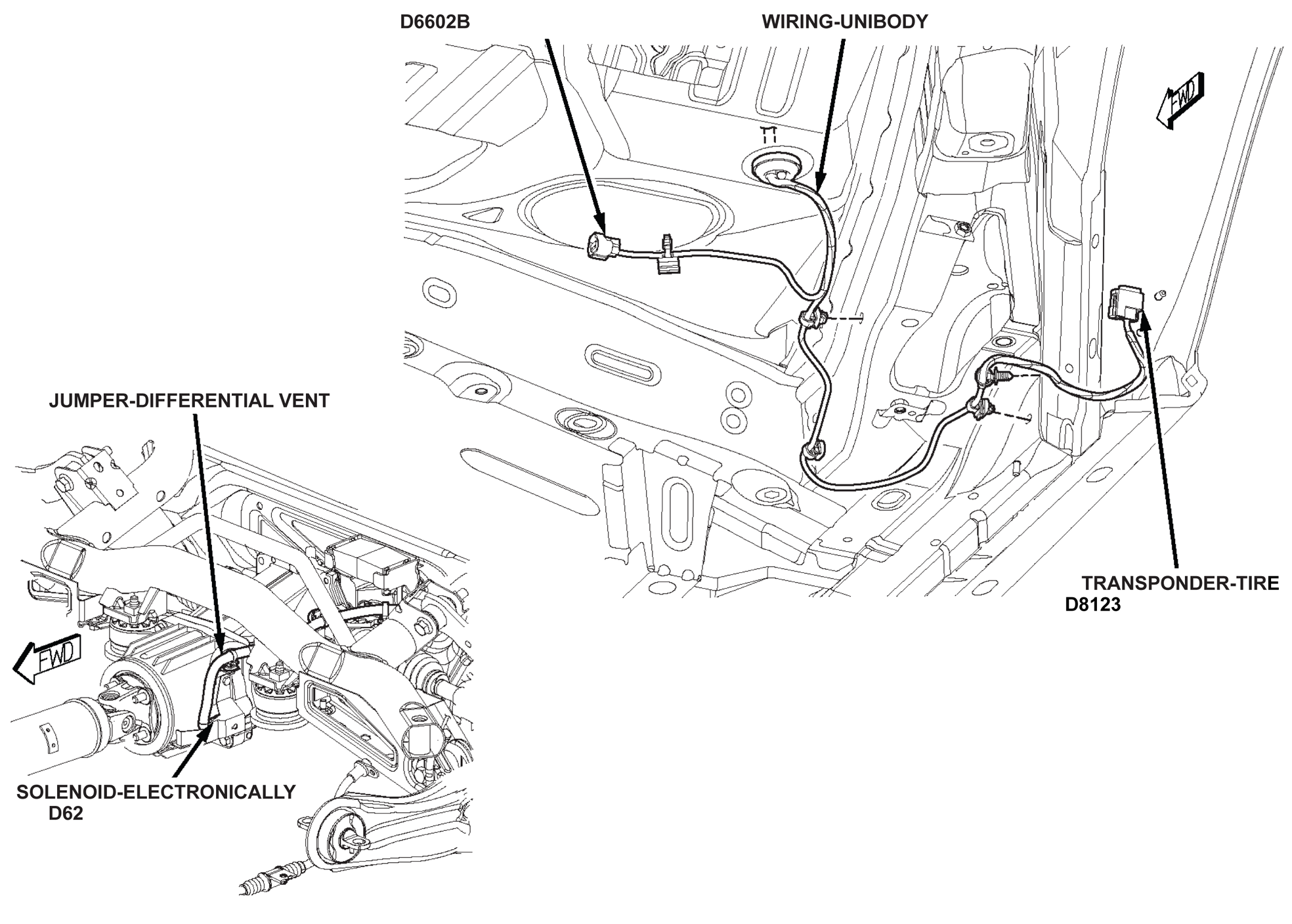

Fig 18: Under Rear Of Vehicle
Courtesy of CHRYSLER LLC

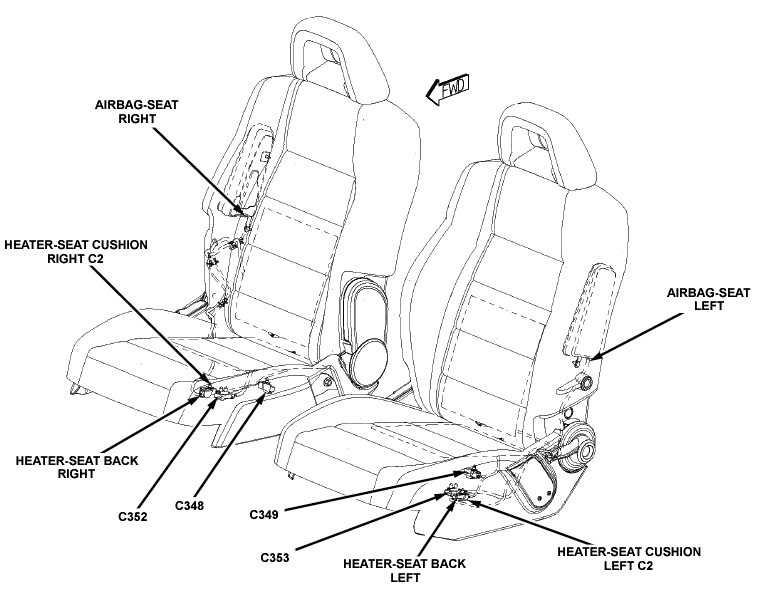

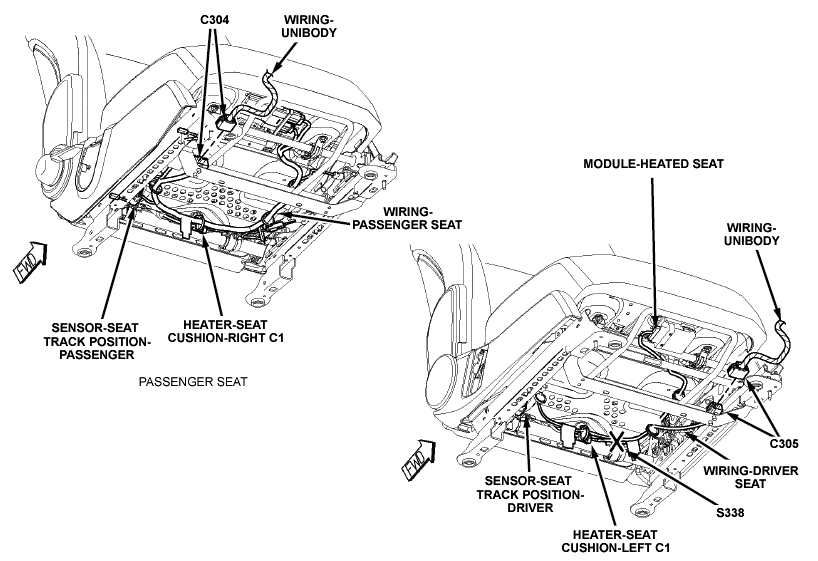

Fig 19: Under Driver & Front Passenger's Seat
Courtesy of CHRYSLER LLC
Fig 20: Front Seats
Courtesy of CHRYSLER LLC
Fig 21: Dash
Courtesy of CHRYSLER LLC

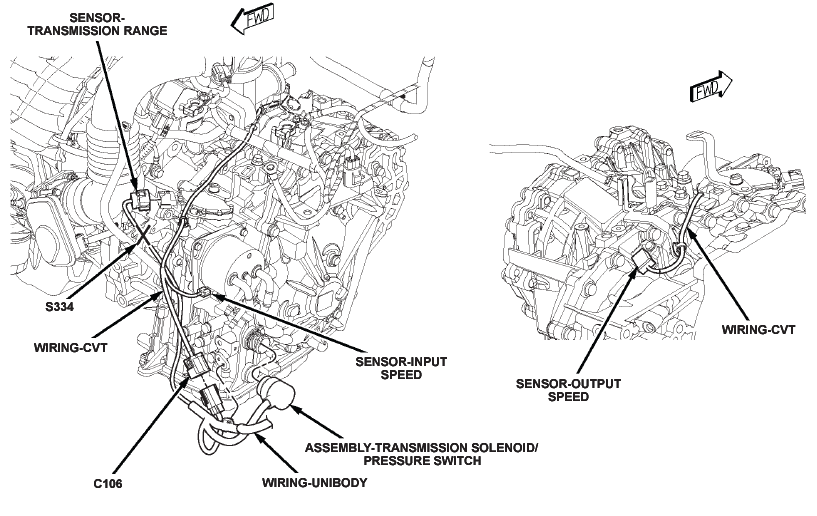

Fig 22: Transmission
Courtesy of CHRYSLER LLC

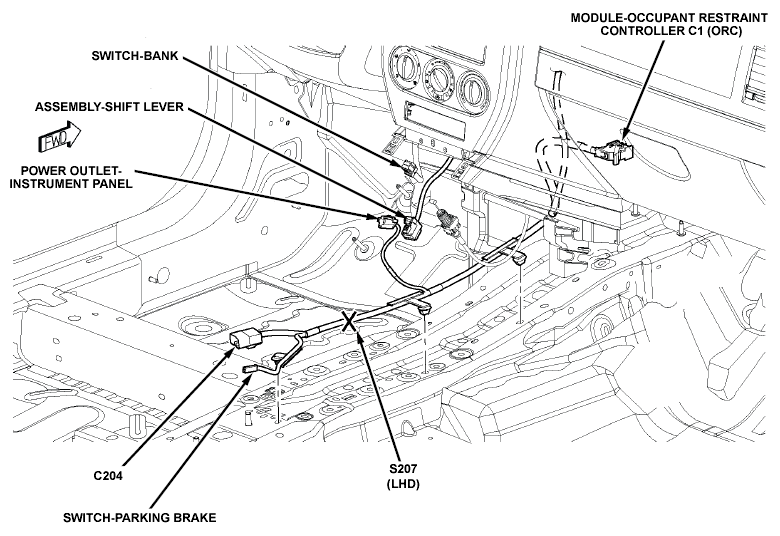

Fig 23: Under Center Console
Courtesy of CHRYSLER LLC

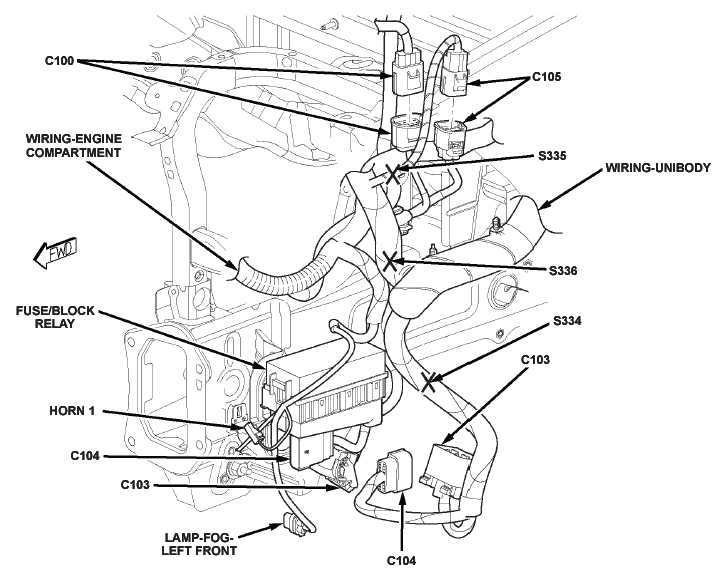

Fig 24: Left Front Of Engine Compartment
Courtesy of CHRYSLER LLC
Fig 25: Top Of Engine
Courtesy of CHRYSLER LLC
Fig 26: Left Side Of Engine Compartment
Courtesy of CHRYSLER LLC

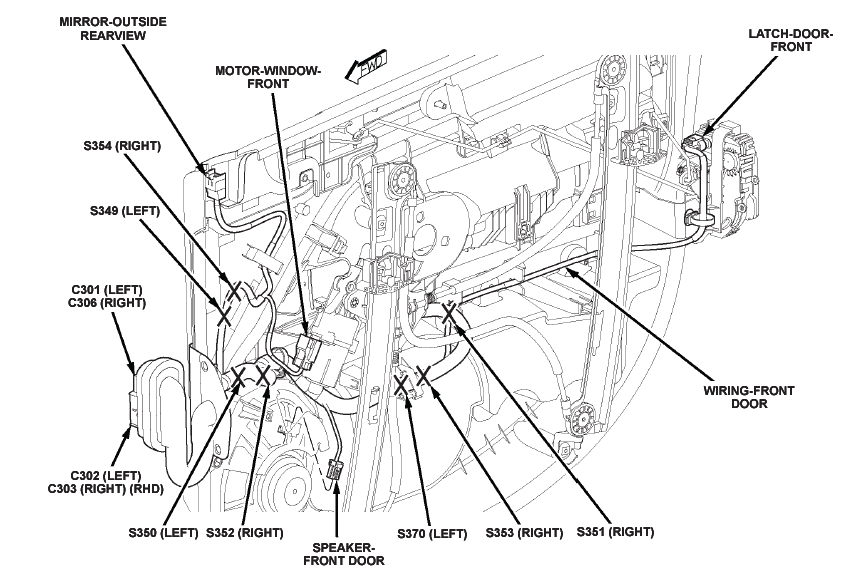

Fig 27: Right Front Door
Courtesy of CHRYSLER LLC

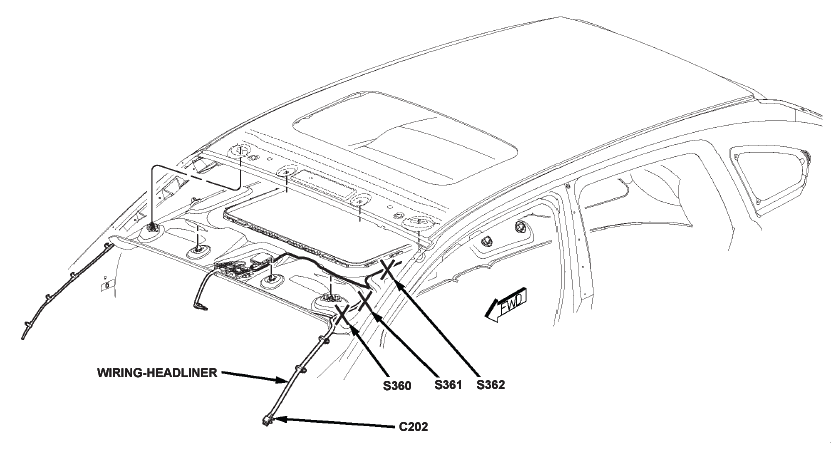

Fig 28: Headliner
Courtesy of CHRYSLER LLC
Fig 29: Right Rear Underbody
Courtesy of CHRYSLER LLC
Fig 30: Right Front of Engine Compartment
Courtesy of CHRYSLER LLC
Fig 31: Left Front Of Engine Compartment
Courtesy of CHRYSLER LLC
